3K Full Carbon Fiber TrueX XL5 V2 232mm/ XL6 V2 283mm / XL7 V2 294mm / XL8 V2 360mm/XL9 V2 390mm Arm 4mm Freestyle Frame for FPV
Drone Spark
Regular price
$263.99
$614.99
|
Descriptions:
This freestyle frame gives you ultimate control over weight distribution and CoG by not only allowing
the use of M3x28mm standoff but also offering a reversible build orientation for a true mid-mount set up.

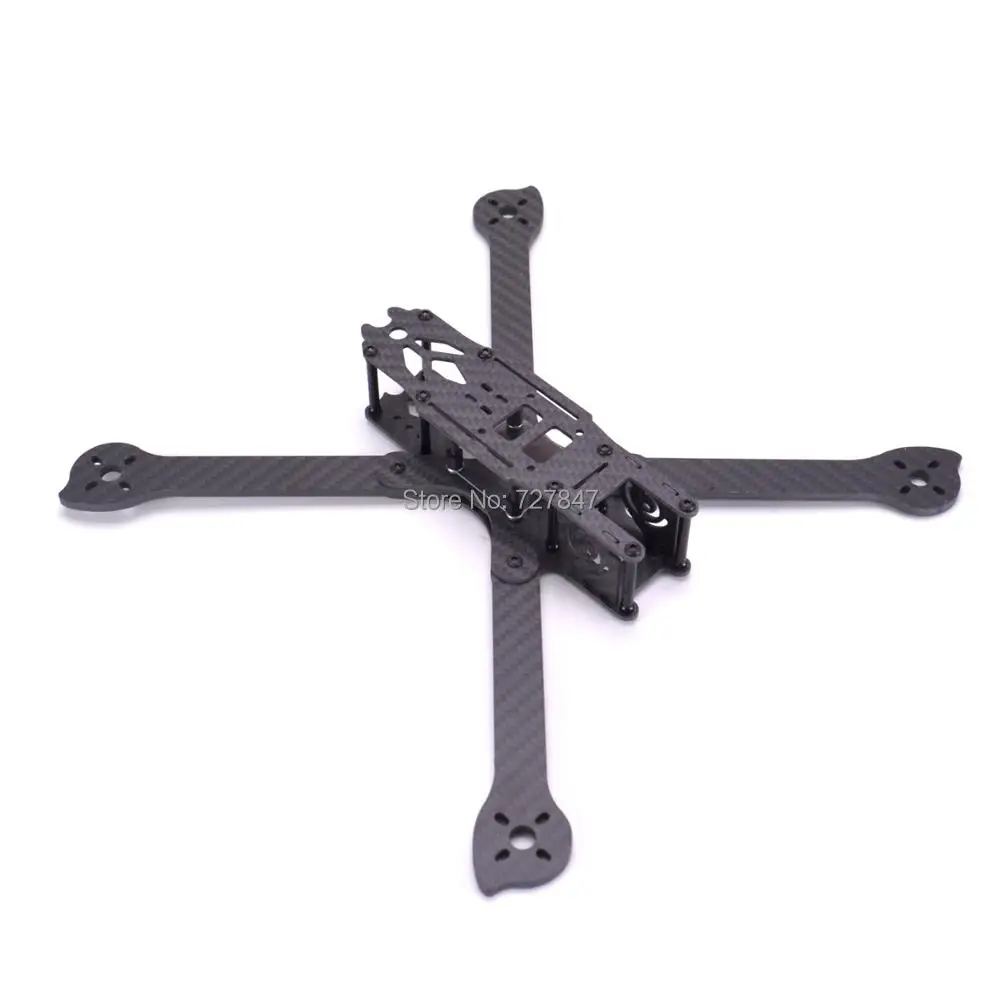

XL5 V2 True X 5 inch 232mm FPV Freestyle Frame Kit
|
|
Features:
- Top mounted battery for optimal CG
- True X frame design
- Replaceable 4mm arms and plates
- High quality 3K full carbon
- 7075 T10 high quality screw hardware
- Compact design
Specifications:
- Type: 5" Freestyle frame
- 4mm arms,2mm top plate
- Frame weight:115.6g approx
- Motor to Motor Size:226mm
- Carries: 1300-1500mAh lipo + GoPro Session
XL6 6 inch 283mm Long Range FPV Freestyle Frame Kit
Descriptions:
This freestyle frame gives you not only ultimate control over weight distribution and option allowing the use of gorpo size camera gimbal.
but also offering a reversible build orientation for a true mid-mount set up.
Features:
- Top mounted battery for optimal CG
- Replaceable 4mm arms and plates
- High quality 3K full carbon
- 12.9 class nickel palted high quality screw hardware
- Compact design
- Compatible with gorpo size camera gimbal
Specifications:
- Type: 6" Freestyle frame
- 4mm arms,
- 2mm top plate
- 2mm bottom plate
- 2mm upper plate
- Frame weight:126.9g approx
- Motor to Motor Size:265mm
- M3x30mm standoff
- 30to 80ratcheting camera angle adjustment
Recommended parts (not included):
- Type: 6" Freestyle frame
- 4mm arms,2mm top plate
- Frame weight:130g approx
- Motor to Motor Size:265mm
- Dimensions :mm x mm(body dimension)
- M3x30mm standof
- 30to 80ratcheting camera angle adjustment
XL7 V2 True X 7 inch 294mm Long Range FPV Freestyle Frame Kit
Features:
- Top mounted battery for optimal CG
- True X frame design
- Replaceable 4mm arms and plates
- High quality 3K full carbon
- 7075 T10 high quality screw hardware
- Compact design
Specifications:
- Type: 7" Freestyle frame
- 4mm arms,2mm top plate
- Frame weight:128.3g approx
- Motor to Motor Size:281mm
- Carries: 1300-1500mAh lipo + GoPro Session
- Dimensions :330mm x 120mm(body dimension)
Recommended parts(not included):
- Flight controller: RevoBee F4 Compatible controller
- Motor: iPower the force 2207 Motor 1600kv
- Propeller: 7 inch propeller
- Camera: FPV cameras such as RunCam Swift / Foxeer Camera with 2.1/2.5/2.8 wide angle lens
- VTX: 600mW 48Ch Transmitter
- Battery: 4s Lipo battery
XL8 8 inch 360mm FPV Freestyle Frame Kit
Features:
- Top mounted battery for optimal CG
- True X frame design
- Replaceable 4mm arms and plates
- High quality 3K full carbon
- 7075 T10 high quality screw hardware
- Compact design
Specifications:
- Type: 8" Freestyle frame
- 4mm arms,2mm top plate / Bottom plate
- Motor to Motor Size: 360mm
- Weight : 143.3g
- Carries: 1300-1500mAh lipo + GoPro Session
XL9 9 inch 390mm FPV Freestyle Frame Kit
Features:
- Top mounted battery for optimal CG
- True X frame design
- Replaceable 4mm arms and plates
- High quality 3K full carbon
- 7075 T10 high quality screw hardware
- Compact design
Specifications:
- Type: 9" Freestyle frame
- 4mm arms,2mm top plate / Bottom plate
- Motor to Motor Size: 390mm
- Carries: 1300-1500mAh lipo + GoPro Session
- 1 x XL5 5inch 232mm/ XL6 6inch 283mm / XL7 V2 True X 7inch 294mm / XL8 8inch 360mm / XL9 9inch 390mmFrame Kit (as your choice)
-1 x battery belt
|
