• Name: T900 intelligent tank chassis

• Material: aluminum alloy

• Surface treatment: sandblasting oxidation

• Color: golden yellow/silver

• Caterpillar: engineering plastic

• Size: 550 * 280 * 110 mm (length * width * height)

• Weight: 3.8 kg

• More details, please visit: https://github.com/SmartArduino/SZDOITWiKi/wiki to download the source code and the documents.

Motor Parameters(25mm 9V DC Motor):

• Name: 25mm gear motor

• Output speed: 150±10%rpm

• No_load Current: 200mA (Max)

• Stall current: 4500mA(max)

• Stall torque: 9.5kgNaN

• Rated speed: 100±10%rpm

• Rated torque: 3000gNaN

• Rated Current: 1200mA (Max)

• Noise: 56dB

• Working voltage: 9V

• Outside Shaft Length: 14.5mm

• Shaft End Play: 0.05-0.50mm

• Screw Size: M3.0

• Dia. Of Shaft phi4mm, D3.5

• encoder: 2 pulses/circle

Motor parameters(12V DC Motor):

• Voltage: 12V DC

• RPM: 320RPM

• Current: 0.55A

• Diameter: 25mm

• Height (excl. shaft): 68mm

• Shaft length: 9.5mm

• Shaft diameter: 4mm

• Weight: 180g

• Brand new and unused

• Torque: 13kg.cm

• max effective point: load 4.0kg.cm/235rpm/2.5W/0.58A

• Max power: load 7kg.cm/215rpm/3.1w/0.65A

• Stall current: 4.8A

​

• T900 tank chassis: 1 set

• Controller kit: 1set

• Without battery

Note:   For the convenience of transport, the tank chassis is the bulk delivery. Please contact us to get the installation manual or visit our official wiki: wiki.doit.am.

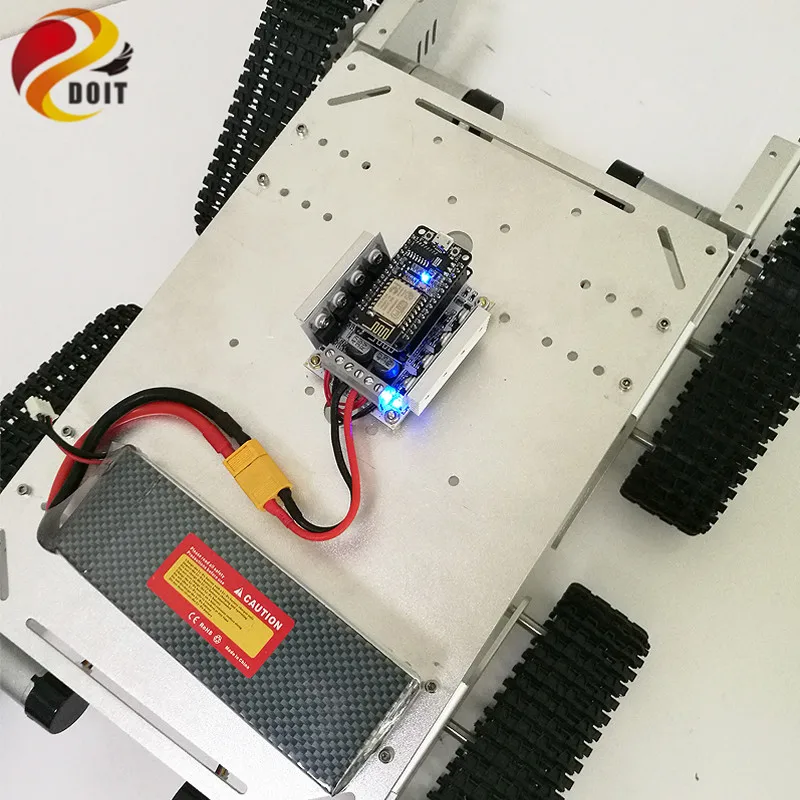

Note: the control kit has updated, we will send the below control kit to you.
