Frsky XM XM+ PLUS receiver Micro D16 SBUS Full Range Receiver Up to 16CH for Taranis X9D Plus, X9D Lite, X-LITE

Frsky XM, XM+ PLUS rec Micro D16 SBUS Full Range Receiver Up to 16CH for Taranis X9D Plus, X9D Lite, X-LITE

100% FrSky Brand New!

Spare Antenna for XM/ XM+/ RXSR receiver in this linking!

SBUS TO PWM DECORDER

For XM Receiver:

Compatibility:
FrSky X-series Module & X9D & X9DP &X9E & X12S in D16 mode. (XM does not work with D-series Module)

• Brand name: Frsky

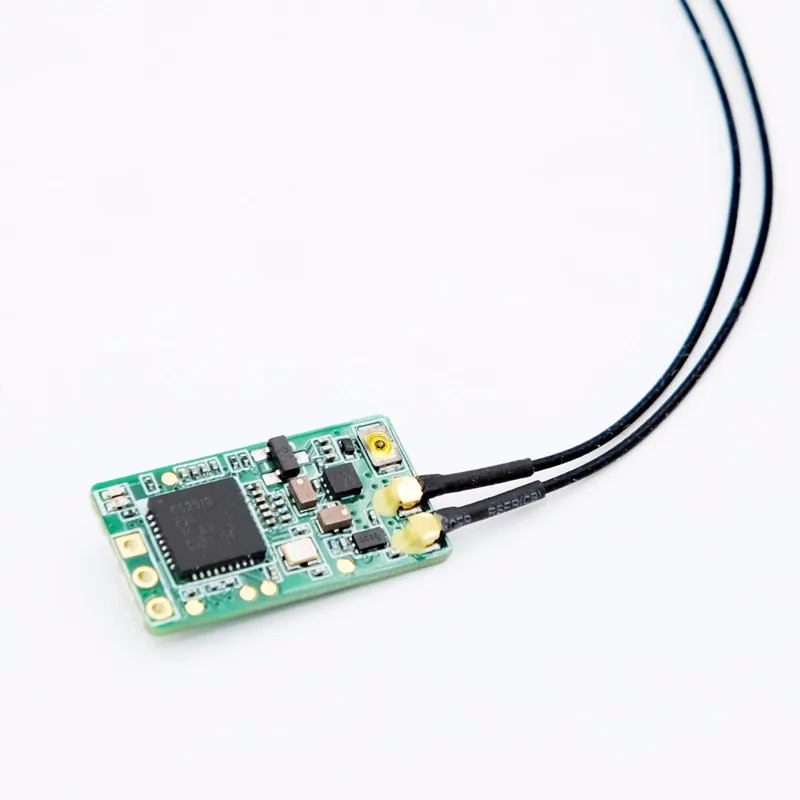

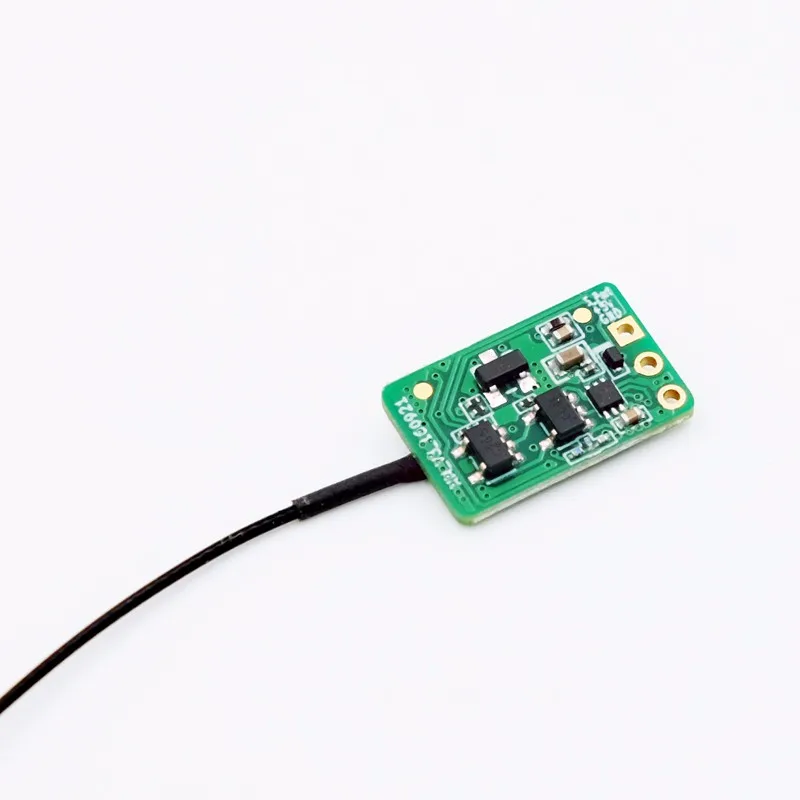

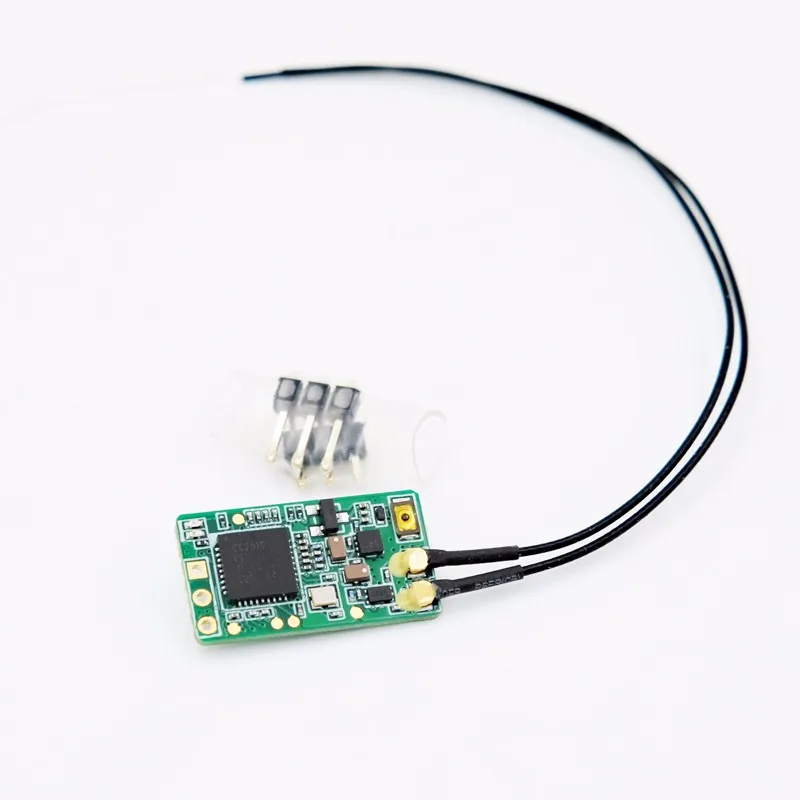

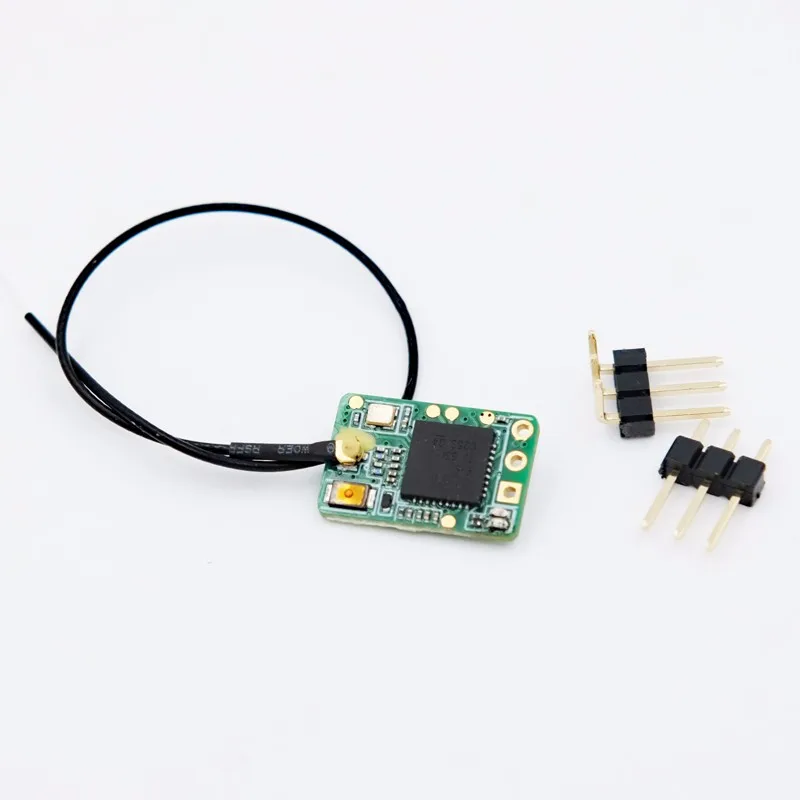

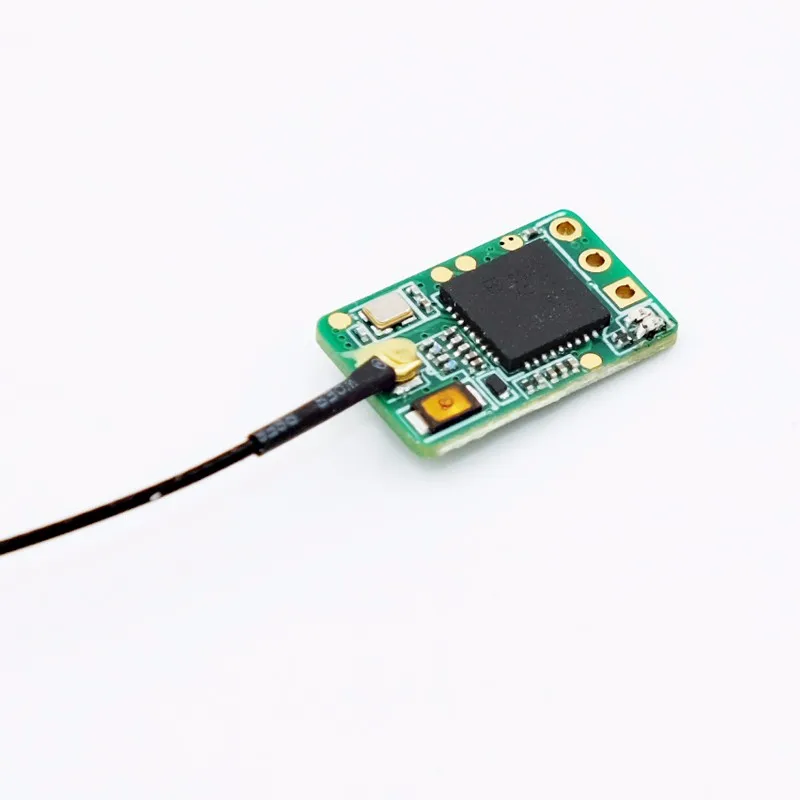

  Item name: XM receiver
  Number of Channels:Up to 16CH from SBUS(CH1~CH15 for PWM, CH16 RSSI for FC
  Operating Voltage Range:3.5~10V
  Operating Current:20mA@5V
  Operating Range:>600m
  With RSSI output on board:Analog 0~3.3V
  Firmware Upgradeable
  Compatibility:FrSky D16 mode
  Dimension:15x10x3.5mm(LxWxH)
  Weight:1g

For XM Plus(XM+) Receiver:

Compatibility:
FrSky X-series Module & X9D & X9DP &X9E & X12S in D16 mode. (XM+ does not work with D-series Module)

• Specification
  – Dimension: 21.5*12*3.5mm(L x W x H)
  – Weight: 1.6g
  – Number of Channels: Up to 16CH from SBUS (1-15ch for PWM,16ch RSSI for FC)
  – Operating Voltage Range: 3.7~10V
  – Operating Current: 30mA @5V
  – Operating Range: Full range
  – With RSSI output on board: Analog 0~3.3V
  – Firmware Upgradeable
  – Compatibility: FrSky D16 mod

X 1 Piece of XM or XM Plus receiver

Please attention choose the US FCC  version or LBT version when order!

* EU/LBT firmware is particular for European Union Countries Frequency regulations.  For other countries customer are order US FCC Version firmware.
