Metal Chassis Frame, Steering Engine Steering Robot Car Chassis , Obstacle Avoidance , Velocity ,Universal Wheel

Introduction

       the car chassis for aluminum alloy, the resistance to hit, anti-throw, double motor drive (37 mm dc gear motor, all metal gear reducer)Strong, run quickly, high stability, can be forward backward, steering gear control turn left turn right, and make the front swinging, because the car is made by hand,Size a bit error, but does not affect the use, the whole frame design are screws, buyers can adjust the frame width and steering Angle,If you have other technical questions to consult with the seller.

        More details, please visit: https://github.com/SmartArduino/SZDOITWiKi/wiki

Parameters

•     Size: 362.5mm*192mm*96mm(Length*Width*Height)

•     Tires: high quality tyre diameter of 85 mm wear

•     Rated voltage: 12 V

Product configuration:


•     Frame: 1 set

•     Motor: after flooding 2 per minute (100, 200, 300, 500, 600, turn left and right)

                                                                                (about 500 RPM) (default 500 RPM)

•     MG995 steering gear  size: 40.8 * 20 * 38 mm

•     Torque: 4.8 V @ 13 kg - cm     6.0V @ 15 kg -  cm

•     Voltage: 4.8 V to 4.8 V

•     Gear: 5 metal gears

Warm Prompt

•     The higher the speed, the faster running

•     The lower speed, to run slower, large torque (suitable for overloading, climbing)

•     90 degrees standard steering gear can also used by 180 degrees, as long as the pulse signal changes into the 500-1500-2500

•     The corresponding Angle is - 90 ~ + 90 degrees

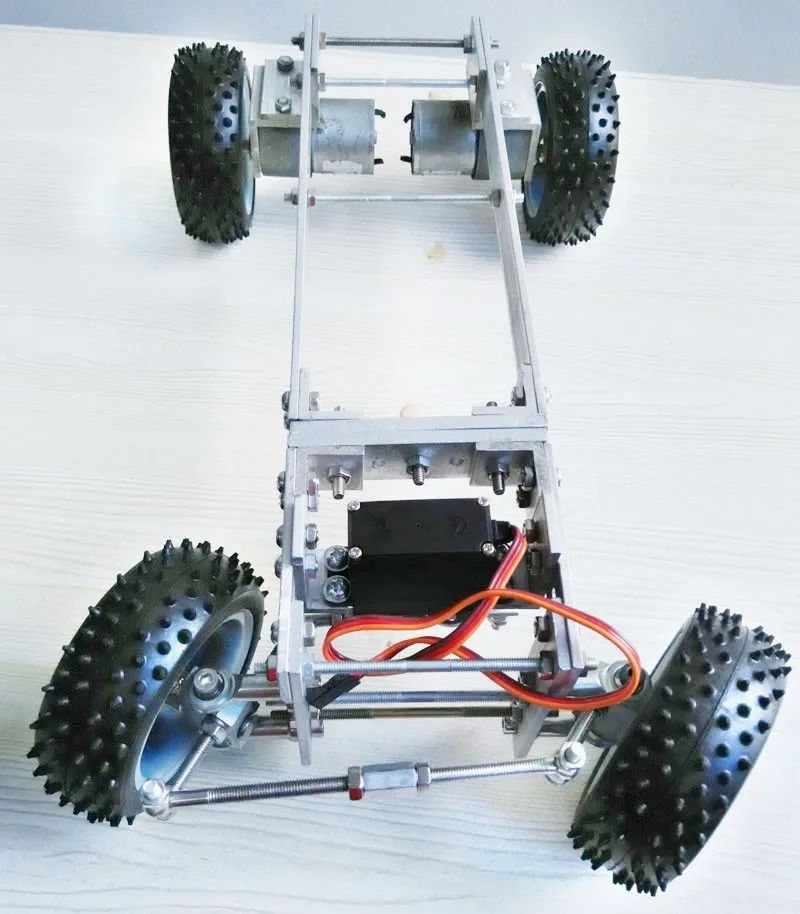

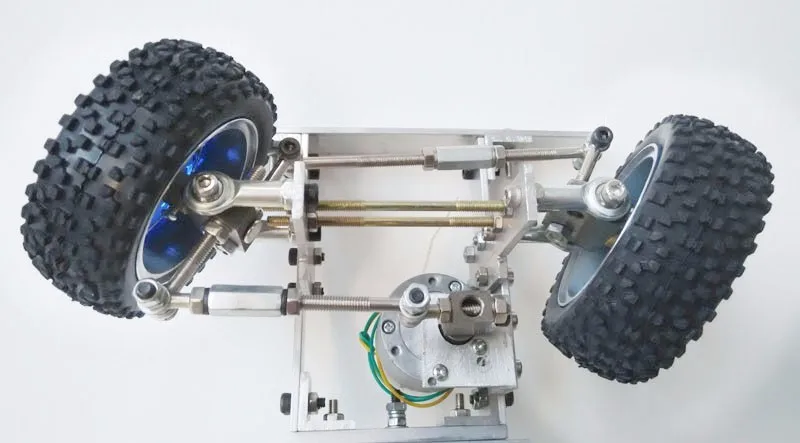

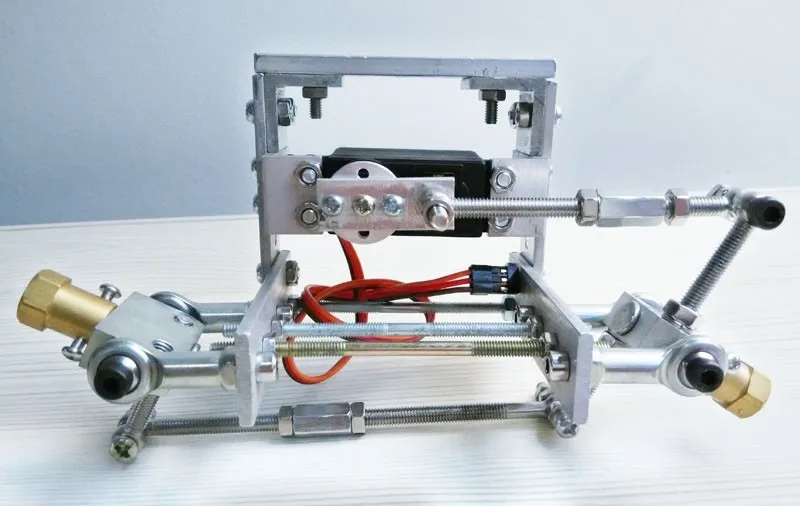

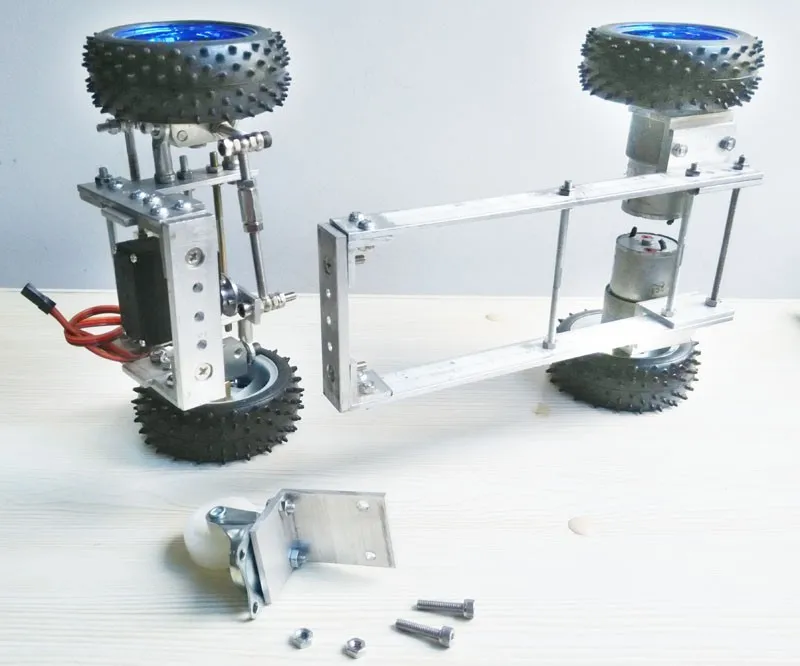

Pictures
