Advantage of coreless motor servo:

High reliability、good stability、strong adaptability,

Low noise、small vibration、smooth operation、long life

product description

No.

工作电压Operating Voltage

5V

6V

7.4V

1

待机电流 Idle current(at stopped)

5mA

5mA

5mA

2

空载转速Operating speed (at no load)

0.13 sec/60°

0.12 sec/60°

0.11sec/60°

3

堵转扭矩Stall torque (at locked)

29 kg-cm

32 kg-cm

35 kg-cm

4

堵转电流Stall current (at locked)

1.9A

2.1 A

2.3A



Sepcification:

Brand:Dsservo

Item: DS3225-25KG and DS3235-35KG Coreless Stainless Steel Gear Waterproof Digital Servo

Operating Voltage: 5 ~ 7.4 DC Volts

Dead brand:   2 μs

Weight: 60 g (2.12 oz)

Motor Type: Coreless Motor

Gear Type: Stainless Steel & Aluminum

Working frequence: 50-333Hz

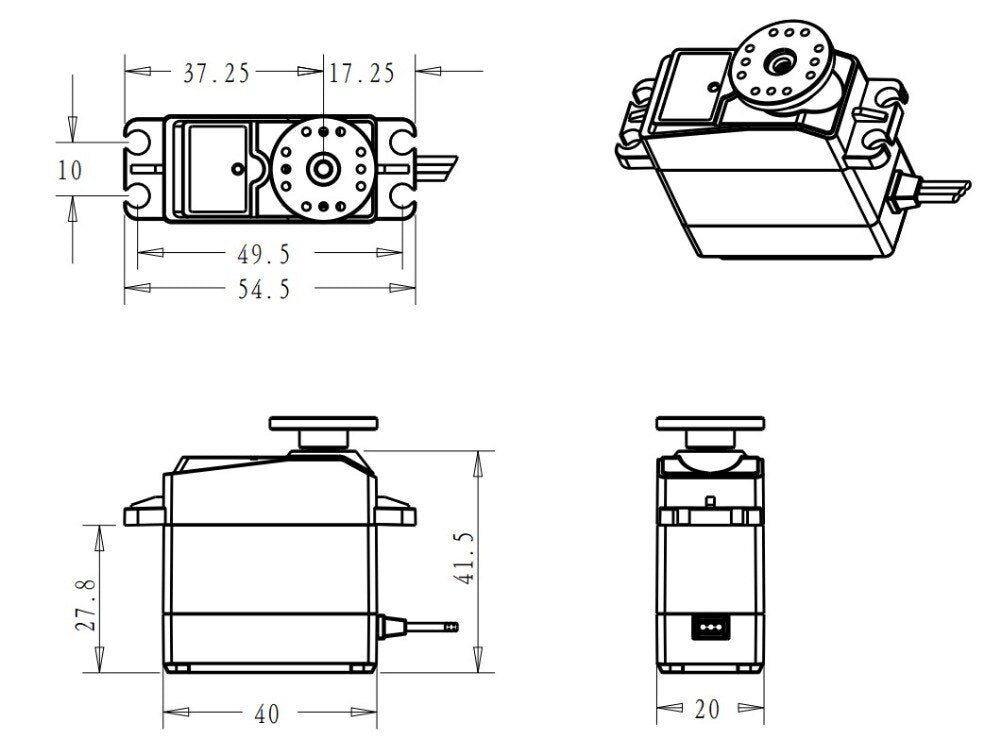

Size: 40 x 20 x 38.5 mm ( 1.58 x 0.79 x 1.50 in)

Features:

- High performance  digital  standard servo
- High-precision metal gears （Stainless steel gear）with hard anodizing
- CNC aluminium middle Shell
- Dual ball bearings

Package Included:
1 x DS3235 35KG Coreless Stainless Steel Gear Waterproof Digital  Servo
1 x 25T Adjustable metal servo arm
a set of accessories

Or
1 x DS3225 25KG Coreless Stainless Steel Gear Waterproof Digital  Servo
1 x 25T Adjustable metal servo arm
a set of accessories


product pictures

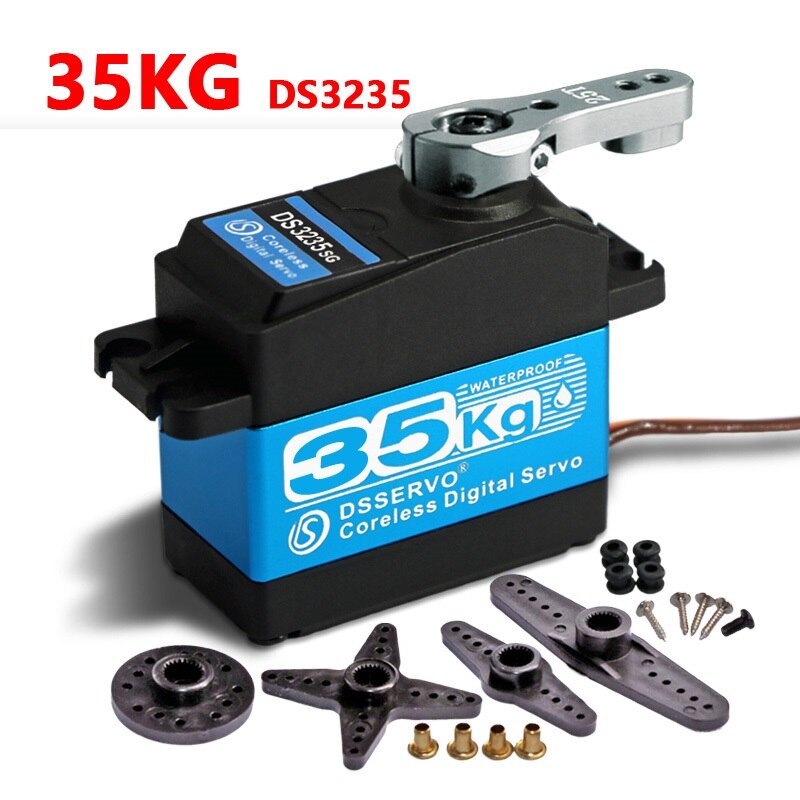

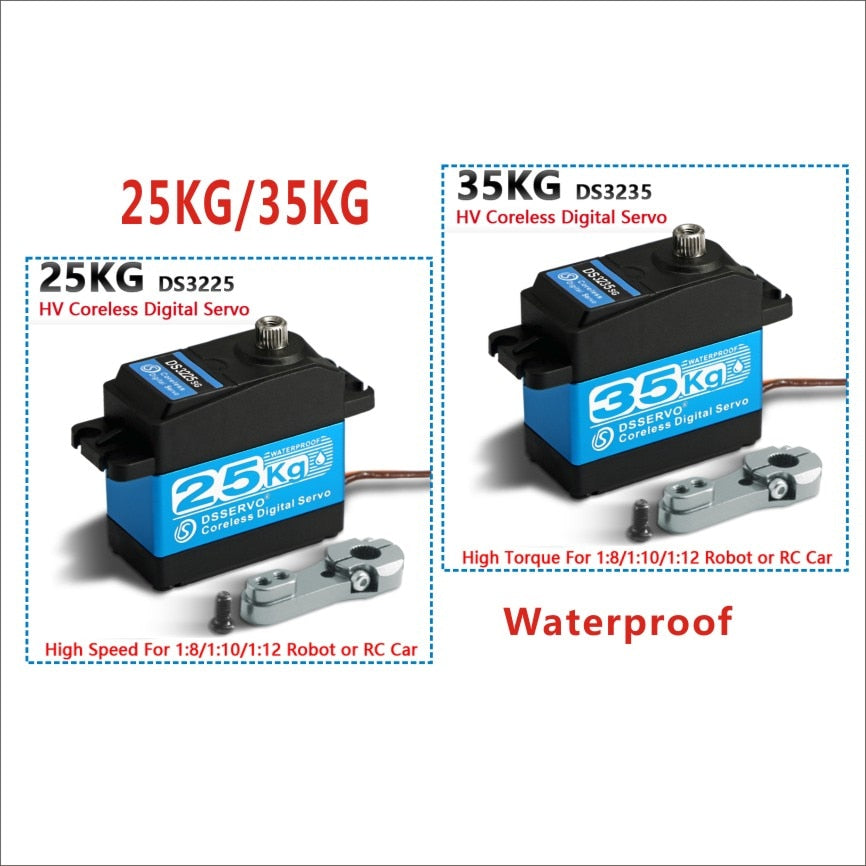

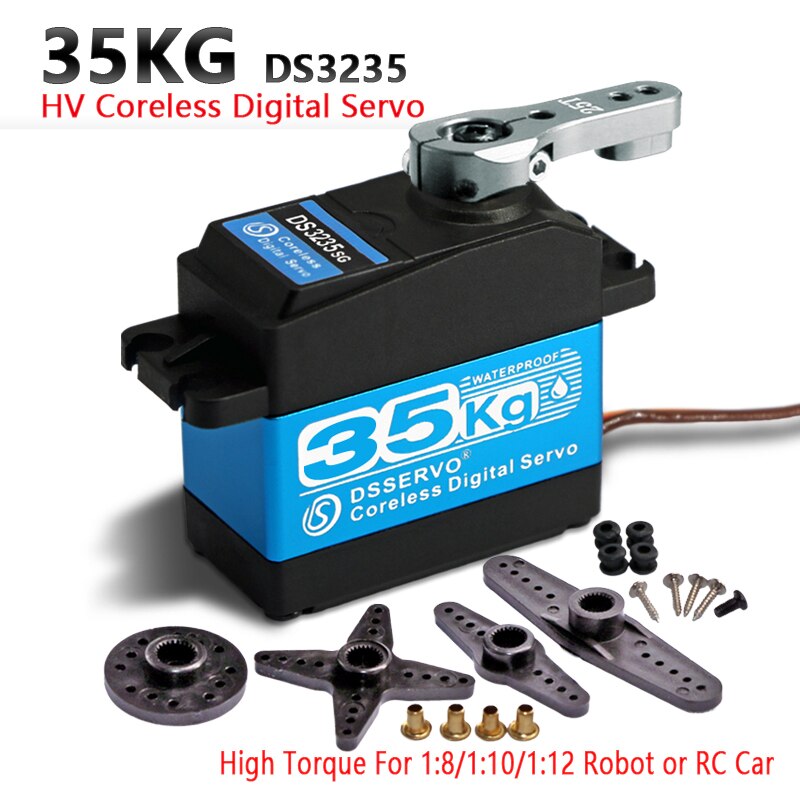

DS3235 Stainless Steel Gear Waterproof Servo

QQ图片20190515102530

ds3235sg-2

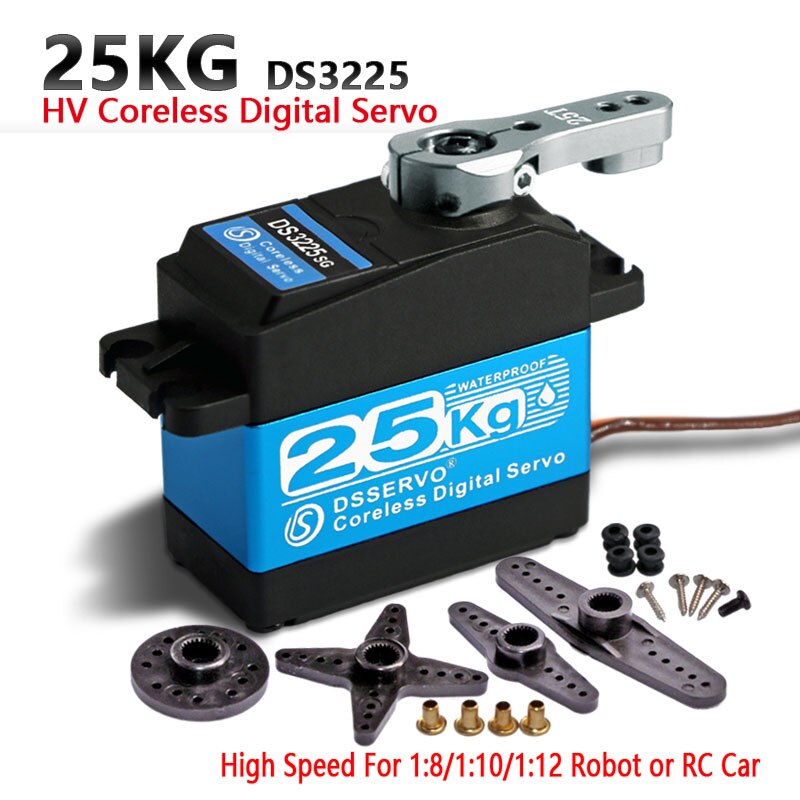

DS3225 Stainless Steel Gear Waterproof Servo

QQ图片20190515111348

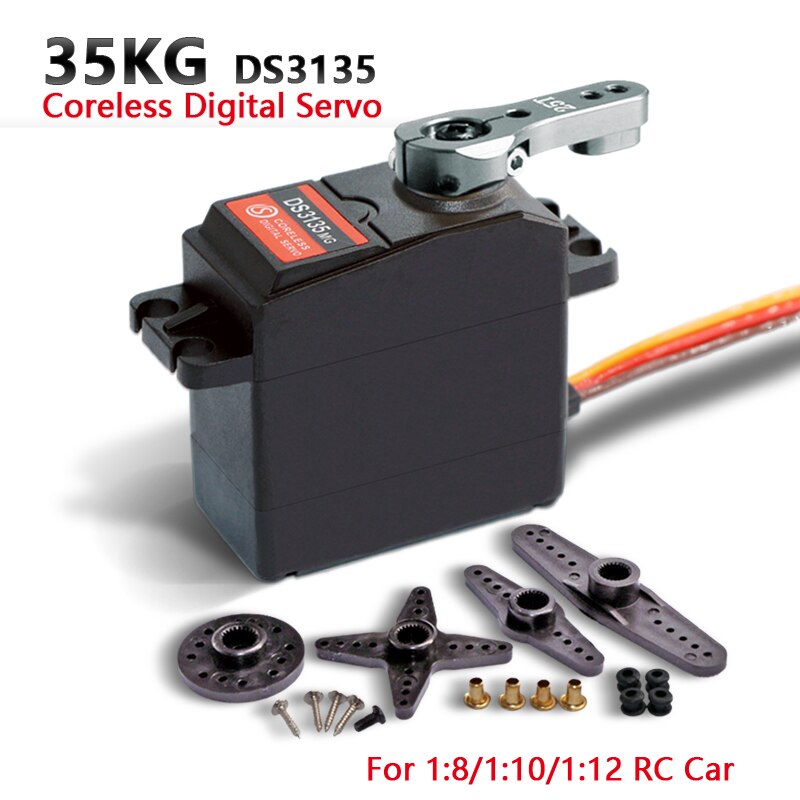

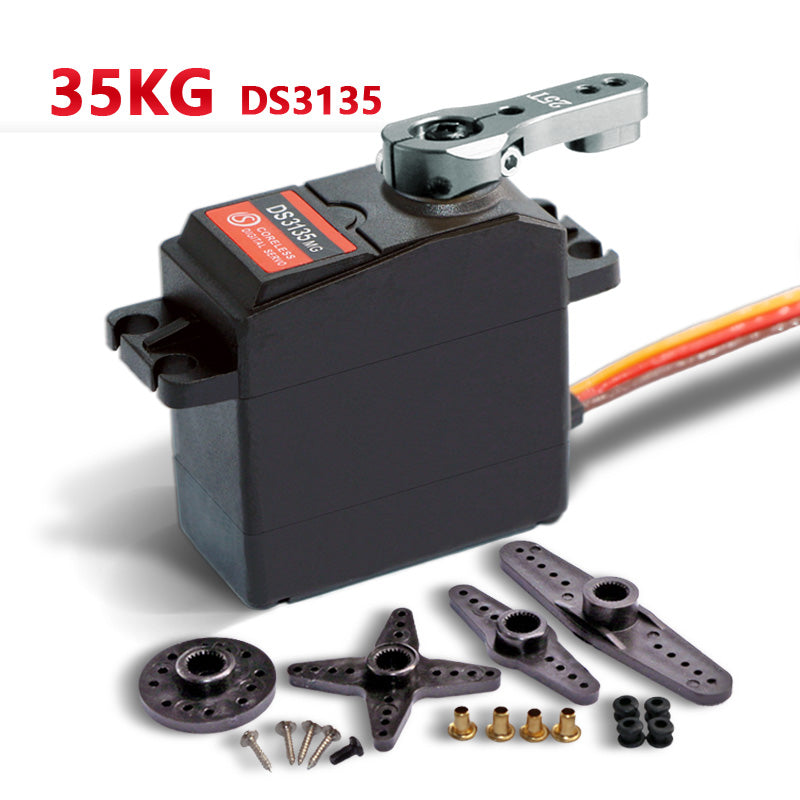

DS3135



welcome more buyer share finish model with us ,thanks  in advance.
