2 Degree of Freedom Base Pan Tilt Steering Gear Bracket with MG996 Steering GearPedestal Mechanical Arm

        the traditional simple 2 degree of freedom platform, is the use of the output shaft gear as the supporting force, is entirely in the steering gear output shaft, can carry less weight. This 2 degree of freedom platform, at the bottom of the 3 U type beam used as a base, the bottom rudder with a long U type bracket reinforcement, can smooth rotation of the bearing ability! We used two large torque metal gear as the head of the power source, so that the platform can realize horizontal 180 degree rotation and vertical rotation of 180 degrees.

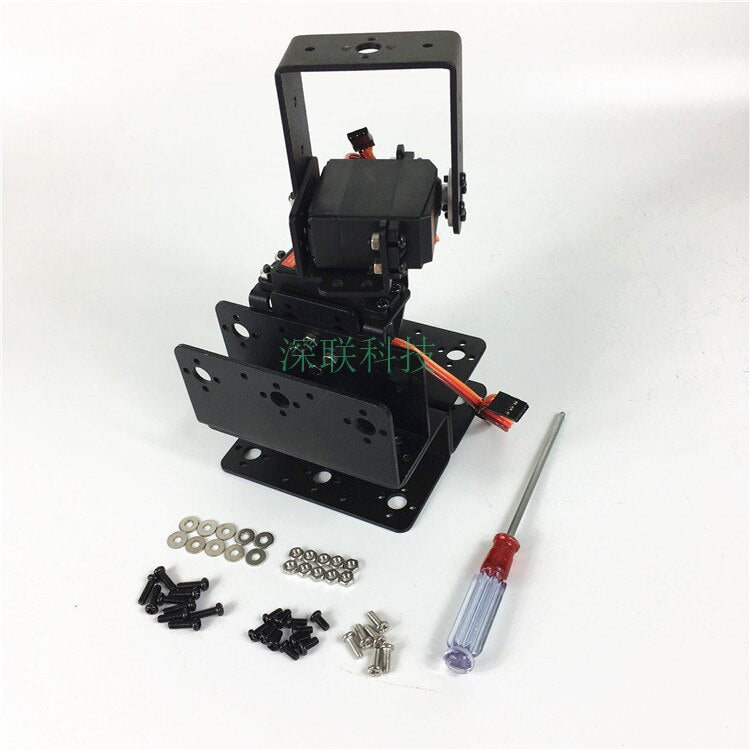

Packing List:

• 2 x MG996R metal gear
• 2 xMetal rudder disk
• 2 xMulti function support
• 2 xLong U support
• 3 xU beam
• 2 x special bearing
• 1 x Screws bag

MG996R steering gear parameters:

• Product Name: TOWER PRO (Hui Sheng) MG996R (MG995 upgrade product)
• Manufacturer number: MG996R
• Product net weight: 55g
• Product size: 40.7*19.7*42.9mm
• Product tension: 9.4kg/cm (4.8V), 11kg/cm (6V)
• Reaction rate: 0.17sec/60degree (4.8V) 0.14sec/60degree (6V)
• Operating voltage: 4.8-7.2V
• Operating temperature: 0 -55 C
• Gear form: Metal Gear
• Dead zone: 5us (microseconds)
