DroneSpark

$29.99 $23.99 Sale

2 PCS 3Bhobby 3B-R 0804 Brushless Motor 7100KV 11900KV 2S/1S For RC Drone FPV Racing Multi Rotor

Description:
Brand name: 3BHOBBY
KV: 7100KV/119000KV
No.of cells(Lipo): 2S/1S
Stator diameter: 8mm
Stator length: 4mm
Shaft diameter: 1.5mm
Motor dimension (Dia.*Len): Φ11.6×14.5mm
Weight: 3.4g (excluding cable)
Wire szie: 28AWG 80mm
Recommend propeller: Gemfan 1.9"-2.5″
Recommend ESC: 6-12A
Suit for: 60-90 frame
Specifications DATA
Motor KV 7100KV 11900KV
Stator  Diameter 8mm 8mm
Stator Thickness 4mm 4mm
No.of Stator Arms 9S 9S
No.of Rotor poles 10P 10P
No-load Current(A/4V) 0.5A 0.6A
Motor Resistance 296mΩ 157mΩ
Max Continuous Current 4A 6.3A
Max Continuous Power 32W 25.6W
Weight 3.9g 3.9g
Rotor Diameter 11.6mm 11.6mm
Shaft Diameter 1.5mm 1.5mm
Body Length 11.5mm 11.5mm
Overall shaft Length 14.5mm 14.5mm
No.of Cells(Lipo) 2S 1S
ESC 6-12A 6-12A
Recommended Prop(inch) 1.9~2.5Inch 2Inch
Wire Szie 28AWG 80mm 28AWG 80mm

Package included:

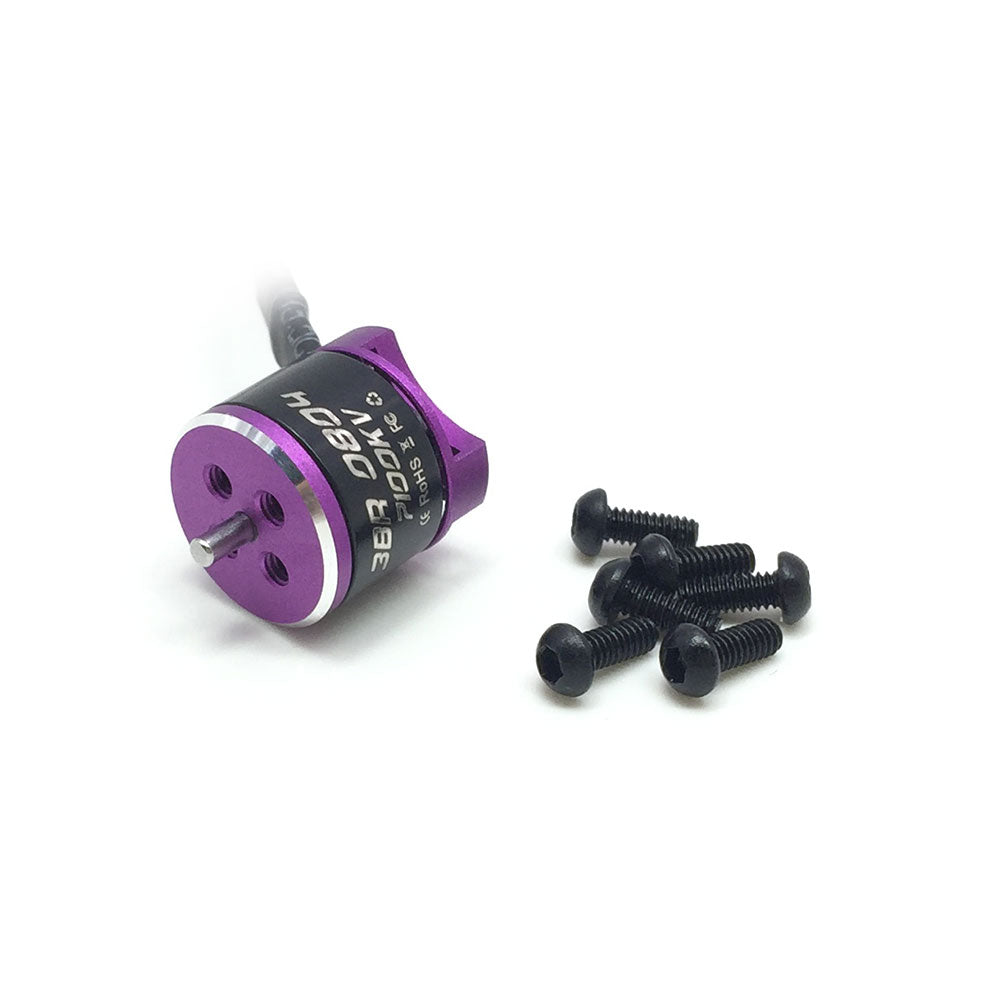

2 x 0804 motor
12 x round head hex socket screws M2*4
