DroneSpark

$37.99 $29.99 Sale

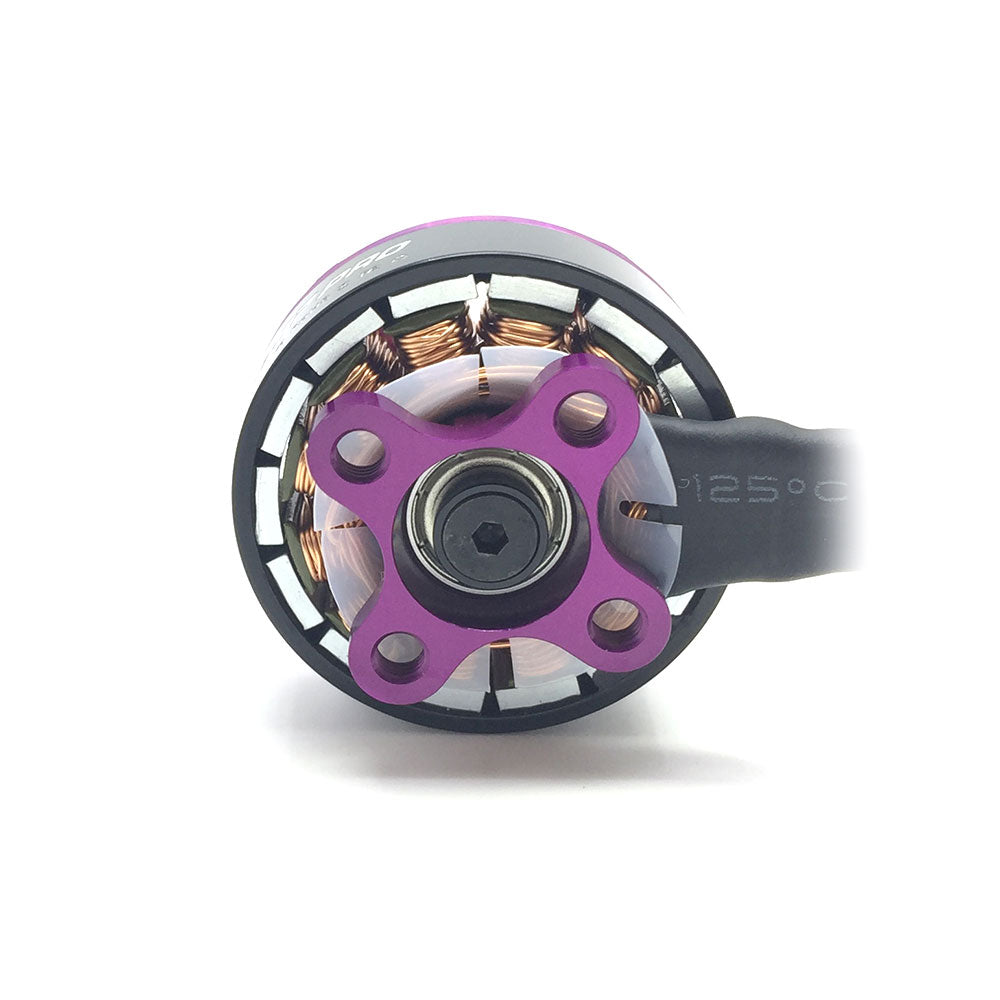

3Bhobby 3B-R 2207 Pro Brushless Motor 1750KV 2150KV 2450KV 2650KV 4-6S For RC Drone FPV Racing Multi Rotor

Description:
Brand name: 3BHOBBY
KV: 1750KV/2150KV/2450KV/2650KV
No.of cells(Lipo): 4S-6S
Stator diameter: 22mm
Stator length: 7mm
Shaft diameter: 5mm

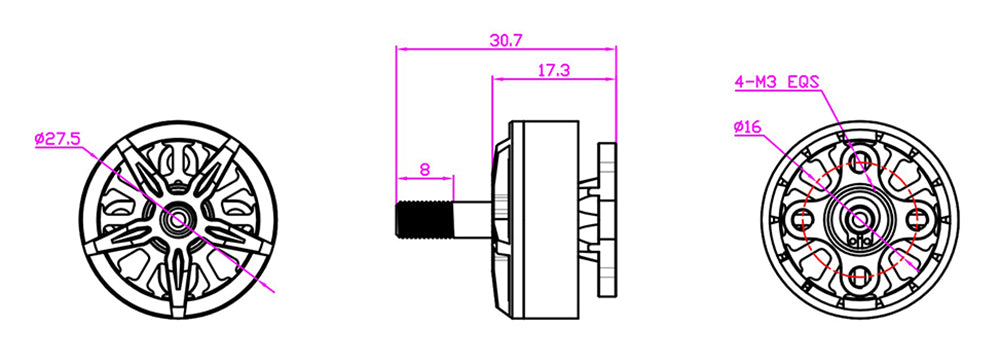

Motor dimension (Dia.*Len): Φ27.5×30.7mm
Weight: 29.5g (excluding cable)
Wire szie: 20AWG 150mm
Recommend propeller: Gemfan 4-6″
Recommend ESC: 40-60A
Suit for: 200-220 frame
Use 7075 alu and titanium shaft

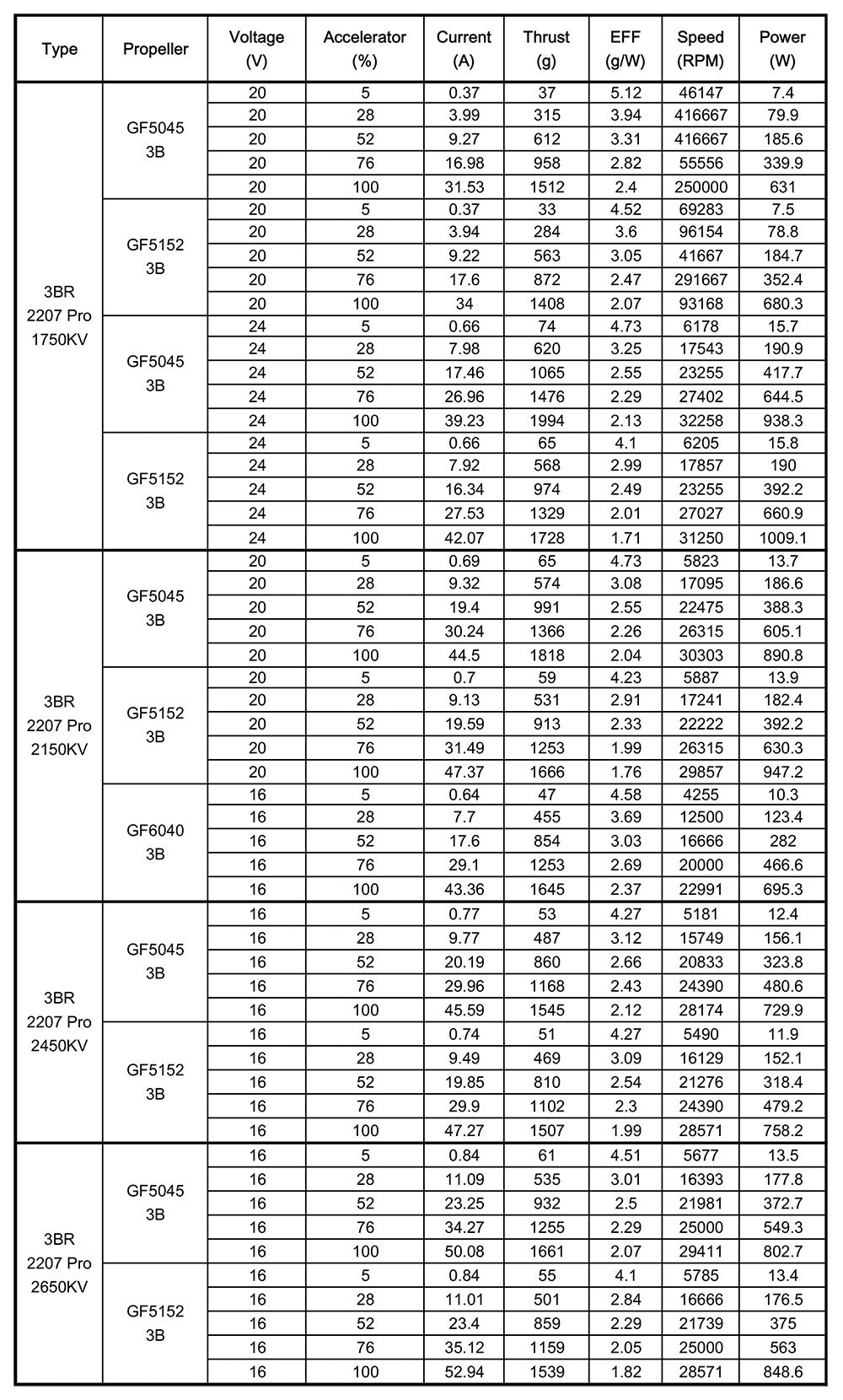

Specifications DATA
Motor KV 1750KV 2150KV 2450KV 2650KV
Stator  Diameter 22mm 22mm 22mm 22mm
Stator Thickness 7mm 7mm 7mm 7mm
No.of Stator Arms 12S 12S 12S 12S
No.of Rotor poles 14P 14P 14P 14P
No-load Current(A/10V) 0.89A 1.17A 1.45A 1.8A
Motor Resistance 62mΩ 52mΩ 37mΩ 35mΩ
Max Continuous Current 34A 44A 45A 50A
Max Continuous Power 680W 890W 729.9W 802.7W
Weight 30.5g 30.5g 30.5g 30.5g
Rotor Diameter 27.5mm 27.5mm 27.5mm 27.5mm
Shaft Diameter 5mm 5mm 5mm 5mm
Body Length 17.3mm 17.3mm 17.3mm 17.3mm
Overall shaft Length 30.7mm 30.7mm 30.7mm 30.7mm
No.of Cells(Lipo) 5~6S 4~5S 4S 4S
ESC 40~60A 40~60A 40~60A 40~60A
Recommended Prop(inch) 5~6Inch 5~6Inch 5~6Inch 5Inch
Wire Szie 20AWG 150mm 20AWG 150mm 20AWG 150mm 20AWG 150mm

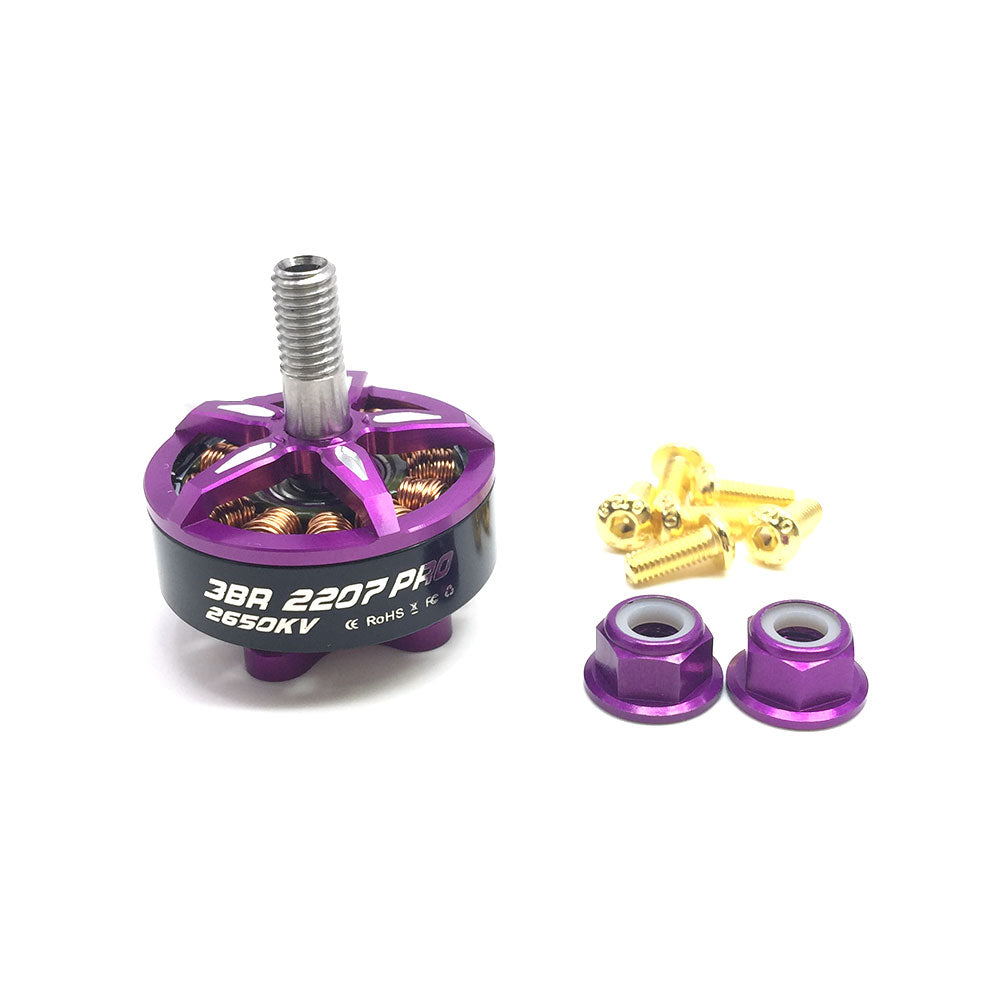

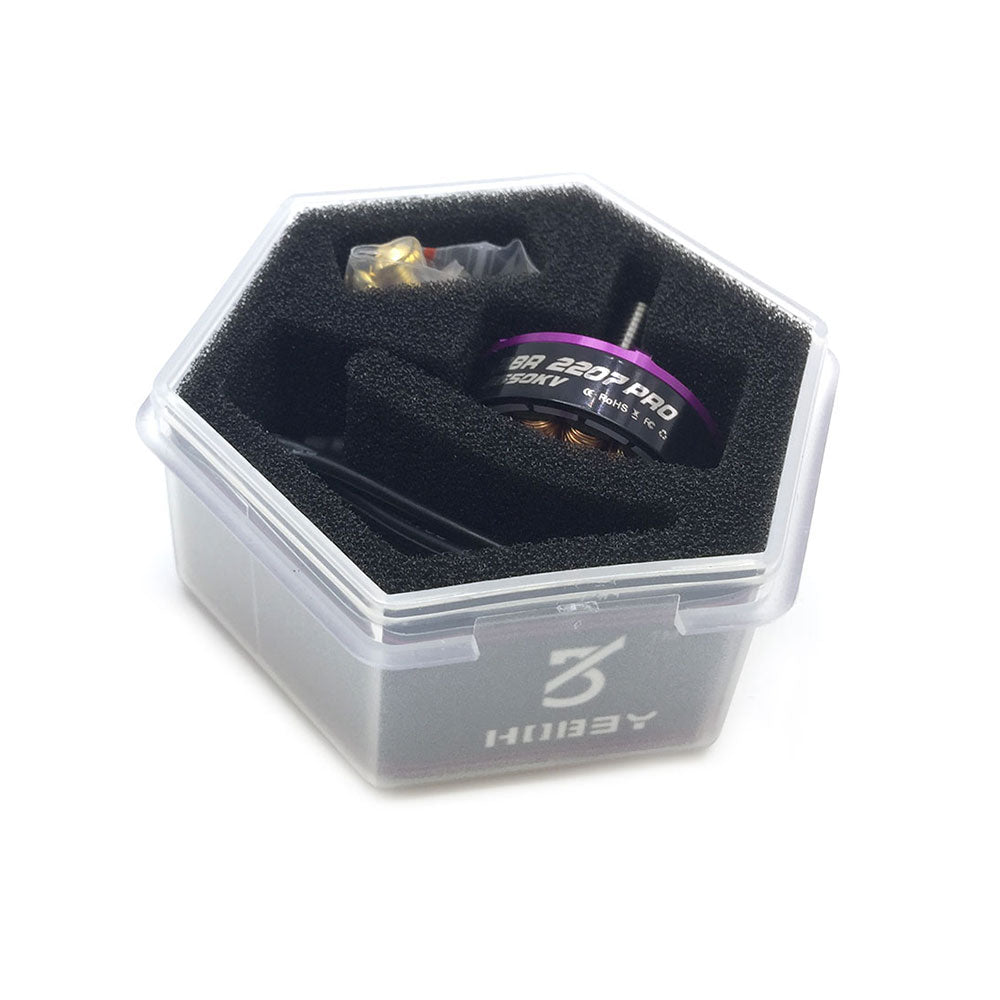

Package included:
1 x 2207 Pro Motor
2 x Aluminium nut
6 x Round head hex socket screws M3*8
