DroneSpark

$36.99 $28.99 Sale

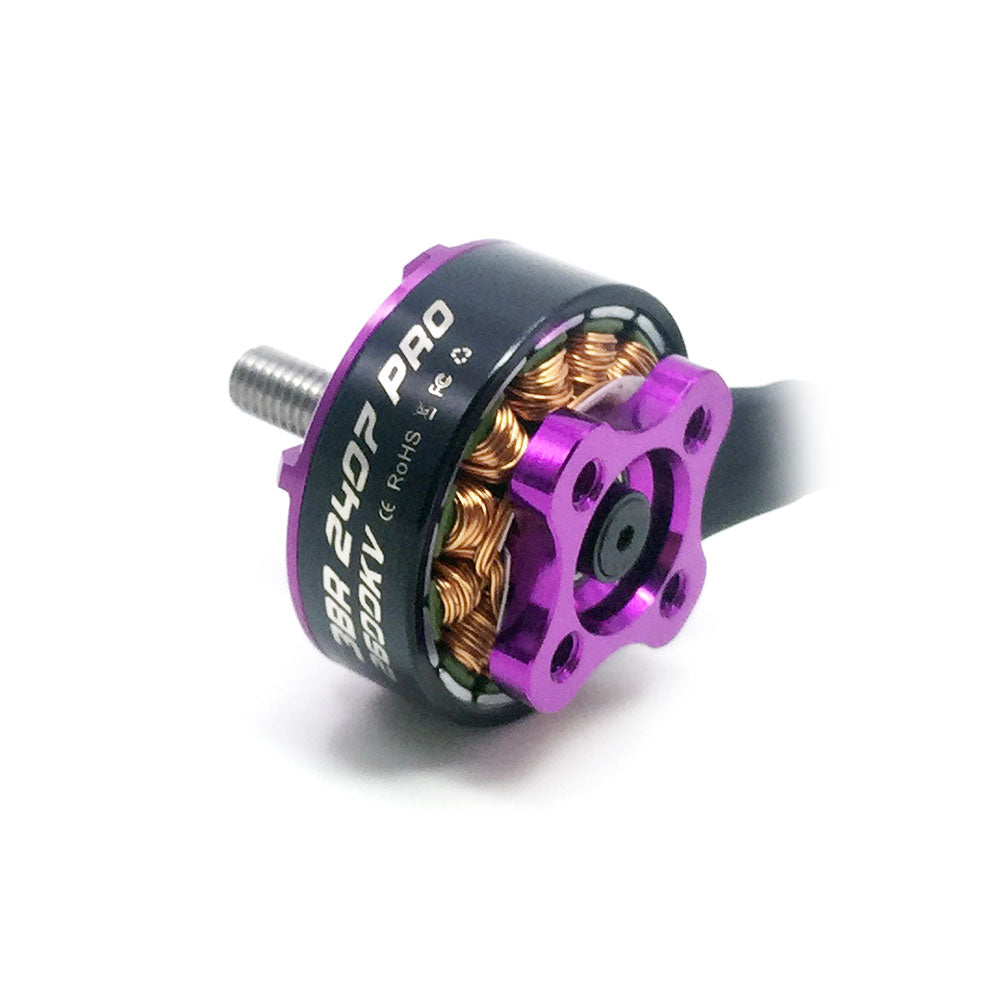

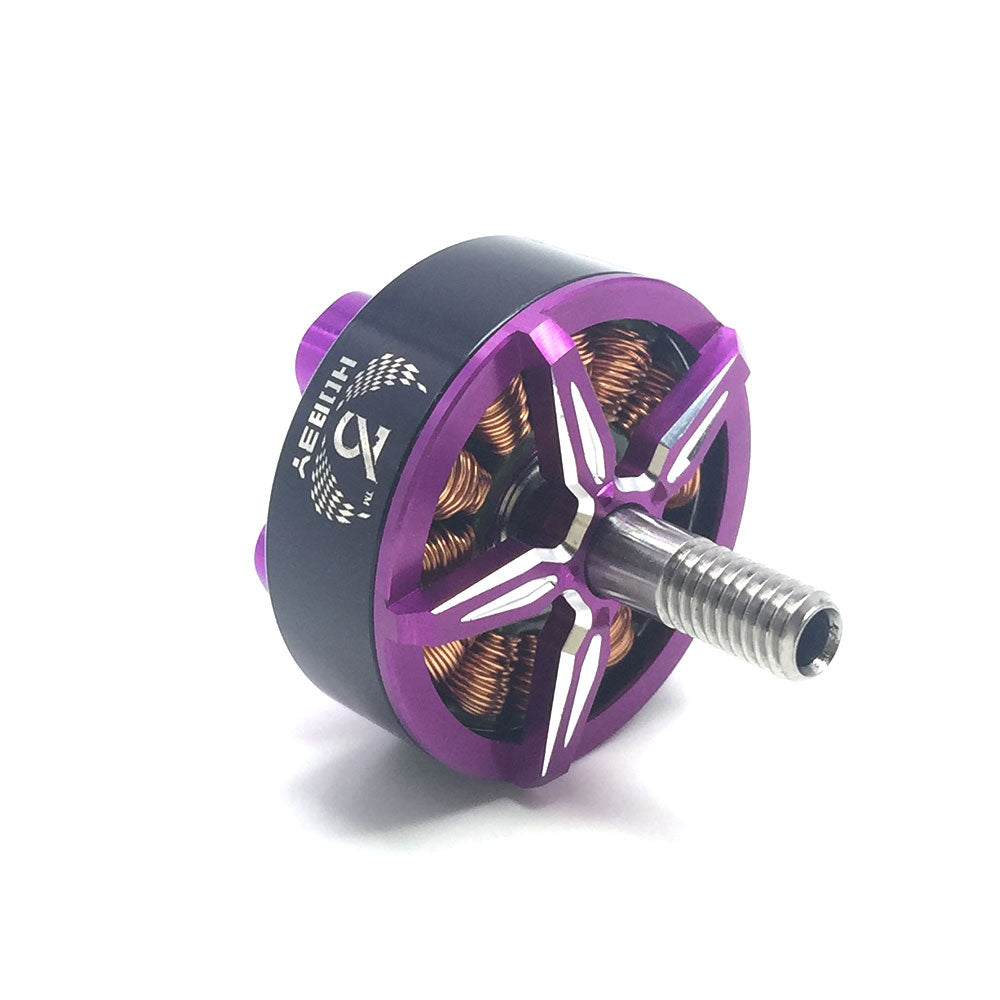

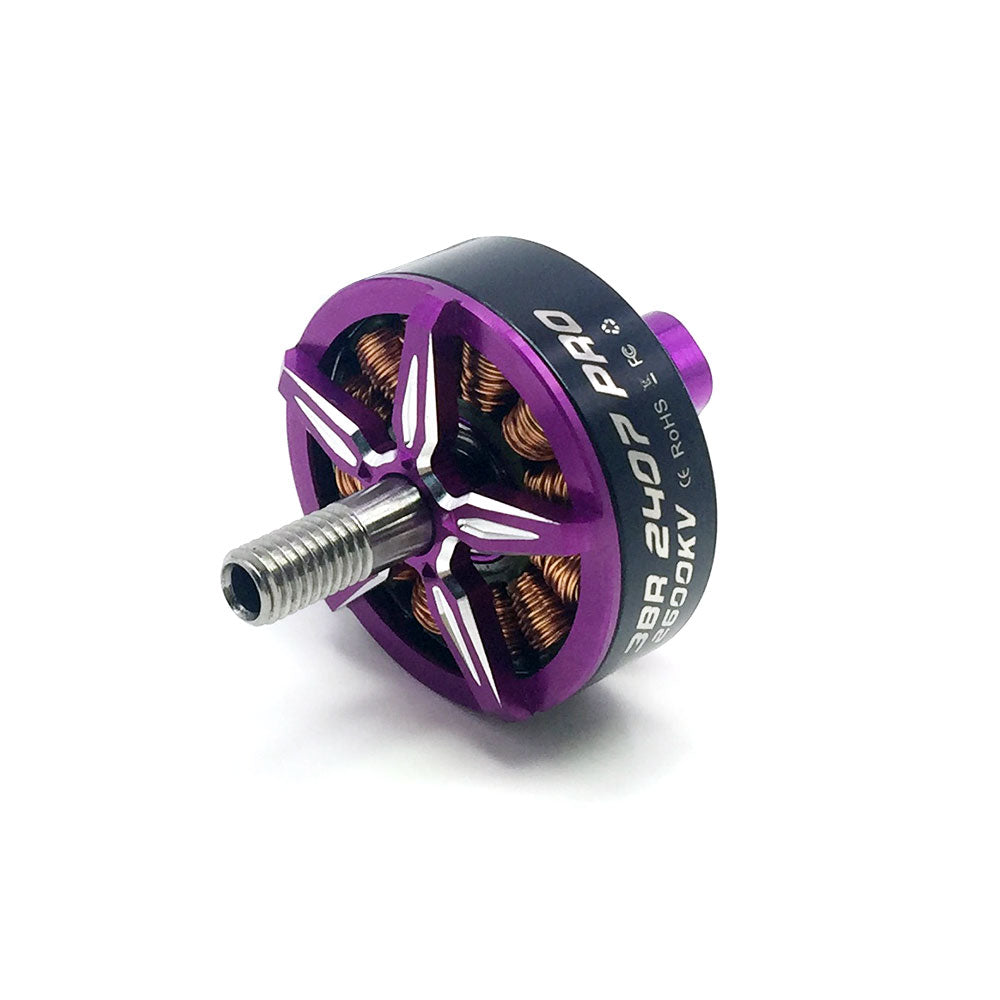

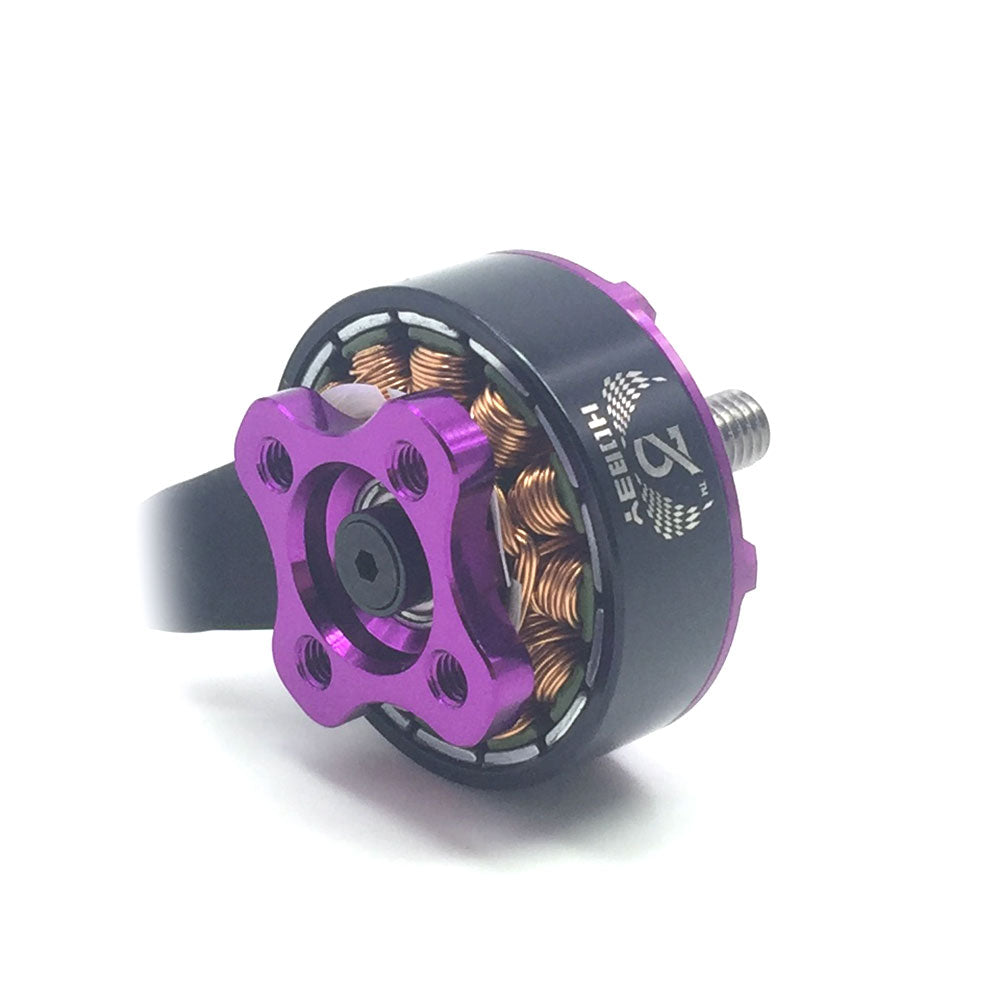

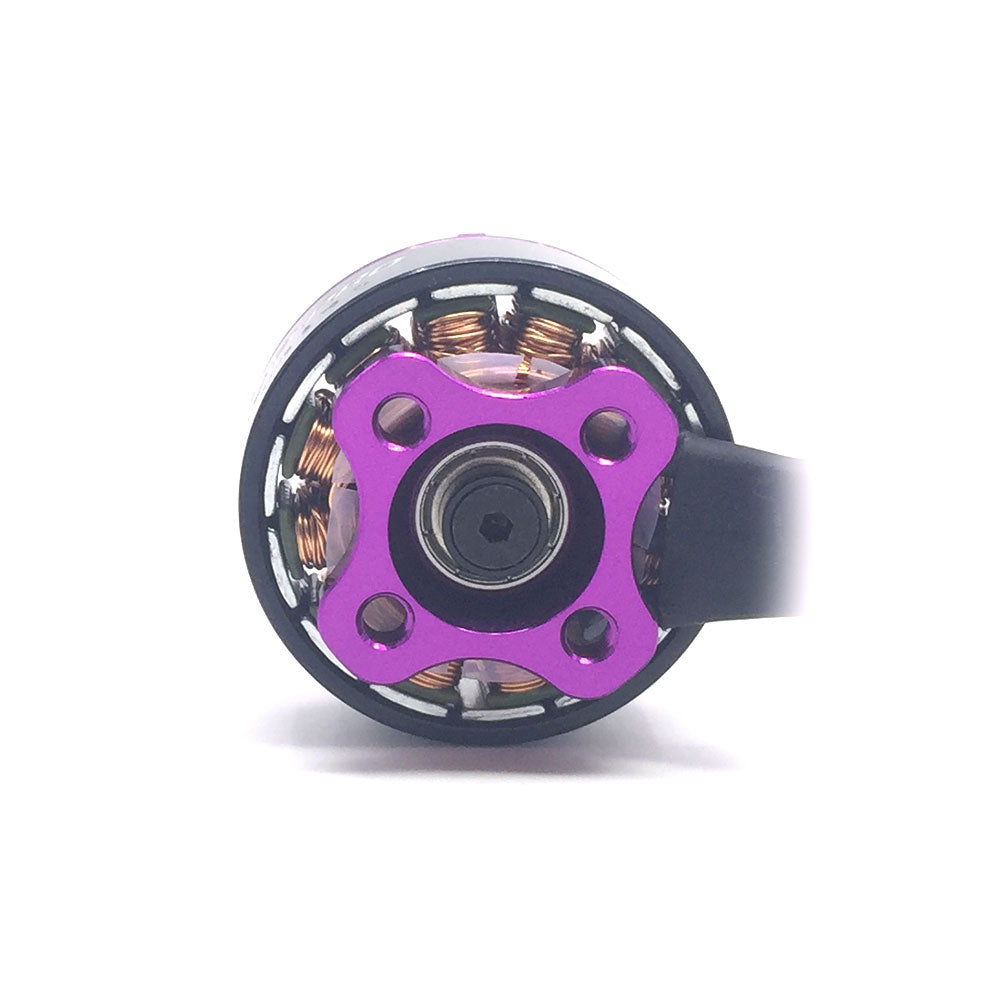

3BHOBBY 3B-R 2407 Pro Brushless Motor 1700KV 2100KV 2400KV 2600KV 4-6S For RC Drone FPV Racing Multi Rotor

Description:
Brand name: 3BHOBBY
KV: 1700KV/2100KV/2400KV/2600KV
No.of cells(Lipo): 4S-6S
Stator diameter: 24mm
Stator length: 7mm
Shaft diameter: 5mm
Motor dimension (Dia.*Len): Φ28.72×31.3mm
Weight: 32.6g (excluding cable)
Wire szie: 20AWG 150mm
Recommend propeller: Gemfan 4-6″
Recommend ESC: 40-60A
Suit for: 200-220 frame
Use 7075 alu and titanium shaft

Specifications DATA
Motor KV 1700KV 2100KV 2400KV 2600KV
Stator  Diameter 24mm 24mm 24mm 24mm
Stator Thickness 7mm 7mm 7mm 7mm
No.of Stator Arms 12S 12S 12S 12S
No.of Rotor poles 14P 14P 14P 14P
No-load Current(A/10V) 1.37A 2A 2.7A 2.8A
Motor Resistance 59mΩ 39mΩ 30mΩ 28mΩ
Max Continuous Current 38A 45A 50.2A 58.45A
Max Continuous Power 886W 896W 808W 935.2W
Weight 33.7g 33.7g 33.7g 33.7g
Rotor Diameter 28.72mm 28.72mm 28.72mm 28.72mm
Shaft Diameter 5mm 5mm 5mm 5mm
Body Length 17.8mm 17.8mm 17.8mm 17.8mm
Overall shaft Length 33.7mm 33.7mm 33.7mm 33.7mm
No.of Cells(Lipo) 5~6S 4~5S 4S 4S
ESC 40~60A 40~60A 40~60A 40~60A
Recommended Prop(inch) 5~6Inch 5~6Inch 5~6Inch 5Inch
Wire Szie 20AWG 150mm 20AWG 150mm 20AWG 150mm 20AWG 150mm

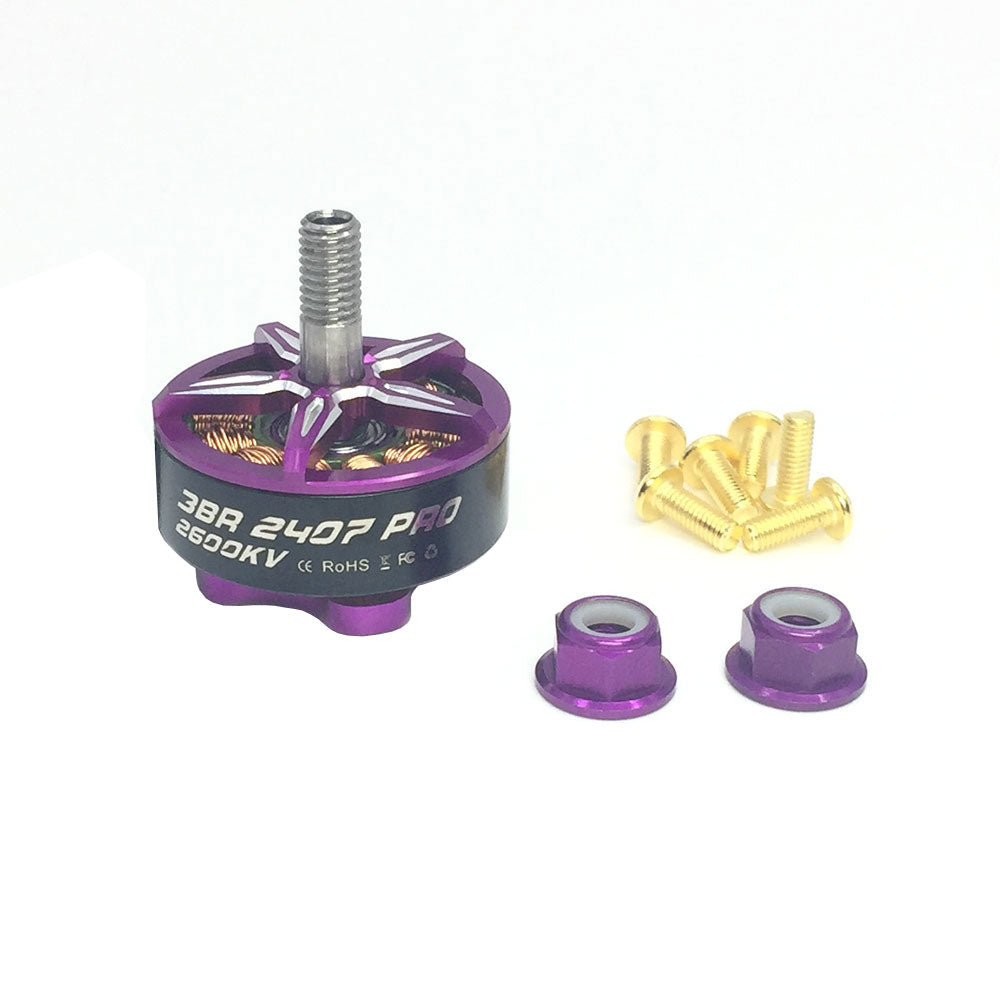

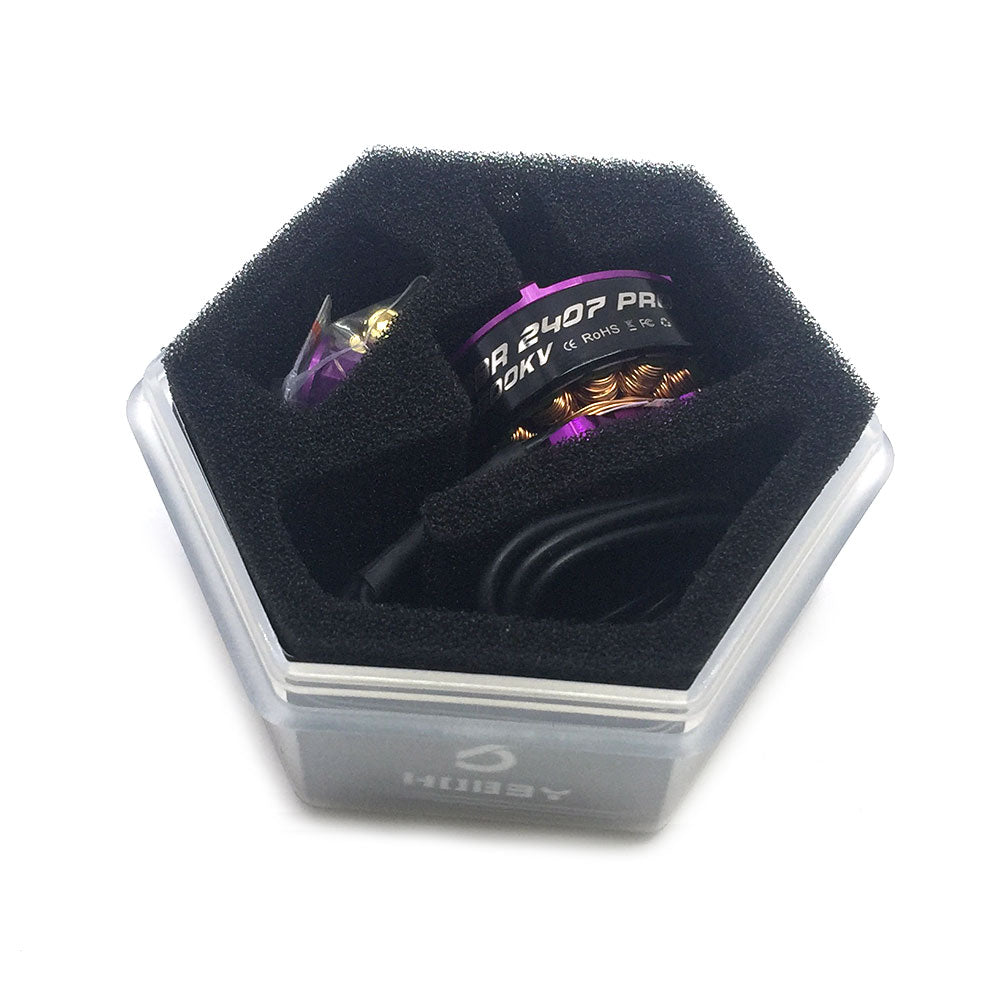

Package included:
1 x 2407 Pro Motor
2 x Aluminium nut
6 x Round head hex socket screws M3*8
