3DR 100mW / 500mW / 1000mW Radio Telemetry 433Mhz 915Mhz Air & Ground Data Transmit Module for APM2.6 2.8 Pixhawk Flight Control

Name: 3DR 100mW / 500mW / 1000mW Radio Telemetry 433Mhz 915Mhz Air & Ground Data Transmit Module for APM2.6 2.8 Pixhawk Flight Control
Brand: Drone Spark
SKU: 14:29#without shell OTG;200007763:201336100
Price: 538.99 USD
Availability: InStock

Drone Spark

Regular price ~~$230.99~~ $538.99 Sale

Color

Ships From

Quantity

Item Description

3DR Radio Telemetry 433mhz / 915Mhz 100mw Air and Ground Data Transmit Module for APM 2.8 PIX

Feathers:
915Mhz frequency channel transparent serial interface, data rate up to 250kbps, antenna range about 1 miles.
Adaptive time-division multiplexing.
Supports LBT and AFA, configurable duty cycle, built-in error correction codes (which can correct data errors up to 25%).
Adaptive control of HopeRF HM-TRP radio AT radio module based on open-source firmware configuration command for RT command and APM radio remote configuration when used together with SiLabs, Si1000 RF micro controller.

Specifications:
Frequency channel: 915MHz
Receiving sensitivity: -117dBm
Transmitted power: Up to 20dBm(100mW)
Antenna Connector: RP-SMA
Connector output power: 100mW(20dBm)
Sensitivity can be adjusted between 1-20dBm
Sensitivity interface: Standard TTL UART

Notes:
Due to the light and screen setting difference, the color of the item may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.

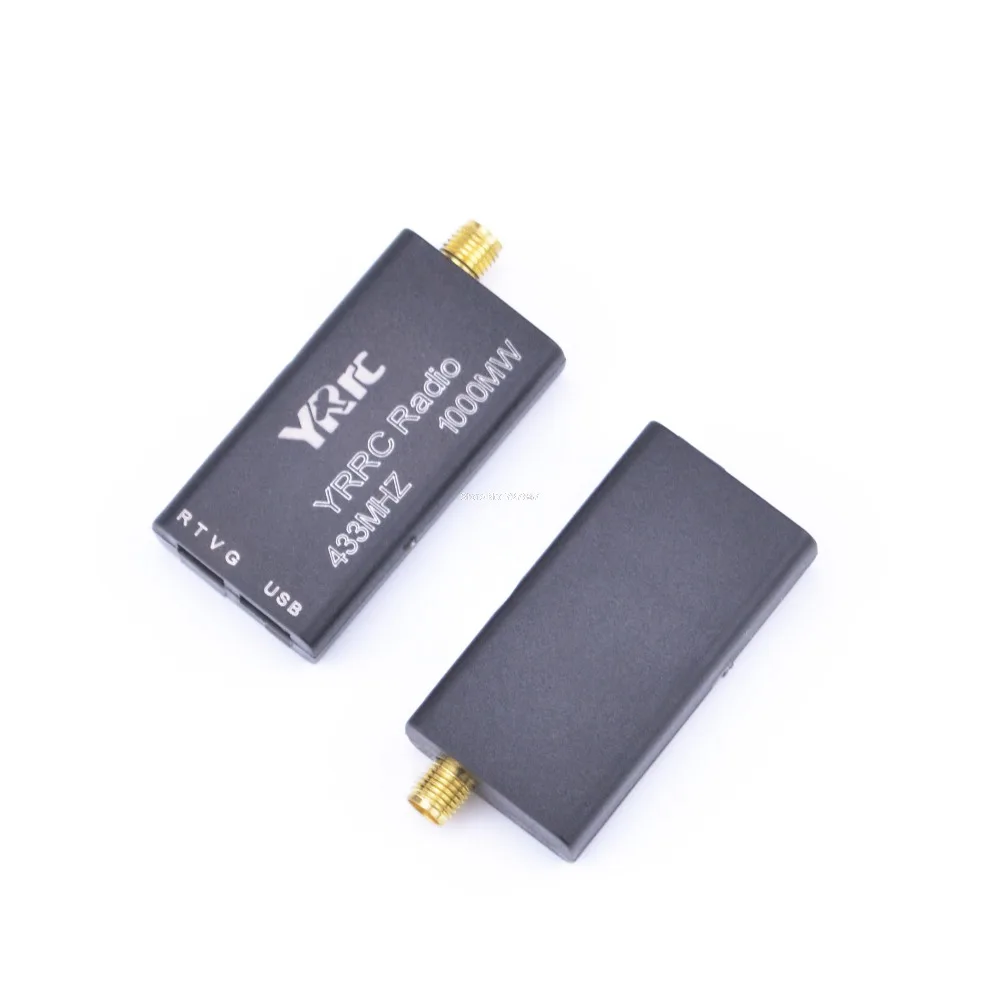

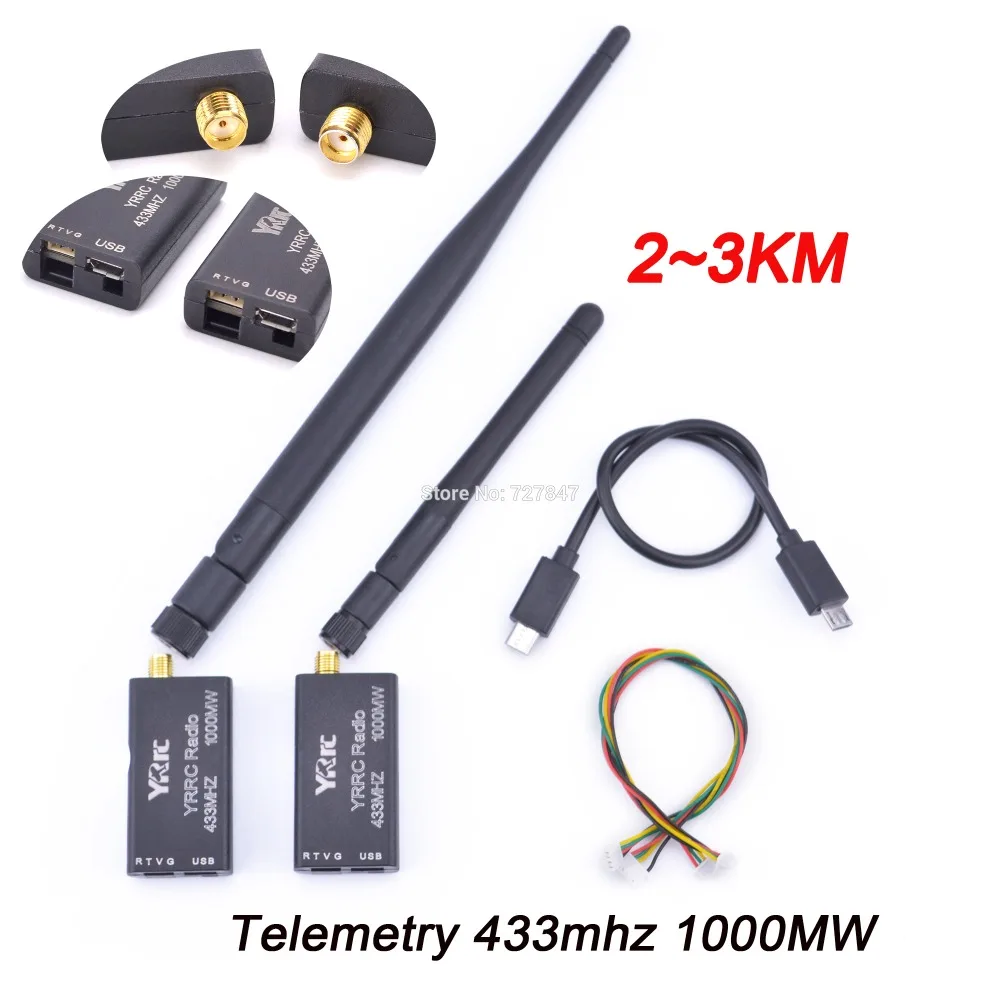

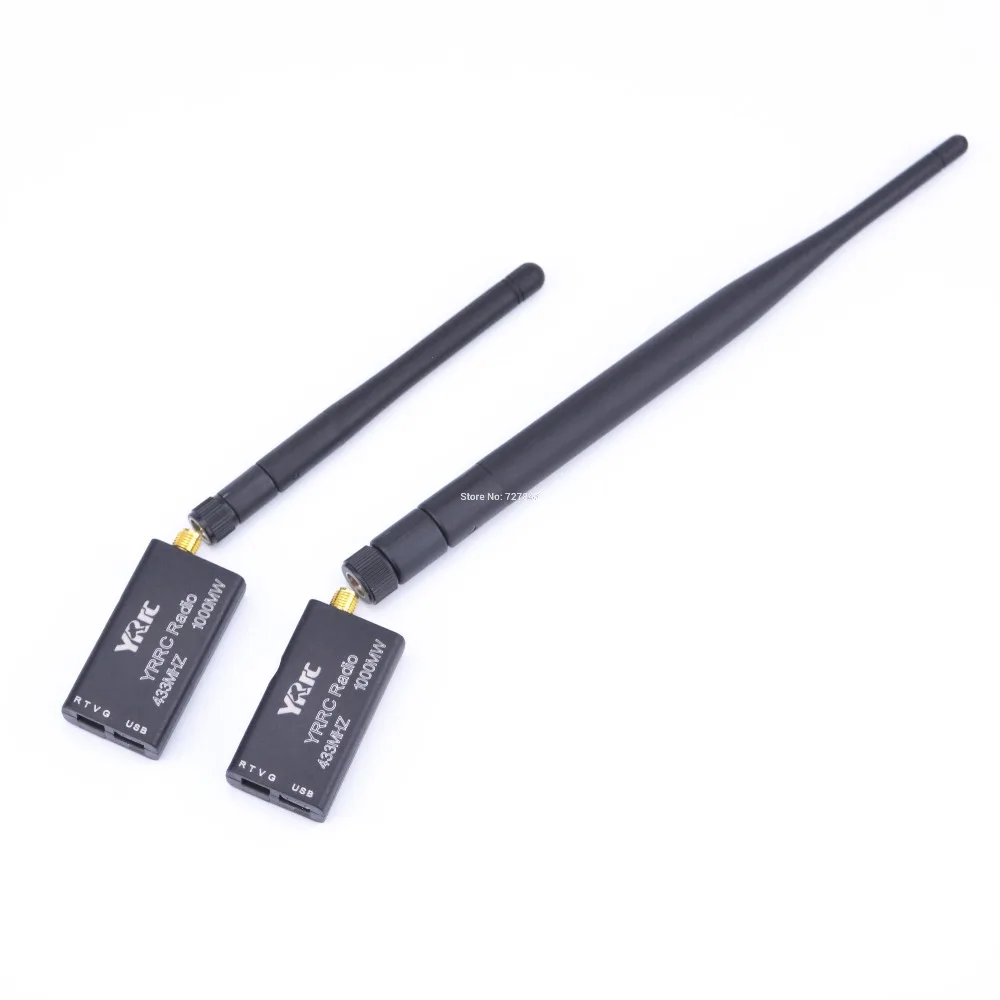

3DR Radio Telemetry 433mhz 433 1000MW 2~3KM Data Telemetry TTL & USB Port distance for APM Pixhawk Pixhack

For low-cost close range data transmission module, selectable frequency is 433mhz 1000mw.

Built in sik open source firmware, and superimposed the signal strength in the mavlink, so that in the ground station can view real-time signal strength instructions

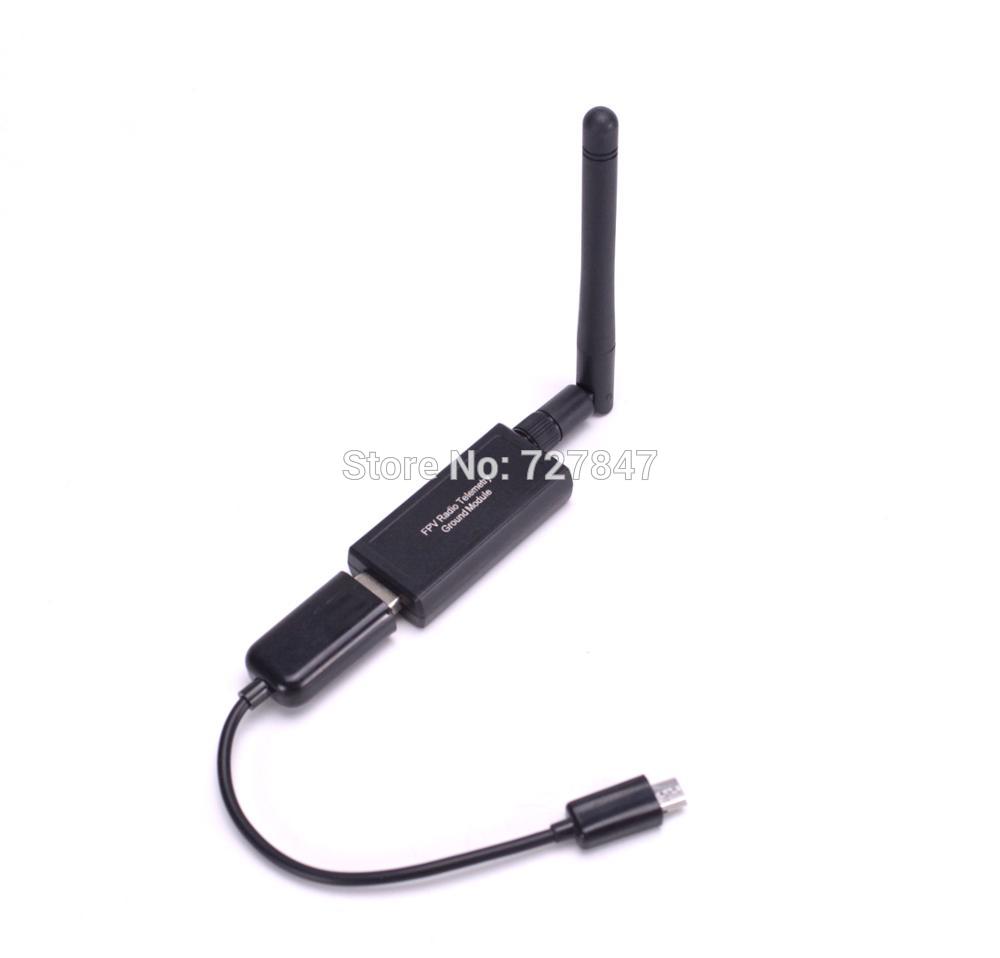

USB end uses ftdi chip, support computer, Android device OTG connection

- The 3DR Radio telemetry system is designed as an open source Xbee replacement radio set, offering a lower price, longer range and superior performance to Xbee radios. It's available in 433Mhz; and in the following configurations: serial board (for the air) and USB (for the ground).

- open source firmware. Interface to the module is via standard 5V-tolerant TTL serial / FTDI USB serial.

- The SiK firmware includes a bootloader that permits radio firmware upgrades over the serial interface, and radio firmware with configurable parameters. Firmware upgrades and configuration are fully supported in the APM Mission Planner. Configuration is also possible through the 3DR Radio Configurator or AT commands.

Test data:

- Range:800M (57600 buad rate)

- Note:CUAV RADIO V3 version with Micro USB port as APM 2 flight control

Hardware features and specifications(433Mhz version)

- Very small size

- Light weight (under 4 grams without antenna)

- Available in 433MHz variants

- Receiver sensitivity to -121 dBm

- Transmit power up to 20dBm (100mW)

- Transparent serial link

- Air data rates up to 250kbps

- MAVLink protocol framing and status reporting

- Frequency hopping spread spectrum (FHSS)

- Adaptive time division multiplexing (TDM)

- Support for LBT and AFA

- Configurable duty cycle

- Built in error correcting code (can correct up to 25% data bit errors)

- Demonstrated range of several kilometers with a small omni antenna

- Can be used with a bi-directional amplifier for even more range

- Open source firmware

- AT commands for radio configuration

- RT commands for remote radio configuration

- Adaptive flow control when used with APM

- Based on the HopeRF HM-TRP radio module, featuring an SiLabs Si1000 RF microcontroller

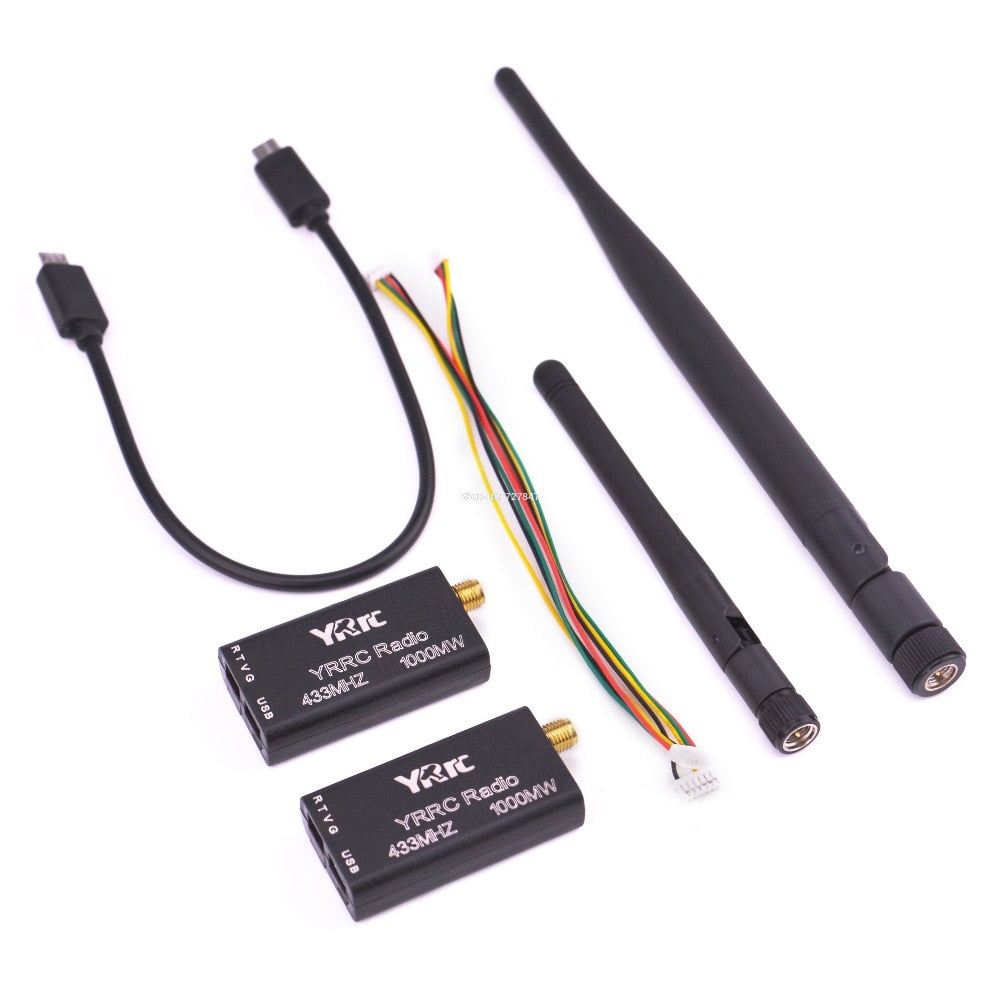

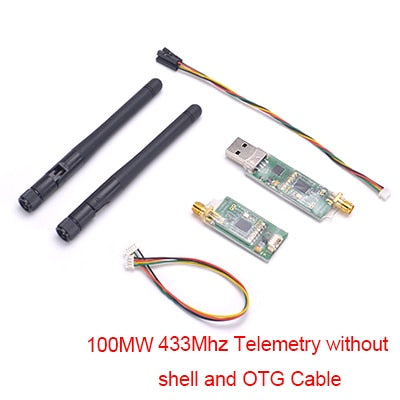

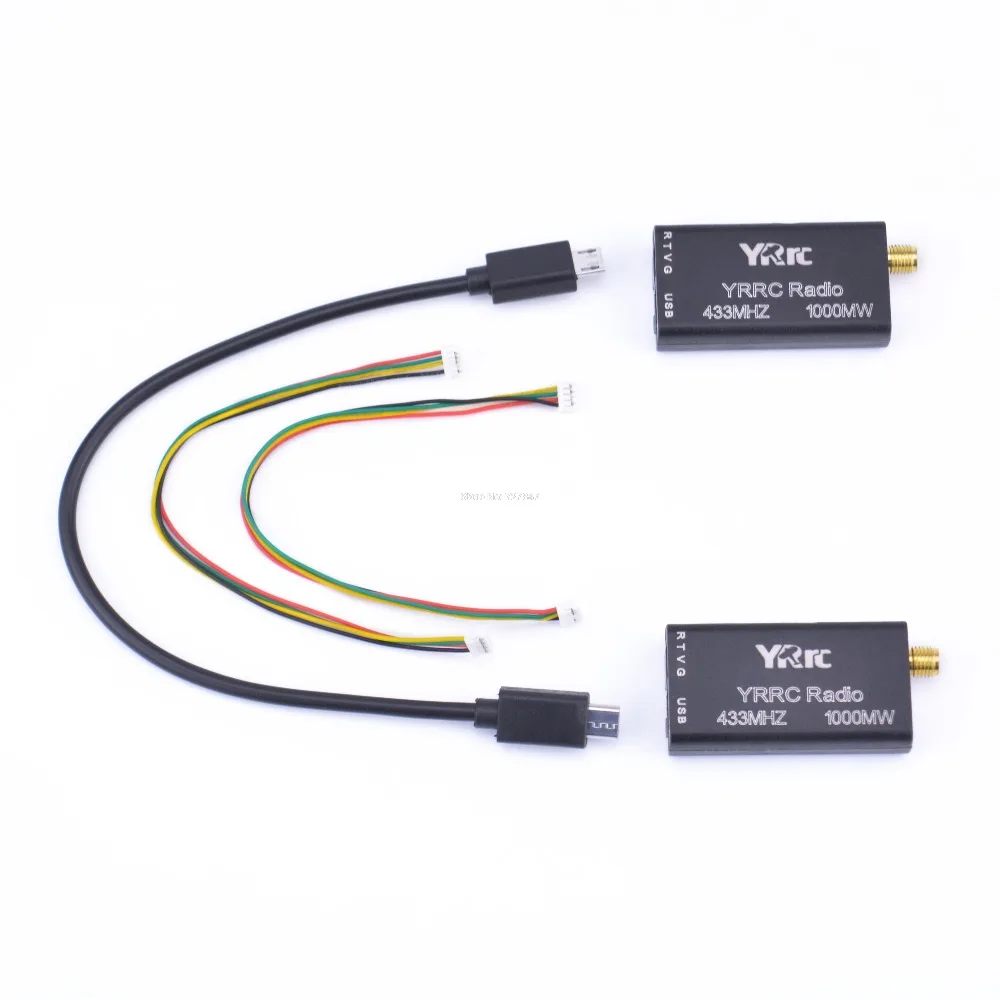

1 x 433 / 915mhz 100mw or 500mw or 1000mwTelemetry ( send as your choice)
2 x Connecting Lines
2 x Round Bar Antennas
1 x OTG Cable (send as your choice)

500mw Radio Telemetry 433MHZ / 915MHZ
