4S Lipo to 12V Linear Voltage Regulator Regulate Module BEC For FPV Video Transmitter & Camera
Description:
Description:

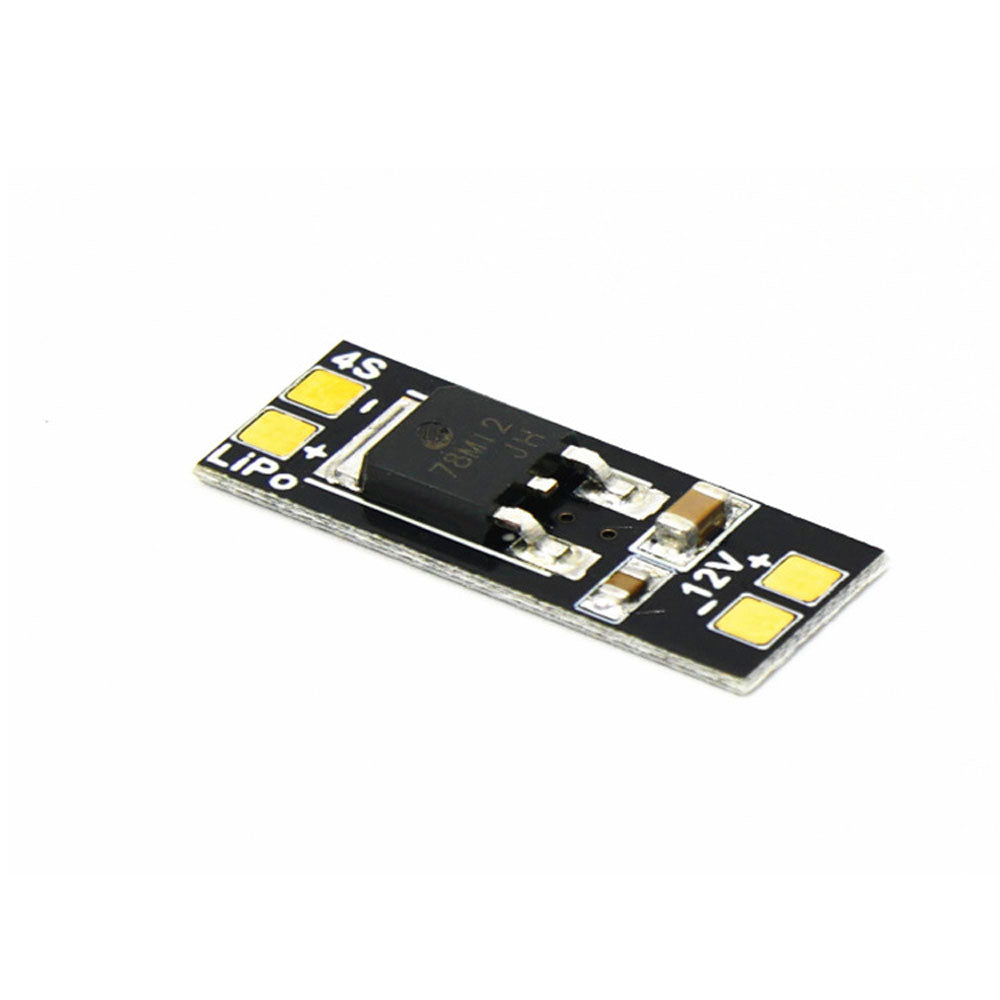

Item name: Linear Voltage Regulator Regulate Module BEC
Input voltage: 13~17V, 4S LiPo battery
Input voltage: 13~17V, 4S LiPo battery
Output voltage: 12V, accuracy 2.5%
Output current: Continuous 300mA
Size: 25*10*3mm
Features:

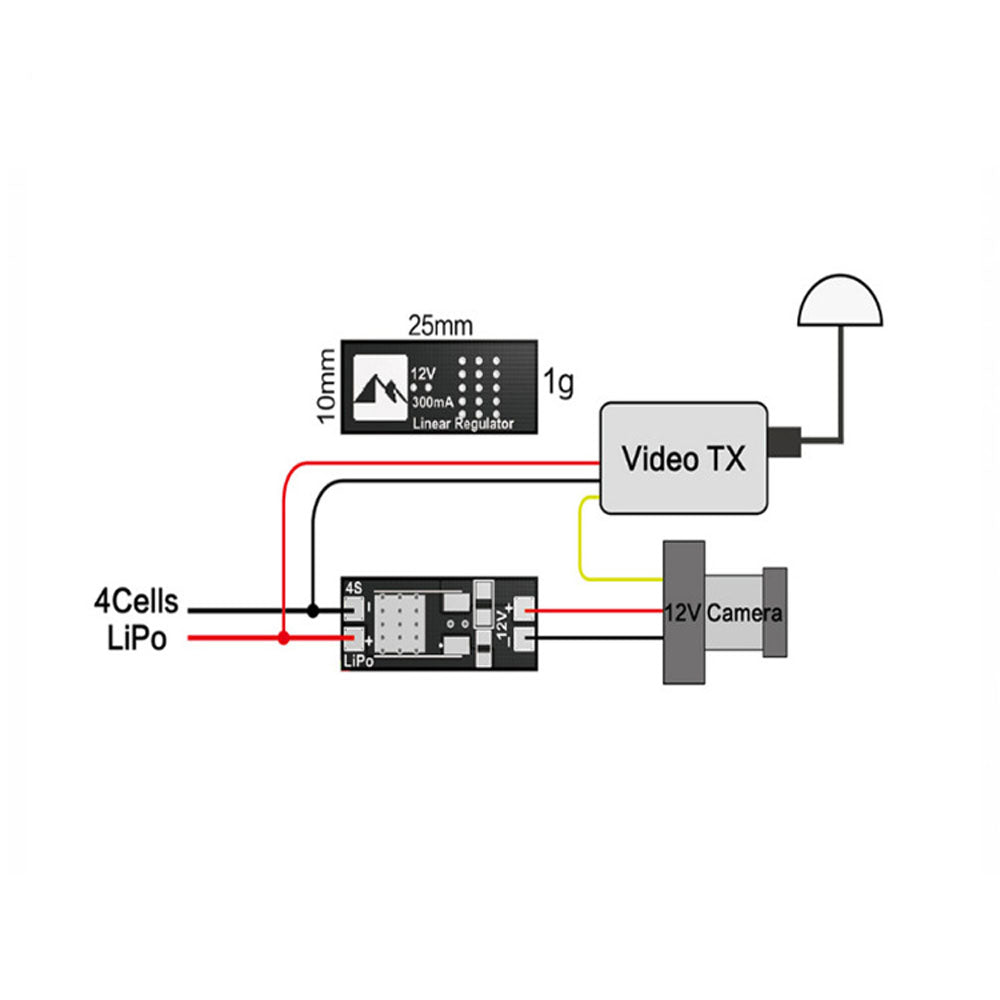

* Suitable for FPV Camera
* Compared with BEC12V, linear voltage regulator with low-ripple, does't interfere the image signal
* Temp. 25℃, 16V input, 12V output 300mA, 5min, the highest measured temperature is 58℃
* Can be connected with extra only one 12V 1.5W LED light.
* If the 3S and 4S mixed, it support 3S battery too. Output voltage=3S voltage-1V, eg. the battery voltage is 12V, actual output is 11V, and the camera can work normally.
Package Included:
1 x Linear Voltage Regulator Regulate Module BEC
