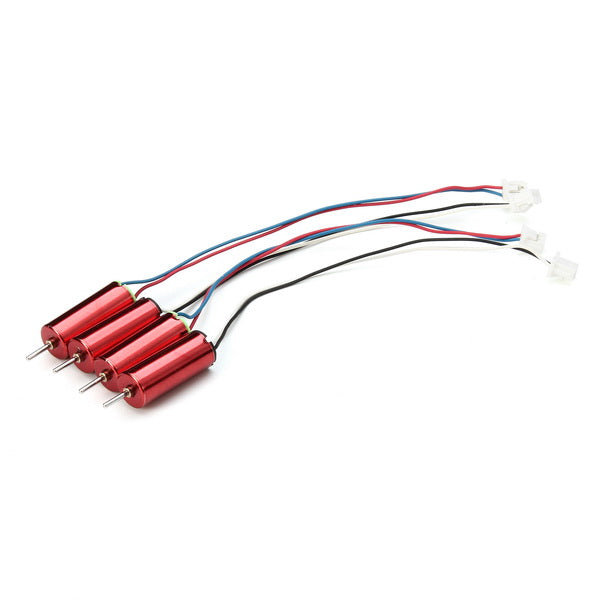

4X Racerstar 615 6x15mm 59000RPM Coreless Motor for Eachine E010C E010S Blade Inductrix Tiny Whoop
DroneSpark
Regular price
$16.99
$12.99
Sale
4X Racerstar 615 6x15mm 59000RPM Coreless Motor for Eachine E010C E010S Blade Inductrix Tiny Whoop
Description:
Motor Diameter: 6.0mm
Motor Length: 15mm
Shaft Diameter: 0.05-0.3mm
Cable Length: 70mm
Weight: about: 1.8g

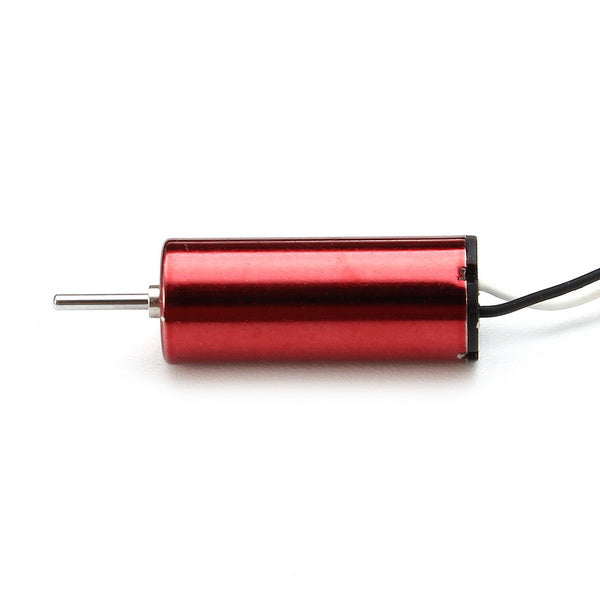

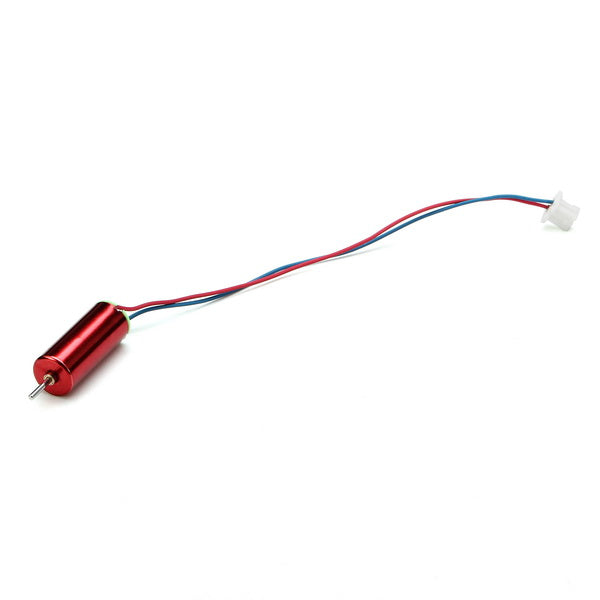

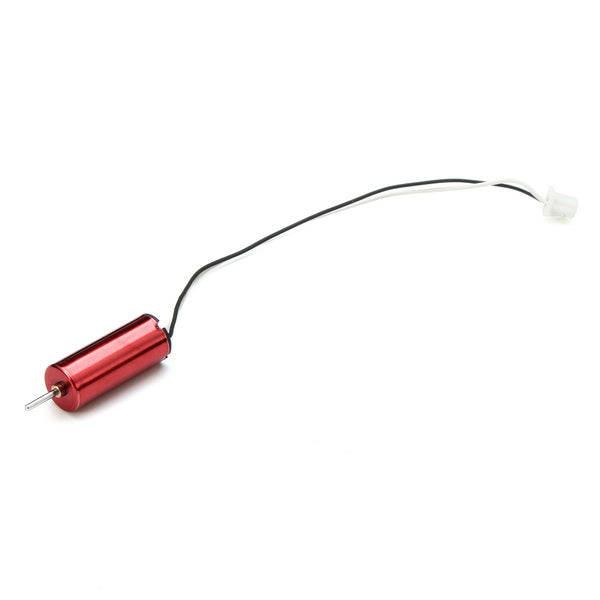

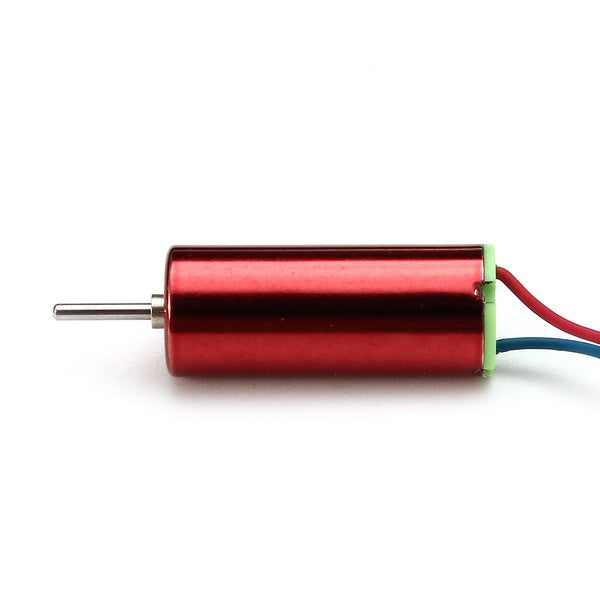

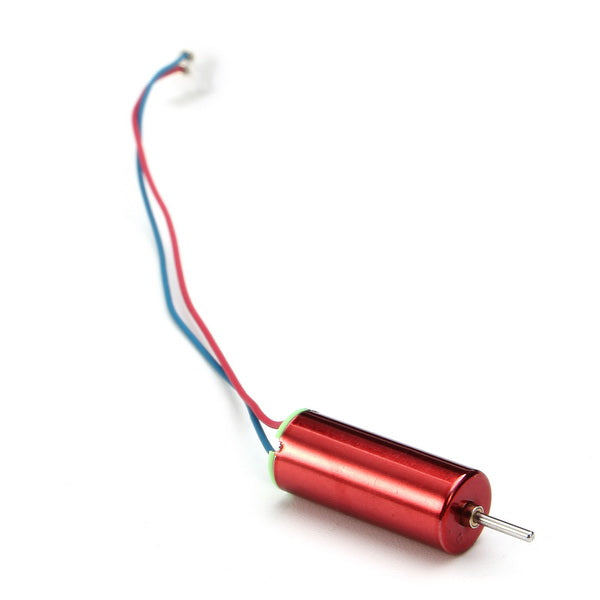

Option: Clockwise Motor(With Red Blue Wire), Anti-clockwise Motor(With Black White Wire)

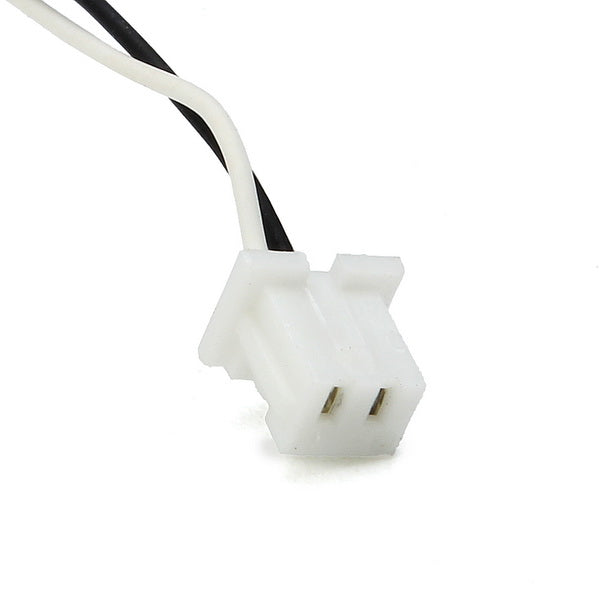

Option: With 1.25mm JST Plug
Quantity: 4 pcs
1.Operating condition
2.Mearsuring condition
3.Electrical characteristics
Package included:
2x CW motor
2x CCW motor
Description:
Motor Diameter: 6.0mm
Motor Length: 15mm
Shaft Diameter: 0.05-0.3mm
Cable Length: 70mm
Weight: about: 1.8g
Option: Clockwise Motor(With Red Blue Wire), Anti-clockwise Motor(With Black White Wire)
Option: With 1.25mm JST Plug
Quantity: 4 pcs
1.Operating condition
| Rated voltage | 3.4V DC |
| Direction of rotation | CW and CCW |
| Operating voltage range | DC2.0--4.5V DC |
| perating temperature range | -10-50°C |
| Motor position | all position |
2.Mearsuring condition
| Motor position | horizontal or vertical |
| Power supply | regulated DC power supply assuring unquestionable measuring |
| regulated DC power supply assuring unquestionable measuring |
10-30°C 30-95% If the judgment is questionable,Measurent is to be made based on JIS Standard Testing Condition(20+2°C,65+5% ) |
| Direction of rotation | viewed from output shaft side |
3.Electrical characteristics
| Items | Specification | Standard value |
| No Load speed | 59000rpm±12% | 59000 rpm |
| No Load current | 180mA max | 110mA |
| Starting voltage | 0.8V max | 0.5V DC |
| Stall current | 2833mA±5% | 2833mA |
| Terminal resistance | 1.2ohm ±5% | 1.2ohm |
| Insulation resistance | 10M ohm min |
AT 250V DC between motor terminal and case |
Package included:
2x CW motor
2x CCW motor
