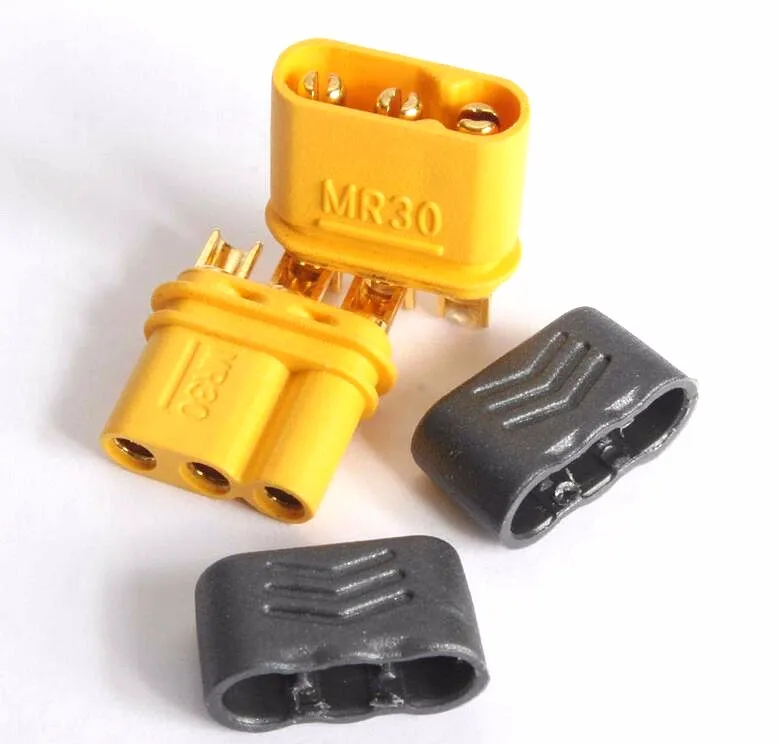

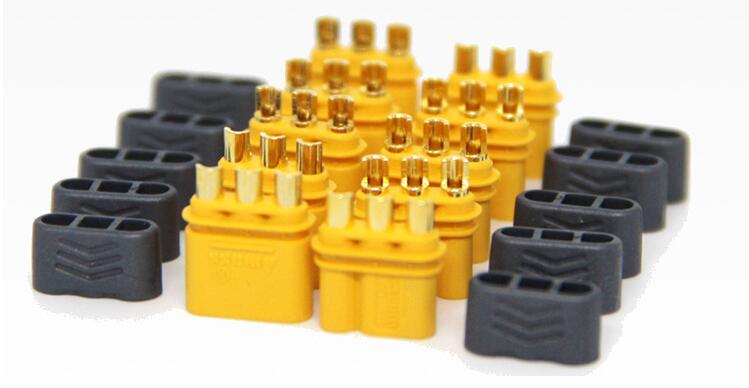

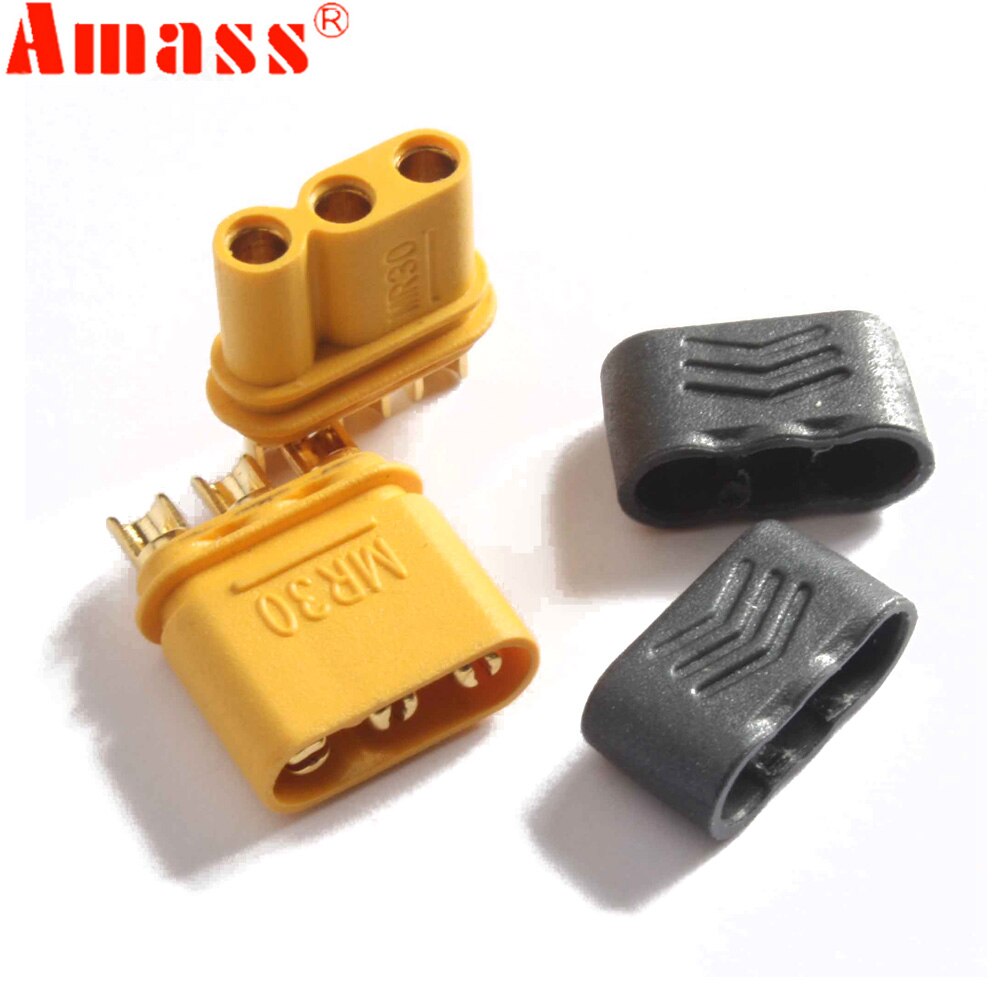

5pair AMASS MR30 Male Female Connector Plug with Sheath for RC Lipo Battery RC Multicopter Airplane

Brand Name: Amass

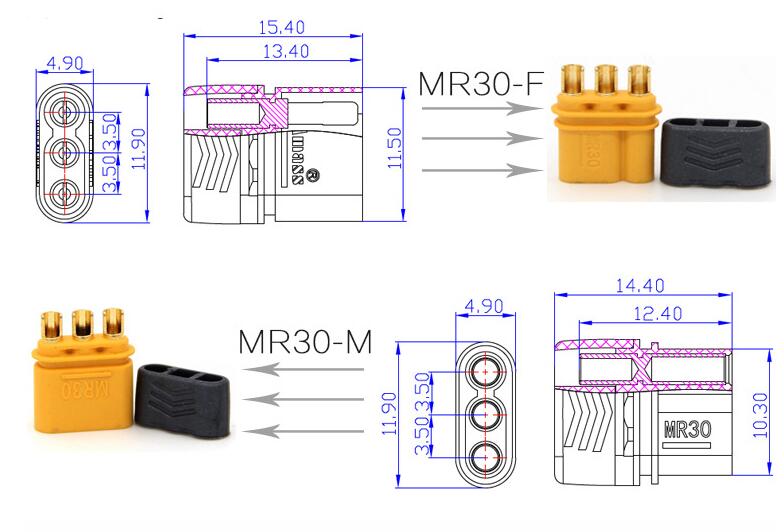

Item Name: MR30 connector
Body Material and Surface Plating: Brass and gold plated
Insulation Material: PA66
Original Internal Resistance: 0.8MΩ
500 Times Internal Resistance: 0.85MΩ
Max. Continuous Current: 30A (within 30 minitues)
Max. Instantaneous Current: 40A (within 1 minitues)
Recommended Cable Spec: 18AWG 2.8mm diameter
Recommended Soldering Spec: 400° C/3S
Weight: 1.2g/pcs
Insulation Degree: UL94V-0
Machine Life: 3000 Times

Features:
- Suitable for connecting ESCs and motors
- With protective sleeve
- Assistive weld foot, more stable
