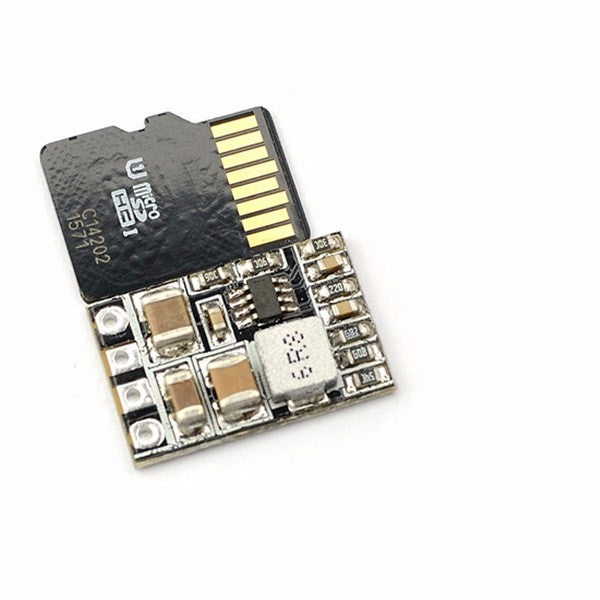

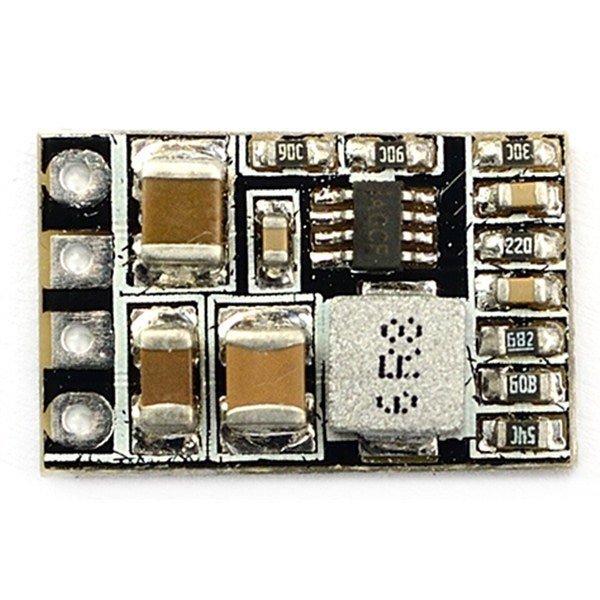

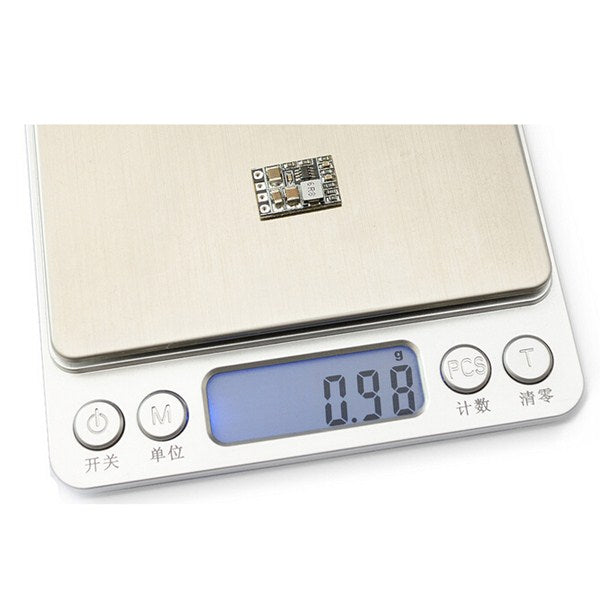

5V 12V Adjustable Voltage Dual BEC Output Board Only 1g for RC Drone FPV Racing
DroneSpark
Regular price
$4.99
$3.99
Sale
5V 12V Adjustable Voltage Dual BEC Output Board Only 1g
Description:
Description:
Item Name: 5V 12V Adjustable Voltage Dual BEC Output Board

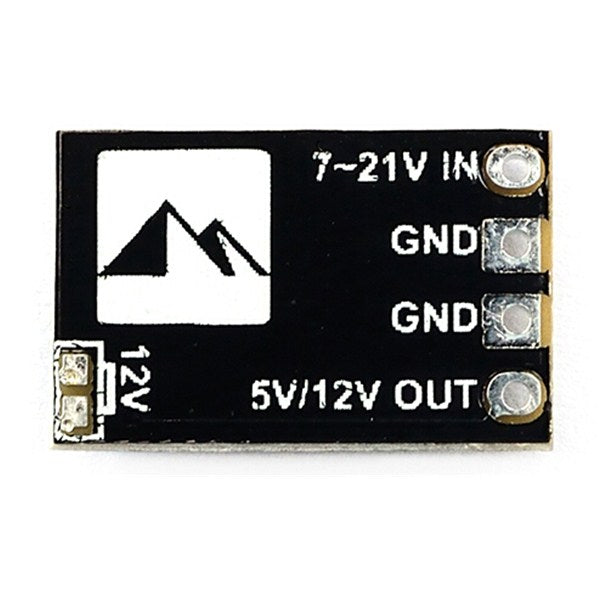

Wide 7V to 21V Opterating input range
Continuous load current: 1.5Amps (Max.2.5A 5s/minute)
VOut5V or 12V Adj
Default: 5V
VOut Load Regulation: 2%
Standy current: <5mA
Maximum Duty Cycle: 95%
Output Ripple: 20mV(VIn=16V, VOut=12V@1.5A)
40mV(VIn=16V, VOut=5V@1.5A)
Output Short-circuit tolerant (5 seconds/minute)
Pins distance: 2.54mm

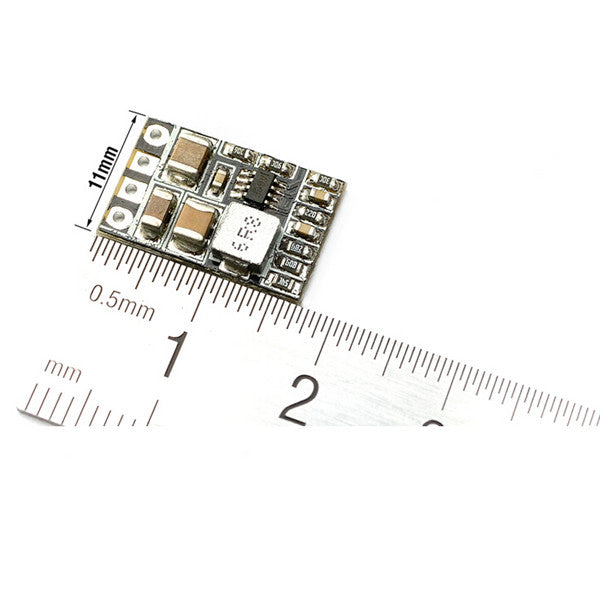

Size: 11 x 17 x 3mm
