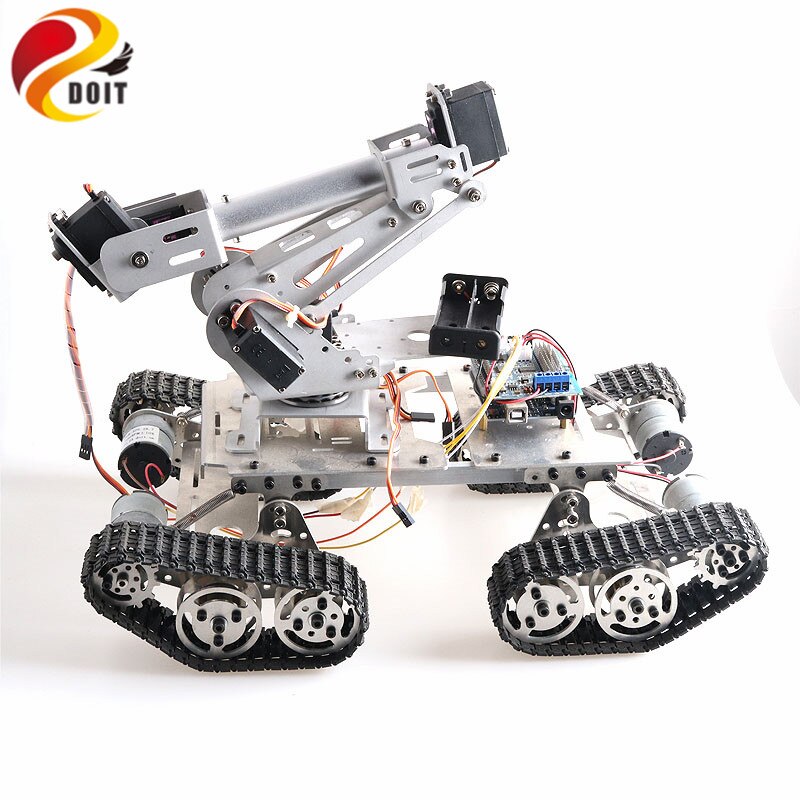

6 DOF Mechanical Arm with TS400 Shock Absorber Tank Chassis for Grabbing Transport DIY STEM Educational Project

Package list:

Silver Package 1= Silver TS400 tank chassis(9V 150rpm encoder motor)+ silver 6 Dof robot arm(with 6pcs MG996r servos) Silver Package 2=Silver Package 1+ Wifi control kit Silver Package 3=Silver Package 1+ Bluetooth control kit Silver Package 4= Silver Package 1+PS2 control kit The black package are same, just the color is different. Note: 1: the product is unassembled. Pls visit the wiki.doit.am to see the manual. Or leave your mail box when order. 2. the package isn't included the battery.

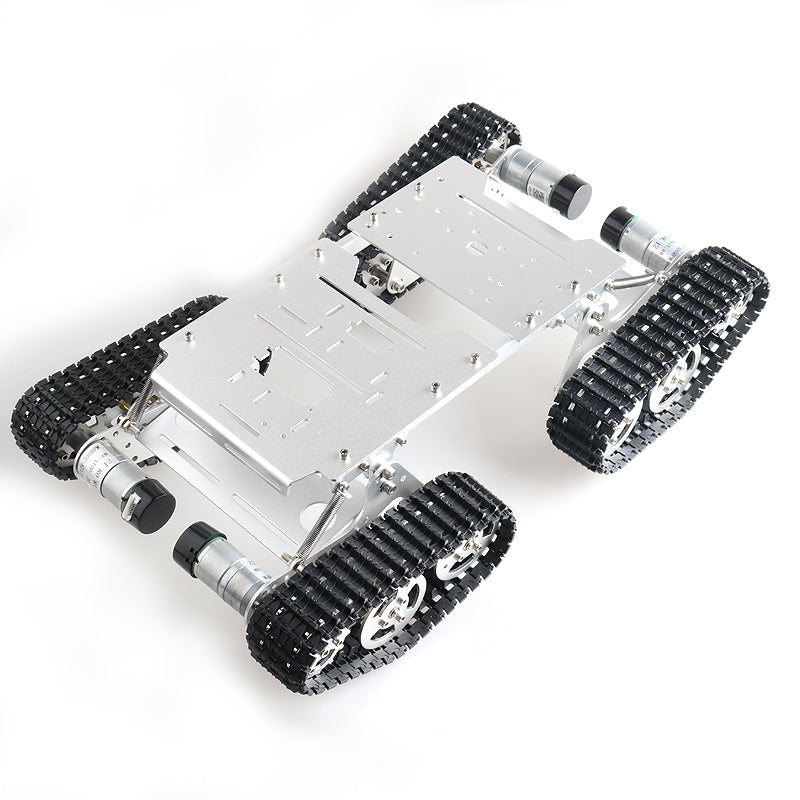

TS400 Tank Chassis Parameters:

Size: 37.5*24*10.5cm (length * width * height) Net weight: 1.43kg Material: aluminum alloy Track: engineering plastic (4.1cm wide, freely removable) Control method: This shop has wifi, Bluetooth, handle control, need to purchase separately

Robot Arm

MG996r Servo Parameters:

Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc... Great for truck, Boat, Racing Car, Helicopter and Airplane. Power Supply: Through External Adapter. Stable and Shock Proof. - Metal Gear - Double Ball Bearing - Connector Wire Length 300mm Dimension : 40mm x 19mm x 43mm Weight : 55g Operating Speed : 0.17sec / 60 degrees (4.8V no load) Operating Speed : 0.13sec / 60 degrees (6.0V no load) Stall Torque : 13 kg-cm (180.5 oz-in) at 4.8V Stall Torque : 15 kg-cm (208.3 oz-in) at 6V Operation Voltage : 4.8 - 7.2Volts Gear Type: All Metal Gears Connector Wire: Heavy Duty, 11.81" (300mm)

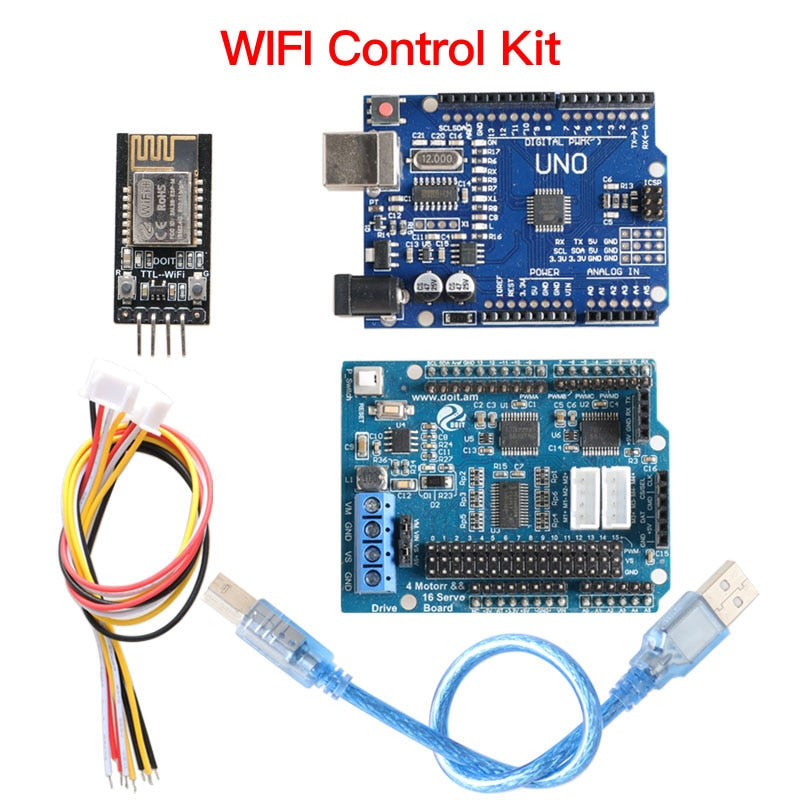

WIFI control kit

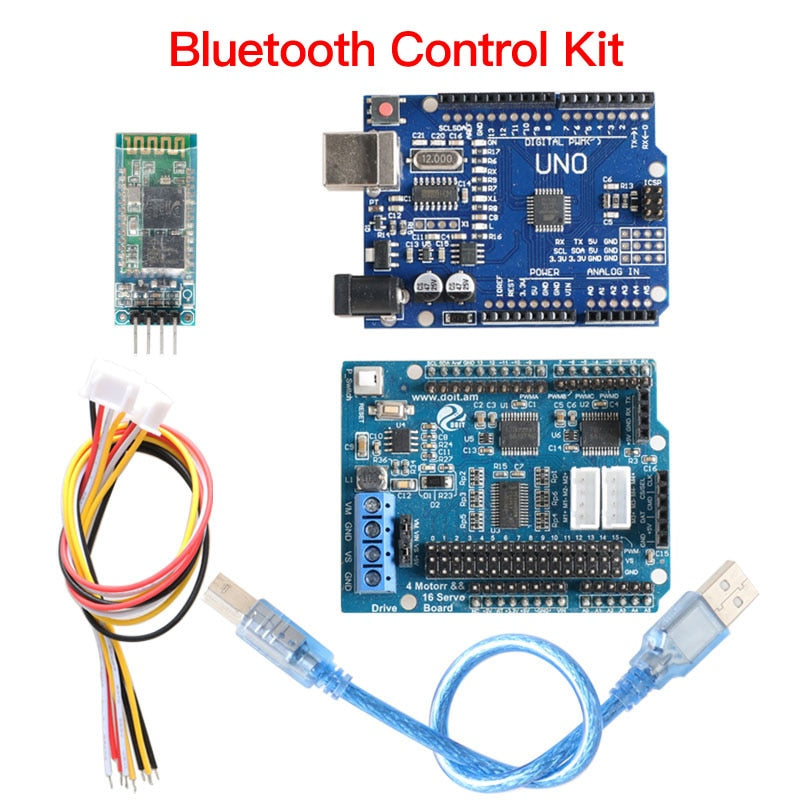

Bluetooth control kit

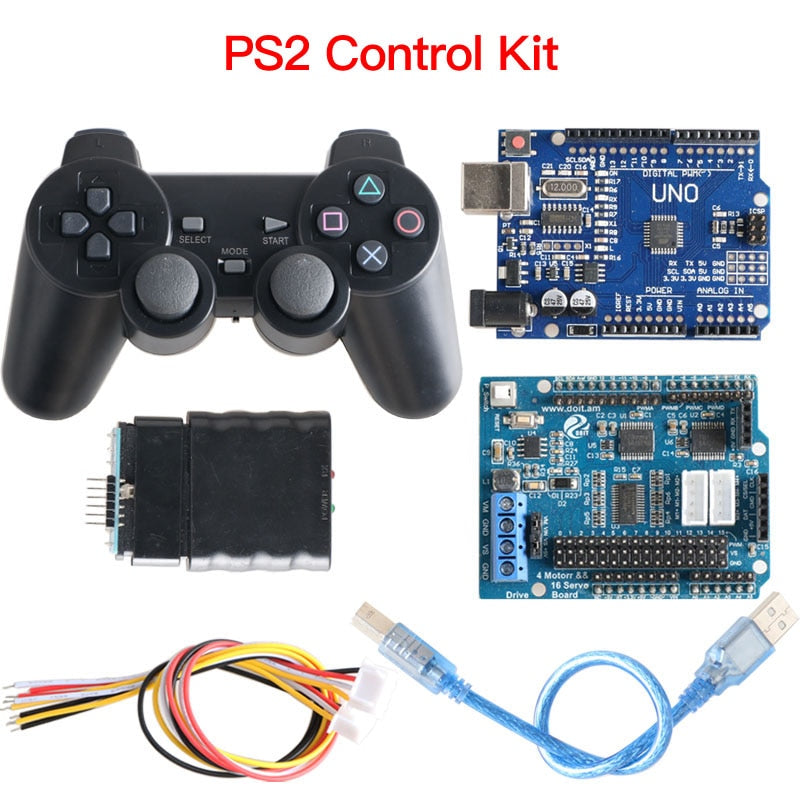

PS2 control kit
