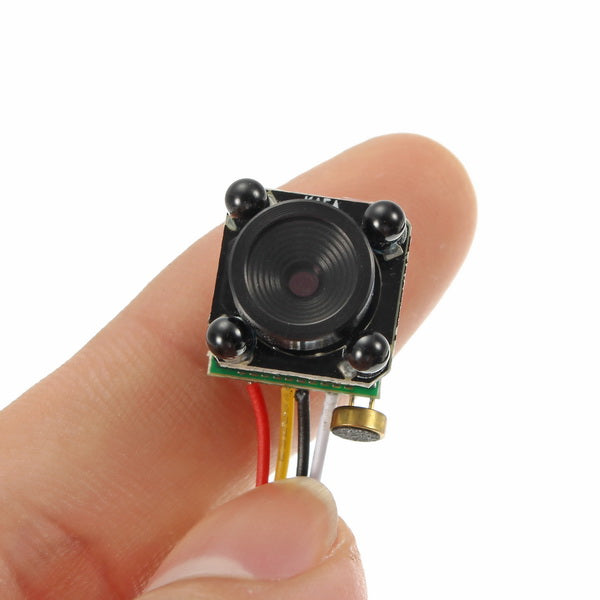

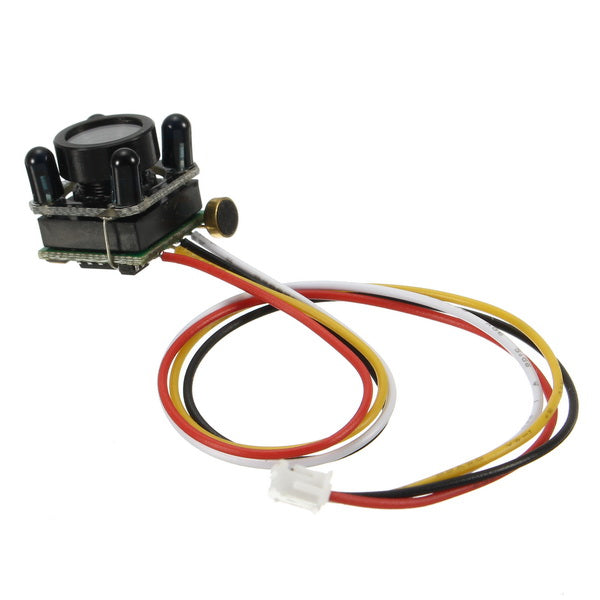

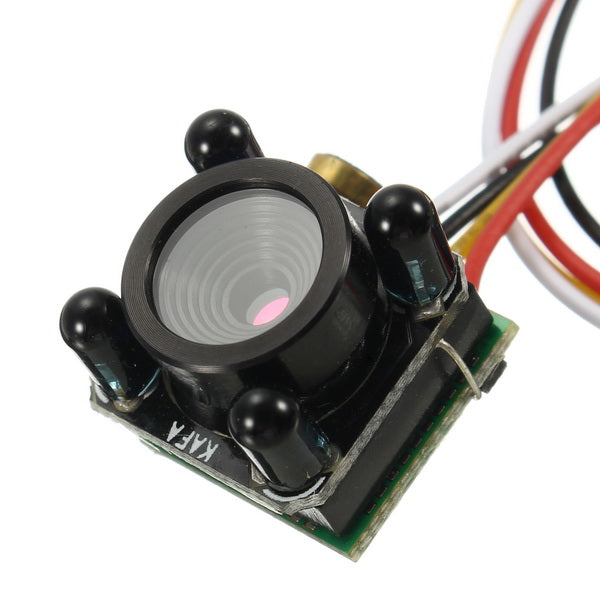

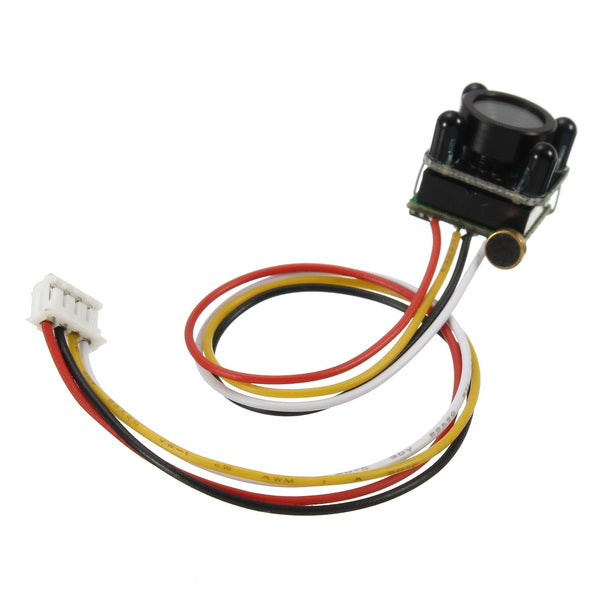

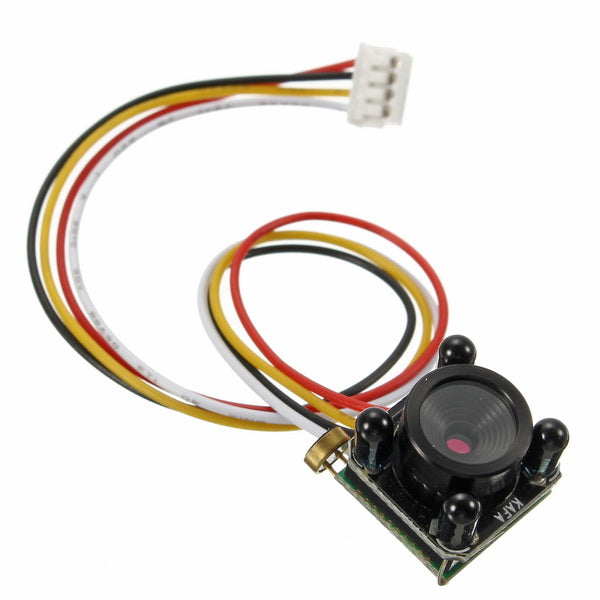

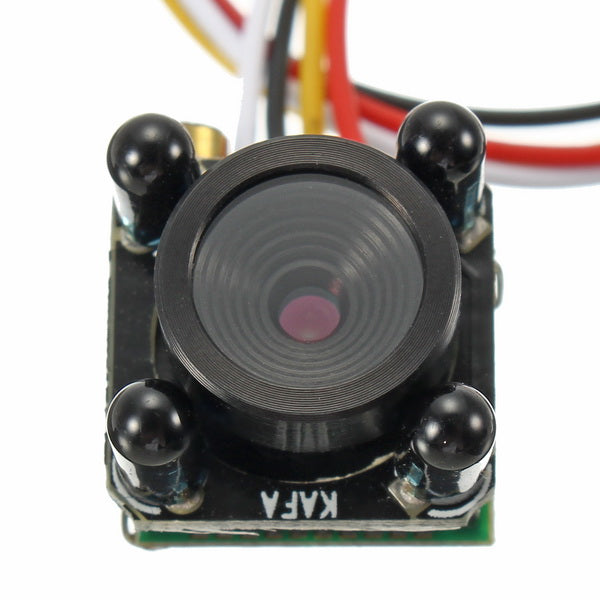

650TVL 1/4 CMOS 3.6mm Lens 6MP HD Mini FPV Camera PAL/NTSC 3.3-5V

Resolution: 1280 * 960
Resolution: 650TVL
Camera Dimensions: 12.5mm * 12.5mm * 17mm
Net Weight: 4g
Illumination: 0.5LUX
Format:PAL / NTSC Colorful
Power supply range: 3.3-5V 100mA
Audio Lens: 3.6mm (65 degree)
Image sensor:1/4 CMOS image sensor
Sensitive area: 3.5964mm x 2.7084mm
648 pixels (horizontal) × 488 (vertical) 648 (horizontal) × 488 (vertical)
Scanning Frequency Horizontal: 15.625KHz
Vertical: 50Hz
level: 15.7343KHz
Vertical: 60Hz
Electronic Shutter 1 / 50-1 / 80000 (sec) 1 / 60-1 / 80000 (sec)
SNR ≥48dB (AGC OFF)
Minimum illumination : 0.1 Lux / F1.2
Composite video signal :1.0Vp-p 75Ω
Standard Lens :3.6 mm

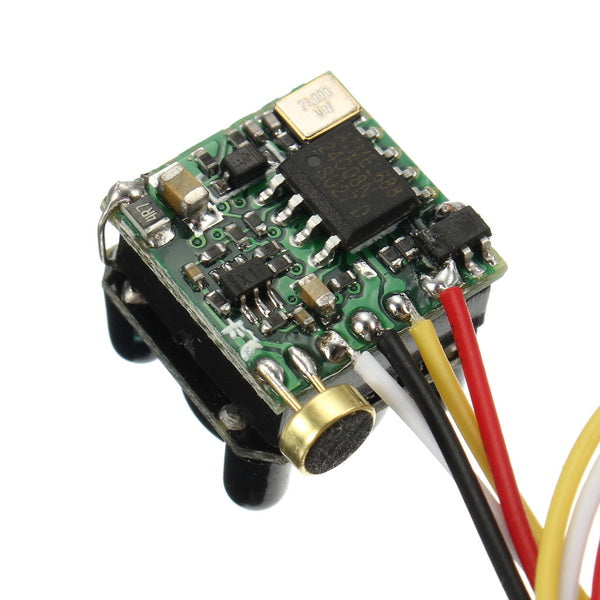

Specifications PCB: 38mm*38mm
Power: DC5V ± 10% 70mA ± 10%
Operating temperature :-10 ℃ ~ 60 ℃ RH95% Max



Package included:

1 x 650TVL Camera
