860046 21PIN/21MTC To 8PIN/NEM652 Harness adaptor with Speaker Wires for Dcc model train Railway/LaisDcc Brand
Drone Spark
Regular price
$104.99
$244.99
Sale
Whole seller/Ebay agent wanted/OEM available

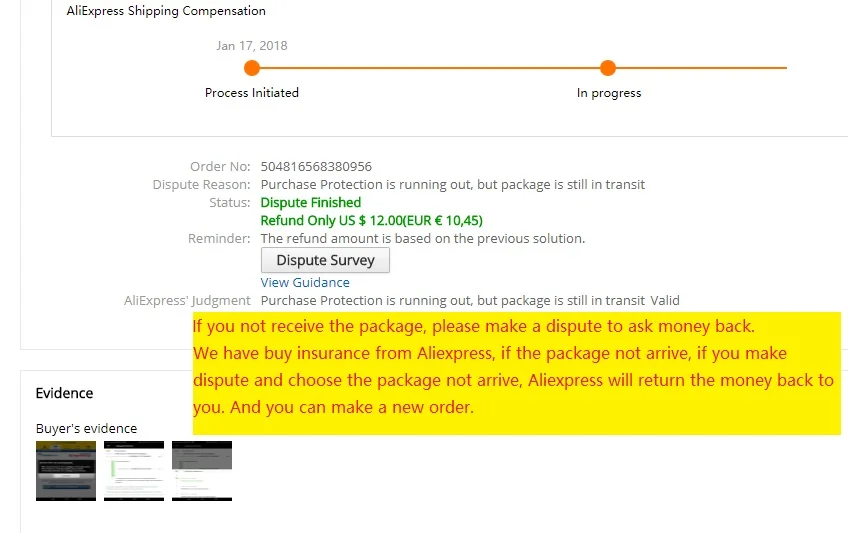

We have buy package insurance, if this package lost or did not delivery to you in time. You can make a dispute to get the money back. And choose the reason you did not receive the package. If you did not make a dispute when you not receive the package in time, Aliexpress will not accept to return the money.
How to buy:
http://help.aliexpress.com/new_user_guide_home.html
Resellers or agent with bulk order:
Contact with us. We offer discount for resellers with big order.
Payment:
If you cannot make the payment via Aliexpress, please contact with us.
Follow us on the Social:
Facebook/Twitter
SKU: 860046

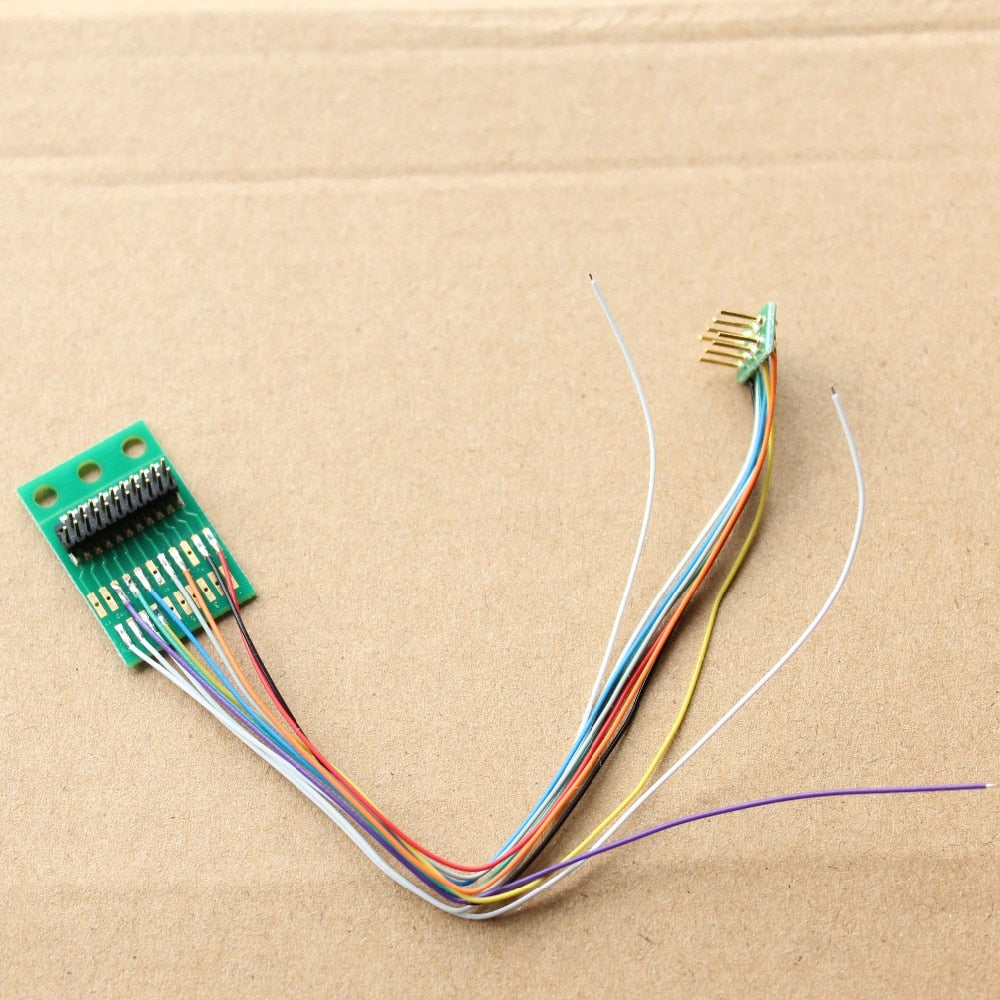

860046 21PIN/21MTC To 8PIN/NEM652 Harness adaptor with Speaker Wires for Dcc model train Railway/LaisDcc Brand
One side is 21MTC adaptor board with 21 Pad
Another side is NEM652 Male Plug
Wires Length: About 100mm-120mm
Function: Use for the customers who want to use a 21MTC sound or Non-sound decoder for a build-in NEM652 8Pin Locomotive
21-Pin-MTC-to-8-Pin-DCC-Plug-Adaptor-Pinout-Wiring
21-Pin MTC to 8-Pin DCC Plug Adaptor Pin-out & Wiring Diagram
Pin7=Yellow=Rear Lights
Pin8=White=Head lights
Pin9=White=Speaker
Pin10=White=Speaker
Pin13=Voilet=Aux2
Pin14=Green=Aux1
Pin15=Blue=DC+
Pin17=Grey=Motor Left
Pin18=Orange=Motor Right
Pin20=Black=Left Rail
Pin21=Red=Right Rail
