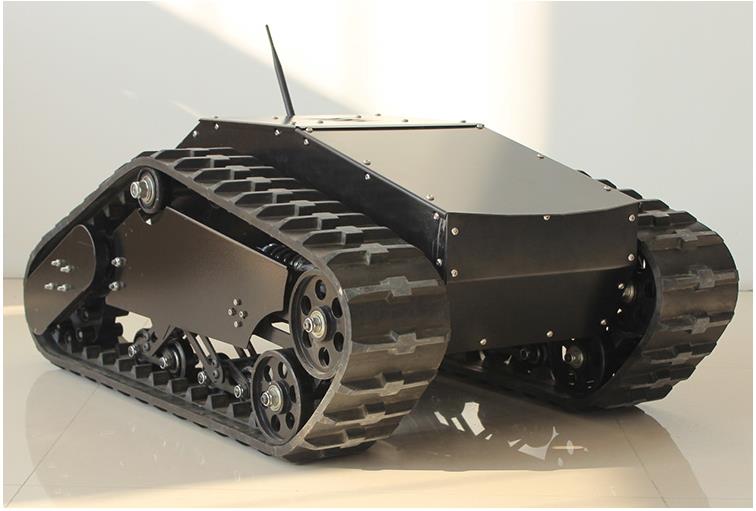

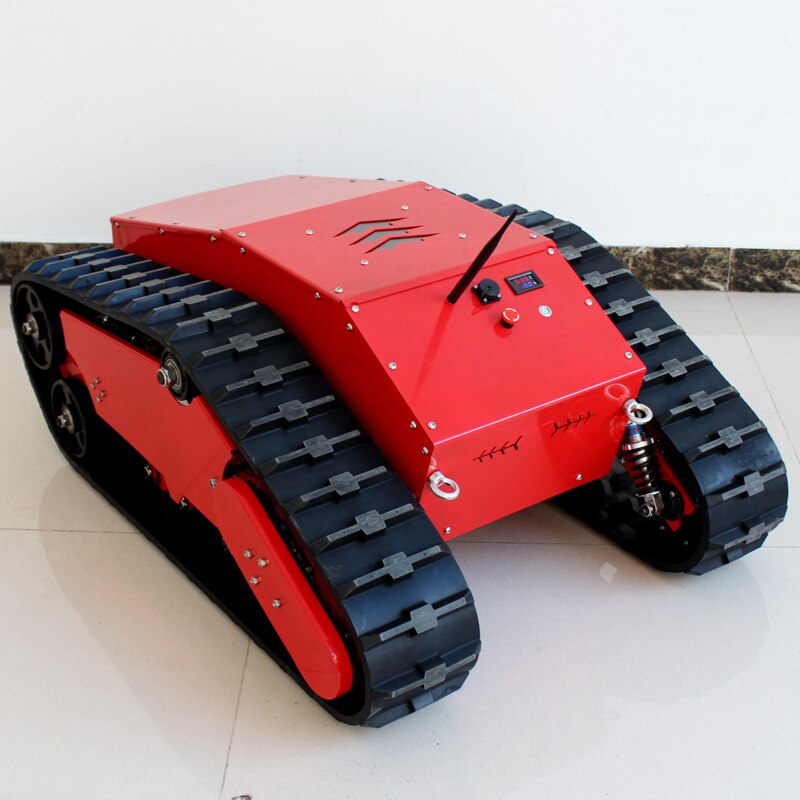

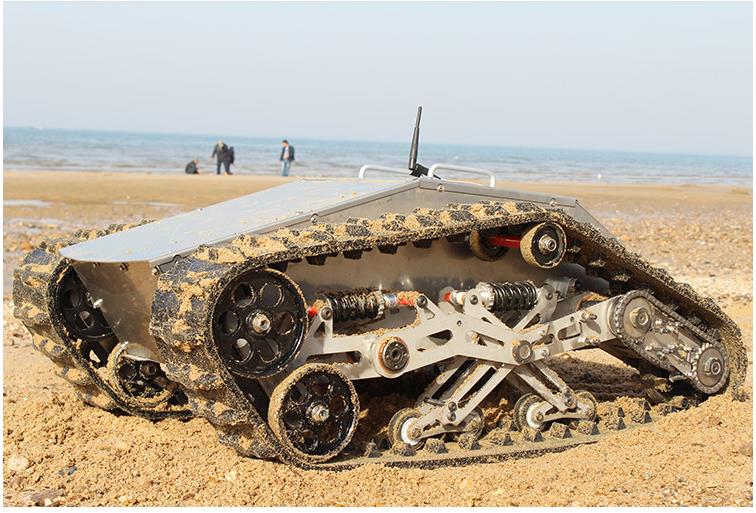

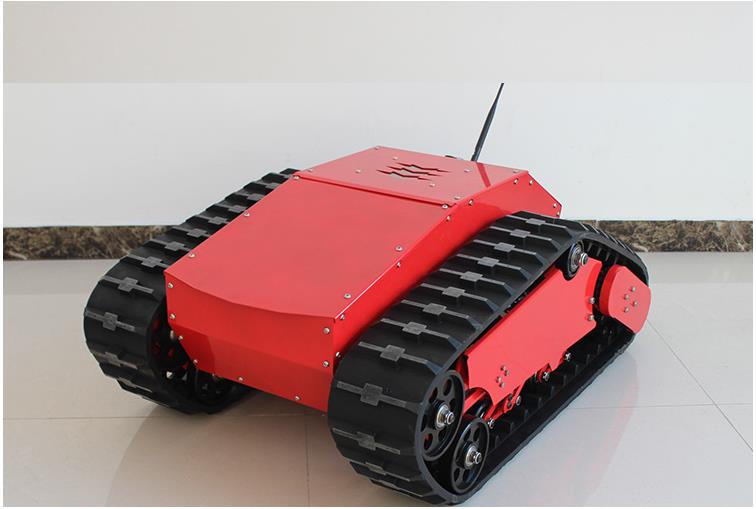

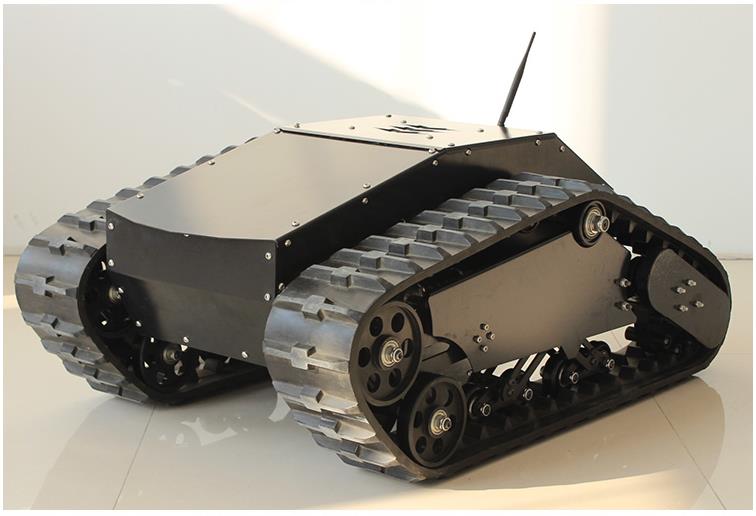

880t 100kg Load Big All Metal Robot Tank Platform Shock Absorption Chassis Suspension Crawler Chassis

Video: http://v.youku.com/v_show/id_XMTU5MzMzMzM1Mg==.html



Parameters:

• Power: 48V DC Brushless Motor
• Working temperature: -20℃~60℃
• Rated power: 880W*2
• Rated Torque: 82NM
• Running Speed: 0~1.6m/s
• Maximum Across obstacles: 200mm
• Maximum climbing: 40º(Can Climb the stairs)
• Shock Absorber: Left and right independently*6 shock absorber
• Remote Control distance: 300m in open outdoors
• Endurance: 2h
• Remote Control: Right joystick control tank movement



Dimensions:

• Outer: 1020*730*440mm;
• Internal: 600*320*240mm
• Chassis Height: 140mm
• Tracks Width: 150mm



Weight:

• Chassis : 120kg
• Load : 100kg

Materials:

• Wheel: Aluminum;
• Chassis Body: Steel;
• Tracks: Rubber;
• Surface treatment: part of spray paint



Battery:

• Type litium battery;
• Capacity: 30AH;
• Voltage: 48V

Package Included:

• 1*Chassis(with motor)

Note:

• Not incldued the controller and battery.
