9.5g X2 Eyas 80mm Wheelbase Carbon Fiber Mini FPV Racing Frame Kit for RC Drone

9.5g X2 Eyas 80mm Carbon Fiber Mini Racing Frame Kit

Notice: It was upgraded with the bottom plate. ( new photos showed as following)
             - Having 16x16mm & 20x20mm Mounting Hole.
             -  Tthe thickness of bottom plate is 2.5mm.

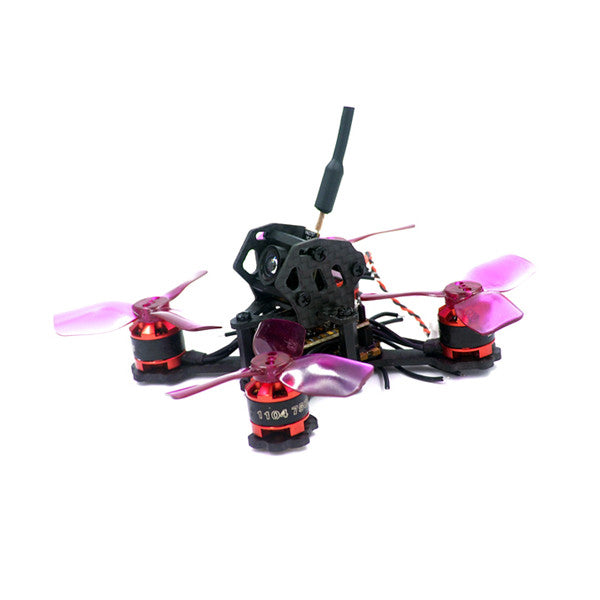

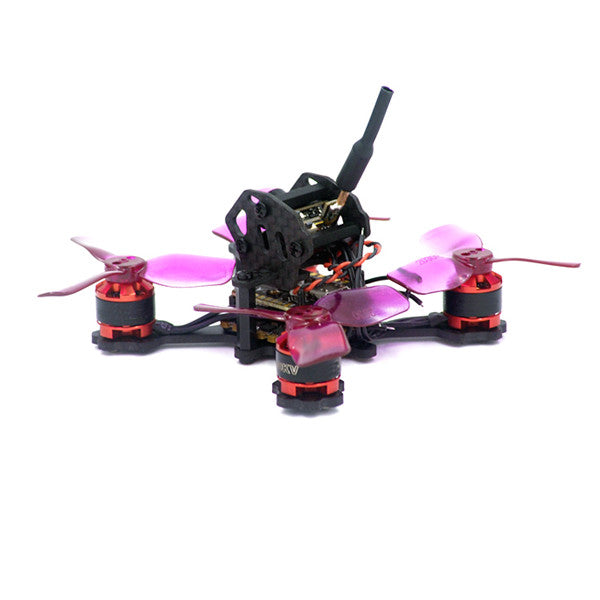

Complete Drone Picture Shows



Note: Only package included the empty frame kit.


Specification:
Item Name: X2 Eyas 80mm Mini Racing Frame Kit
Model: X2 Eyas
Wheelbase: 80mm
Material: Carbon Fiber
Bottom Plate Thickness: 2.5mm
Upper Plate Thickness: 2mm
Weight: 9.5g

Recommend Parts:
Flight Control and ESC: 20x20mm / 16x16mm Mounting Hole Flight Control & ESC Flytower
Motor: 1104 Or 1106 6000KV Aboved Motor
Propeller: 20XX / 19XX Propeller
VTX and Camera: FPV Transmitter AIO Camera Module ( The Wideth Less than 18mm)
Receiver: Mini Receiver
Battery: 1-2S 300mAh Lipo Battery

The following parts are suitable: ( Not Included)
Flight Control & ESC: 20x20mm XJB V2 PBF3 EVO FC & 25A Bl_S ESC
Motor: Racerstar 1104 7000KV 1-2S Brushless Motor
Propeller: DYS 2030 1.5mm Hole 3-Blade Propeller
                   Kingkong 1935 1.5mm Hole 3-Blade Propeller
VTX & Camera: 5.8G 48CH 25mW VTX AIO 520TVL Camera
Battery:  Gaoneng GNB 2S 7.4V 450mAh 50C 2S Lipo Battery

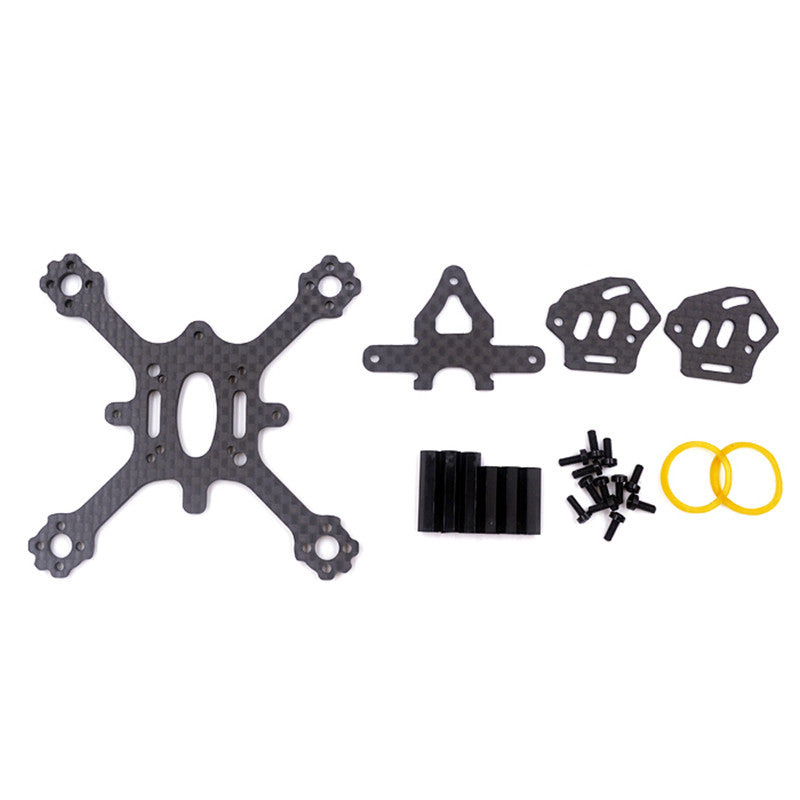

Package Included:
1x X2 Eyas 80mm Frame Kit
1x bag of Screws
