A2212 2212 1000KV 1400KV Brushless Outrunner Motor 30A / 40A Brushless ESC for DIY RC Aircraft Quadcopter Hexacopter Multirotor
Drone Spark
Regular price
$104.99
$243.99

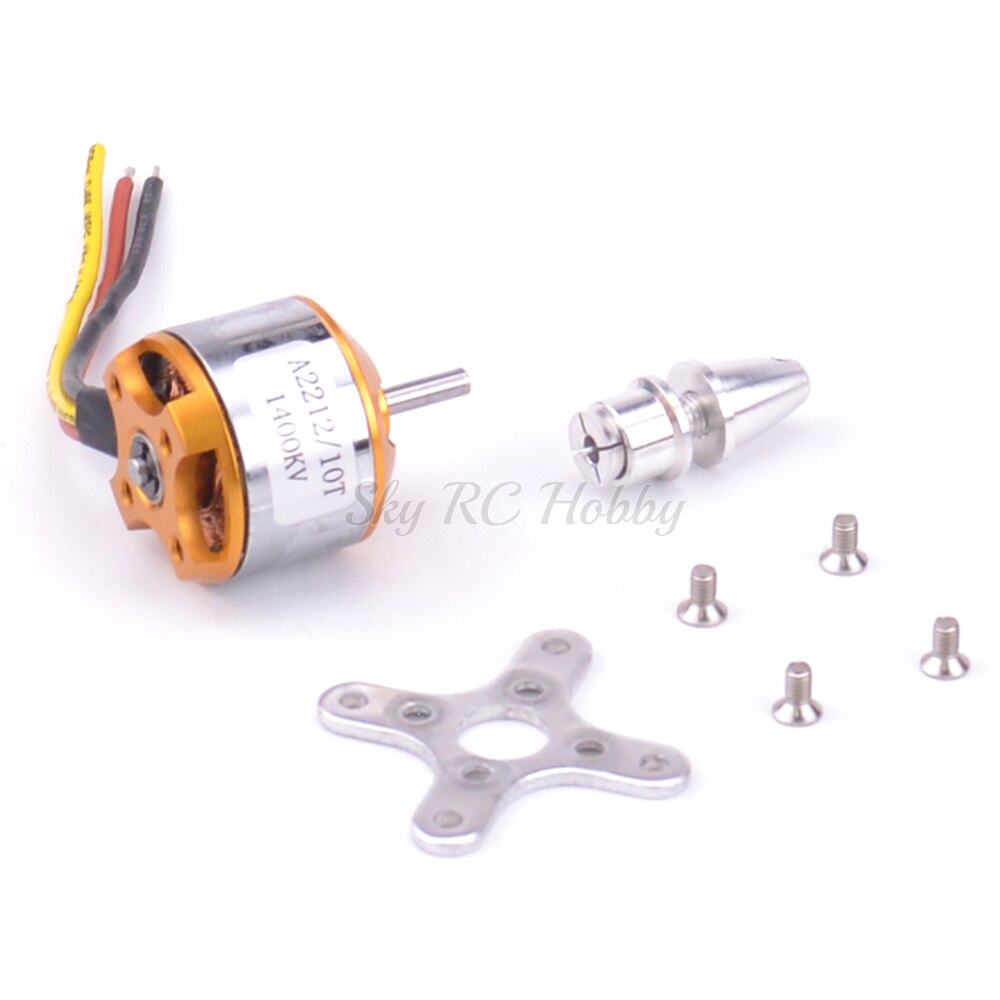

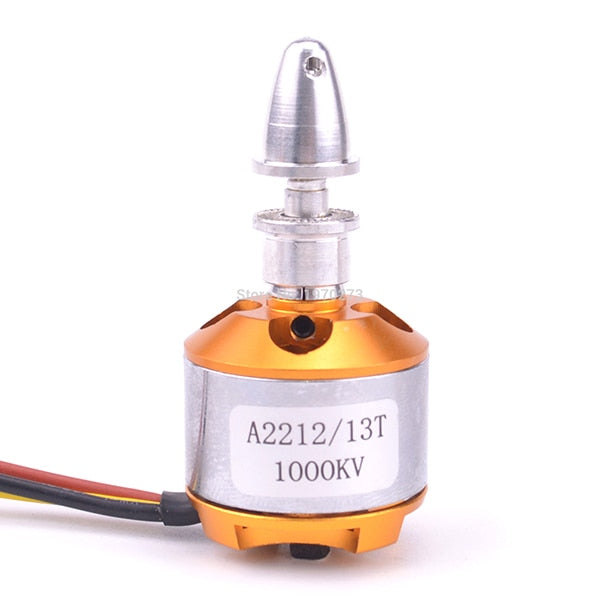

A2212 1000KV / 1400KV Motor:
KV: 1000kv / 1400kv
Max Efficiency: 80%
Max Efficiency Current: 4-10A (>75%)
Current Capacity: 12A/60s
No Load Current @ 10V: 0.5A
No. Of Cells: 2-3 Li-Poly
Motor Dimensions: Φ27.5 x 30mm
Shaft Diameter: Φ3.17mm
Weight: 47g/set

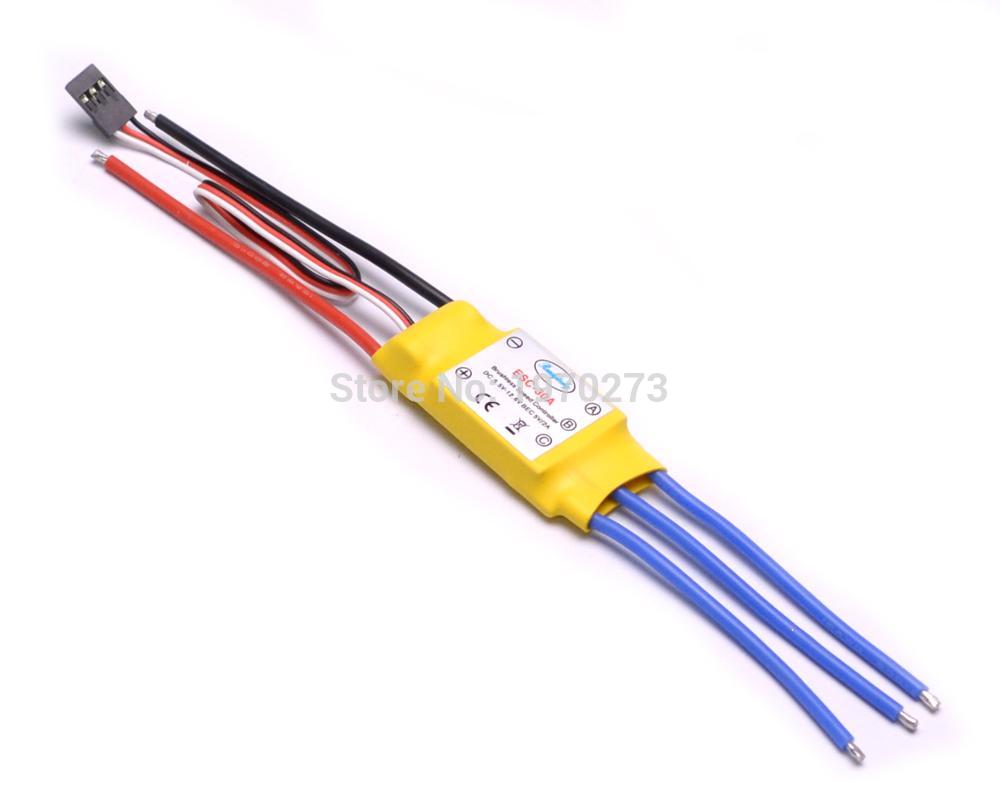

30A 2-3S ESC Description:
Feature
30A: an instant 45 A, 40A continuous 10 seconds
Size: 30A-45 X 24 X 8mm
voltage range: 5.5 V-12V
battery number :4-12 NIMH 2-3LIPO (4LIPO BEC does not allow the use of output)
BEC output: 30A, stressed: 5 V 3A. 2LIPO 4-5 micro-steering gear 3 LIPO 3-4 micro-steering gear /
Protection features: automatic selection 2-3 LIPO were protected voltage is 6 V/9V; automatically elected NIMH, each protected voltage is 0.8 V;
security started, throttle position does not prohibit started temperature protection, the surface temperature of 110 degrees downtime; out of control
protection, without Signal one second after the shutdown.
Property Description: speed limit, within a 2 to as high as 300,000 to 12 to 50,000, to a very, very foreign to the 14 to 42,000. 8KHz PWM control,
the use of speed control curve. Automatically adapt to the accelerator, more suitable for remote control devices.
The use of BEC, MCU separate power supply, a more stable work.
Notice: this 30A can not be programmed , becuse we have programed it when producing .

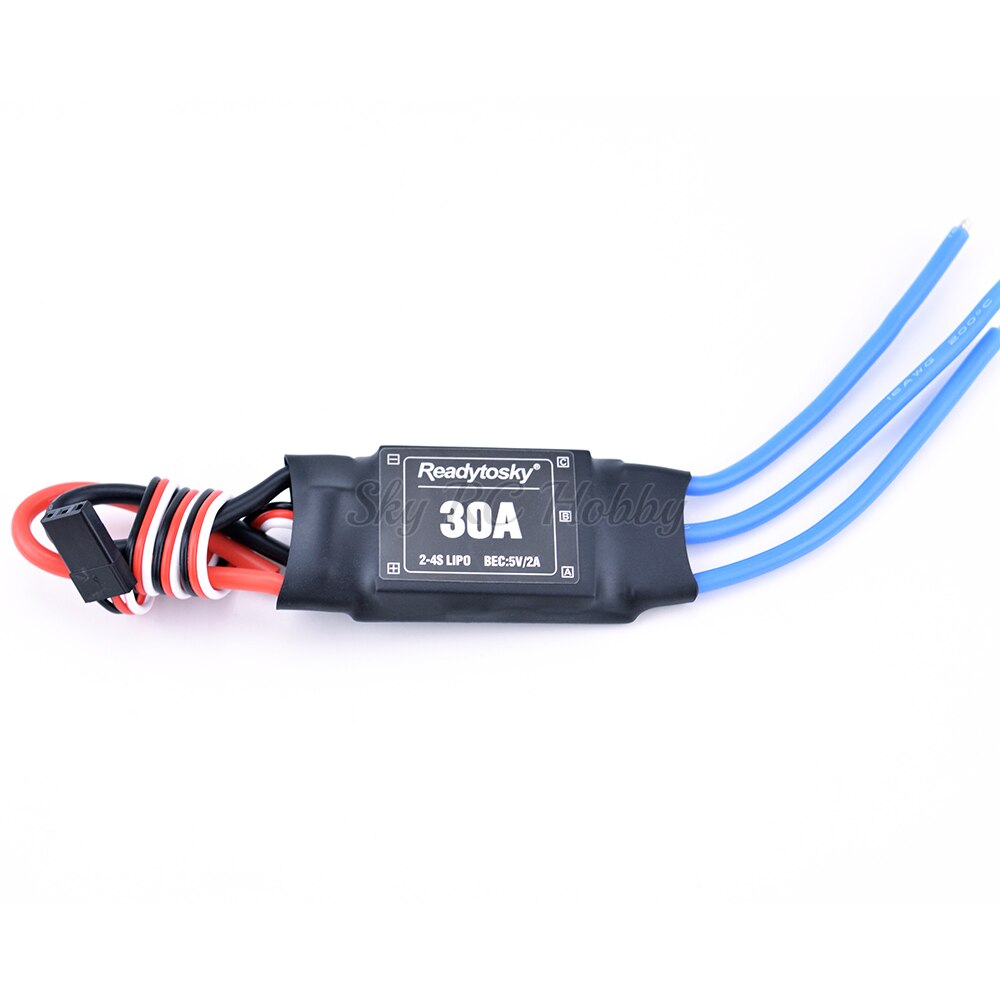

30A 2-4S ESC Specification:
BEC : 5V/2A
Li-ion/Li0poly:2-4S
Size: about 5.7x2.4cm
Weight: about 26.5g(with cable);

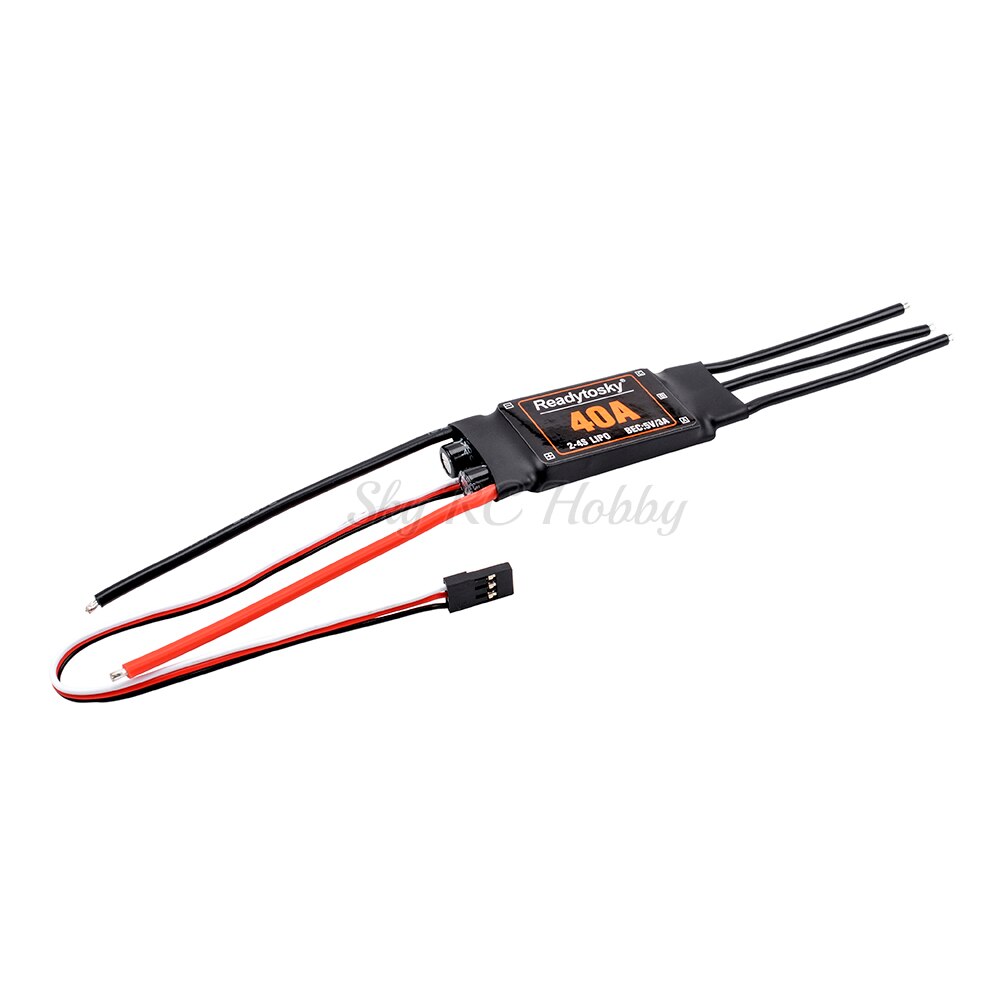

40A 2-4S ESC Specification:
BEC: 5V/3A
Li-ion/Li0poly:2-4S
Size: about 6.8x2.4cm(ESC with Cable)
Weight: about 33.2g(with cable)
Note: This ESC is not able to flash the firmware.

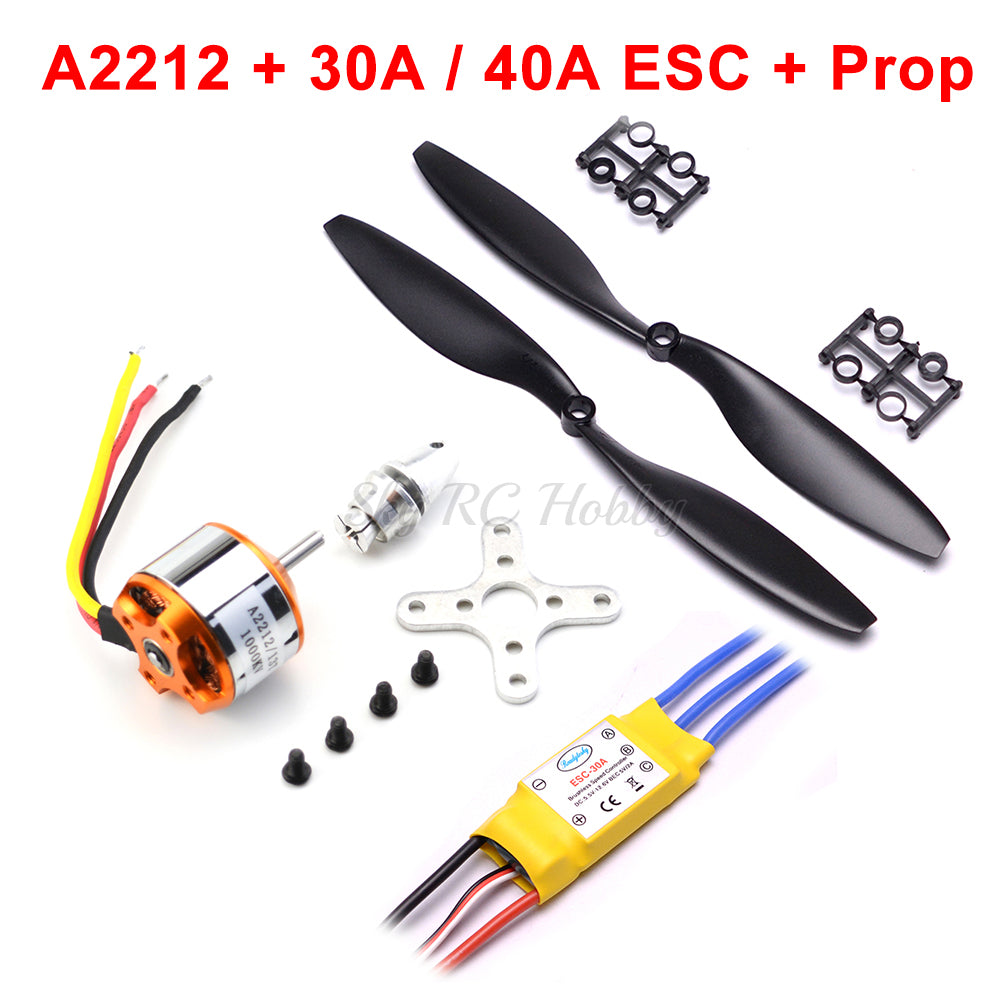

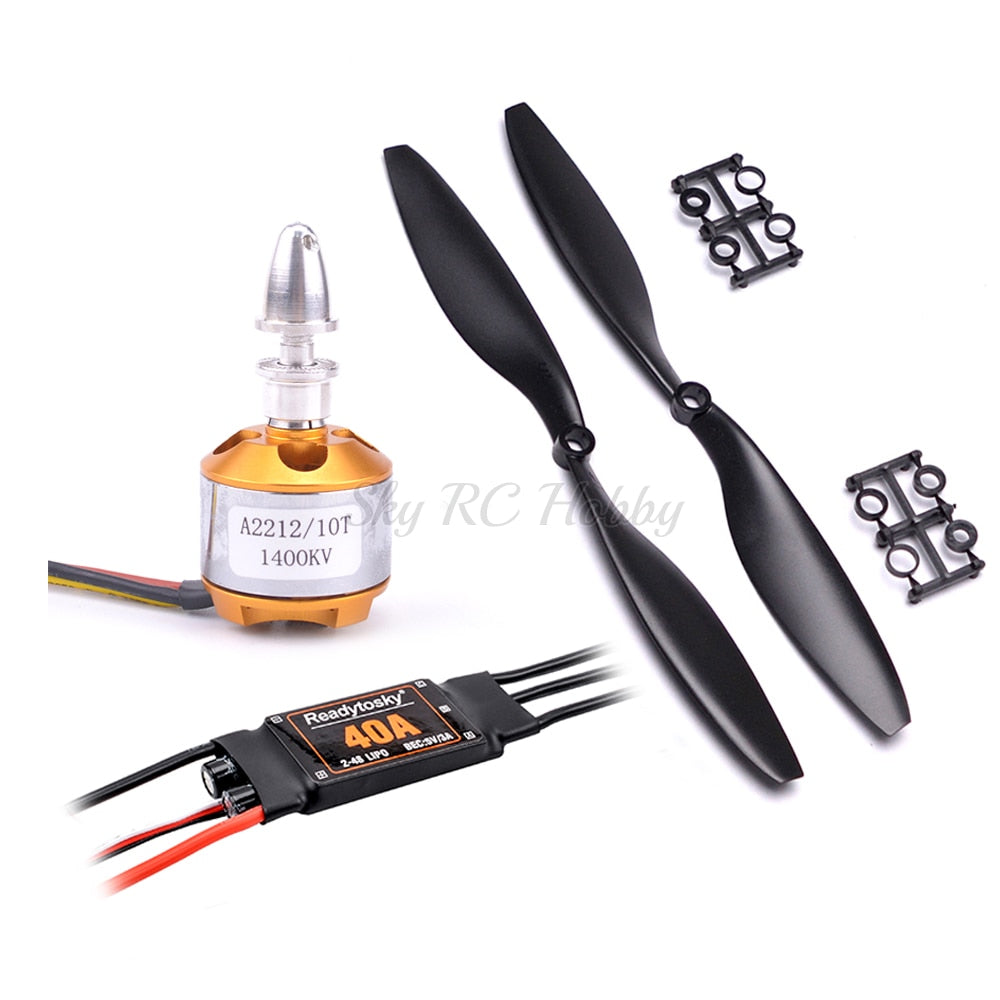

Package Included: (Send as your choice, as the option showed)
1 x A2212 1000KV / 1400KV Motor
1 x 30A / 40A ESC
1 Pair 1045 Propeller
