Drone Spark

$91.99 $213.99 Sale

-





SG90 9G Micro Servo Features and specifications:

This is the most popular mini servo. Only weighs 9 gram and gives you a 1.5 kg/cm torque. Pretty strong regarding its size. Suitable for beam type robots.

Key features:

• Translucent body
• Lightweight
• Less noise


SG90 9G servo parameters:

Size: 21.5mmX11.8mmX22.7mm
Weight: 9 grams
No load speed: 0.12 sec / 60 deg (4.8 V)
Locked-rotor torque: 1.5-1.7kg/cm (4.8V-6V)
Operating temperature: -30~~+60 degrees Celsius
Dead zone setting: 5 microseconds
Working voltage: 4.8V-6V


100% Brand New and High Quality

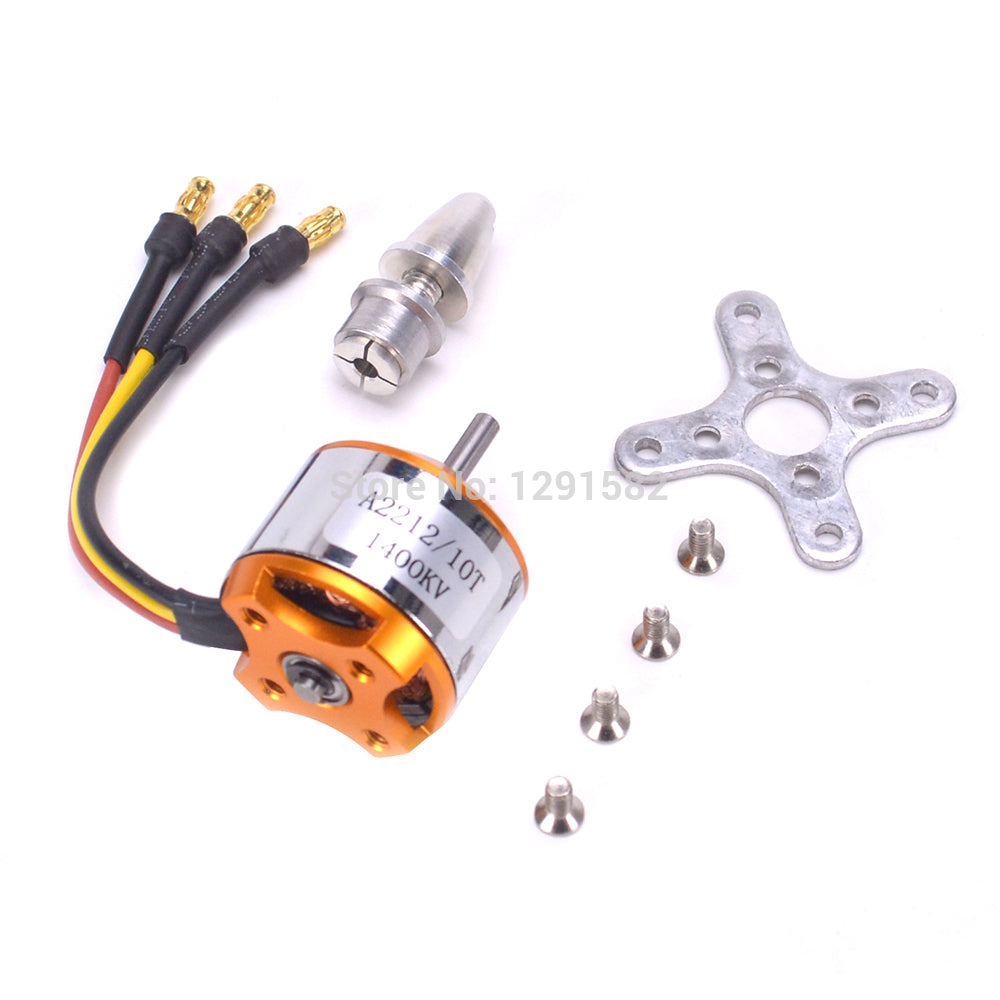

A2212 1400kv Motor Specification:

KV: 1400
Max Efficiency: 80%
Max Efficiency Current: 4-10A (>75%)
Current Capacity: 12A/60s
No Load Current @ 10V: 0.5A
No. Of Cells: 2-3 Li-Poly
Motor Dimensions: Φ27.5 x 30mm
Shaft Diameter: Φ3.17mm

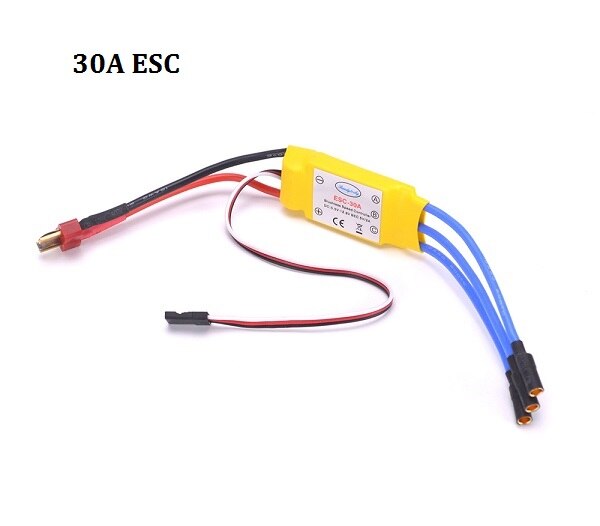

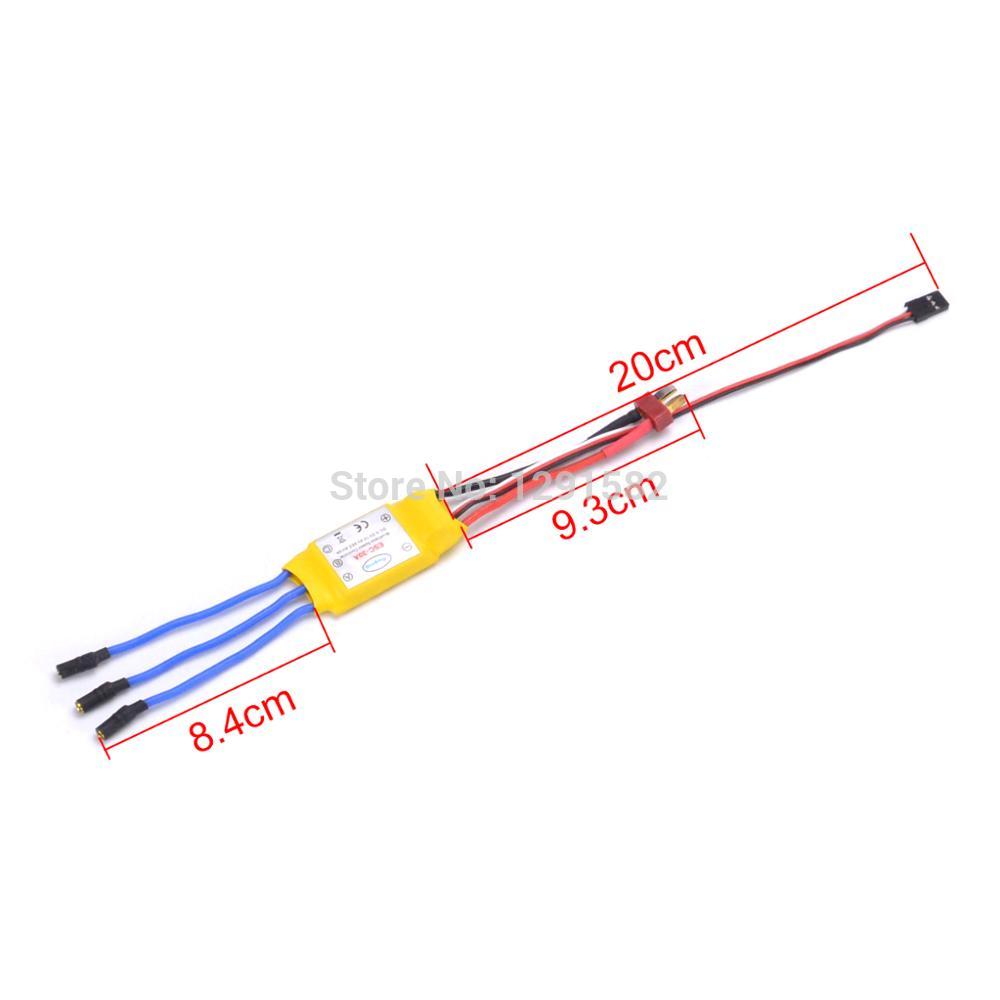

30A Brushless speed controller ESC MultiCopter Quad-rotor X-copter

Specification:

Compatible with: 400-450 helicopters / Aircraft or Quad-Rotor Multi RC Helicopter
-Output: Continuous 30A, Burst 40A up to 10 Secs.
-Input Voltage: 2-3cells lithium battery or 5-9 cells NiCd/NIMh battery.
-BEC: 2A / 5V (Linear mode).
-Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.
(BLM: BrushLess Motor)
With T plug and 3.5mm banana connectors

30A




Package Include:(as your picture, as your choice)





-


2212 1400kv 30A SG90 servi 8060 (6) 2212 1400kv 30A SG90 servi 8060 (2) 2212 1400kv 30A ESC 8060 (2) 2212 1400KV motor (6)




SG90 micro servo (2) SG90 micro servo (3) SG90 micro servo (9)
