DroneSpark

$44.99 $35.99 Sale

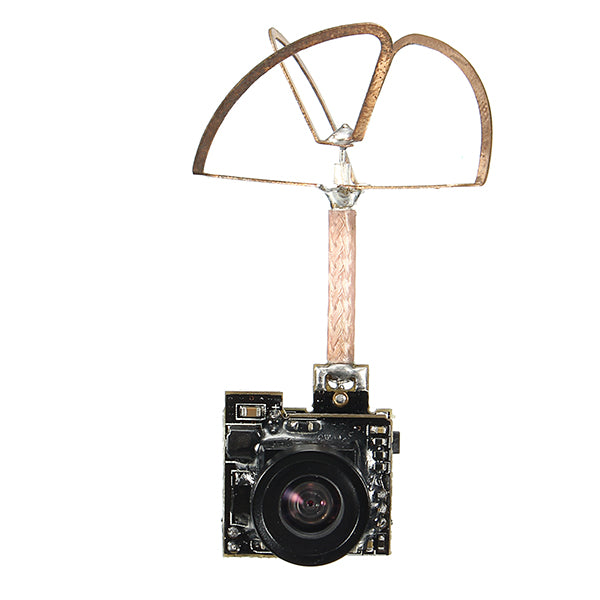

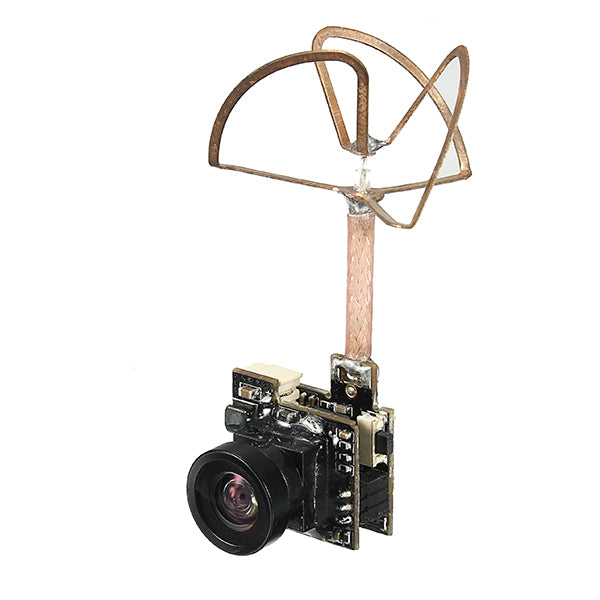

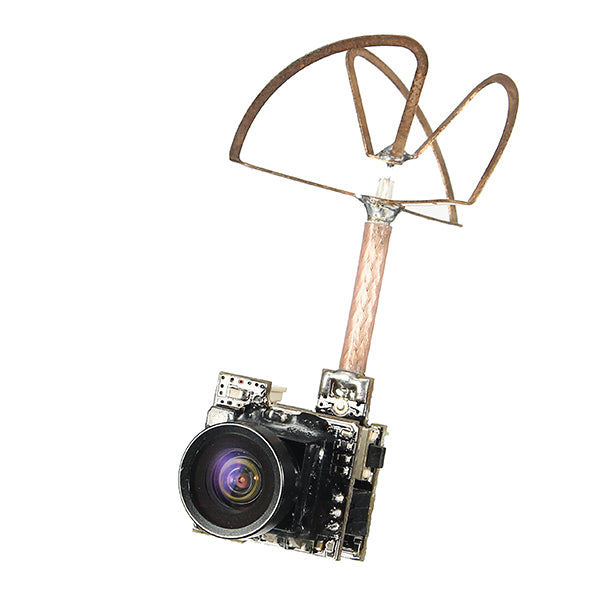

Eachine E010C E010S Spare Parts  AIO 5.8G 40CH 25MW VTX 800TVL 1/3 Cmos FPV Camera











Specification:

  Item name Eachine E010C E010S AIO FPV Camera
 FPV Camera Sensor: 1/3 "CMOS
Lens: M7 800TVL Lens
Angle: 150 ° FOV horizontal viewing angle of 170 ° DFOV diagonal perspective
Format: NTSC / PAL (switchable)
Power consumption: 380mA @ 3.7V
Power: 3.6-5.5V
Lens Mirror Diameter: 2.1mm IR coated FOV150 (horizontal)
 Transmitter Support video format: NTSC / PAL
Output Impedance: 75 Ohm
Output signal strength: 23 ~ 24dBm
Output Power: 25mW
Wireless Channel: 40CH
Operating voltage: 3.6V ~ 5.5V
Current: 100mA
Audio carrier: 6.5MHz

Button function
Short press (Apr. 1 sec or less): Change channels 1-8
Long press (More than 1.5 sec): Change bands A-B-E-F-R
Long + press (More than 3 sec): Change NTSC/PAL system
NTSC or PAL (selectable; Blue LED on= NTSC; Blue LED off=PAL)


                         Frequency Table

Frequency Band A  5865      5845     5825    5805    5785    5765    5745    5725
Frequency Band B  5733  5752  5771  5790  5809  5828  5847  5866
Frequency Band E  5705  5685  5665  5645  5885  5905  5925  5945
Frequency Band F  5740  5760  5780  5800  5820  5840  5860  5880
Frequency Band R  5658  5695  5732  5769  5806  5843  5880  5917


     Body Weight: 3.8g
Size: 17x13x14.5mm (without antenna)

Feature:

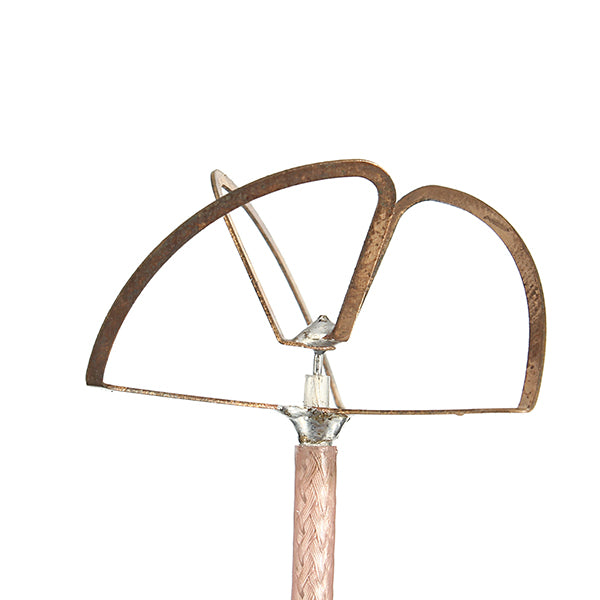

AIO FPV camera, transmitter , atnenna all 3 functions in one limit size and weight
150 ° FOV horizontal viewing angle of 170 ° DFOV diagonal perspective
Five bands 40 channels with Raceband

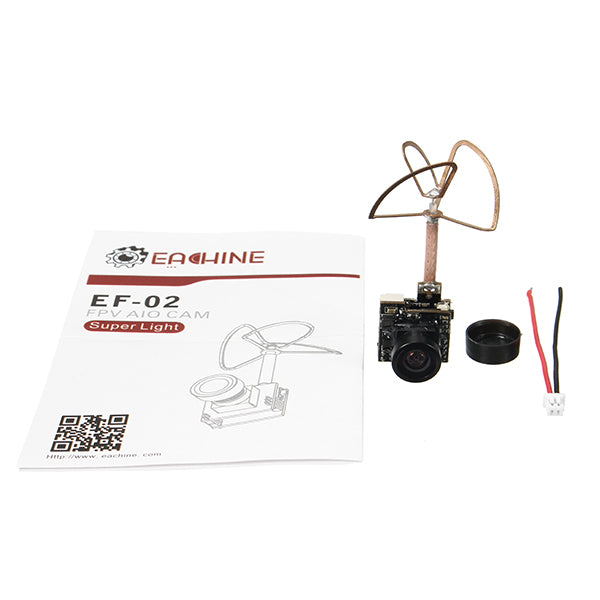

Package Included:
1 X FPV Camera

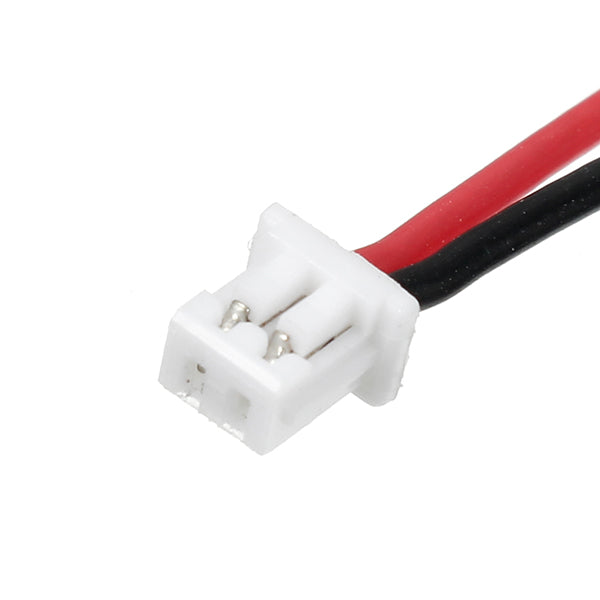

1 X Cable
