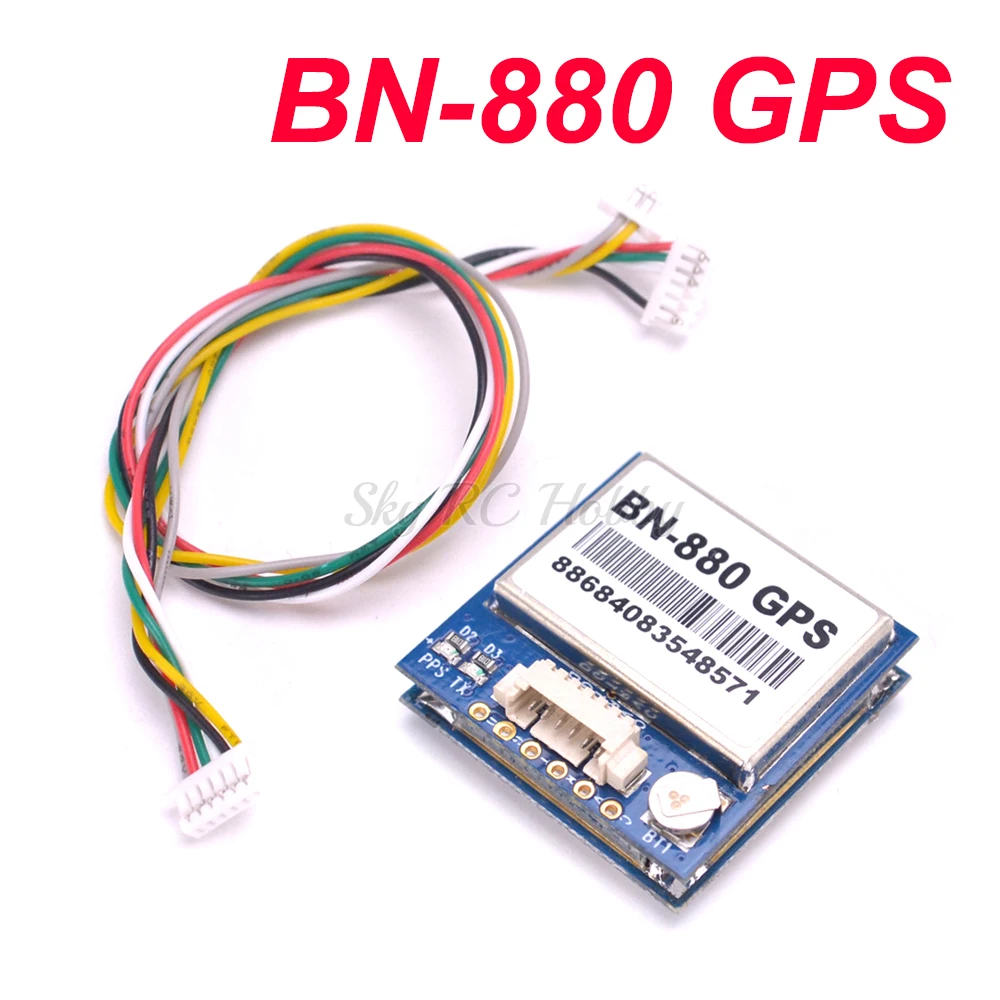

BN-880 Flight Control GPS Module Dual Module Compass With Cable For APM 2.5 2.6 2.8 APM2.6 PX4 Pixhawk 2.4.7 PIX 2.4.8
Drone Spark
Regular price
$155.99
$363.99
Description:
Model:BN-880
Power Supply: DC Voltage 2.8V~6.0V,Typical:3.3V or 5.0V
Consumption: Capture 50mA@5V
Receiving Format: GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
Receiving Channel: 72 Searching Channel
Receiving Sensitivity: Trace -167dBm
Capture-148dBm
Positioning Time: Cold Start:avg26s
Warm Start:avg25s
Hot Start:avg3s
Level Positioning Precison: 2m At Open Wind
Output Frequency: 1Hz-10Hz,Default 1Hz
Speed Precison: 0.1 m/s (Without Aid)
Acceleration Precison: 0.1 m/s (Without Aid)
Dynamic Characteristics: Max Height:18000m
Max Speed:5153m/s
Max Acceleration:4G
UART Interface:UART Port: TXDA and RXDA
Support Rate: 4800bps to 115200bps,Default 38400dps
Working Temperature: -40-+85
Storage Temperature: -40-+85
Size: 28mm x 28mm x 10mm
Weight: 10g
The Module's Pins: SDA,GND,TX,RX,VCC,SCL
Features:
GPS Module,Dual Module Compass
With electronic compass IC HMC5883L
1.25mm spacing between the 6pins patch seat
Note:Can not use for flight control with SCM,but it is suitable for Open source flight controller.
Pcakage Included:
1 x BN-880 GPS Module
1 x 15cm Cable
