Brotherhobby Tornado T1 2205-2300/2600KV Racing Edition CW Brushless Motor For FPV Multicopter for RC Drone
DroneSpark
Regular price
$32.99
$25.99
Sale
Brotherhobby Tornado T1 2205-2300/2600KV Racing Edition CW Motor For FPV Multicopter
Description:
Brands: Tornado
Model:T1 2205-2300/2600KV
Configuration:12N14P
No.of Cells(Lipo):3-5S

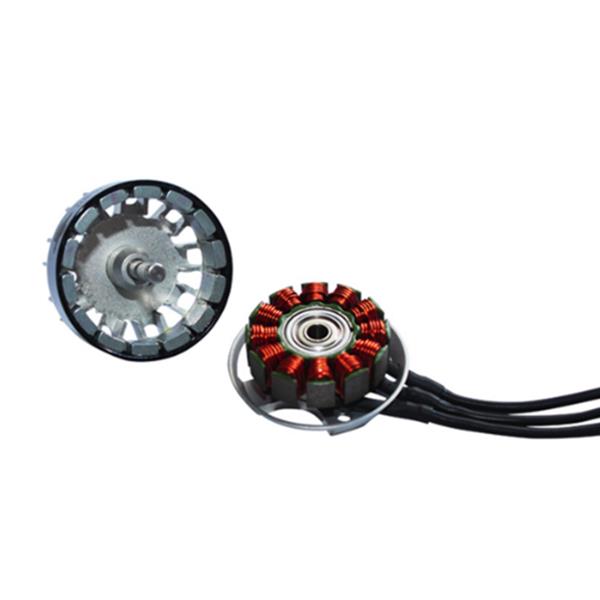

Rotor: 2mm N52H arc magnets
Wire AWG: 20AWG
Wiring config Single-stranded :
2300KV = 1 x 0.5mm 11 turns Delta DLRK
2600KV=1X0.53mm 9.5 turns Delta DLRK
Stator: 0.15mm Nippon Steel silicon steel
Bearings: Japanese NSK
Base casing: Al 7075

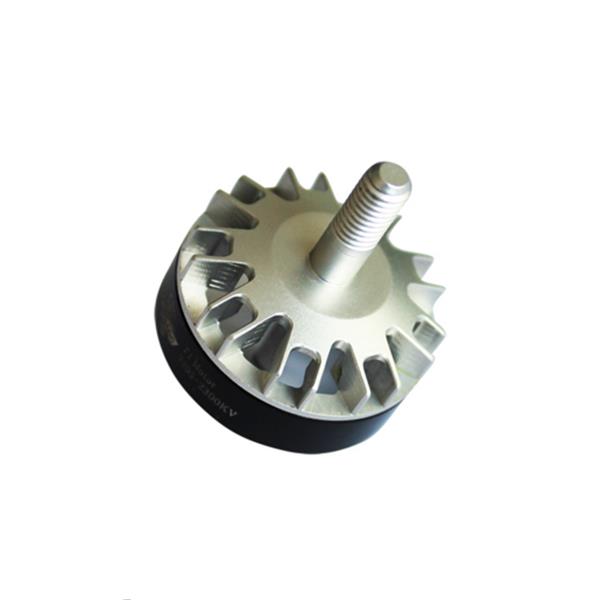

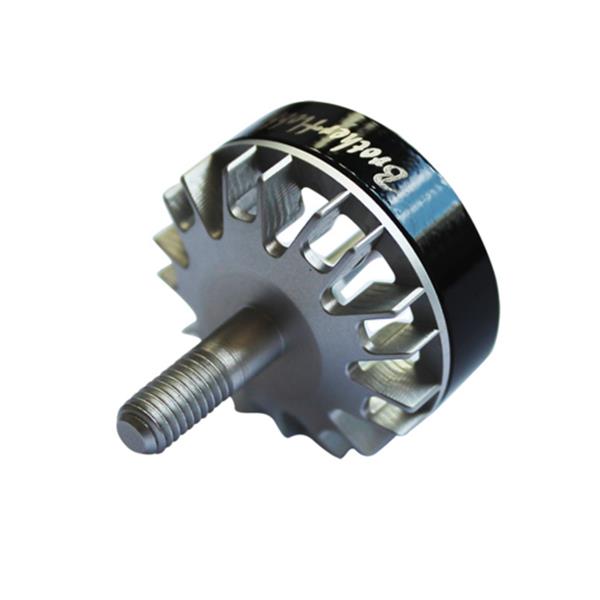

Bell cap:Al 7075
Weight:29G
Feature:
1.Tornado T1 2205 2300kv Full Results[CLICK HERE]
2.Tornado T1 2205 2600kv :

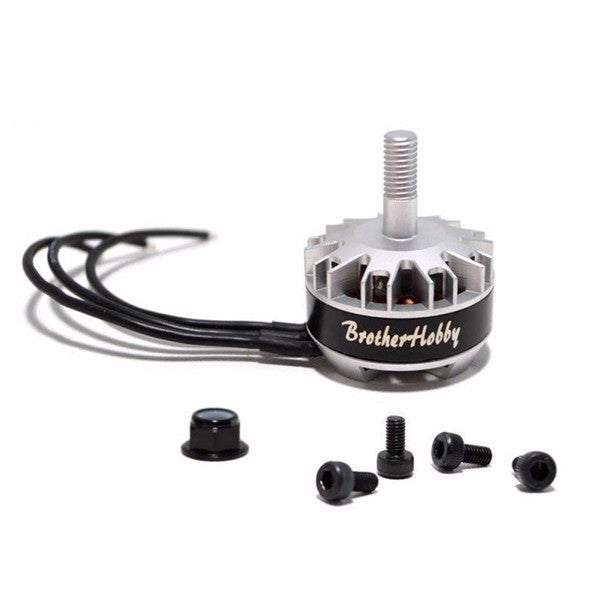

Package Included:
1 x T1 2205-2300/2600KV Racing Edition CW Motor
1 X Black Nut
4 X Screws
,
,
,
,
,
,
,
,
