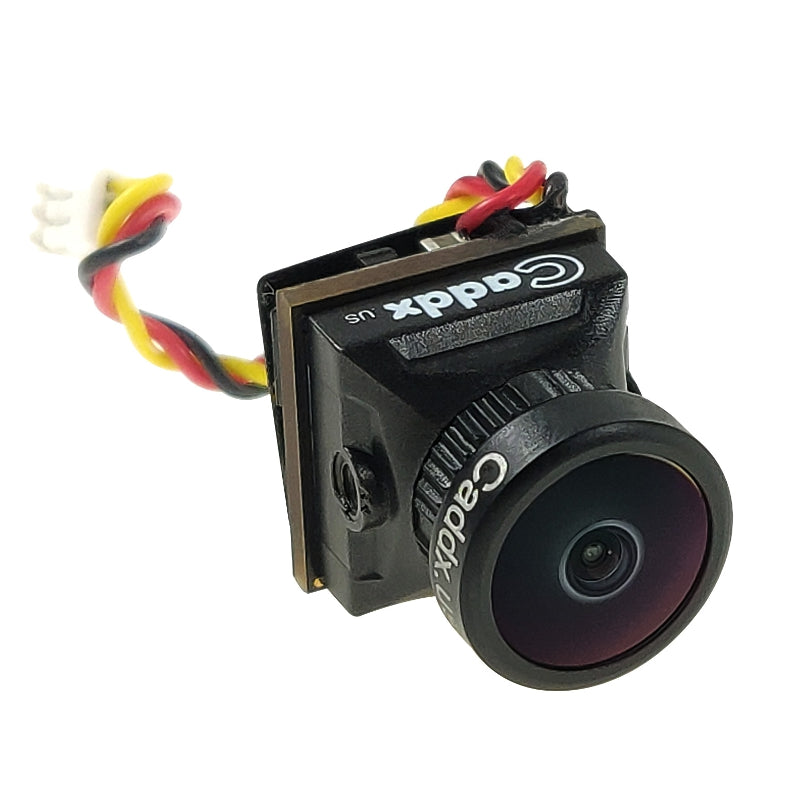

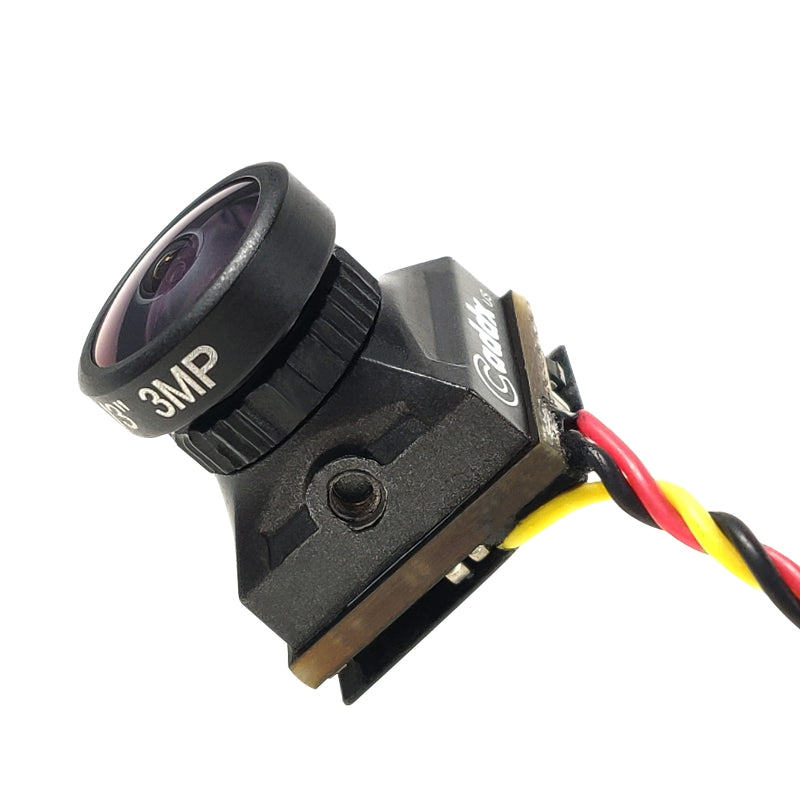

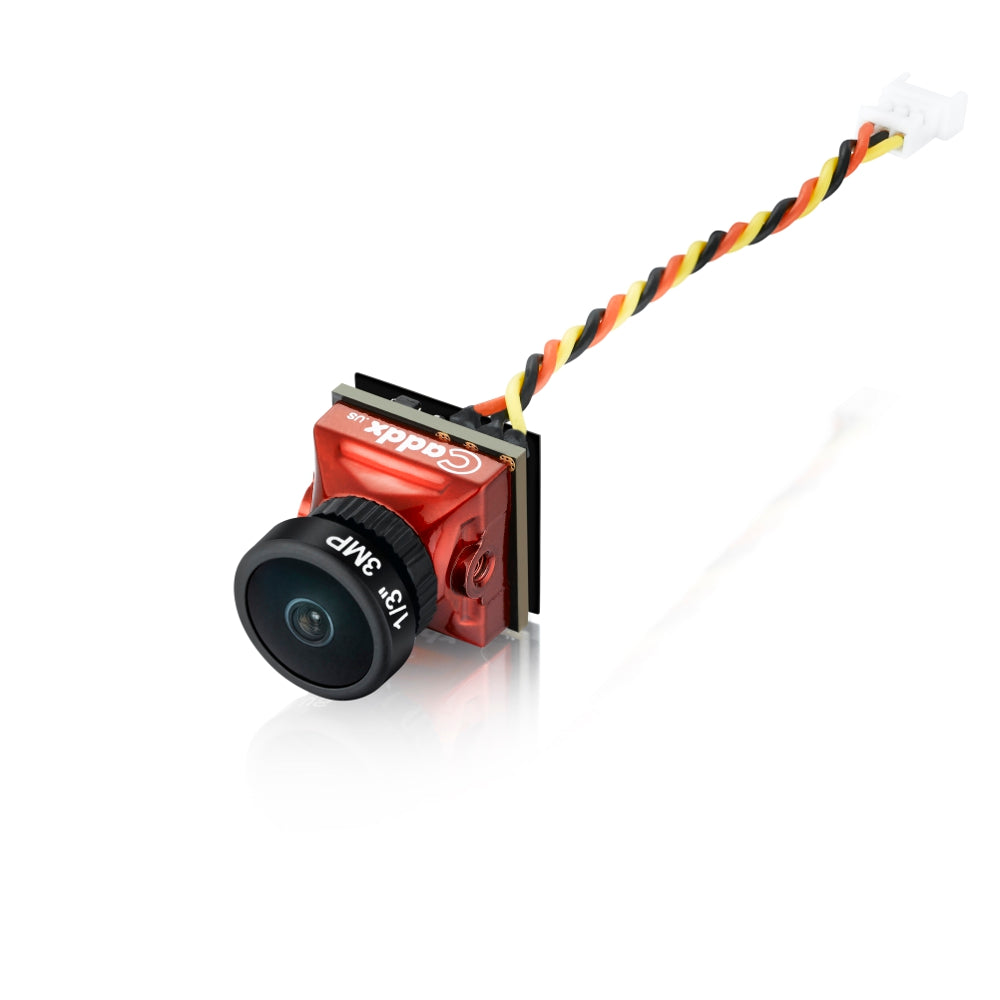

Caddx Turbo EOS2 1200TVL 2.1mm 160 Degree 1/3 CMOS 16:9 Mini FPV Camera NTSC/PAL For RC Drone
DroneSpark
Regular price
$21.99
$16.99
Sale
Description
Recommanded Parts
FPV VTX : 5.8Ghz VTX Click Here
Receiver for Smartphone : 5.8Ghz 150CH Click Here
FPV Monitor : 5.8Ghz 40CH Monitor Click Here
FPV Goggles : 5.8Ghz 40CH Goggles Click Here
| Model | Turbo EOS2 |
| Image Sensor | 1/3" CMOS Sensor |
| Horizontal Resolution | 1200 TVL |
| TV System | NTSC / PAL option |
| IMAGE | 16:9 |
| Synchronization | Internal |
| Electronic Shutter | PAL: 1/50~100,000; NTSC: 1/60~100,000 |
| S/N Ratio | >52dB (AGC OFF) |
| Video Output | CVBS |
| Lens | 2.1mm |
| Min. Illumination | 0.001Lux@F1.2 |
| Auto Gain Control | YES |
| BLC | YES |
| WDR | Global WDR |
| DNR | 2 DNR |
| Dimensions | 14mm*14mm*16mm |
| Wide Power Input | DC 3.3-6V |
| Work Temperature | -20℃~+60℃ |
| Work Humidity | 20%~80% |
| Weight | 3.5g (N.W.) |
Recommanded Parts
FPV VTX : 5.8Ghz VTX Click Here
Receiver for Smartphone : 5.8Ghz 150CH Click Here
FPV Monitor : 5.8Ghz 40CH Monitor Click Here
FPV Goggles : 5.8Ghz 40CH Goggles Click Here
Package Included
1 x Camera
1 x Molex Picoblade 1.25mm 3pin FPV silicone cable
1 x Screws set
