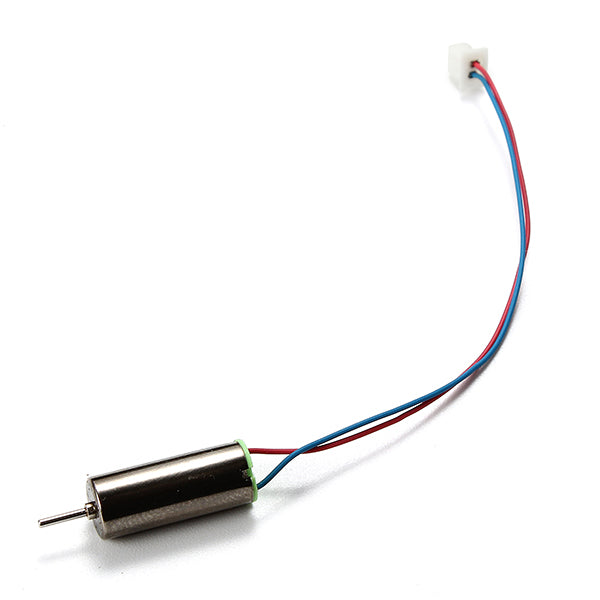

Chaoli CL-615 Upgraded 6x15mm 59000 RPM Coreless Motor for FPV Racer Blade Inductrix Tiny Whoop
DroneSpark
Regular price
$3.99
$2.99
Sale
Chaoli CL-615 Upgraded 6x15mm 59000 RPM Coreless Motor for DIY Micro FPV Racer Quadcopter Blade Inductrix
Description:
Motor Diameter: 6mm
Motor Length: 15mm

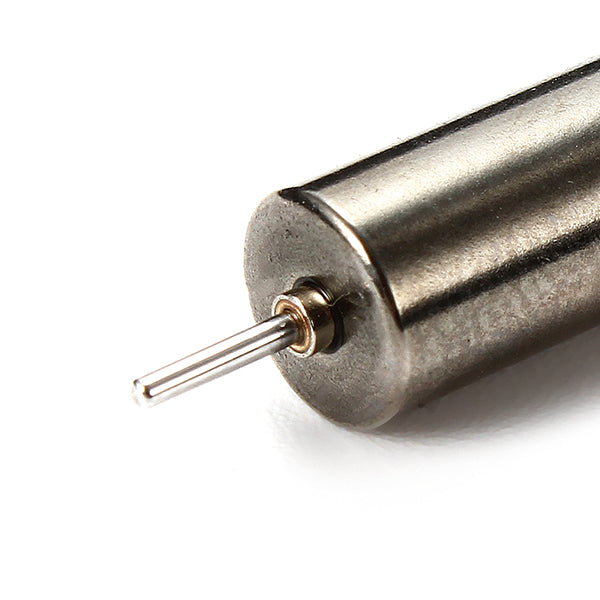

Shaft Diameter: 1.0mm
Shaft Length: 5.0mm
Cable Length: 70mm
Weight: about 2g
Color: black silver

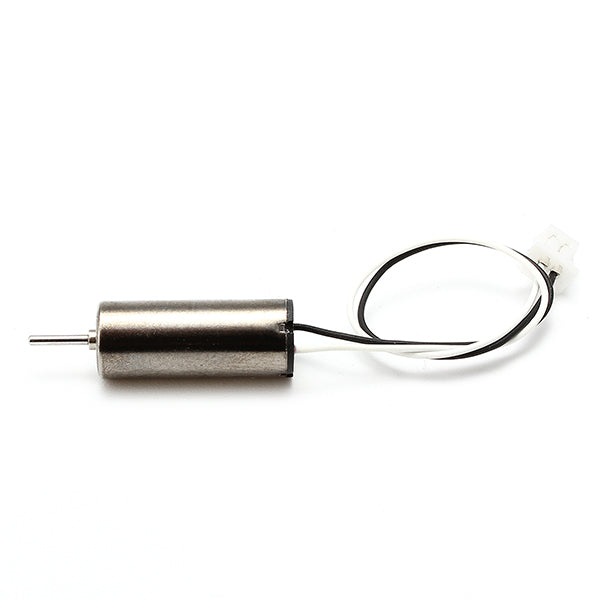

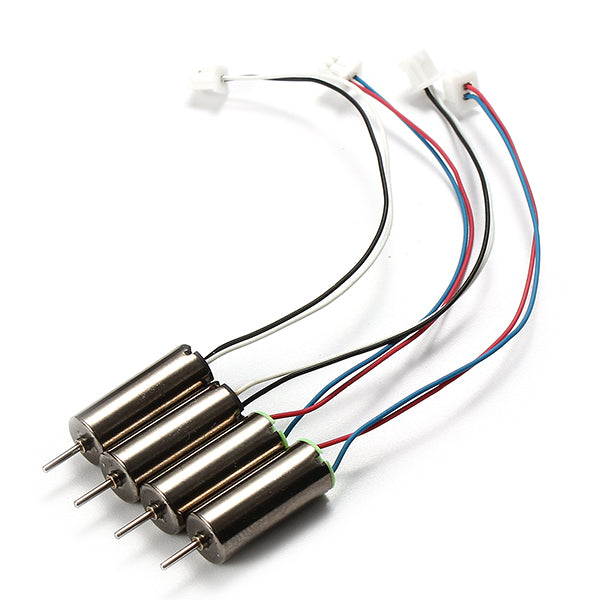

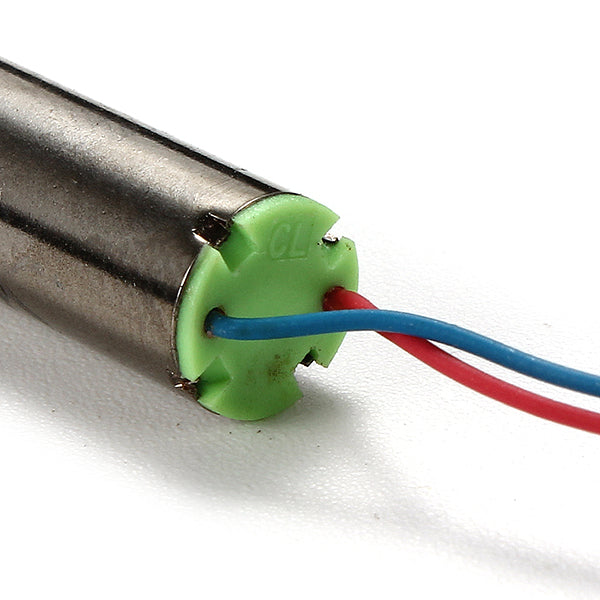

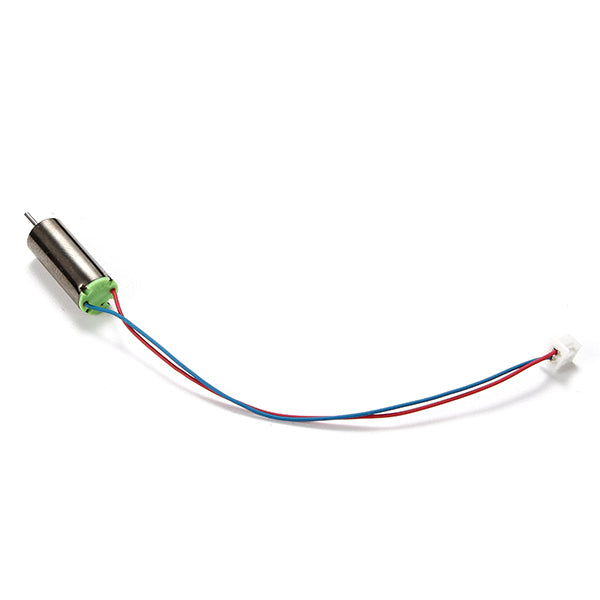

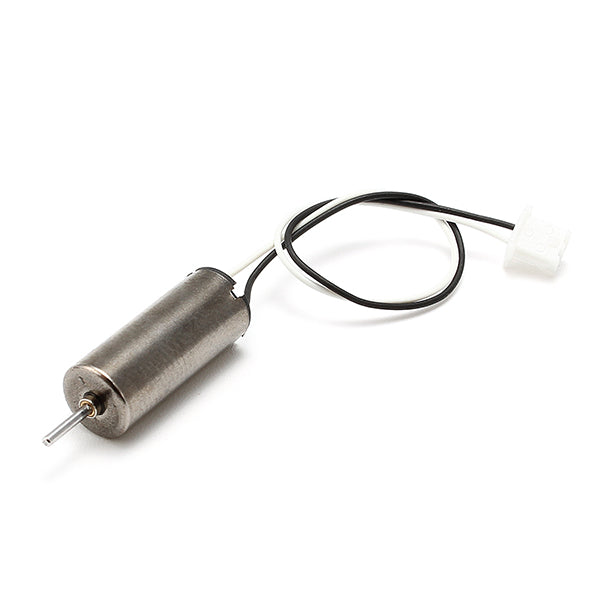

Option: Clockwise Motor(With Red Blue), Anti-clockwise Motor(With Black White)
Mode: With 1.25mm JST plug
Quantity: 1 pcs
1.Operating condition
2.Mearsuring condition
3.Electrical characteristics
Cautions:
1) Please use the motor in this technology index range for the performance of the motor is affected by environmental temperature seriously.
2) It is not allowed to operate in the high temperature with high humidity, and not allowed to contact with corrosive liquid and corrosive gas,should not to be stored and without running Continuously for more than six months.
3) Do not lock the motor shaft while the electric is on. The motor will be burnt out after the motor shaft was locked for more then 1 second.
4) Do not hit the motor directly.
Package included:
1 x 615 motor

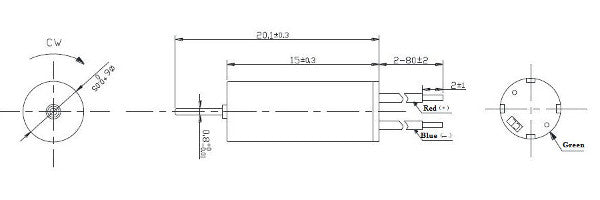

Description:
Motor Diameter: 6mm
Motor Length: 15mm
Shaft Diameter: 1.0mm
Shaft Length: 5.0mm
Cable Length: 70mm
Weight: about 2g
Color: black silver
Option: Clockwise Motor(With Red Blue), Anti-clockwise Motor(With Black White)
Mode: With 1.25mm JST plug
Quantity: 1 pcs
1.Operating condition
| Rated voltage | 3.4V DC |
| Direction of rotation | CW and CCW |
| Operating voltage range | DC2.0-4.5V DC |
| perating temperature range | -10-50°C |
| Motor position | all position |
2.Mearsuring condition
| Motor position | horizontal or vertical |
| Power supply | regulated DC power supply assuring unquestionable measuring |
| regulated DC power supply assuring unquestionable measuring |
10-30°C 30-95% If the judgment is questionable,Measurent is to be made based on JIS Standard Testing Condition(20+2°C,65+5% ) |
| Direction of rotation | viewed from output shaft side |
3.Electrical characteristics
| Items | Specification | Standard value |
| NO Load speed | 59000rpm±12% | 59000 rpm |
| NO Load current | 180mA max | 110mA |
| Starting voltage | 0.8V max | 0.5V DC |
| Stall current | 2833mA ± 5% | 2833mA |
| Terminal resistance | 1.2? ± 5% | 1.2? |
| Insulation resistance | 10M? min |
AT 250V DC between motor terminal and case |
|
Mechanical noise Under rated voltage |
60 DB(A) max | 53dB(A) |
Cautions:
1) Please use the motor in this technology index range for the performance of the motor is affected by environmental temperature seriously.
2) It is not allowed to operate in the high temperature with high humidity, and not allowed to contact with corrosive liquid and corrosive gas,should not to be stored and without running Continuously for more than six months.
3) Do not lock the motor shaft while the electric is on. The motor will be burnt out after the motor shaft was locked for more then 1 second.
4) Do not hit the motor directly.
Package included:
1 x 615 motor
