CLRacing Bluetooth USB Adapter For FPV Racing RC Drone

The CLRacing Bluetooth USB adapter is compatible with the SpeedyBee app (Android & IOS), and allows wireless flight controller configuration in the field!

Check out all our tools & building accessories, and all our CLRacing gear!

Features

• 2s-8s power input, at the same time, the Mi.cro USB interface supplies power to the flight controller (A battery can simultaneously power the Bluetooth module and the flight controller)
• Support FC power the bluetooth module.(on supported OTG CLRACING products)
• Support STM32/Cp210x USB Connector, compatible with most flight controllers
• Using with SpeedyBee APP, the most convenient Mobile Ground Station!
• iOS Device: i Phone 4S, i Pad 3rd Gen and later iOS 10.0+ : IApp Store Download
• Android 4.3+ Devices: Google Play Download

Specifications

• Output Power: 0 dBm
• Receiver Sensitivity: -94 dBm
• Transmission Rate: Bidirectional 2K/S
• Bluetooth Protocol: Bluetooth Specification V4.0 BLE
• Transmission Distance: 10m
• Frequency Ra.nge: 2400 MHZ – 2483.5MHZ (2.4G ISM Band)
• Baud Rate: 19200
• USB to Serial Port Baud Rate: 115200
• Operating Voltage: 2-8S LiPo (6 – 30V)
• Minimum Operating Current: 20mA
• The Operating Current When Connecting FC: 80mA
• Dimension: 42x20x5.6mm
• Net Weight: 3.5g

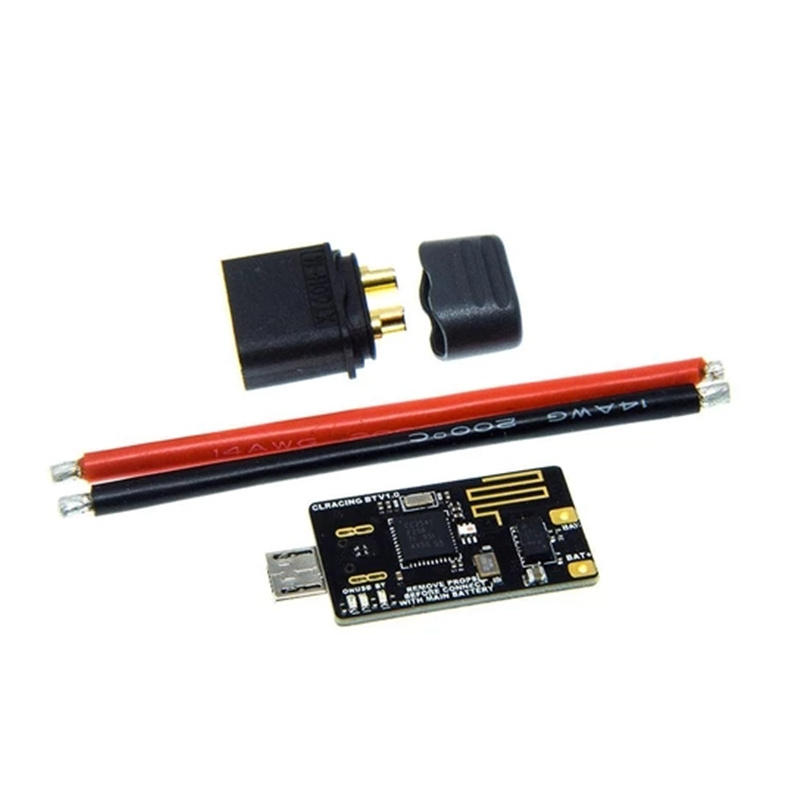

Includes

• 1x CLRacing Bluetooth USB Adapter
• 1x XT60 Connector
• 1x Wire Set
