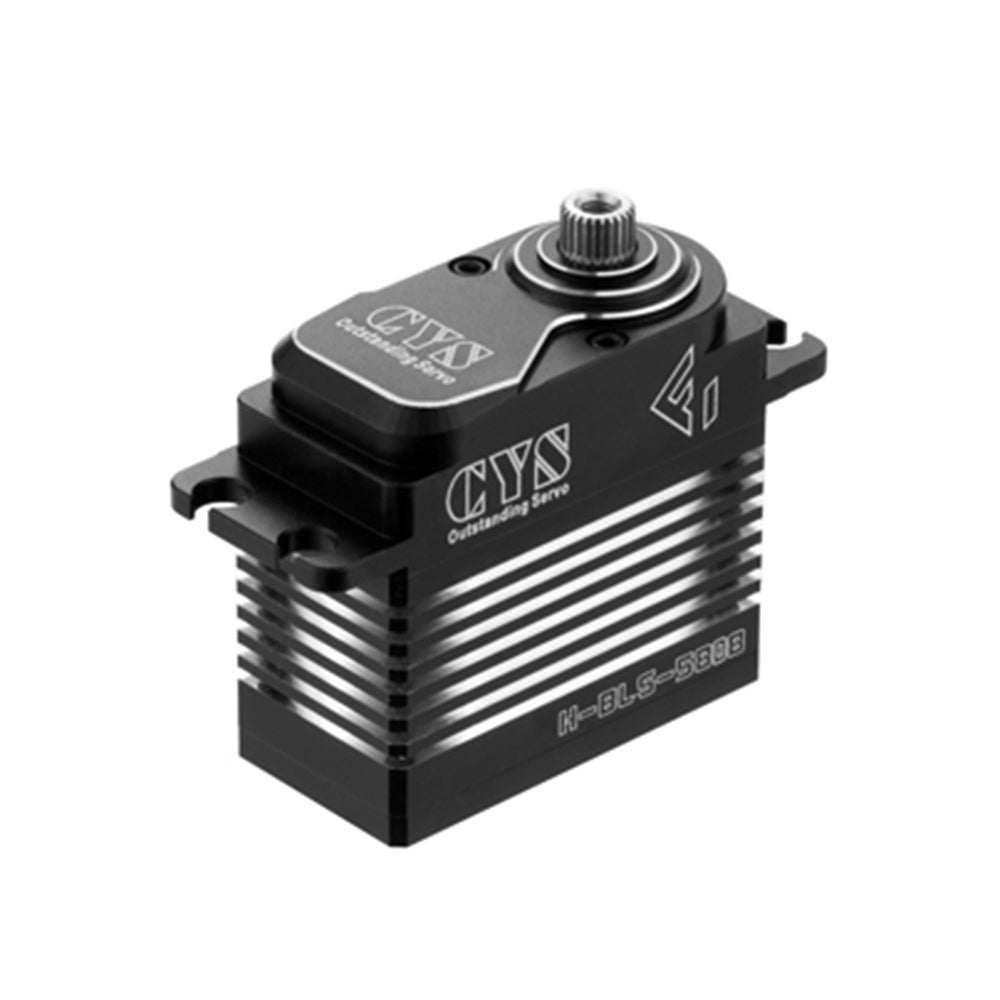

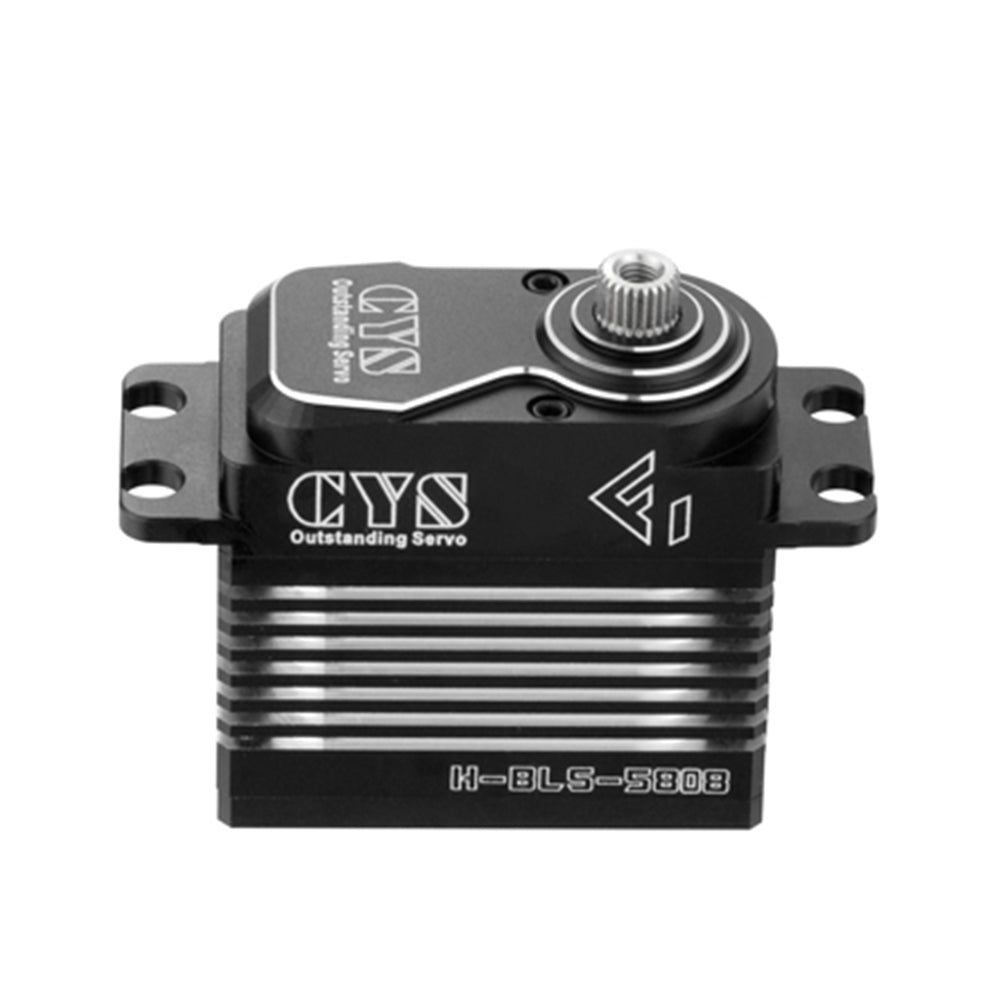

CYS BLS5808 Brushless 90° Servo Full Metal Head Locking For 700 Class RC Helicopter
Banggood
Regular price
$106.99
$84.99
Sale
Description:
Brand:CYS
Item: BLS5808
Product: Brushless Servo
Operating Voltage: 6.0V-7.4V
Stall Torque: 4.5kg/cm(6.0V ), 6.0kg/cm(7.4V)
Operating Speed: 0.029sec/60degree(6.0V), 0.024sec/60degree(7.4V)
Stall Current: 2.7A/3.2A
No-load Current: 20mA/80mA(6.0V), )
Control Signal: PWM
Neutral Zone: 1500usec
Dead Band: 2usec
Motor Type: Brushless
Gear: 25T Metal Gear
Bearing: Dual
No-load Current: 100mA
Max Travel: 90°(each side 45°)
Wire Length: 300mm
Weight: 72g/PC
Dimension: 40*20*39.35mm
Application: For 700 Class RC Helicopter
Package Included:
1* CYS-BLS5808 Brushless Servo
Brand:CYS
Item: BLS5808
Product: Brushless Servo
Operating Voltage: 6.0V-7.4V
Stall Torque: 4.5kg/cm(6.0V ), 6.0kg/cm(7.4V)
Operating Speed: 0.029sec/60degree(6.0V), 0.024sec/60degree(7.4V)
Stall Current: 2.7A/3.2A
No-load Current: 20mA/80mA(6.0V
Control Signal: PWM
Neutral Zone: 1500usec
Dead Band: 2usec
Motor Type: Brushless
Gear: 25T Metal Gear
Bearing: Dual
No-load Current: 100mA
Max Travel: 90°(each side 45°)
Wire Length: 300mm
Weight: 72g/PC
Dimension: 40*20*39.35mm
Application: For 700 Class RC Helicopter
Package Included:
1* CYS-BLS5808 Brushless Servo
