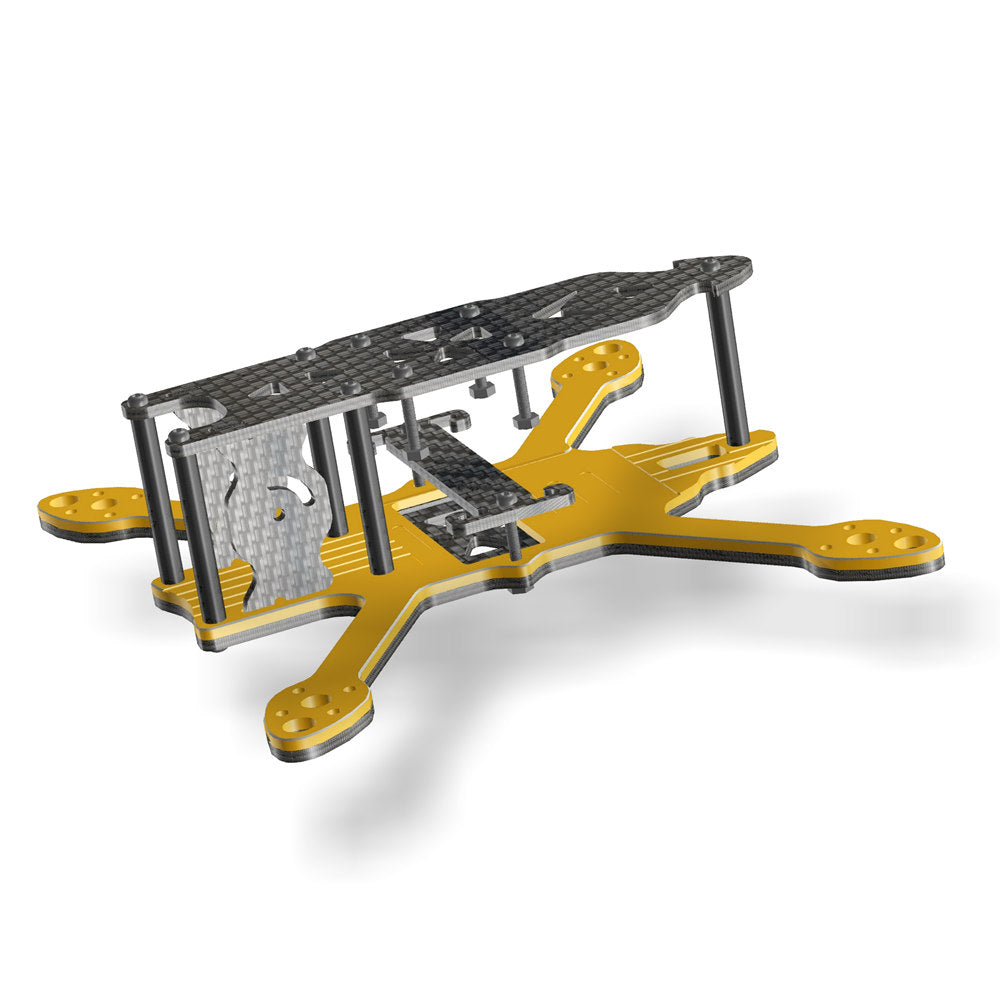

D3 146mm Wheelbase 4mm Arm 3 Inch Racing Frame Kit Compatible DJI Digital Air Unit FPV System

D3 146mm Wheelbase 4mm Arm 3 Inch Racing Frame Kit Compatible DJI Digital Air Unit

Specification:
Model: D3
Item Name: 146mm 3 Inch Racing Frame Kit
Wheelbase: 146mm
Arm Plate Thickness: 4mm ( 2mm + 2mm)
Bottom Plate Thickness:
Material: Carbon Fiber + Aluminum Alloy

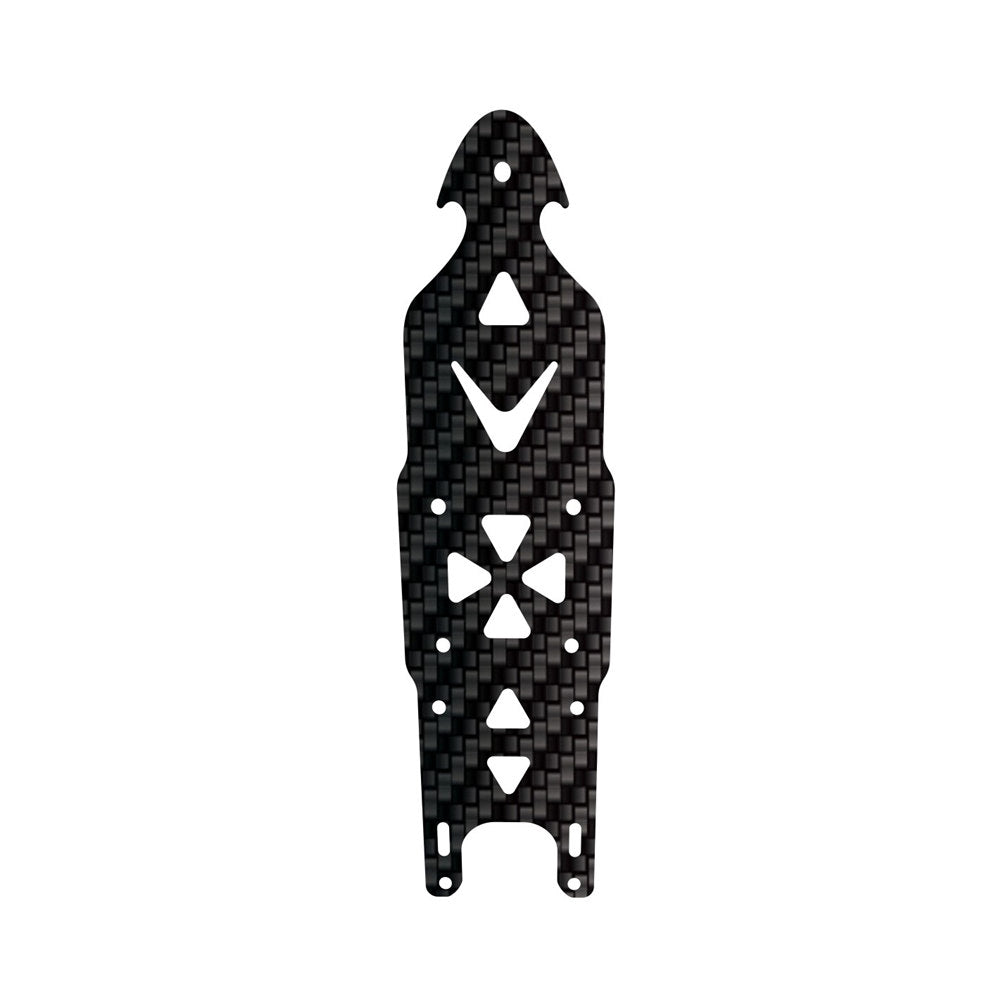

Uppper Plate Thickness: 2mm
Frame Net Weight: 60g

Features:
- Special Dedign, compatible with DJI FPV System

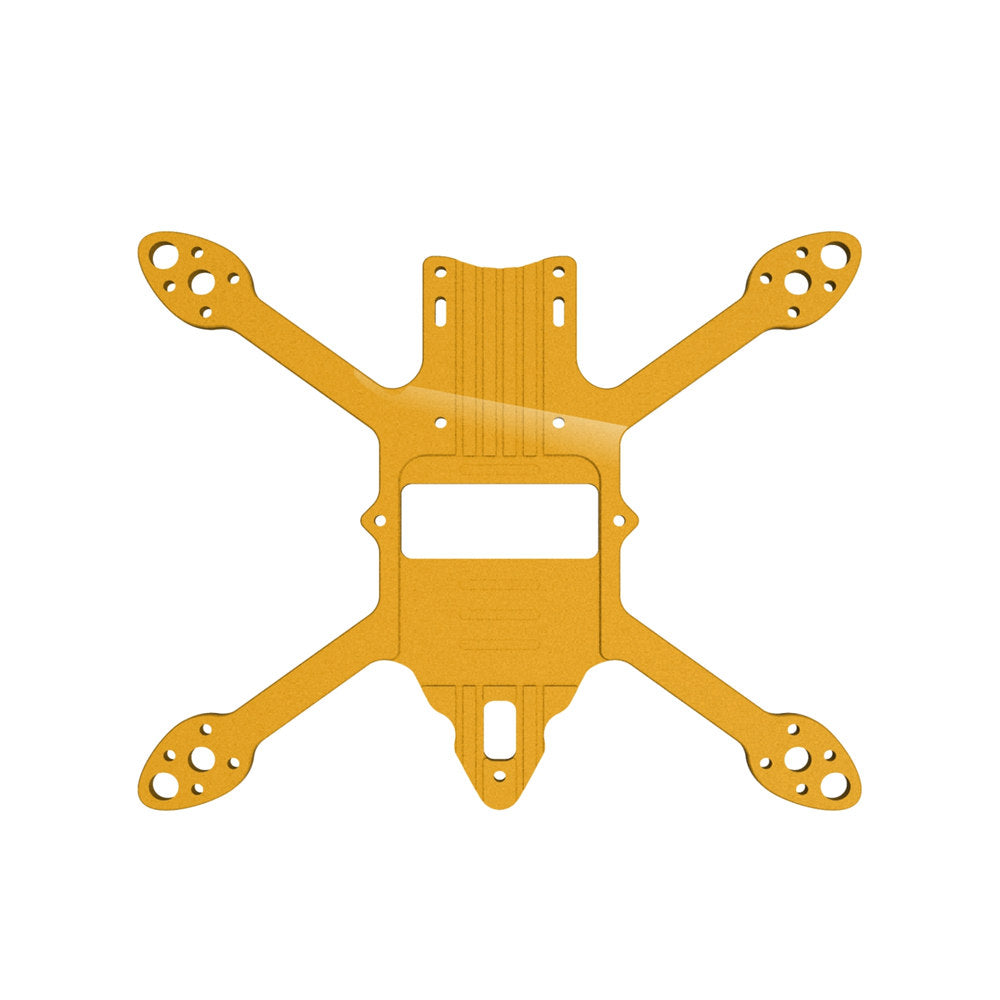

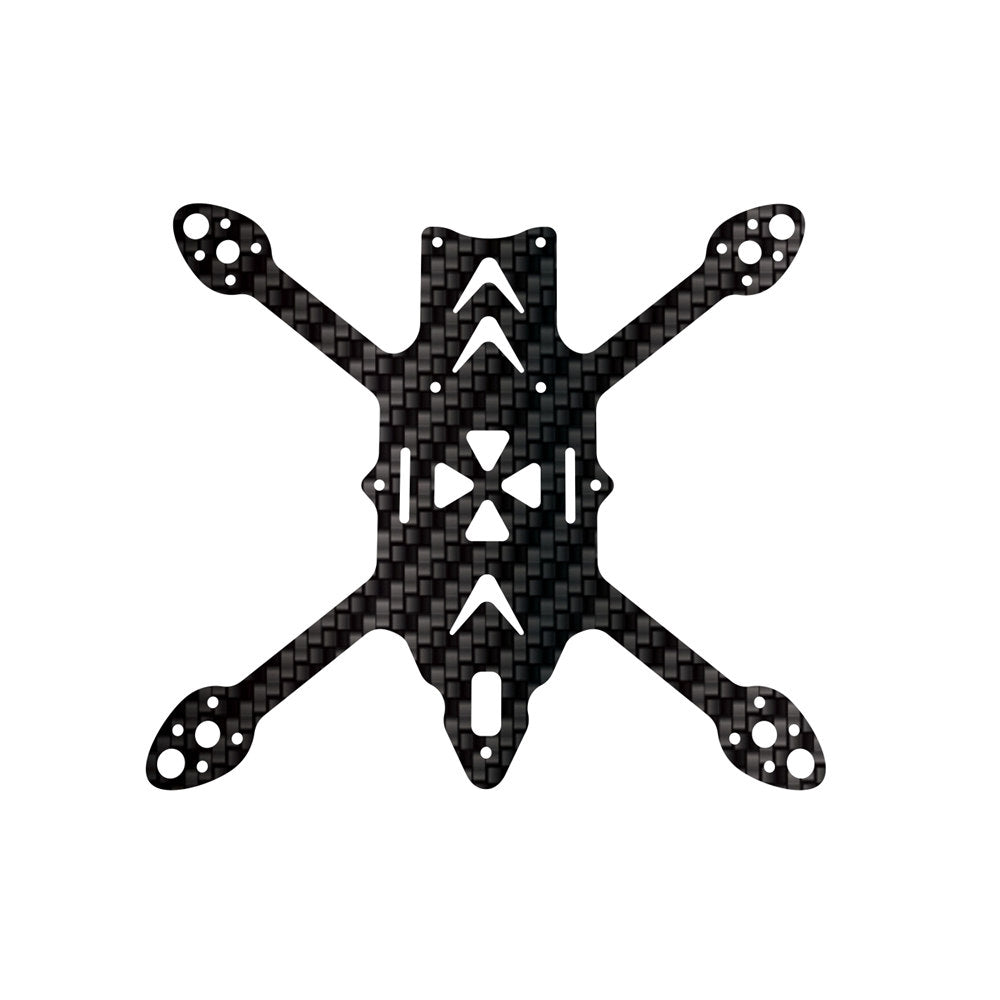

- Double bottom plate ( 1 PC in Carbon Fiber , 1 PC in Aluminum Alloy)
- install Digital unit and motor directly onaviation aluminum plate, good heat dissipation

Recommend Parts:
Flight Controller: 20x20mm F4/ F7 Flight Controller
Brushless Motor: 13-15 Series Motor ( 12mm Hole)
Propeller: 3 Inch 3-Blade Propeller
VTX & Camera: DJI Digital Air Unit FPV System
Lipo Battery: 3-4S 850mAh / 3S 1500mAh Lipo

The following parts are compatible:( NOT Included)
FC & ESC Stack: iFlight SucceX-D Mini F7 TwinG Stack (F7+40A ESC) for DJI Air Unit
Brushless Motor: iFlight XING 1408 3600KV 4100KV 2-4S Brushless Motor
Propeller: 2 Pairs Dalprop Cyclone T3056C 3056 3-blade Propeller
VTX & Camera: DJI Digital Air Unit Camera Goggle Transmitter Combo
Lipo Battery: ACE TATTU 11.1V 850mAh 75C 3S Lipo Battery XT30 Plug

Pacakge Included:
1x D3 146mm Frame Kit
2x Battery Strap
2x Battery Ati-Slipping Mat
