DIY Portable 12V Battery Energy Storage Spot Welding PCB Circuit Board 18650 Lipo Batteries Spare Parts for RC Aircraft Car

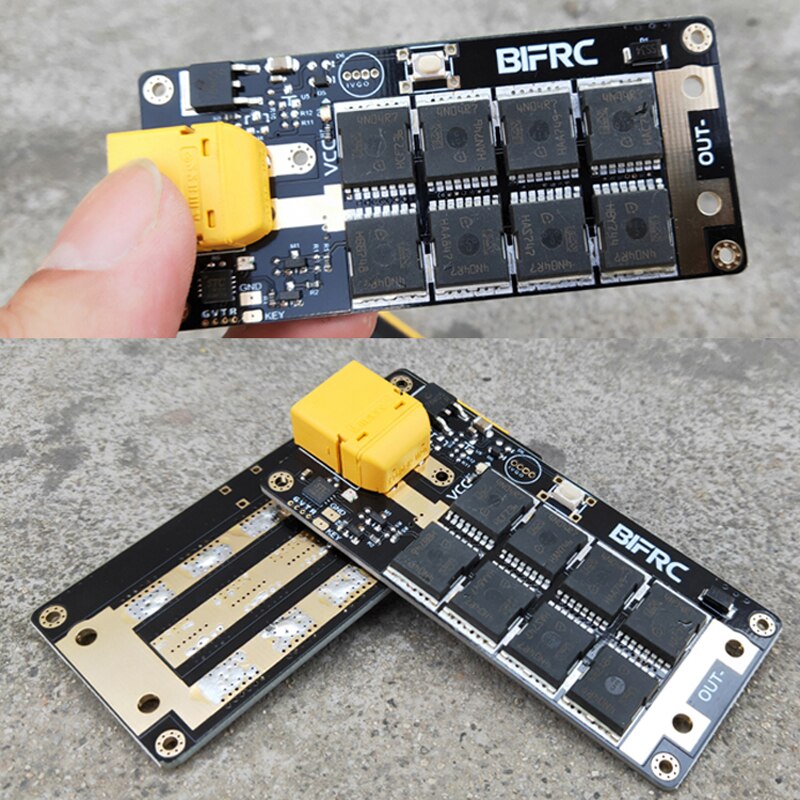

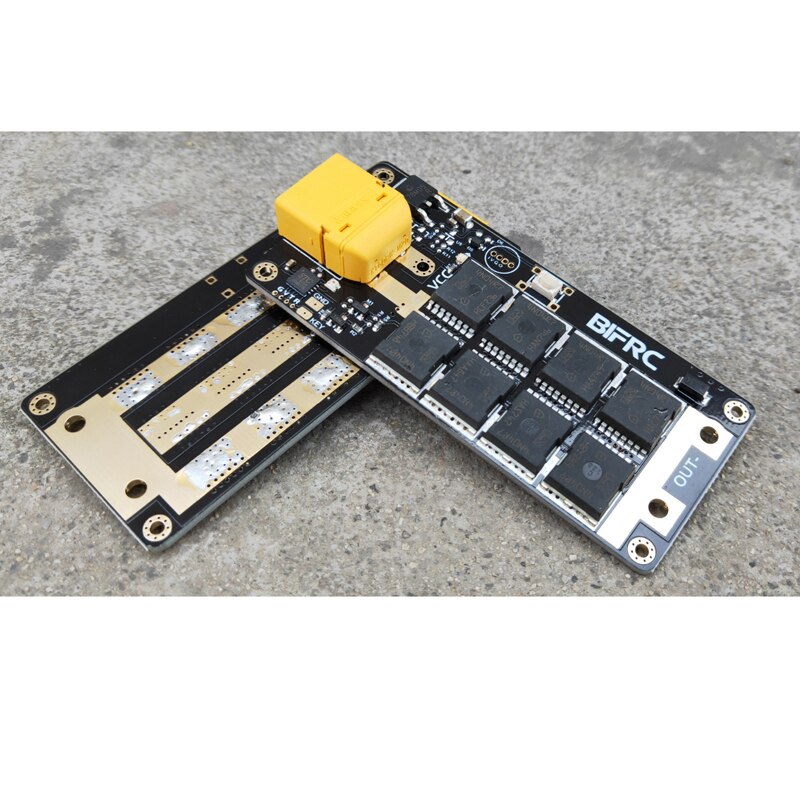

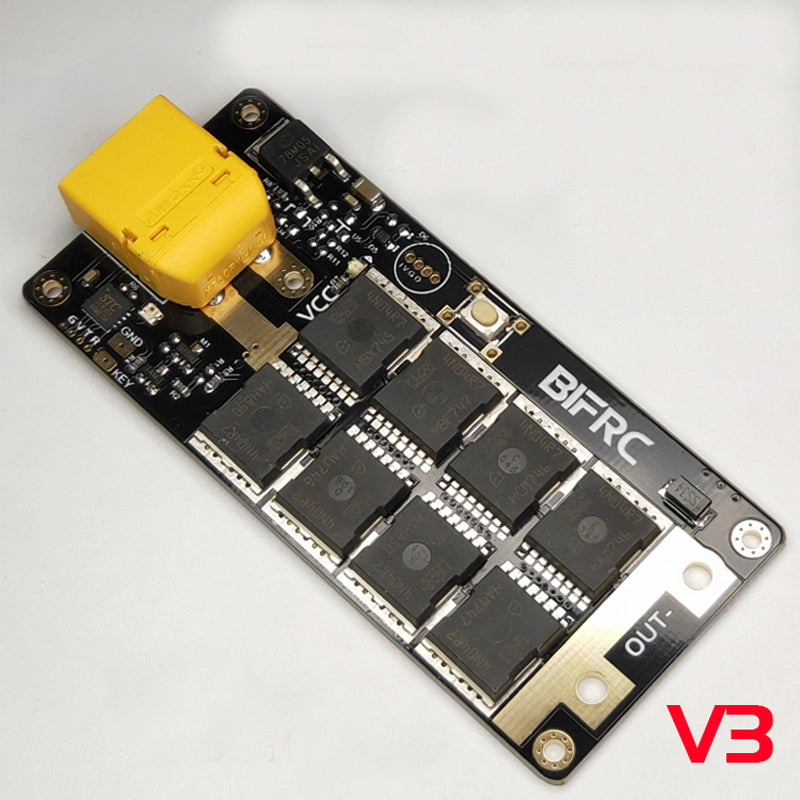

Battery energy storage high current spot welding machine main board
7-16.8V power supply
Support manual / auto mode
Multiple gear selection
Light instructions
Support: Farad capacitor
Aircraft model high rate battery
Function introduction:
This circuit with 12V battery will become a storage spot welding machine for lithium battery, nickel-chromium battery and other nickel sheet welding, according to different configurations can be welded thickness of 0.1MM-0.15mm or so, we have customers A 0.2 mm thickness can be welded by replacing a thicker wire (10 square feet). After all, this device is for electronic enthusiasts, the frequency of use is not very high, so you can also use 0.1-0.15 solder 2 to replace thicker nickel.

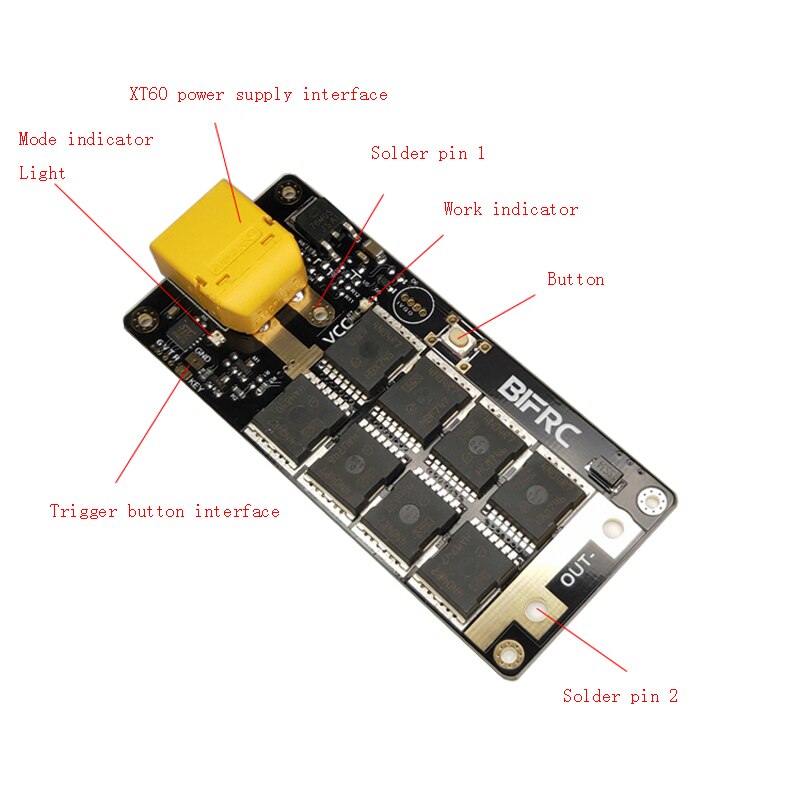

Button function:
The button can switch modes. Each mode corresponds to different welding time. The LED corresponds to red/green/blue/white/yellow/powder/purple, 7 modes, the shortest red time and the largest purple welding time. Long press to set the waiting time, the default is 3 seconds, the maximum can be set to 10 seconds
Basic parameters :
- Supply voltage: 12V-16.8V (capacity X rate = must be greater than 150A)
- Current requirements: 150A or more instantaneous output (such as car starter power supply, 3S RC high-power battery pack, 20A lead-acid battery with good performance above 20A)
The 18650 battery cannot be used as a power supply. It must have a high rate RC battery or a car battery! ! !
Package includes:
PCB Circuit Board x 1pc
or

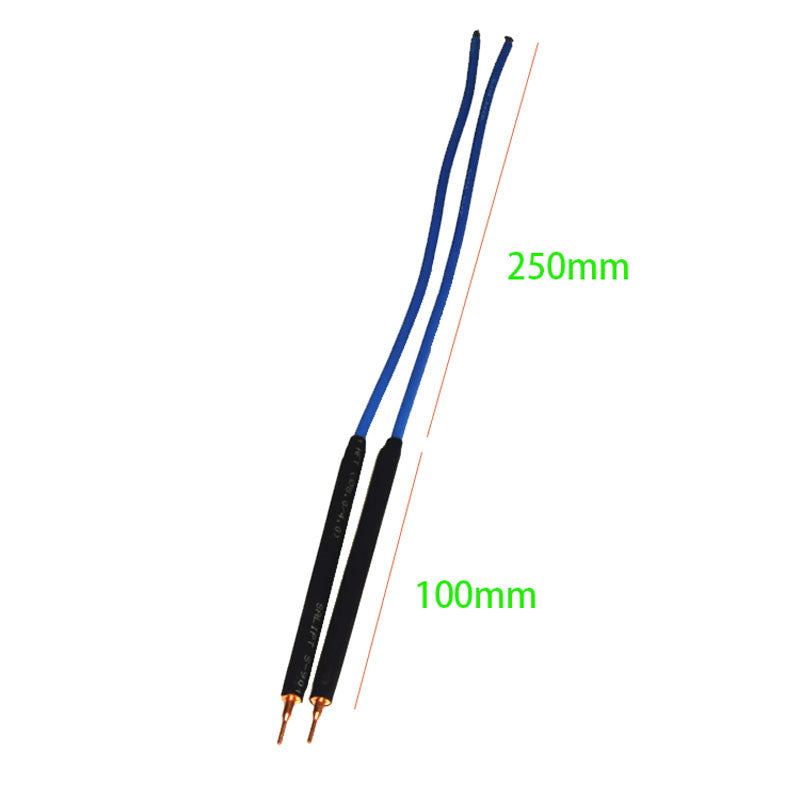

Spot welding needle x 1pair
Notice:

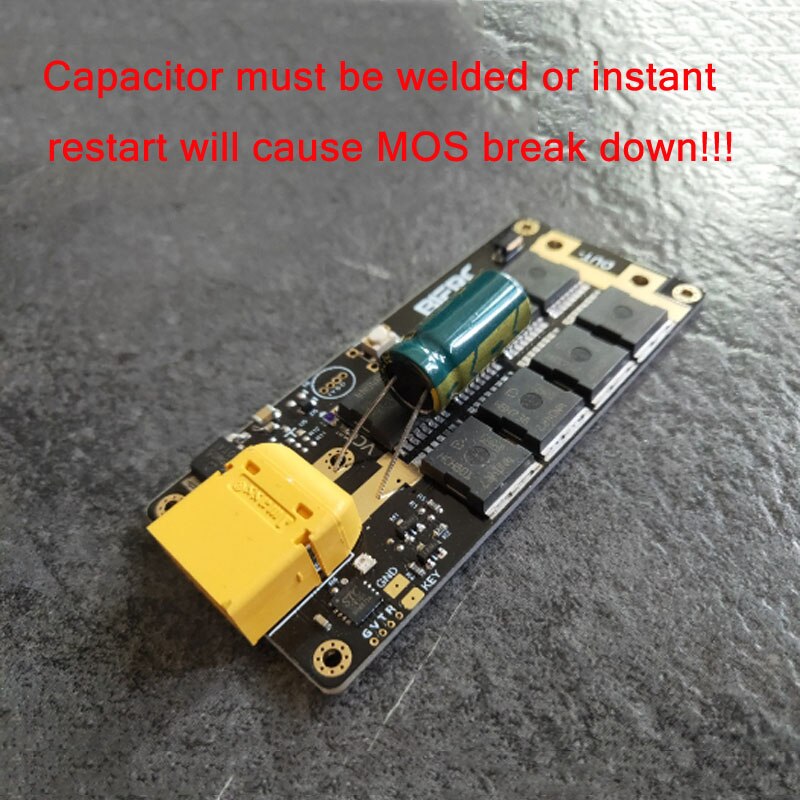

Capacitors must be welded or instant restart will cause MOS break down!!!
