Introduction:

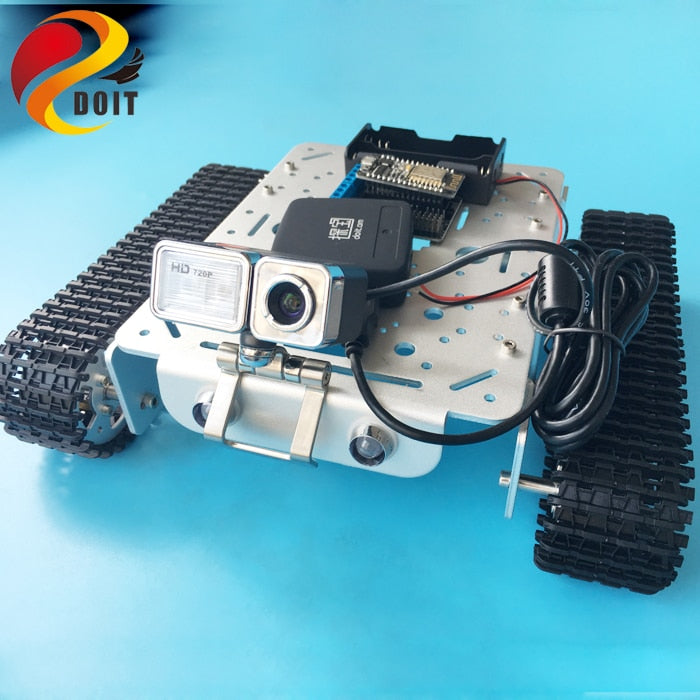

• When you get this tank/car chassis,you can remote control this car by your iOS/Android mobile phone. What's more, you can see the video from your smart phone. So, you can control the car by your video from your smart phone. Importantly, the connection is very simple. Let's do it. This chassis has more than 50kg big load.

Features:

• Connect simply, say goodbye for the complex cable connection;

• Remote video control the smart car by WiFi, Gravity induction;

• Explicit photo from smart phone;

• Best choice for the studies.

Parameters:

• Weight: 2kg

• Load: about 3kg

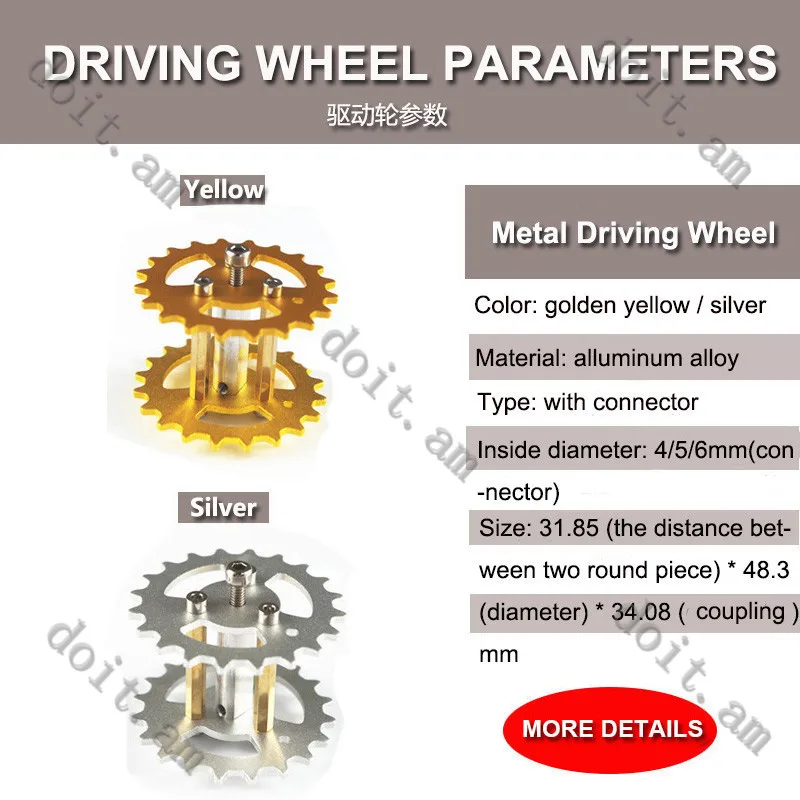

• Wheel Size: about 45mm (diameter)

Motor parameters(25mm 9V 150rpm DC Motor, has hall sensor):

• Name: 25mm gear motor

• Output speed: 150±10%rpm

• No_load Current: 200mA (Max)

• Stall current: 4500mA(max)

• Stall torque: 9.5kgNaN

• Rated speed: 100±10%rpm

• Rated torque: 3000gNaN

• Rated Current: 1200mA (Max)

• Noise: 56dB

• Working voltage: 9V

• Outside Shaft Length: 14.5mm

• Shaft End Play: 0.05-0.50mm

• Screw Size: M3.0

• Dia. Of Shaft phi4mm, D3.5

• encoder: 2 pulses/circle

Motor parameters(12V 330rpm DC Motor):

• Voltage: 12V DC

• RPM: 330RPM

• Current: 0.55A

• Diameter: 25mm

• Height (excl. shaft): 68mm

• Shaft length: 9.5mm

• Shaft diameter: 4mm

• Weight: 180g

• Brand new and unused

• Torque: 13kg.cm

• max effective point: load 4.0kg.cm/235rpm/2.5W/0.58A

• Max power: load 7kg.cm/215rpm/3.1w/0.65A

• Stall current: 4.8A

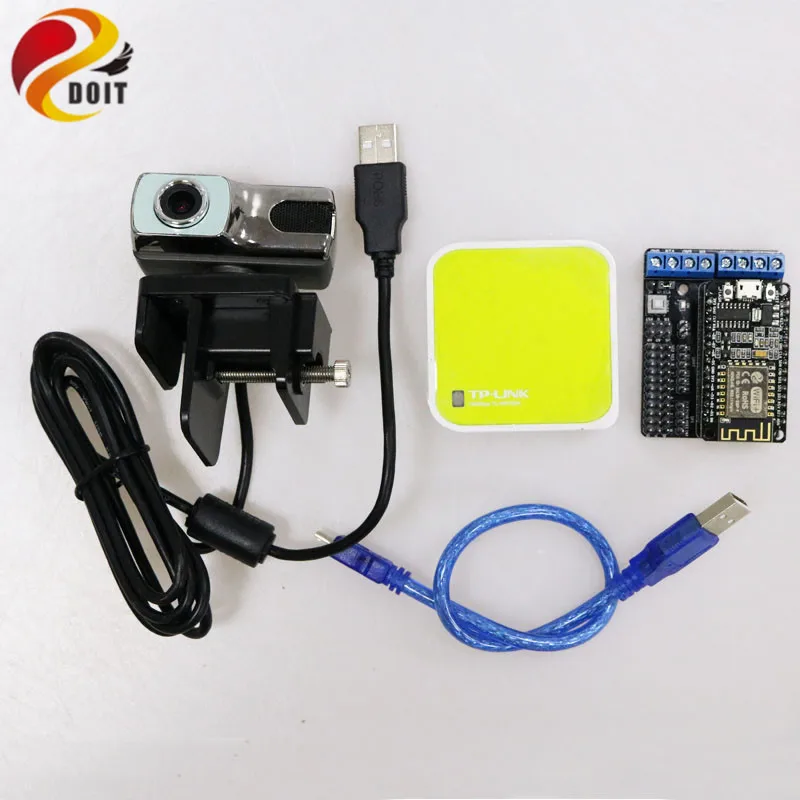

Package Included:

• Tank/car chassis: 1set

• OpenWRT router (with doit firmware): 1pcs

• ESP8266 development board kit: 1set

• HD camera: 1pcs

Free send:

• Android soure code

• 18650 battery box: 1pcs

• LED light: 2pcs

• Cable: several

Note: For the convenience of transport, the products is unassembled. Please leave your mail box to get the installation manual or visit our official wiki: wiki.doit.am.

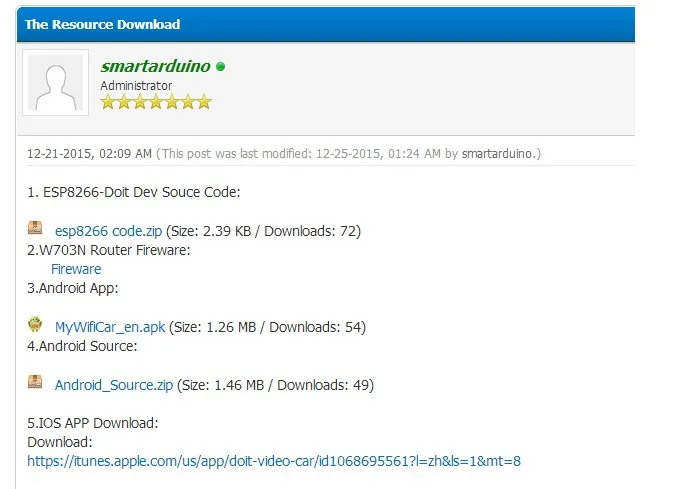

APP and source code download link
