Product Application:

• Competition;
• Graduation design;
• The engineering prototype;
• Robot project;
• DIY creations.

Product Parameters:

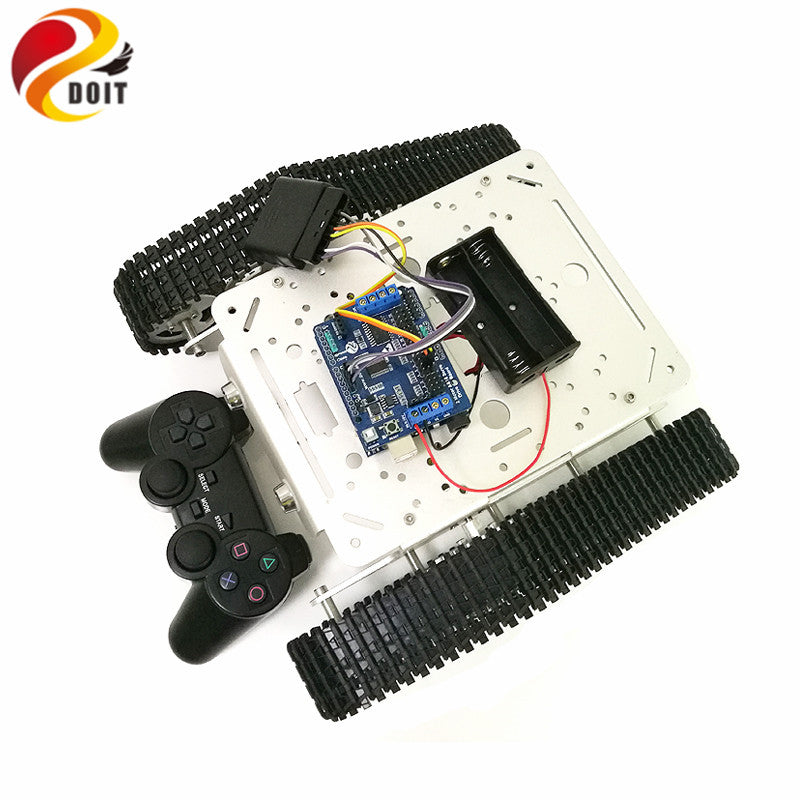

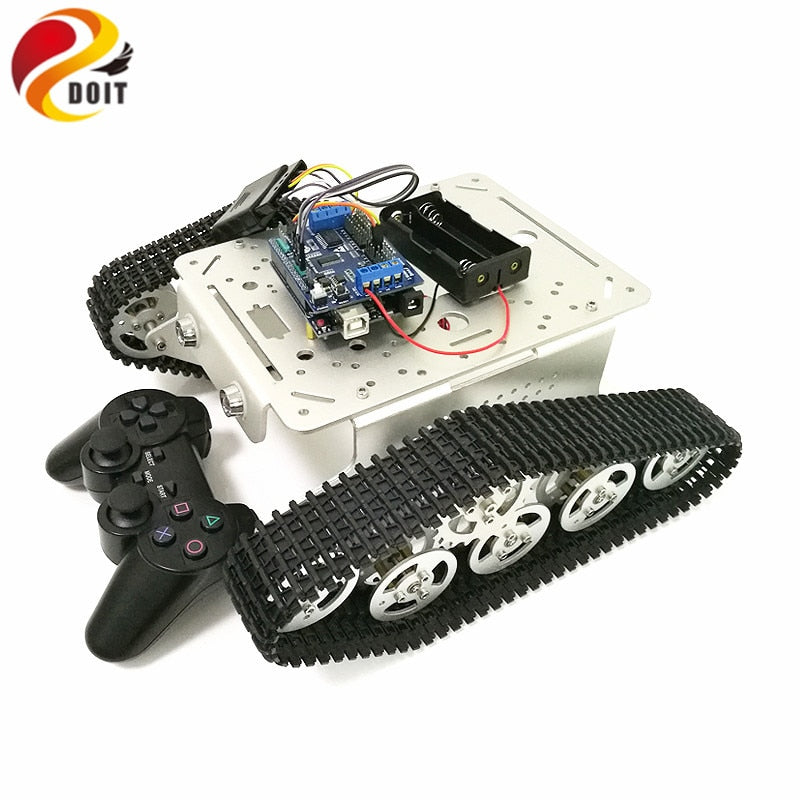

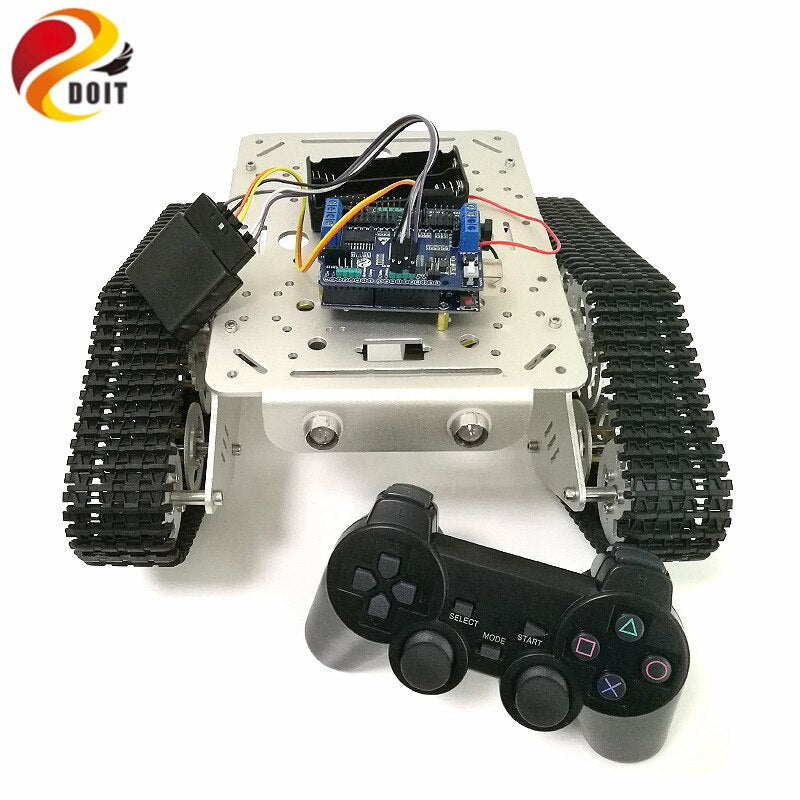

• Name: T300 Intelligent tracked car/tank chassis
• Material: aluminum alloy
• Wheel: metal
• Track: engineering plastic
• Product size: about 290*270*100mm (length * width * height)
• Weight: 1700g
• Color: golden yellow/silver/black

Motor parameters(25mm 9V DC Motor):

• Name: 25mm gear motor
• Output speed: 150±10%rpm
• No_load Current: 200mA (Max)
• Stall current: 4500mA(max)
• Stall torque: 9.5kgNaN
• Rated speed: 100±10%rpm
• Rated torque: 3000gNaN
• Rated Current: 1200mA (Max)
• Noise: 56dB
• Working voltage: 9V
• Outside Shaft Length: 14.5mm
• Shaft End Play: 0.05-0.50mm
• Screw Size: M3.0
• Dia. Of Shaft phi4mm, D3.5
• encoder: 2 pulses/circle

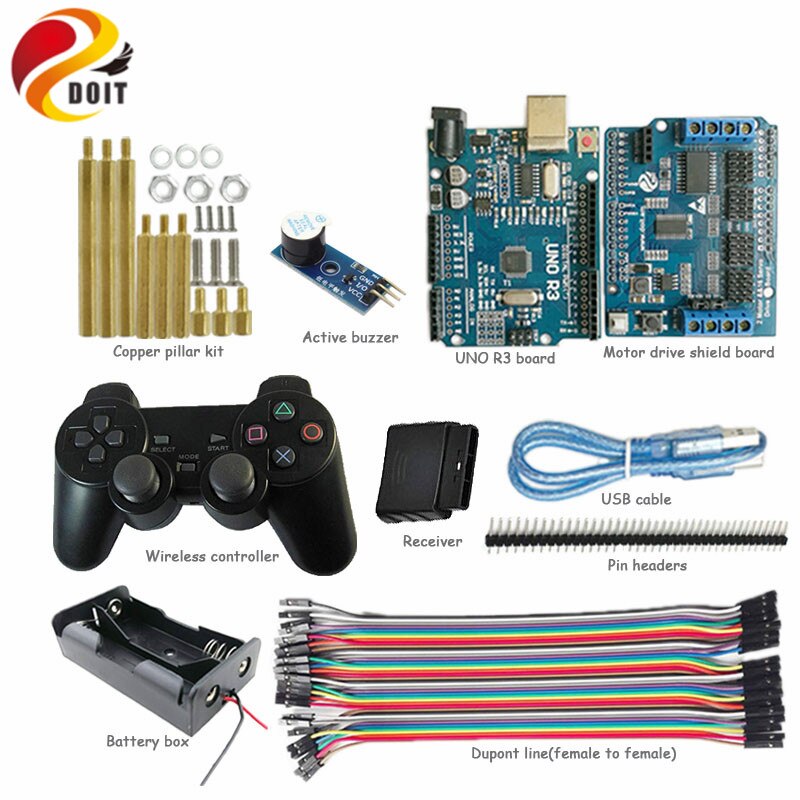

Package Included:

• T300 tank chassis: 1 set
• Wireless handle control kit: 1 set

Note:

• The tank chassis is unassembled for the transportation convenient, please contact us to get the installation manual or visit our official wiki: wiki.doit.am.

For the shipping convenience, the tank/car chassis is unassembled.
