Product Introduction:

T300 Tank chassis:

• A novel design has already coming for the tank chassis, with beautiful shape, and full metal aluminum alloy structure. In this tank chassis, a space for 9g servo is left for the ultrasonic sensor, and a space for MG995 servo is also left to rotate the mechanical manipulator. What’s more, UNO R3 and NodeMCU development boards are also designed to install. In addition, the metal panel can be used to install the wheeled car by install the 25mm and/or 37mm motor frames. Interesting, a LED light is installed to brighten the dark in the night. Under the help of the motor, the tank chassis can be smoothly turn left, right, circle, forward and backward, ect. Therefore, when you get the chassis, it can do many things for you, like getting the temperature and mobile monitor. Certainly, we have developed a series of car/tank chassis. Hoping you can choose your loved car chassis.

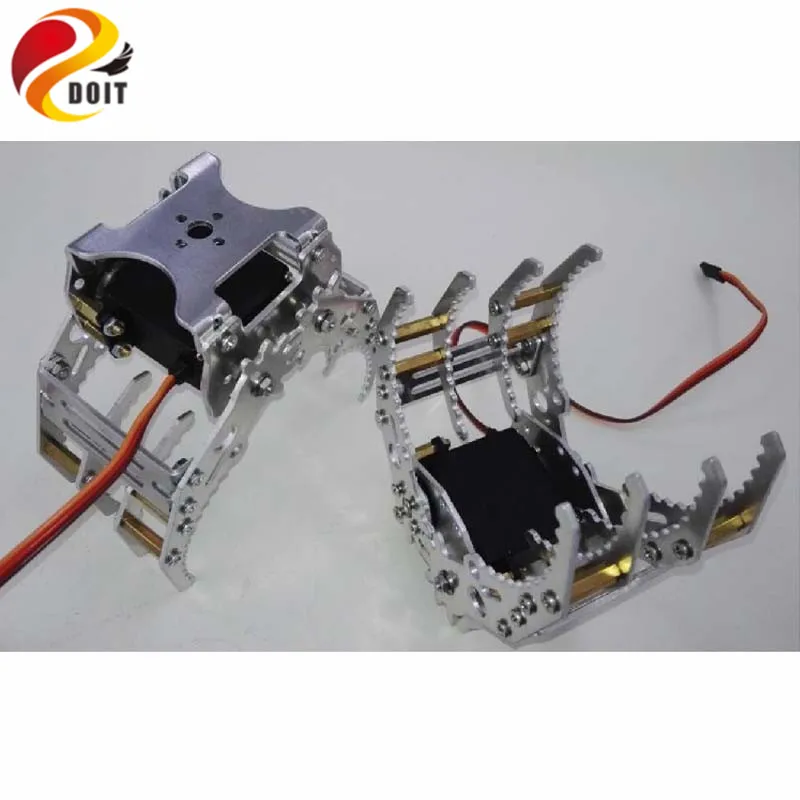

G8 gripper:

• The gripper is fully rigid aluminum build, handsome in appearance and practical, grab oversized, can grab cans and medium-sized balls and other large objects, while the gripper uses both sides of the double tooth structure, this gripper 2 groups tooth on each side of a group, so grab objects more firmly secure gripper is indeed essential grab large objects Gripper.
• Suitable for standard servos(steering gear), perfect compatible with M G995 M G996 etc.
• More details, please visit: https://github.com/SmartArduino/SZDOITWiKi/wiki to download the source code and the documents.

Product parameters:

T300 Tank chassis

• Name: T300 Intelligent tracked tank chassis
• Material: aluminum alloy
• Wheel: metal
• Track: engineering plastic
• Product size: about 290*270*100mm (length * width * height)
• Weight: 1800g
• Color: golden yellow/silver/black
• Motor: 12V high power motor>>

G8 gripper

• Material: hard aluminum alloy
• Weight: 120 g (only the claw )
• Maximum Angle spacing: about 160 mm
• Color: silver

MG996R metal gear servo

• Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc...
• Great for truck, Boat, Racing Car, Helicopter and Airplane.
• Power Supply: Through External Adapter.
• Stable and Shock Proof. - Metal Gear - Double Ball Bearing - Connector Wire Length 300mm
• Dimension : 40mm x 19mm x 43mm
• Weight : 55g
• Operating Speed : 0.17sec / 60 degrees (4.8V no load)
• Operating Speed : 0.13sec / 60 degrees (6.0V no load) Stall Torque : 13 kg-cm (180.5 oz-in) at 4.8V
• Stall Torque : 15 kg-cm (208.3 oz-in) at 6V
• Operation Voltage : 4.8 - 7.2Volts
• Gear Type: All Metal Gears
• Connector Wire: Heavy Duty, 11.81" (300mm)


Shipping list:(Unassembled, provide installation manual)

• T300 tank chassis: 1set
• G8 gripper: 1set
• MG996R servo: 1pcs

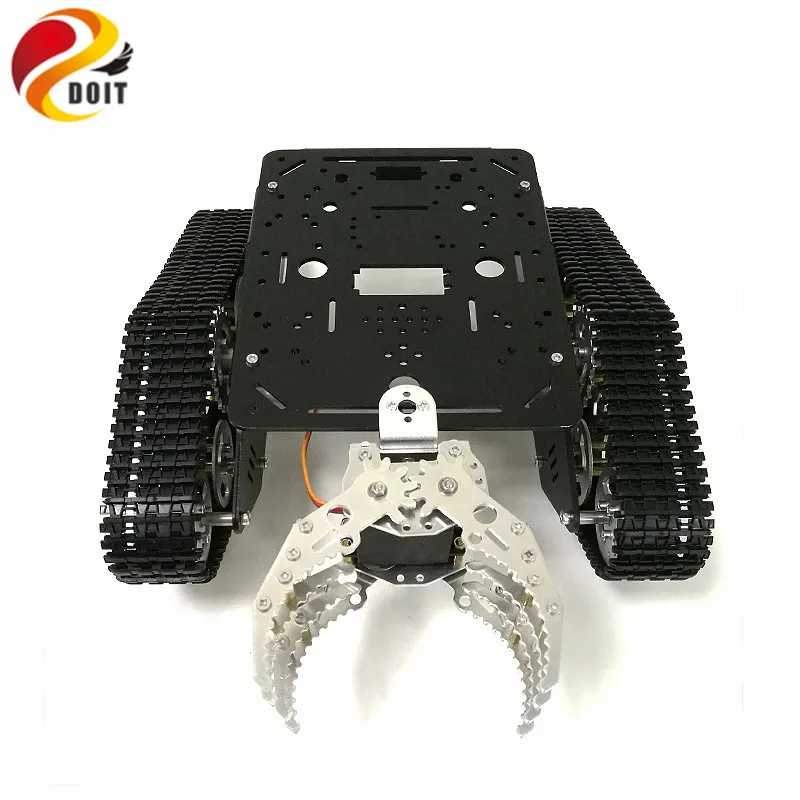

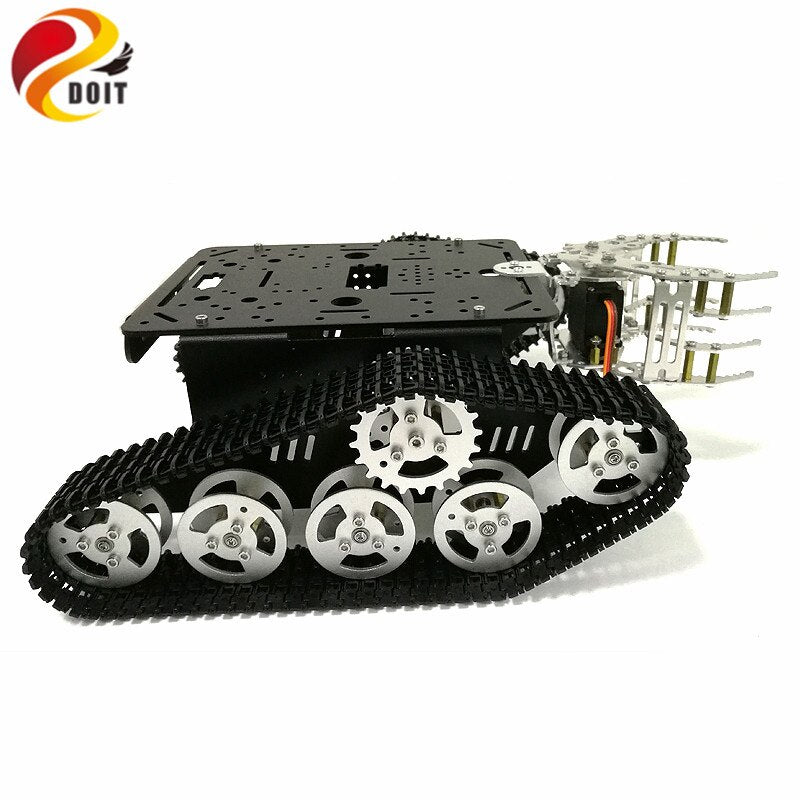

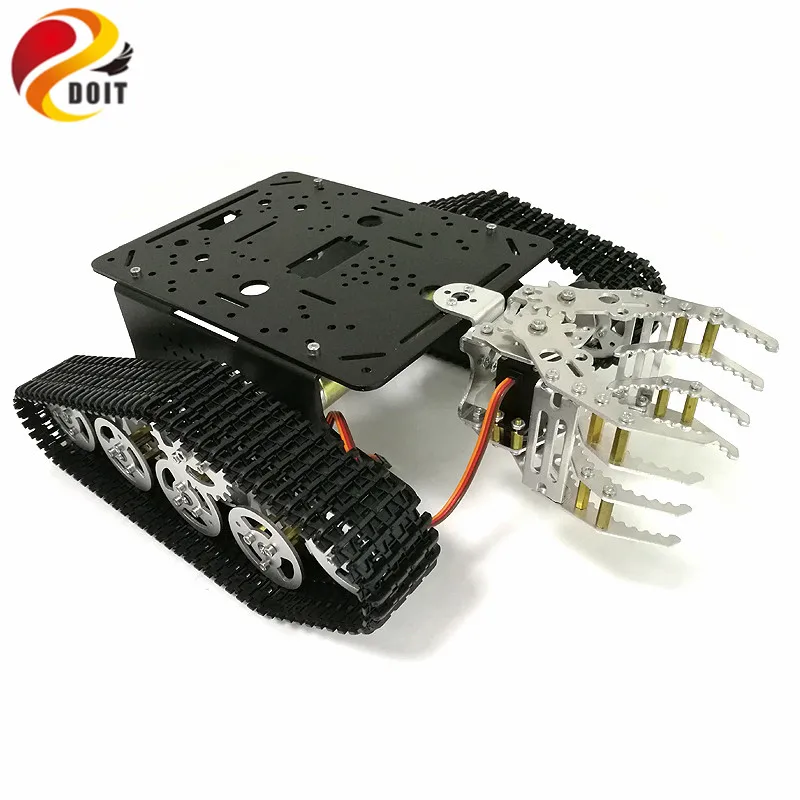

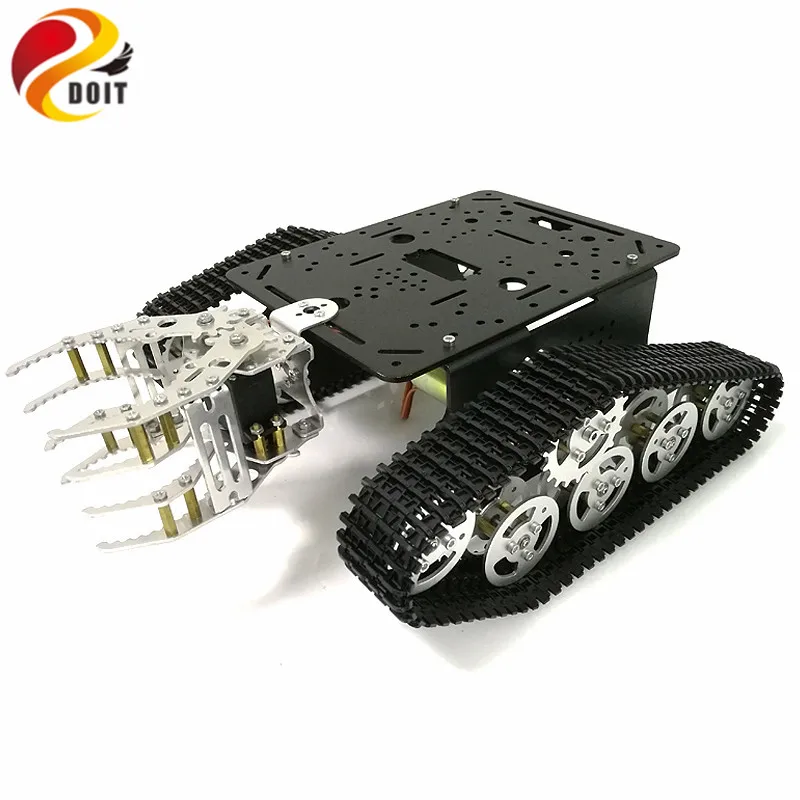

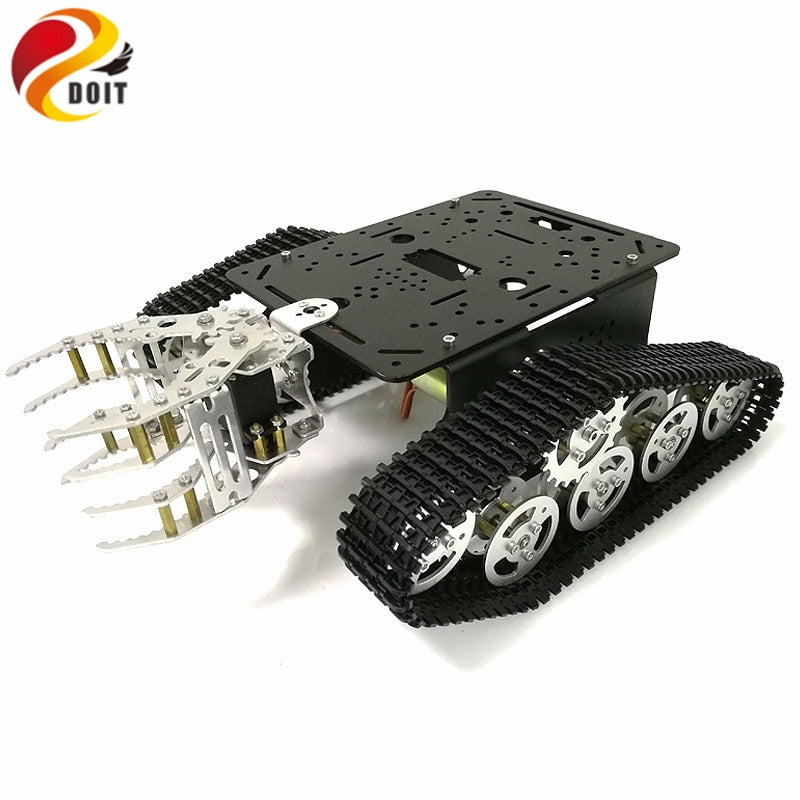

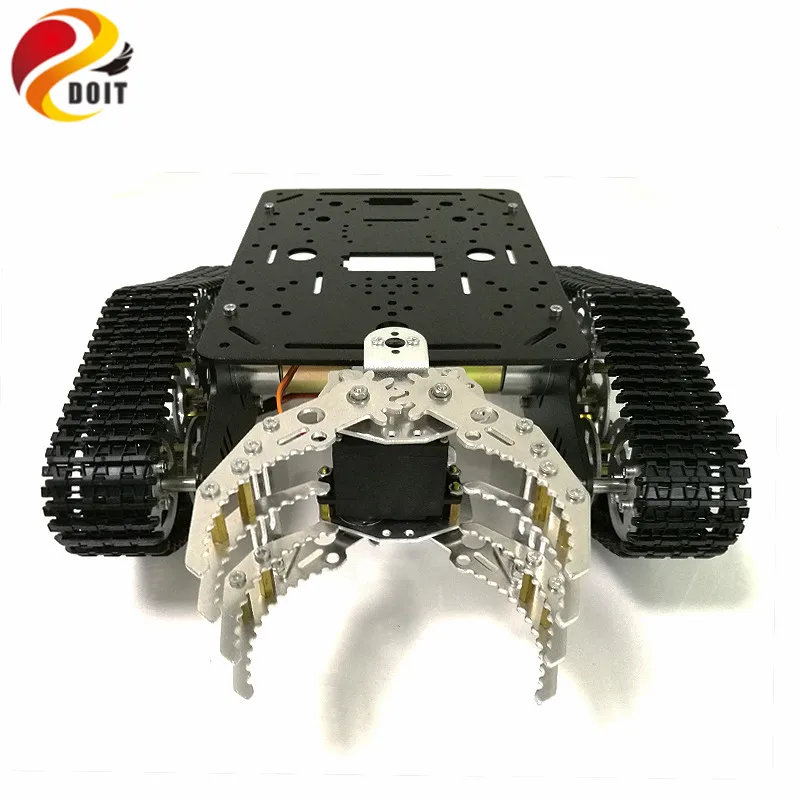

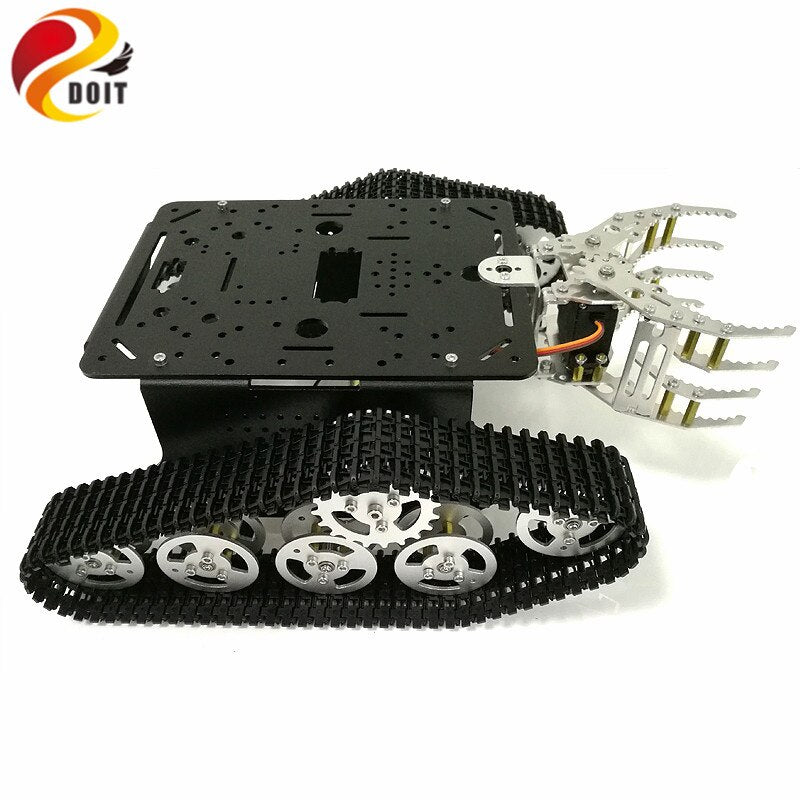

Product pictures:

Related product, click the picture↓↓↓

1. Due to computer monitor and the actual shooting brightness and other reasons, there will be a certain color difference.
The final color please refer to our actual goods. Please know this before you buy it. Thank you !
2. The picture we show is 100% Real Object Photography.
3. The size may have 2-3cm differs due to the maunal measurement.
4. For  the shipping convenience, the product is unassembled.
