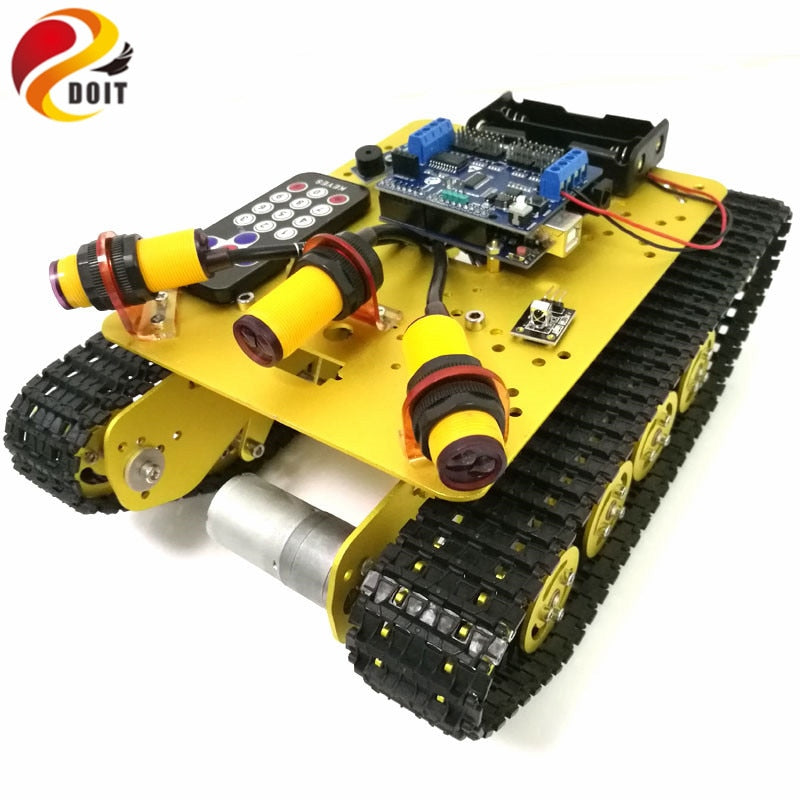

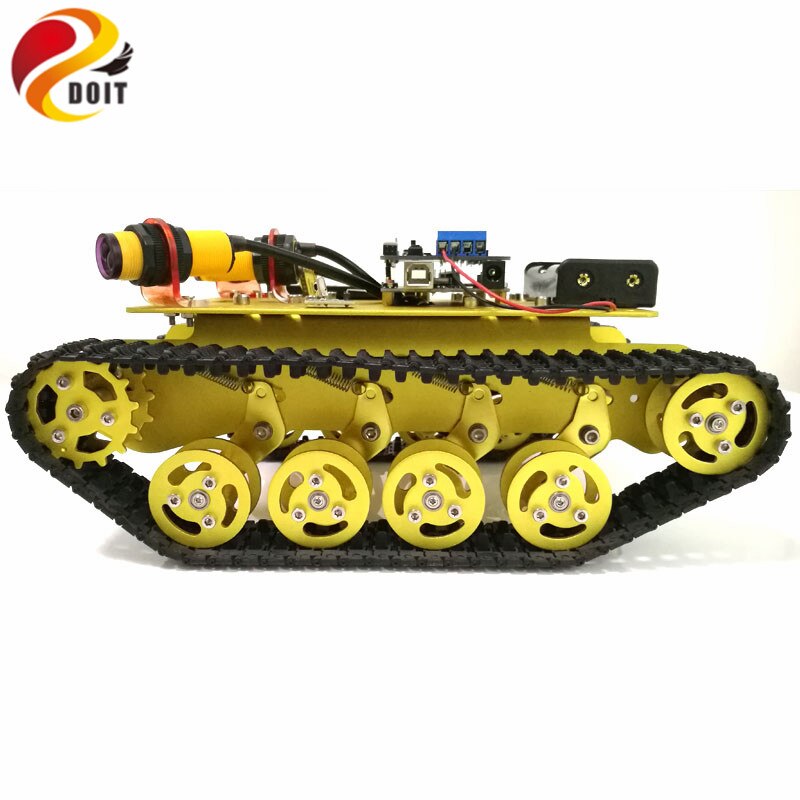

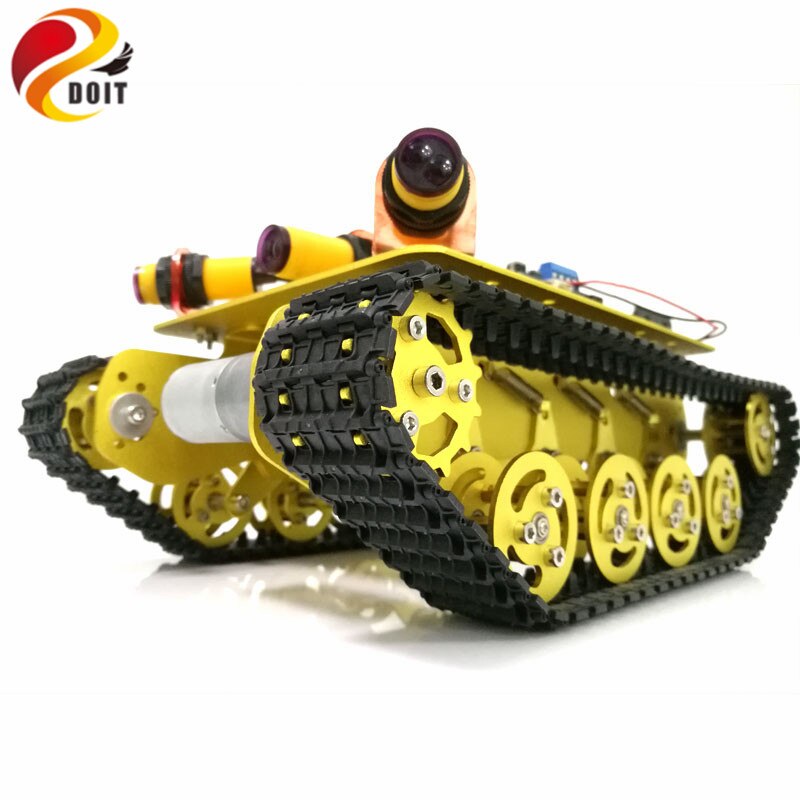

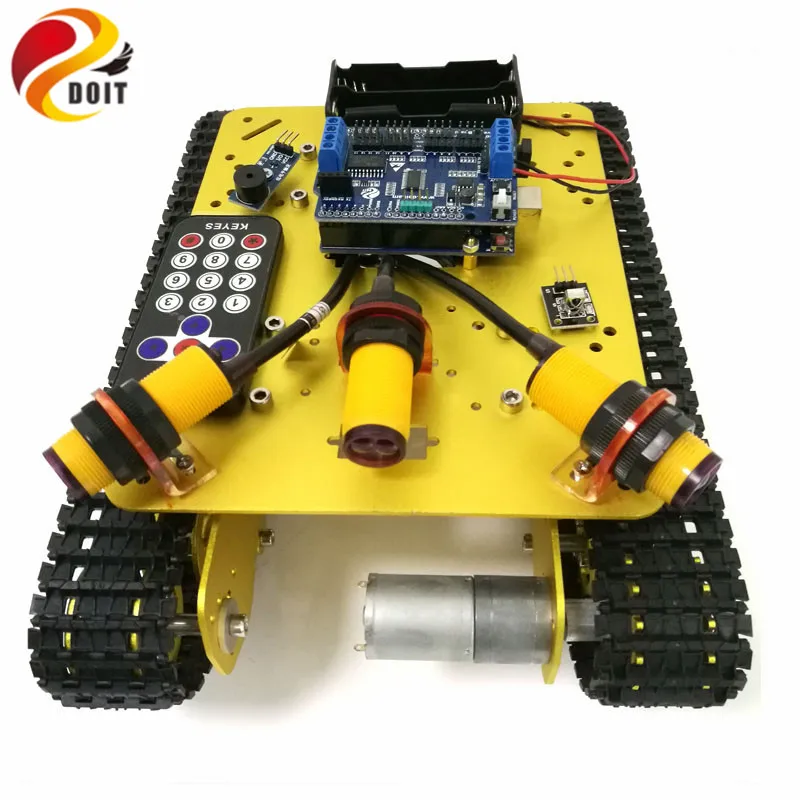

• This tank car chassis kit, is designed based on the Arduino uno board, together with 2-channel & 16-channel servo shield board to drive the tank and 4WD car. In addition, it has 1 infrared receiver module, 1 infrared remote control, 1 active buzzer and 3 infrared obstacle avoidance photoelectric sensor . By this way, you can control the car to avoid obstacle by infrared module via infrared remote control.
• Provide source code, App and user manual.
• More details, please visit: https://github.com/SmartArduino/SZDOITWiKi/wiki to download the source code and the documents.

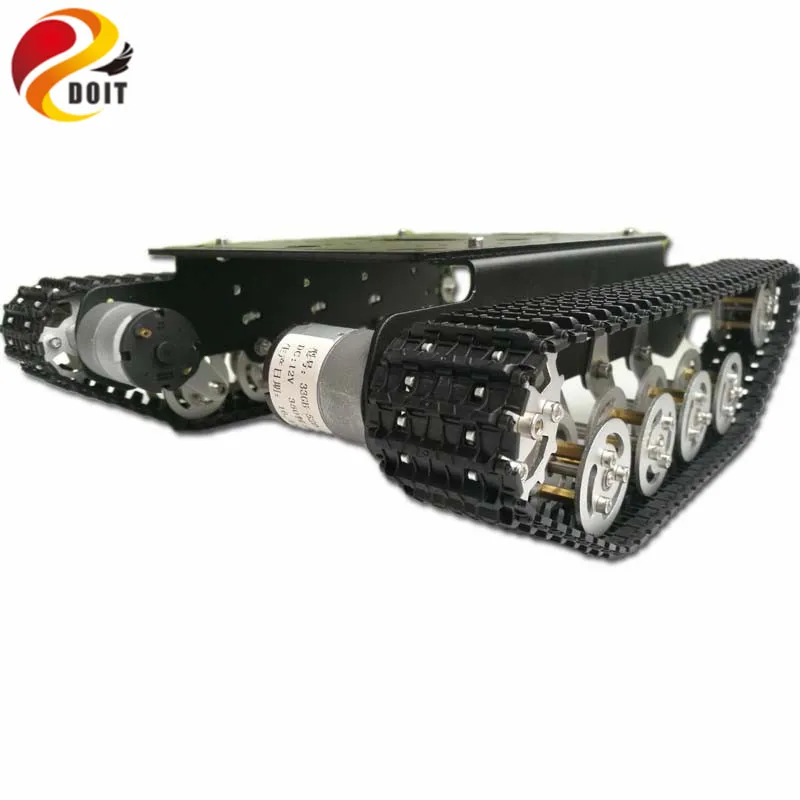

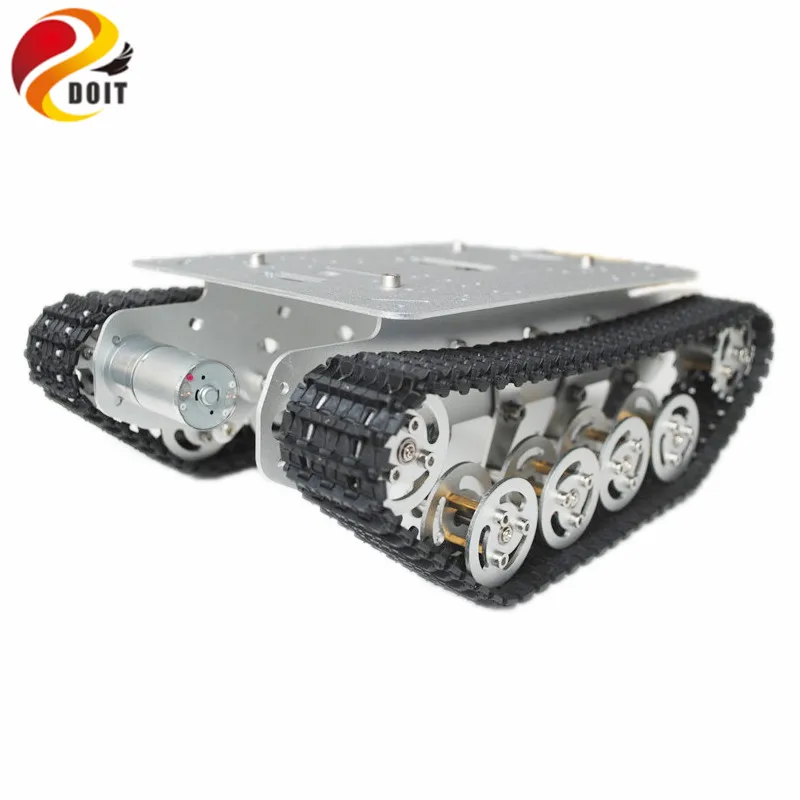

TS100 tank Chassis:

• Name: TS100 Intelligent track car/tank chassis
• Material: aluminum alloy
• Wheel: metal
• Track: engineering plastic
• Product size: about 275mm*190mm*95mm (length * width * thickness)
• Weight: 1100g
• Color: golden yellow/silver/Black

Motor type:

• 33GB-520 Motor,
• 9V&150RPM: has Hall sensor
• 12V&320RPM: No Hall sensor.

Motor parameters(33GB-520 Motor):

• Rated Voltege: DC12V
• No load Current: 100mA
• Voltage: 6-12V
• No load Speed: 170-350r/min
• Weight: 100g

Motor parameters(25mm 9V DC Motor):

• Name: 25mm gear motor
• Output speed: 150±10%rpm
• No_load Current: 200mA (Max)
• Stall current: 4500mA(max)
• Stall torque: 9.5kgNaN
• Rated speed: 100±10%rpm
• Rated torque: 3000gNaN
• Rated Current: 1200mA (Max)
• Noise: 56dB
• Working voltage: 9V
• Outside Shaft Length: 14.5mm
• Shaft End Play: 0.05-0.50mm
• Screw Size: M3.0
• Dia. Of Shaft phi4mm, D3.5
• encoder: 2 pulses/circle

Motor parameters(12V DC Motor):

• Voltage: 12V DC
• RPM: 320RPM
• Current: 0.55A
• Diameter: 25mm
• Height (excl. shaft): 68mm
• Shaft length: 9.5mm
• Shaft diameter: 4mm
• Weight: 180g
• Brand new and unused
• Torque: 13kg.cm
• max effective point: load 4.0kg.cm/235rpm/2.5W/0.58A
• Max power: load 7kg.cm/215rpm/3.1w/0.65A
• Stall current: 4.8A

Option Description:

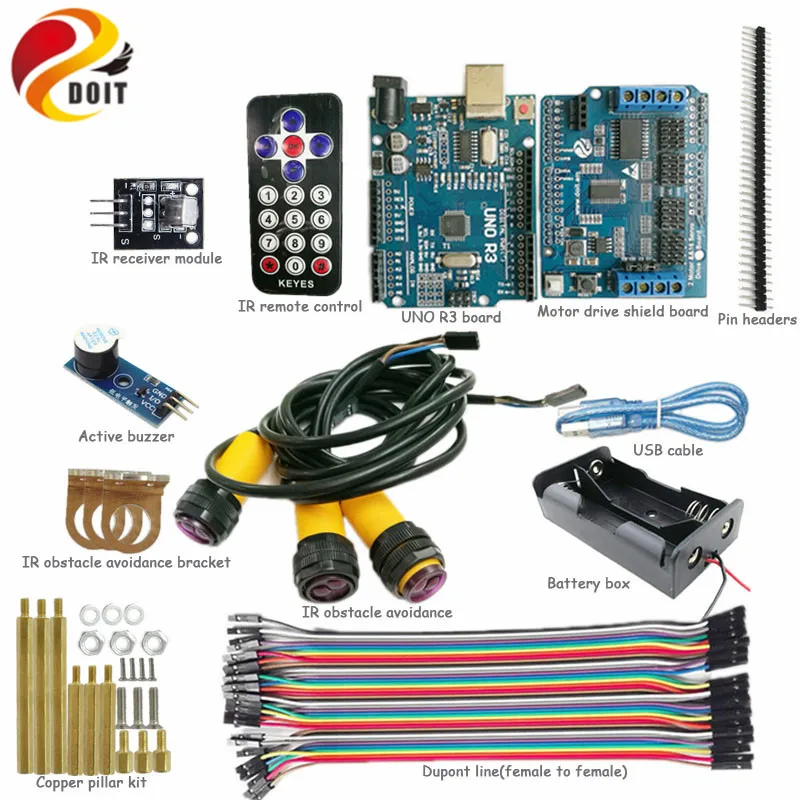

Only controller kit:

• 2-channel motor&16-channel servo shield board: 1pcs
• UNO board: 1pcs
• USB Cable: 1pcs
• Infrared receiver module: 1pcs
• Infrared remote control: 1pcs
• Infrared Obstacle Avoidance Photoelectric Sensor: 3pcs
• Obstacle Advoidance Sensor Bracket: 3pcs(The color is transparent)
• Active buzzer: 1pcs
• Female to Female dupont line: 40pcs
• Copper Pillars kit: 1set
• battery box: 1pcs

Silver with 33 motor:

• Silver TS100 Robot tank chassis: 1set(Motor: 33 motor)
• Controller kit: 1set

Silver with 9V motor:

• Silver TS100 Robot tank chassis: 1set(Motor: 9V motor)
• Controller kit: 1set

Silver with 12V motor:

• Silver TS100 Robot tank chassis: 1set(Motor: 12V motor)
• Controller kit: 1set

Golden with 33 motor:

• Golden TS100 Robot tank chassis: 1set(Motor: 33 motor)
• Controller kit: 1set

Golden with 9V motor:

• Golden TS100 Robot tank chassis: 1set(Motor: 9V motor)
• Controller kit: 1set

Golden with 12V motor:

• Golden TS100 Robot tank chassis: 1set(Motor: 12V motor)
• Controller kit: 1set

Black with 33 motor:

• Black TS100 Robot tank chassis: 1set(Motor: 33 motor)
• Controller kit: 1set

Black with 9V motor:

• Black TS100 Robot tank chassis: 1set(Motor: 9V motor)
• Controller kit: 1set

Black with 12V motor:

• Black TS100 Robot tank chassis: 1set(Motor: 12V motor)
• Controller kit: 1set

Infrared Remote Control Obstacle Advoidance kit>>

For the shipping convenience, the tank/car chassis is unassembled.
