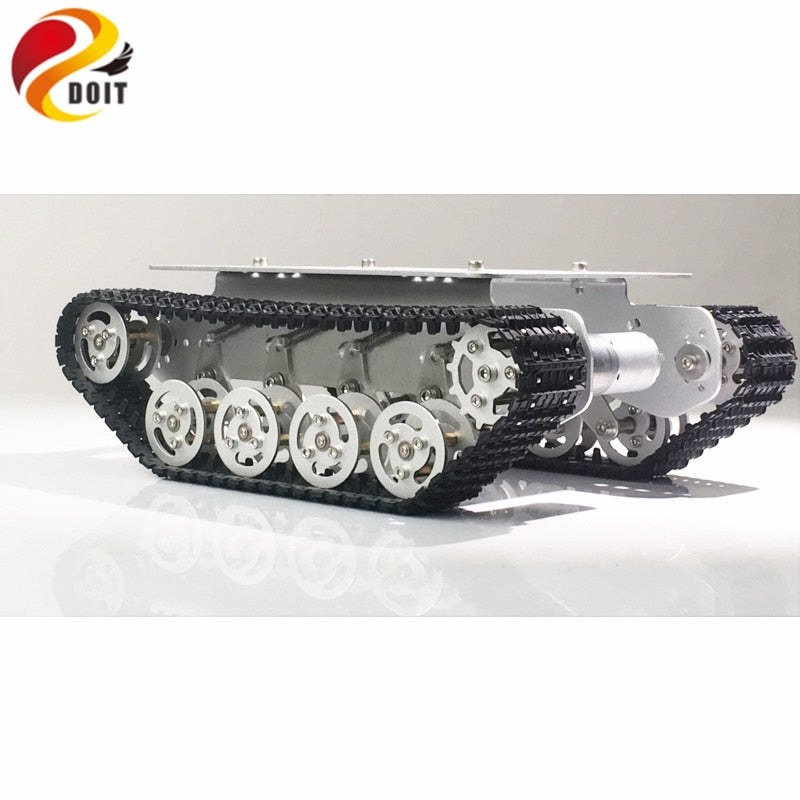

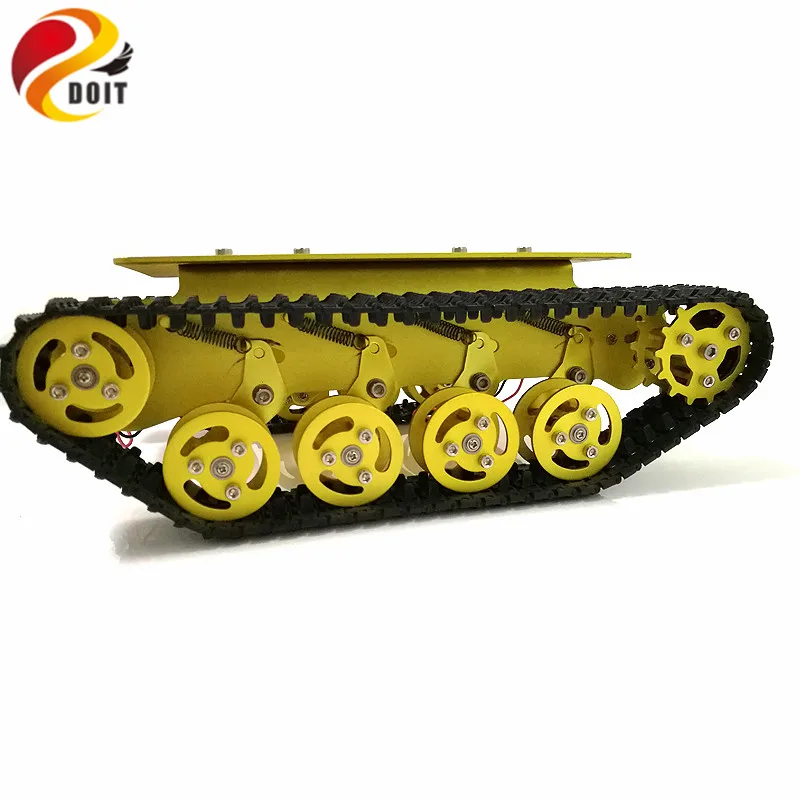

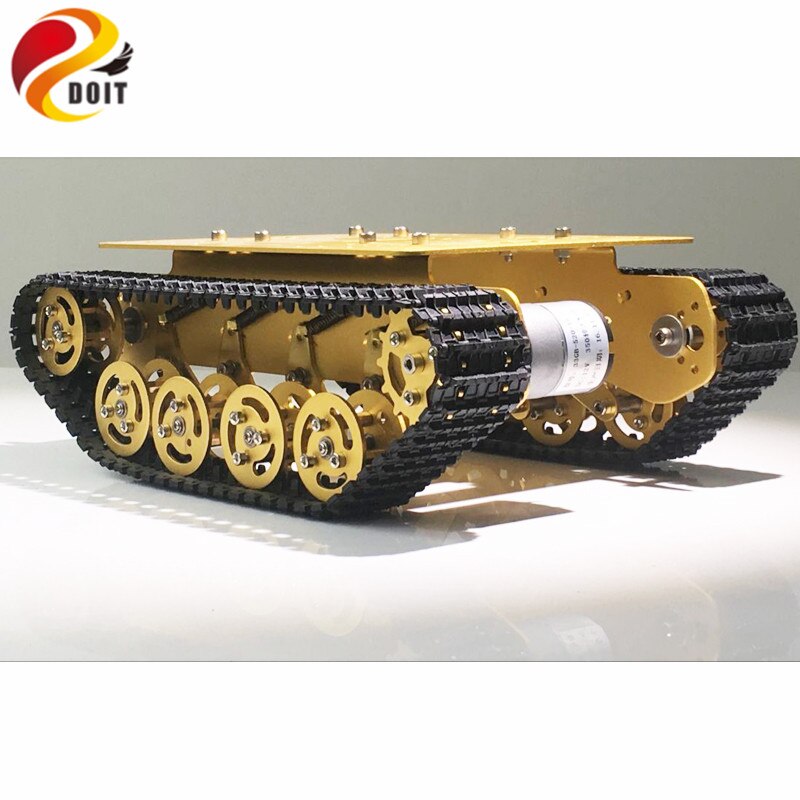

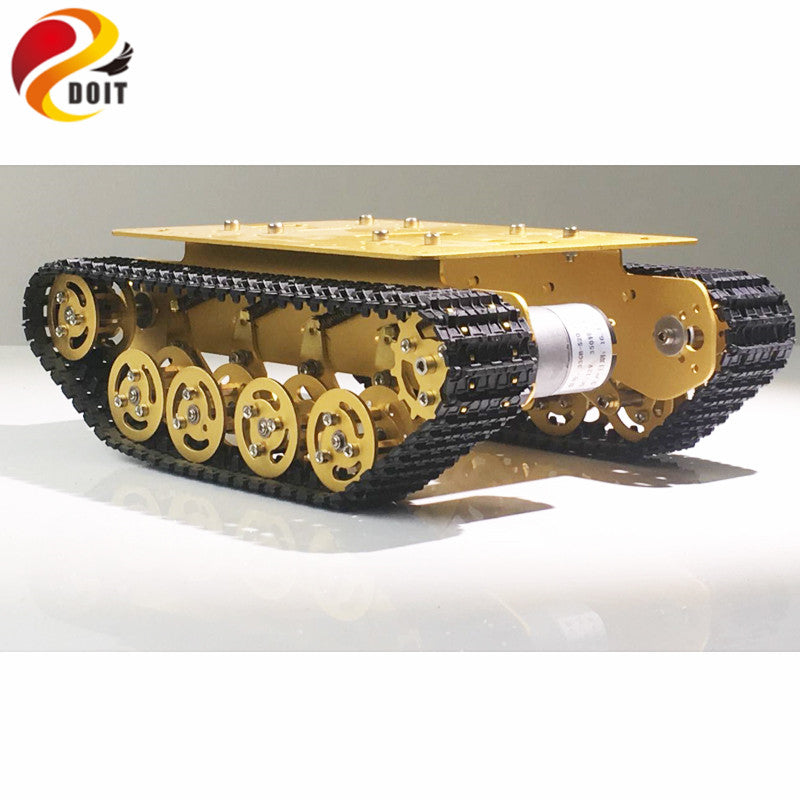

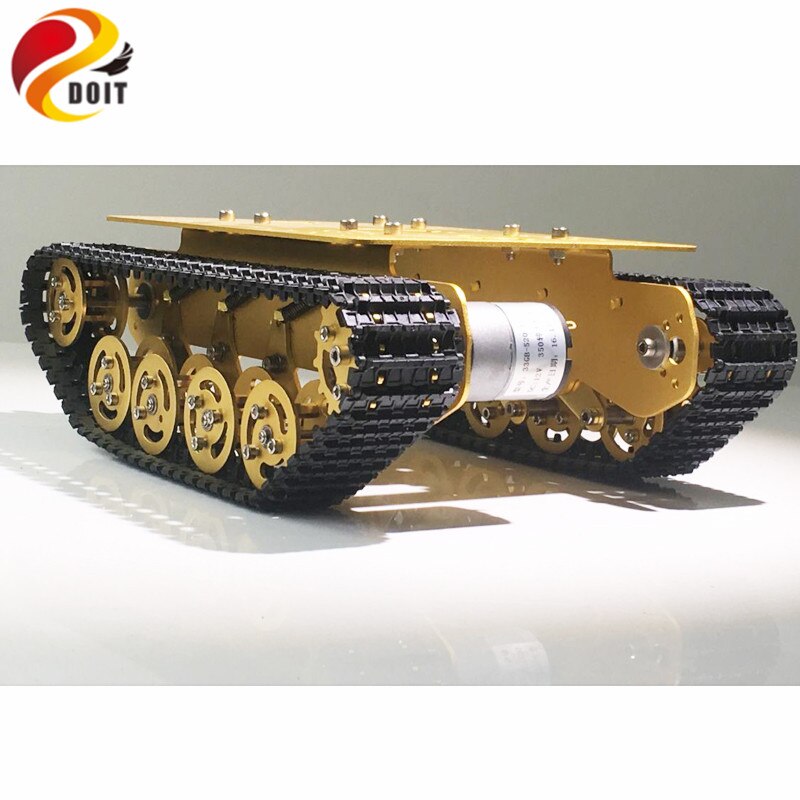

DOIT TS100 Metal Rc Robot Tank Car Chassis Shock Absorption Car With Suspension System Crawler Caterpillar for Arduino DIY Toy

Introduction:

• A novel design has already coming for the tank chassis, with beautiful shape, and full metal aluminum alloy structure. In this tank chassis, a space for 9g servo is left for the ultrasonic sensor, and a space for MG995 servo is also left to rotate the mechanical manipulator. What’smore, UNO R3 and NodeMCU development boards are also designed to install. In addition, the metal panel can be used to install the wheeled car by install the 25mm and/or 37mm motor frames. Interesting, a LED light is installed to brighten the dark in the night. Under the help of the motor, the tank chassis can be smoothly turn left, right, circle, forward and backward, ect. Therefore, when you get the chassis, it can do many things for you, like getting the temperature and mobile monitor. Certainly, we have developed a series of car/tank chassis. Hoping you can choose your loved car chassis.
• More documents, please visit: wiki.doit.am

Parameters:

• Name: TS100 Intelligent tracked car/tank chassis

• Material: aluminum alloy

• Wheel: metal

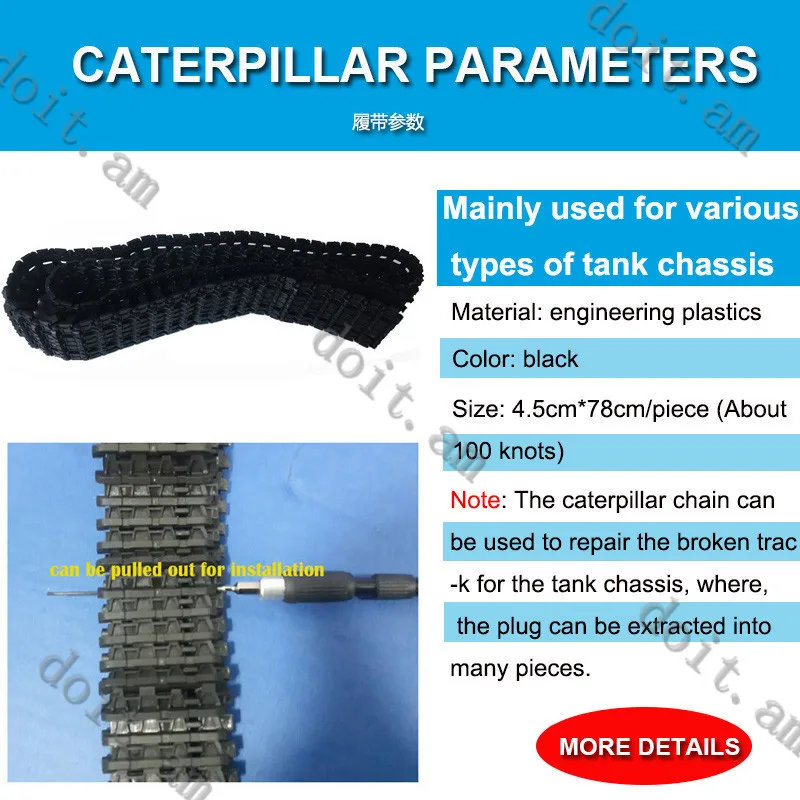

• Track: engineering plastic

• Product size: about 275*190*95mm (length * width * height)

• Weight: 1100g

• Color: golden yellow/silver/black

Package Included:

• Chassis: 1 pcs(Silver/Yellow/Black)

• Driving wheels: 2 pcs

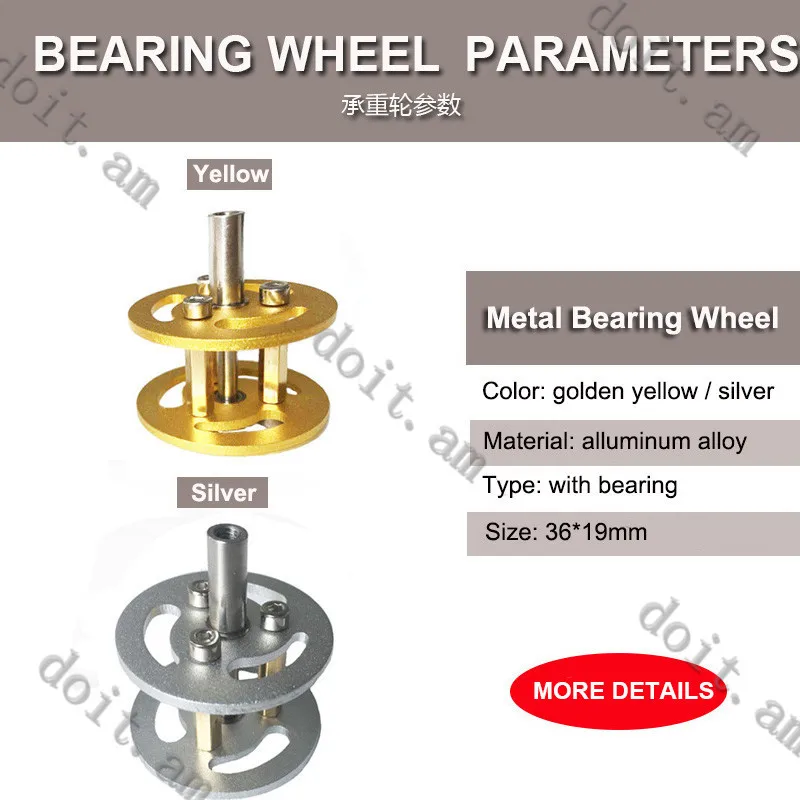

• Bearing wheels: 10 pcs

• Track: 2 pcs (can be changed the length)

• DC motor: 2 pcs(33 motor/9V motor/12V motor)

• Screws: several

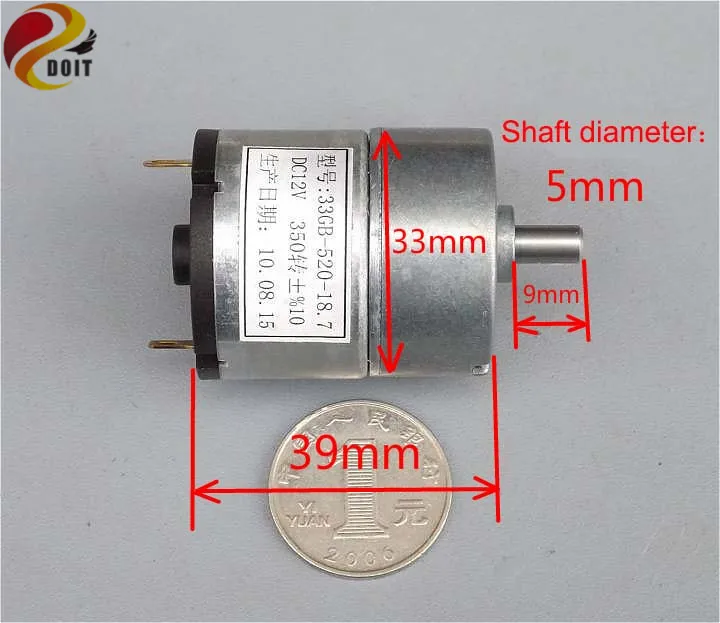

Motor parameters(33 motor: 12V 350rpm):

• Rated Voltege: DC12V

• No load Current: 100mA

• Voltage: 6-12V

• No load Speed: 170-350r/min

• Weight: 100g

Motor parameters(25mm 9V 150rpm DC Motor, has hall sensor):

• Name: 25mm gear motor

• Output speed: 150±10%rpm

• No_load Current: 200mA (Max)

• Stall current: 4500mA(max)

• Stall torque: 9.5kgNaN

• Rated speed: 100±10%rpm

• Rated torque: 3000gNaN

• Rated Current: 1200mA (Max)

• Noise: 56dB

• Working voltage: 9V

• Outside Shaft Length: 14.5mm

• Shaft End Play: 0.05-0.50mm

• Screw Size: M3.0

• Dia. Of Shaft phi4mm, D3.5

• encoder: 2 pulses/circle

Motor parameters(12V 330rpm DC Motor):

• Voltage: 12V DC

• RPM: 330RPM

• Current: 0.55A

• Diameter: 25mm

• Height (excl. shaft): 68mm

• Shaft length: 9.5mm

• Shaft diameter: 4mm

• Weight: 180g

• Brand new and unused

• Torque: 13kg.cm

• max effective point: load 4.0kg.cm/235rpm/2.5W/0.58A

• Max power: load 7kg.cm/215rpm/3.1w/0.65A

• Stall current: 4.8A

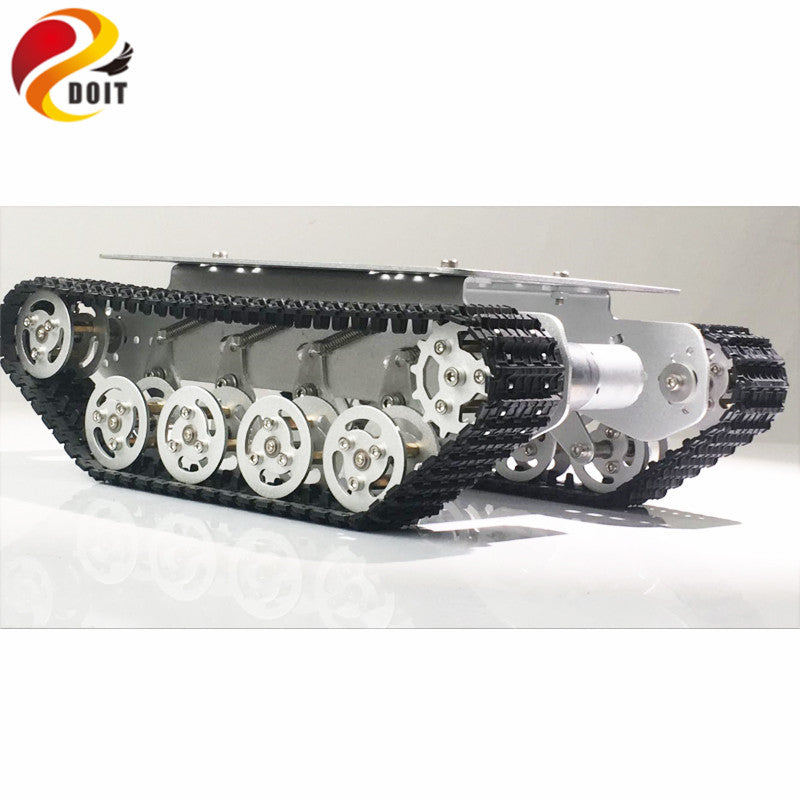

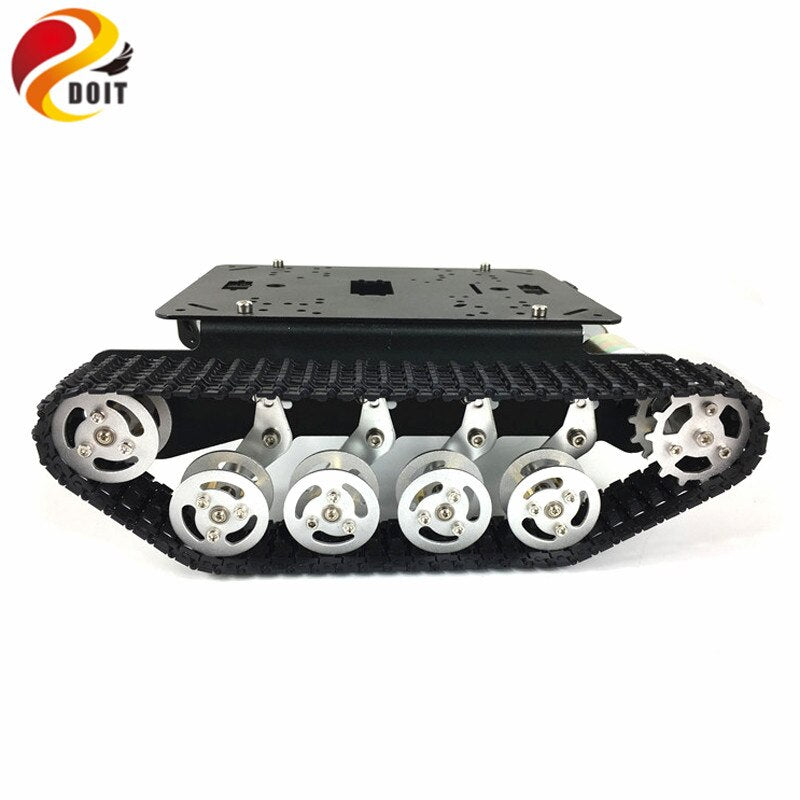

Images:

Package Included:

silver/golden/black with 9V motor:

• Silver/golden/black tank chassis: 1 set(motor: 9V 150rpm)

silver/golden/black with 33 motor :

• Silver/golden/black tank chassis: 1 set(motor: 33 motor)

silver/golden/black with 12V motor:

• Silver/golden/black tank chassis: 1 set(motor: 12V 330rpm)

Note:

• For the convenience of transport, the products is unassembled. Please leave your mail box to get the installation manual or visit our official wiki: wiki.doit.am.
