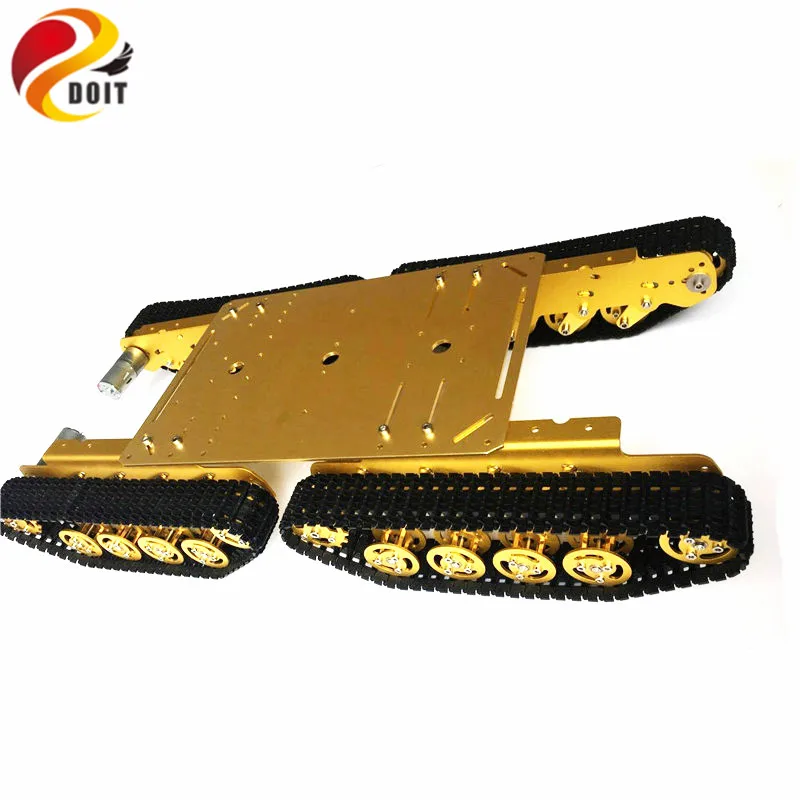

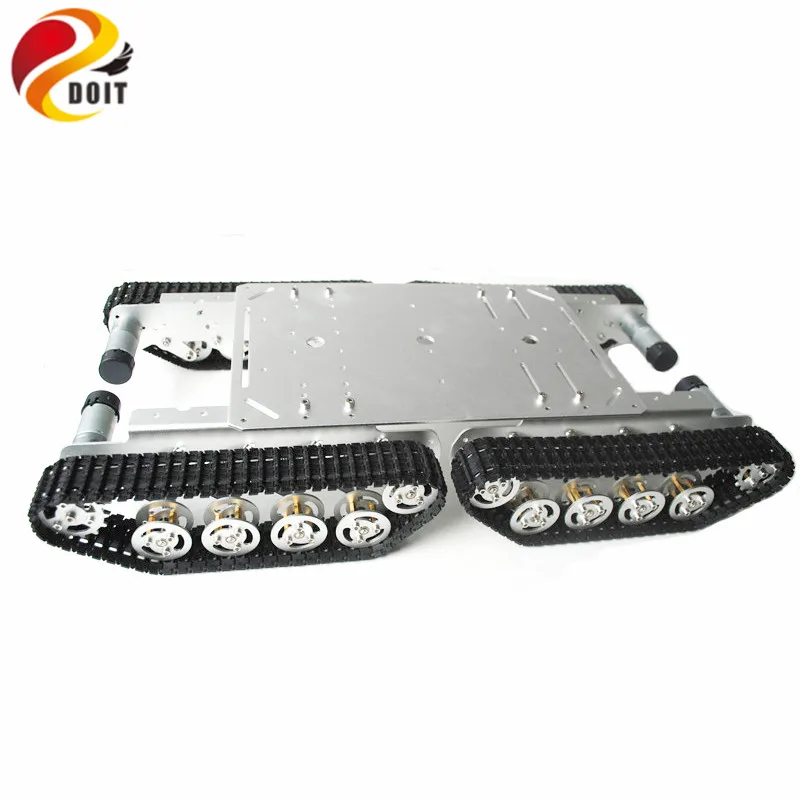

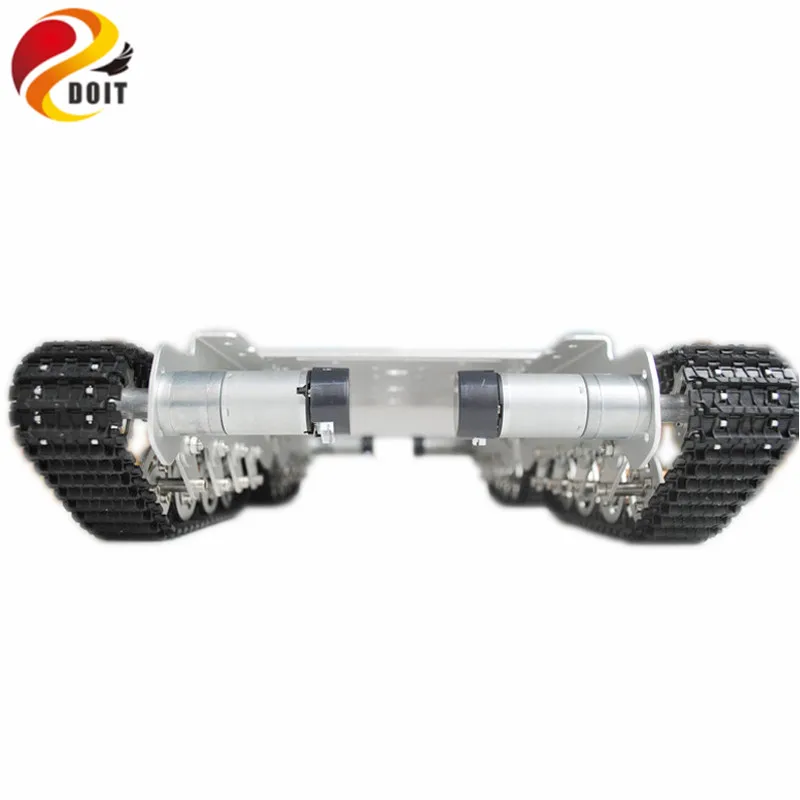

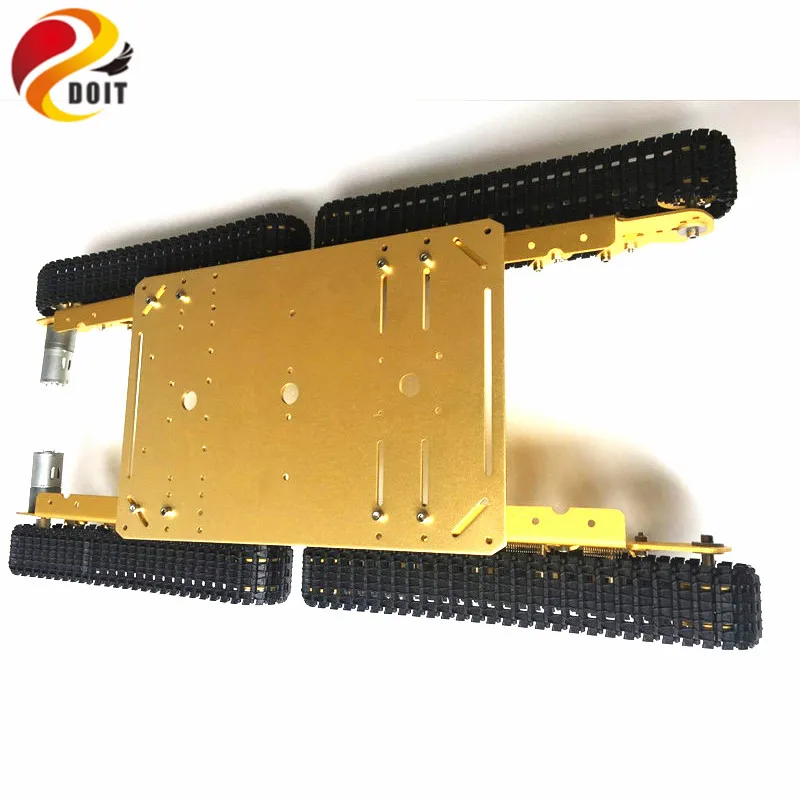

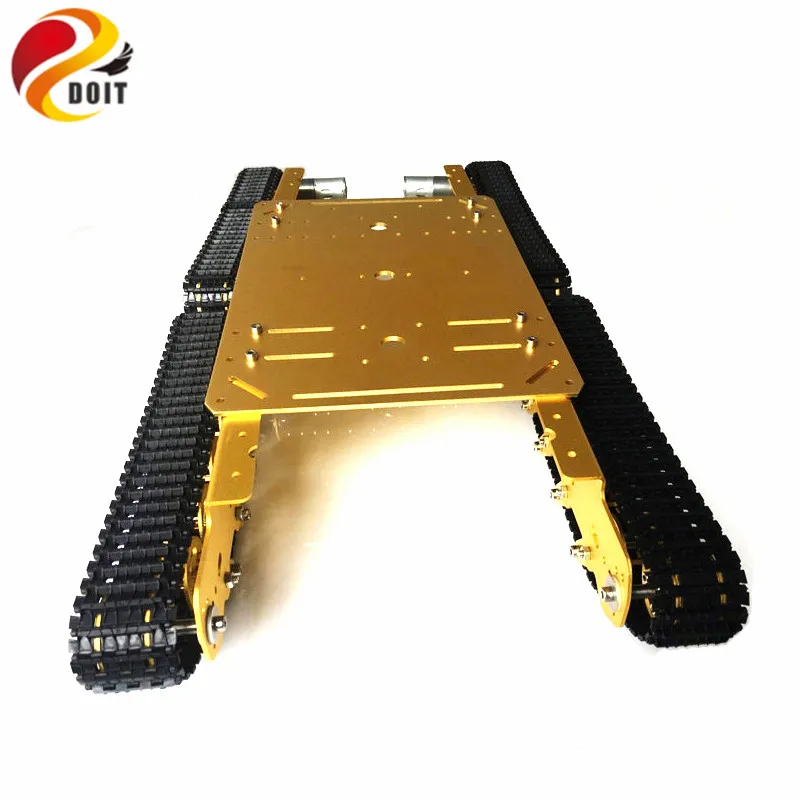

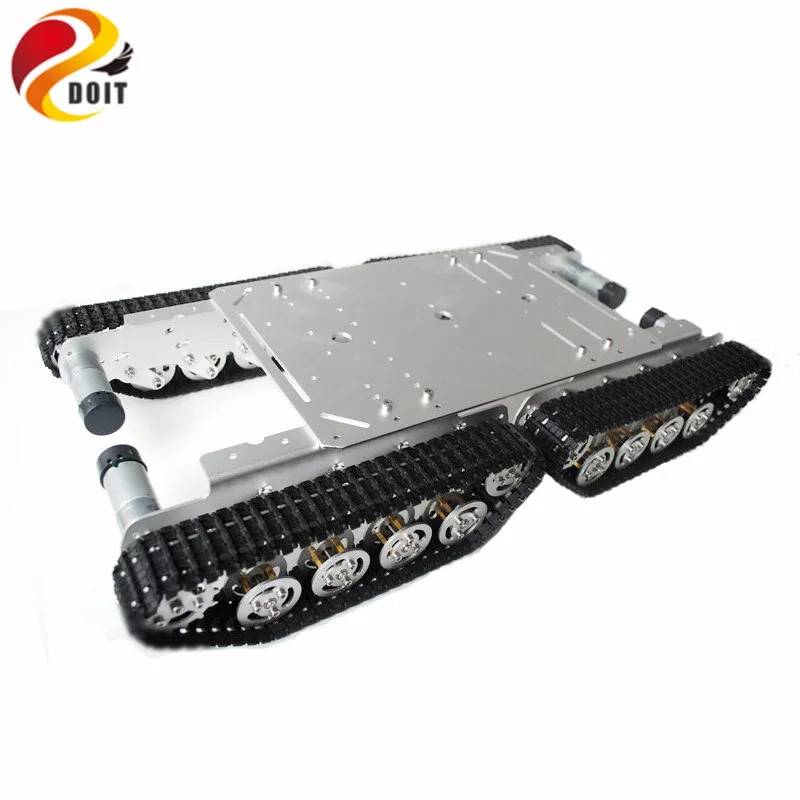

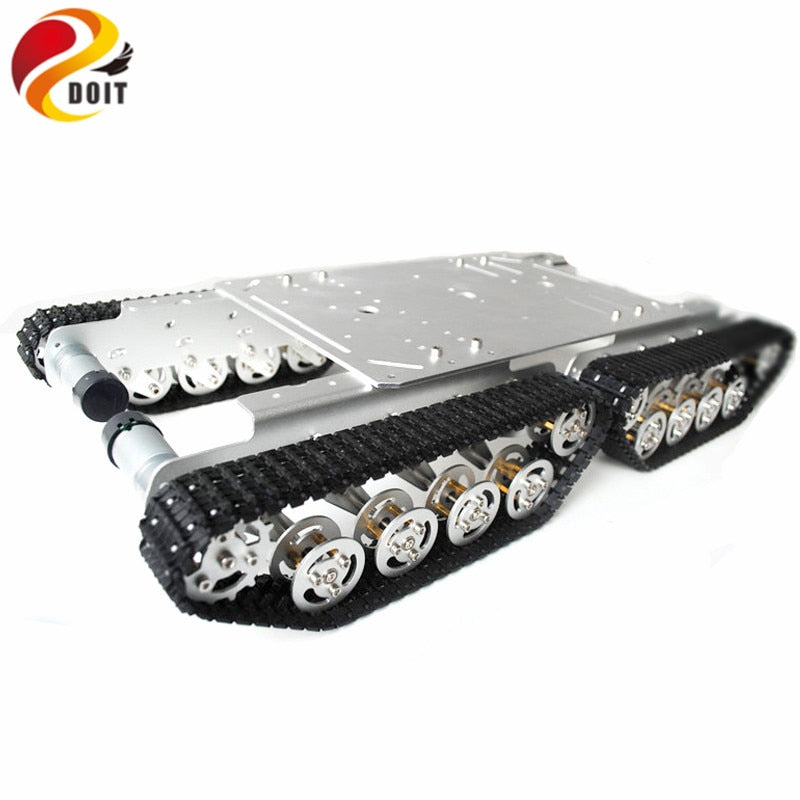

DOIT TS600 4WD Shock Absorber Tank Chassis with Aluminum Alloy Frame for Experiment Platform for Arduino Robot Project

• Name: TS600 Shock Absorber Tank car

• Car body: Aluminum alloy

• Wheel: Aluminum alloy

• Tracks: Engineeing plastic

• Size: 540* 280 *90mm (length * width * height)

• Working voltage: 6~12V

• The tank whole weight: 2.3kG

• Working carrying capaticy: 6Kg

• More details, please visit: https://github.com/SmartArduino/SZDOITWiKi/wiki to download the source code and the documents

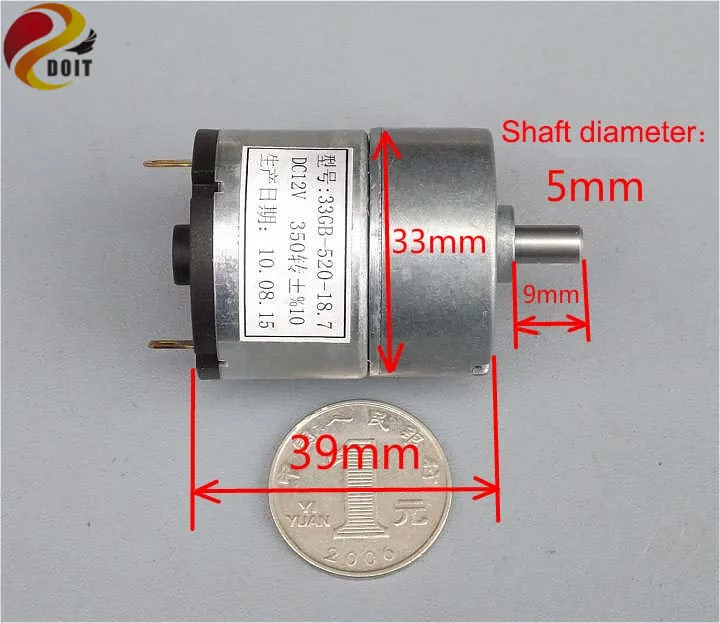

33GB-520 motor parameters:

• Rated Voltage: DC12V

• No-load Current: 100mA

• Working voltage range: 6-12V

• No-load speed : 170-350r/min

• Weight: 100g

9V motor parameters:

• Name: 25mm gear motor

• Output speed: 150±10%rpm

• No_load Current: 200mA (Max)

• Stall current: 4500mA(max)

• Stall torque: 9.5kgNaN

• Rated speed: 100±10%rpm

• Rated torque: 3000gNaN

• Rated Current: 1200mA (Max)

• Noise: 56dB

• Working voltage: 9V

• Outside Shaft Length: 14.5mm

• Shaft End Play: 0.05-0.50mm

• Screw Size: M3.0

• Dia. Of Shaft phi4mm, D3.5

• encoder: 2 pulses/circle

• TS600 Shock Absorber Tank car: 1 set(Silver/Yellow)
• Motor: 4pcs(33GB-520 motor/9V motor)

Controller kit:
