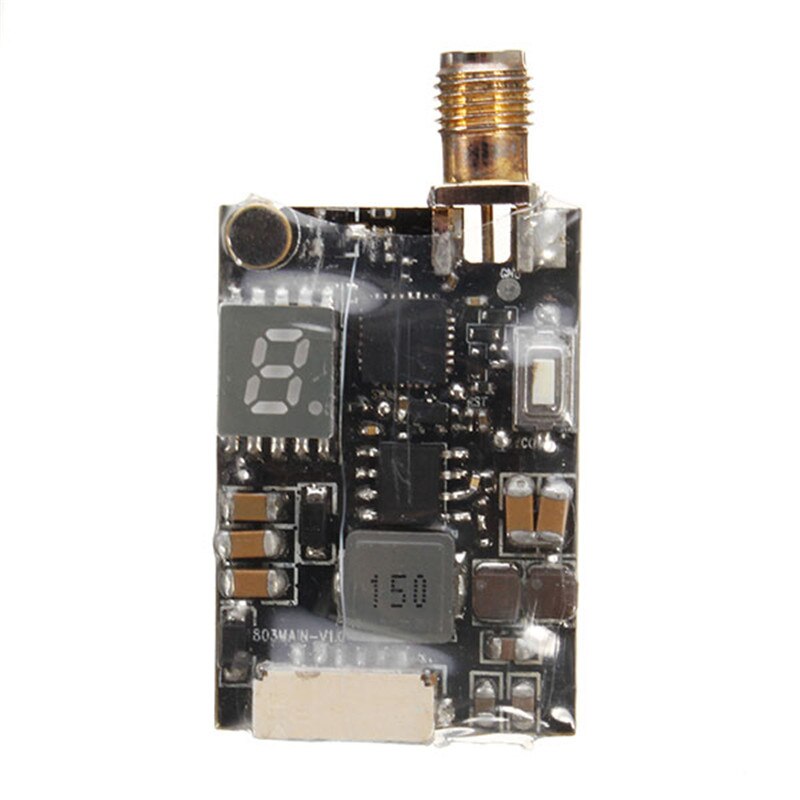

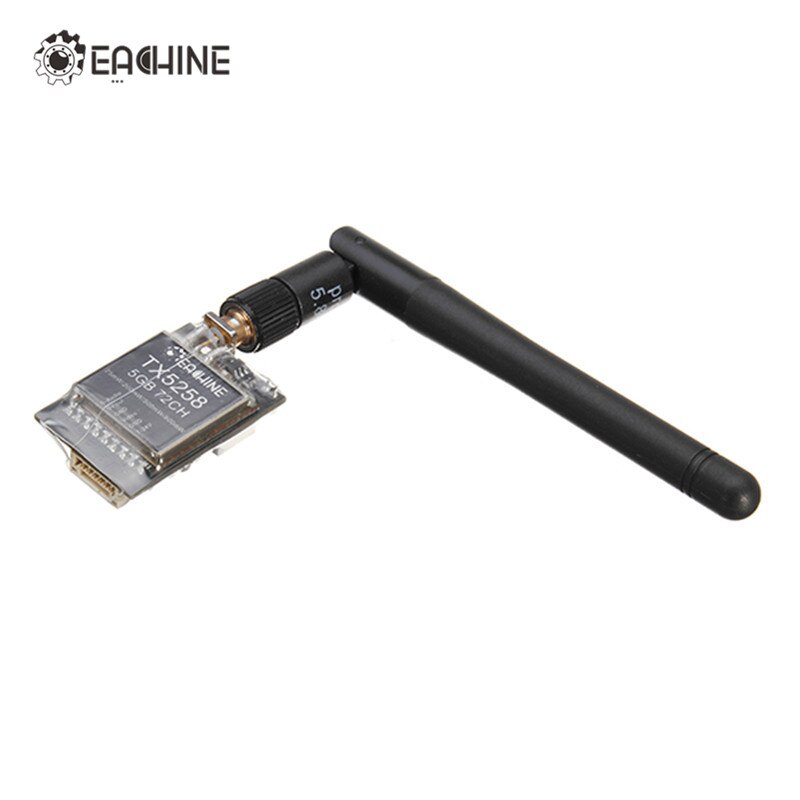

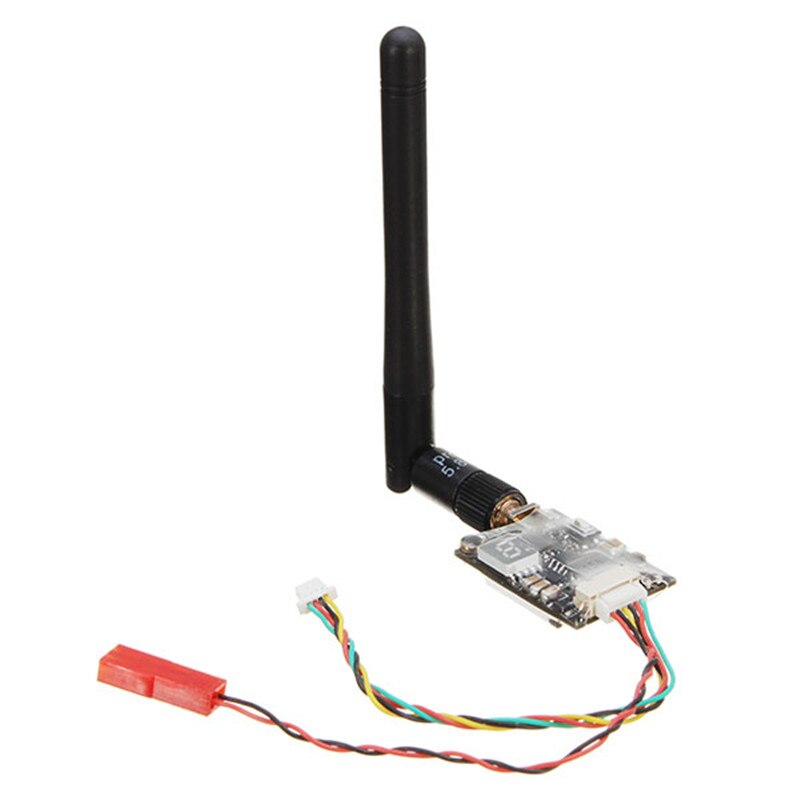

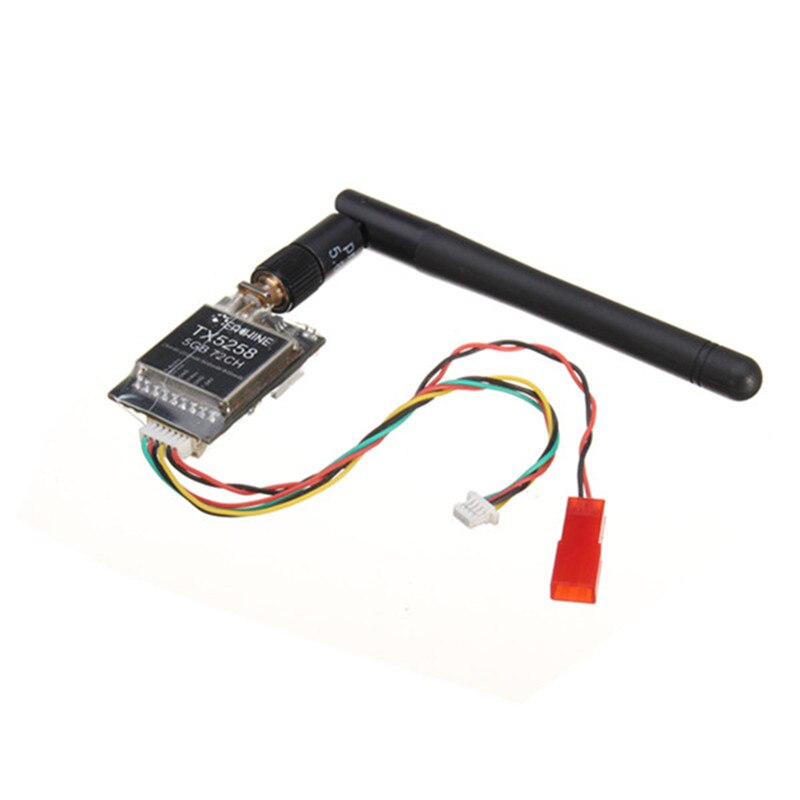

Eachine TX5258 5.8G 72CH 25/200/500/800mW Switchable FPV Transmitter Support OSD Configuring For RC FPV Drone VS TX526
Eachine TX5258 5.8G 72CH 25/200/500/800mW Switchable FPV Transmitter Support OSD Configuring For RC FPV Drone VS TX526
Eachine TX5258 5.8G 72CH 25/200/500/800mW Switchable FPV Transmitter Support OSD Configuring For RC FPV Drone VS TX526
Eachine TX5258 5.8G 72CH 25/200/500/800mW Switchable FPV Transmitter Support OSD Configuring For RC FPV Drone VS TX526
Eachine TX5258 5.8G 72CH 25/200/500/800mW Switchable FPV Transmitter Support OSD Configuring For RC FPV Drone VS TX526
Eachine TX5258 5.8G 72CH 25/200/500/800mW Switchable FPV Transmitter Support OSD Configuring For RC FPV Drone VS TX526

Eachine TX5258 5.8G 72CH 25/200/500/800mW Switchable FPV Transmitter Support OSD Configuring For RC FPV Drone VS TX526

Drone Spark

$215.99 $503.99 Sale


Click here to download the manual: TX5258PDF.pdf

Specification:
Brand: Eachine
Item model: TX5258
Antenna Gain: 3dBi
Frequency: 5645-5945MHZ
Wireless channels: 72CH
Video Format: NTSC/PAL
Transmitting Power: 25/200/500/800mW switchable
Working Current: (MAX)7V-550mA / 12V-300mA / 24V-160mA
Audio Bandwidth: 6.5MHZ
Video Bandwidth: 18MHZ
Audio Carrier: 1Vp-p(1KHZ)
Audio input impedance: 10KΩ
Operating Voltage: DC7-24V
Output voltage: 5V /300mA
Power supply: 5v camera@under 0.3A max.
Output power: 25mW:100mA  /200mW:200mA
                       /500mW:260mA  /800mW:300mA @12V
Range: Up to 4km omnidirectional RHCP antennas
Antenna connector: RP-SMA
Port connector: JST. 6pin
Weight: 8.25g
Size: 31*21*5mm
Notice: LED flash 2 times quickly while displaying power.
             For example: "1"flash 2 times means "25mW"

Features:
With the microphone
7-24V input with 5V output
OSD configuration using Flight Controller UART
25/200/500/800mW switchable
One button frequency and power setup
Support 0.01mW (parameter-adjusting-mode)
Smartaudio can remote control to switch the power
Comes with protection function, forget the antenna will not damage the module
With overheating automatic protection, to prevent the module overheating damage.

Package included:
1 x Eachine TX5258 5.8G 72CH 25/200/500/800mW Switchable FPV Transmitter
1 x Power AV Cable
1 x Antenna
