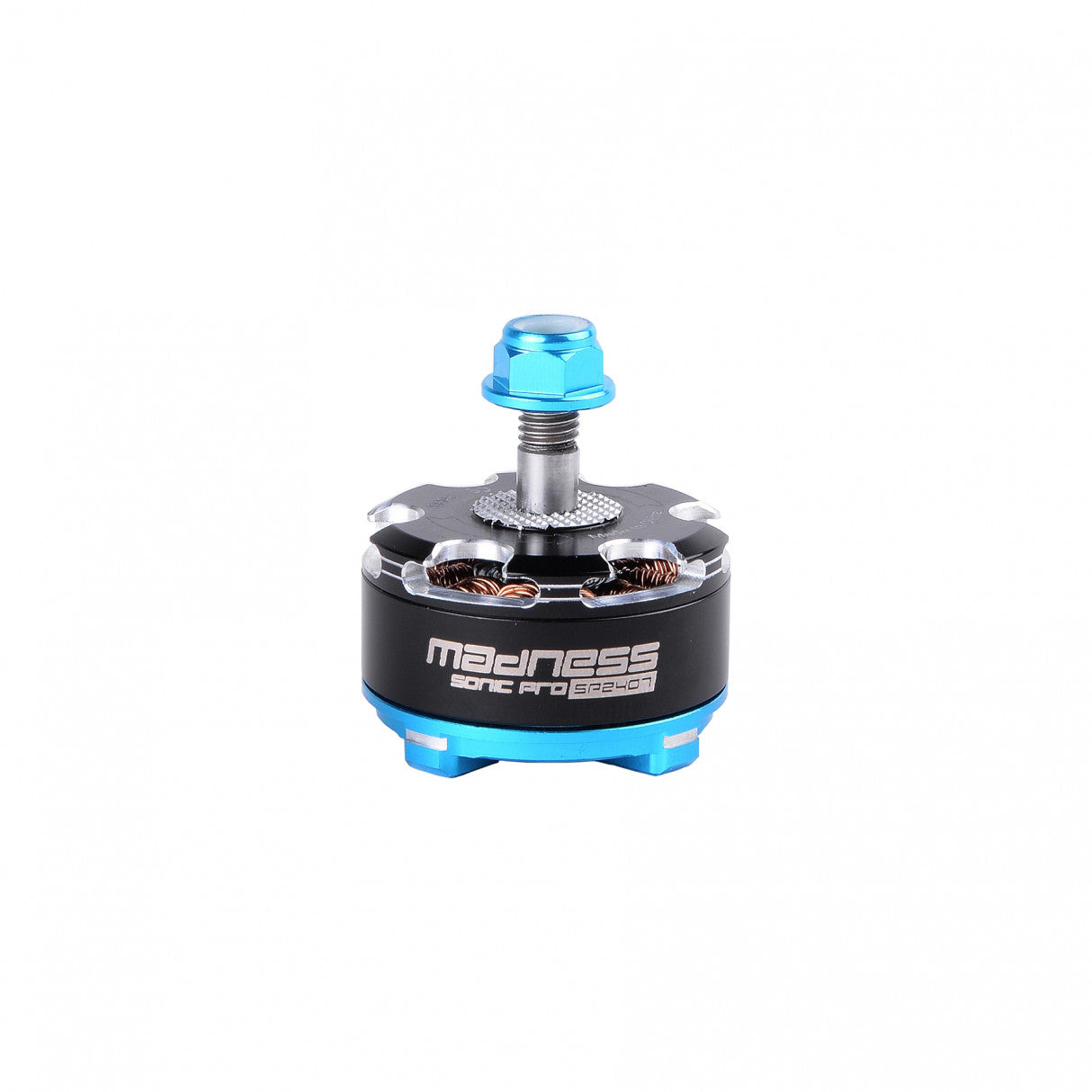

EGODRIFT MADNESS SP2407 2407 2450KV 4-6S Brushless Motor for RC Drone FPV Racing

The name says it all: Lift up and hang loose with the EGODRIFT Madness motors from our Sonic Pro motors series. Featuring a big 24x7mm stator, packing enough power to drive large and heavy 5 inch, or 6 inch props on 4S and 5S.

The motor comes rated at 2450kV for a good balance of torque and top end speed.

Flight characteristics: Snappy and fast responding with a great amount of punch and a very linear thrust curve for precision freestyle. Super smooth operation and good flight times due to the motor's big amount of power.

Specification:

• Manufacturer: EGODRIFT
• Stator size: 2407
• Motor configuration: 12N14P
• Motor weight: 40g
• Base Colour: Ice Blue
• Wire colour: Copper
• Motor wire type: High temperature copper wire
• Motor shaft: Hardened steel (Hollow)
• Shaft diameter: 5.0 mm
• LiPo cells: 4S, 5S, 6S
• Motor kV: 2450 kV
• Stator diameter: 24 mm
• Stator height: 7 mm
• Stator lamination: 0.15 mm (+)
• Diameter: 30 mm
• Screw hole diameter: 3,0 mm
• Idle current: 0.57 A
• Internal resistance: 0.3 Ohm

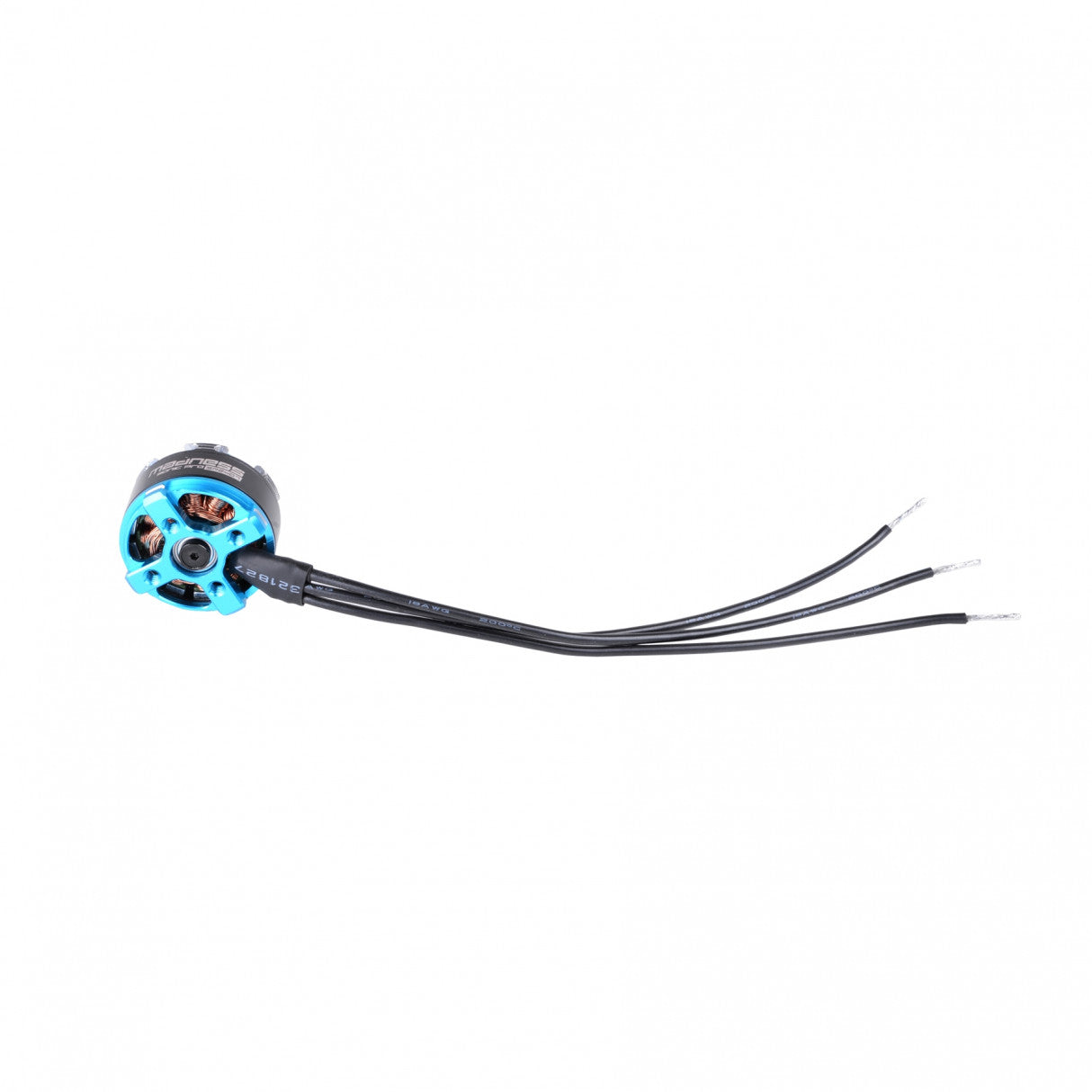

• Connection: 18AWG Soft silicone wires, pre-tinned, 13.5 cm

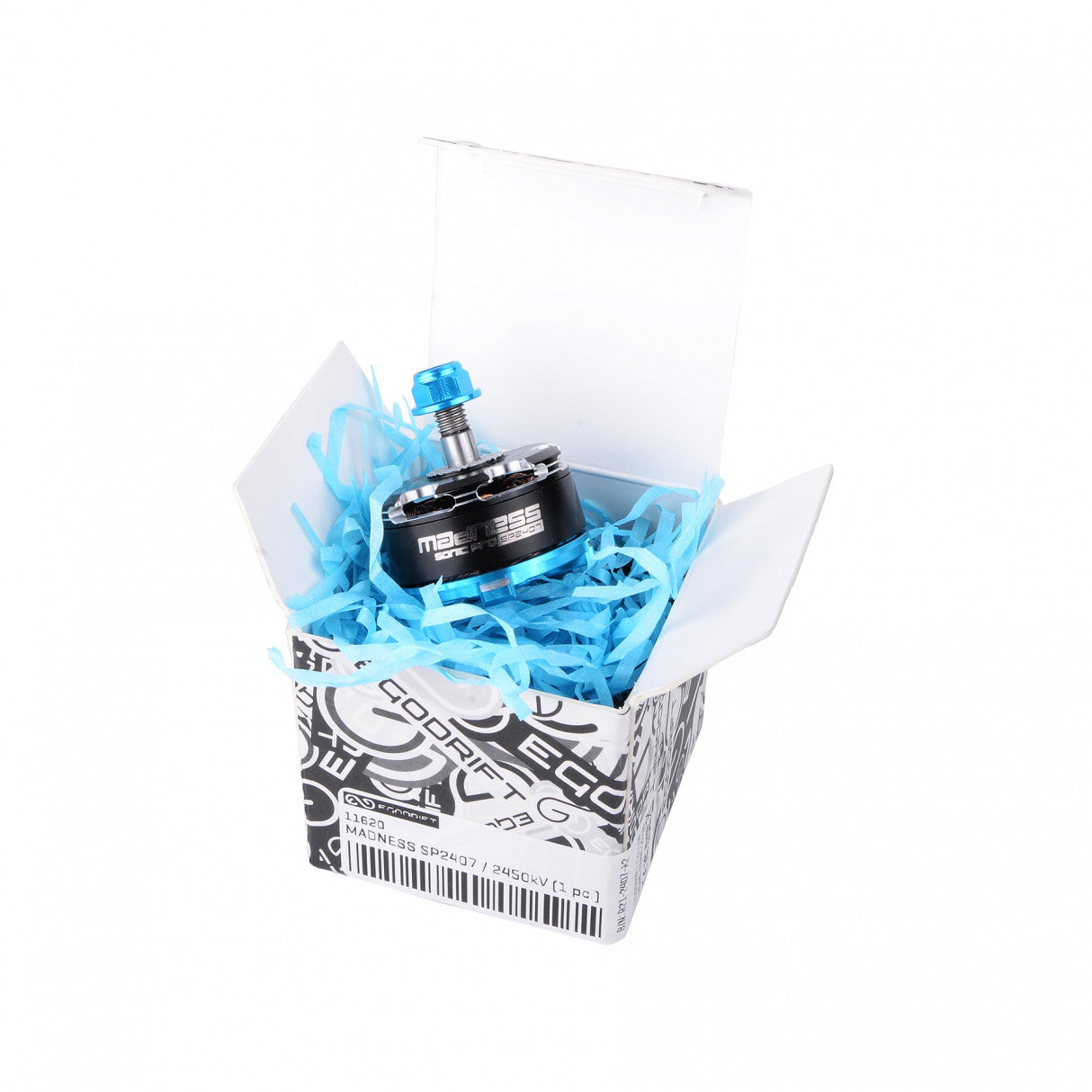

• 1 x Madness SP2407/2450kv
• 1 x Anodized Aluminium M5 nylock nut
• 4 x M3x6mm steel screws, black
• 4 x M3x8mm steel screws, black
