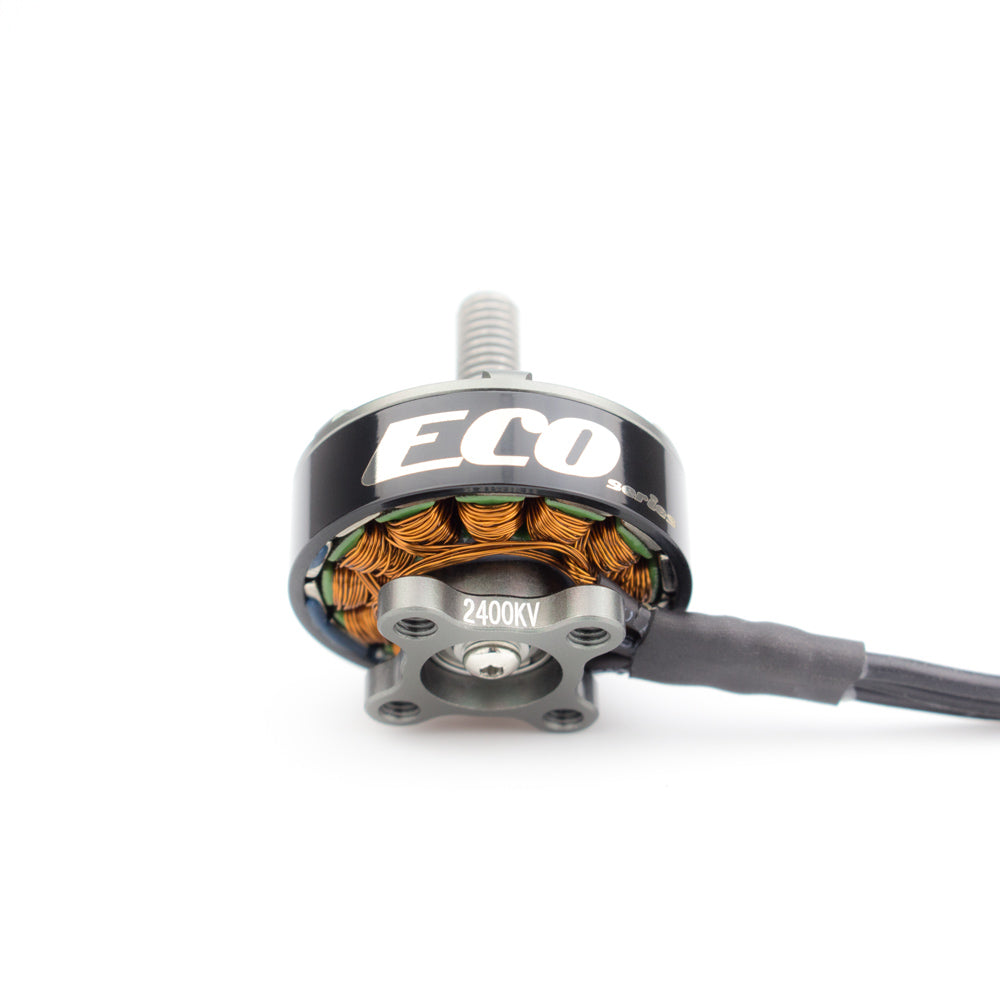

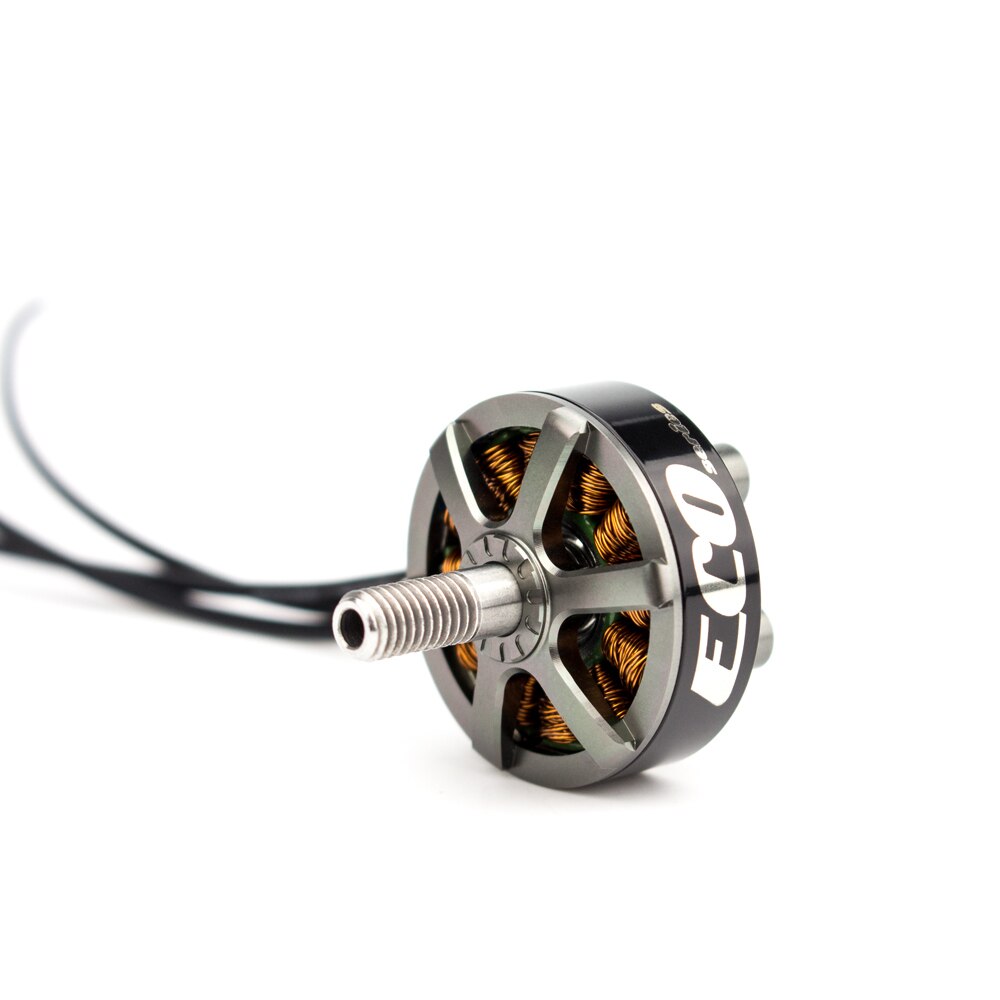

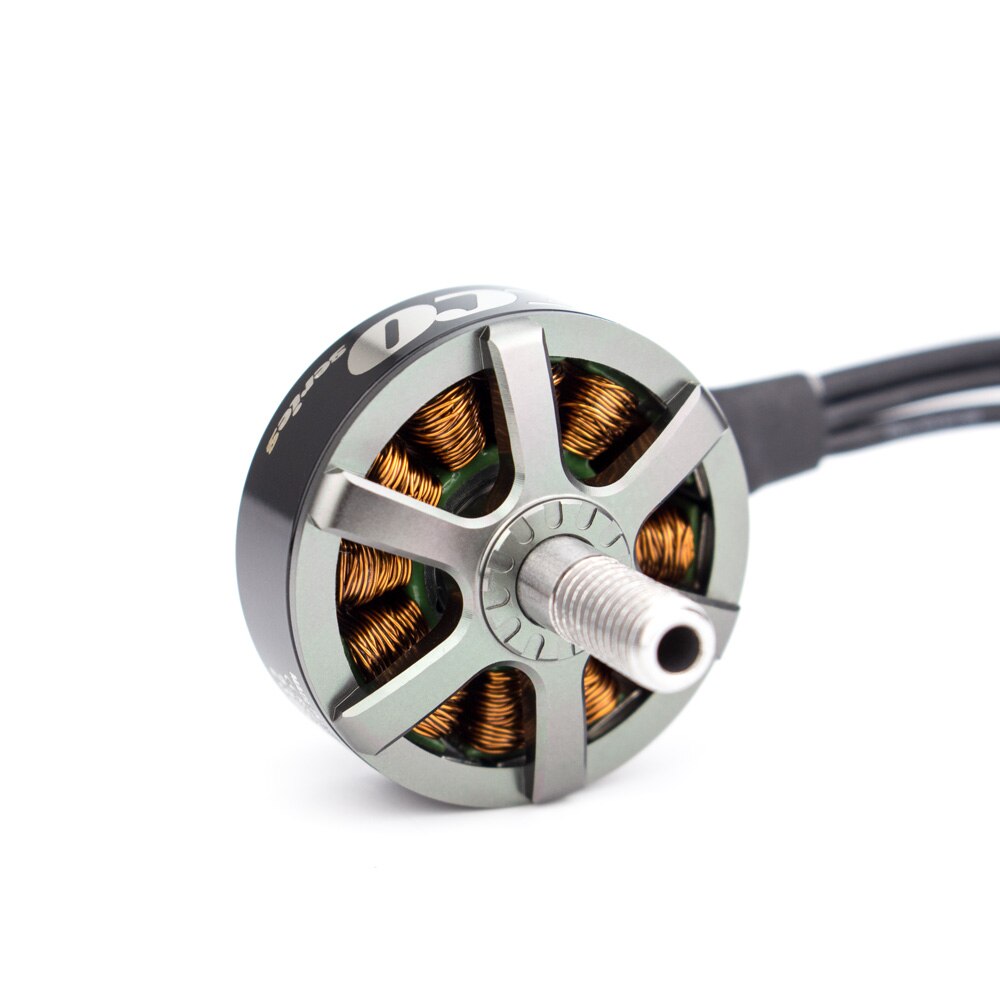

Emax ECO Series 2306 1700KV 3~6s /2400KV 2~4s Durable Motor for DIY Racing Drone RC Helicopter
Drone Spark
Regular price
$653.99
$1,525.99
Specifications:
Specifications
Framework: 12N14P
Length: 30.2mm
Diameter: 27.7mm
No. of cells: 3-4s 2300-2700kv range
No. of cells: 3-6s 1500-1900kv range
Propeller: 5" - 6"
Light Weight: 28.3g (W/O Silicone Wire)
Prop adapter: M5
Bearing Shaft: 4mm
Shaft Thread: CW
Feature
EZO bearing 9mm ODx4mm ID
Steel shaft
Dual anodizing
16x16mm hole pattern
Multi copper winding
115mm 20 AWG silicone wire

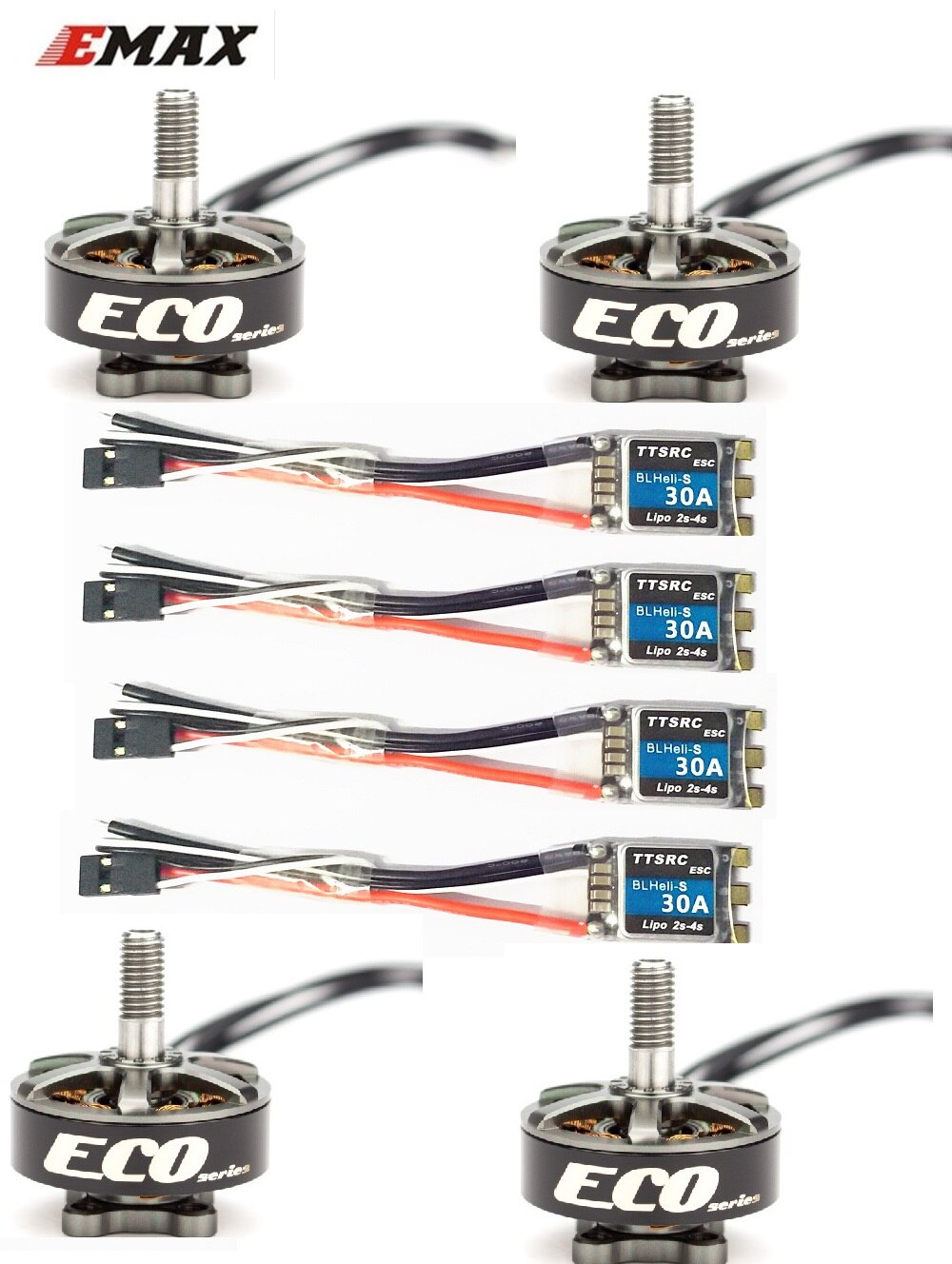

Package including :

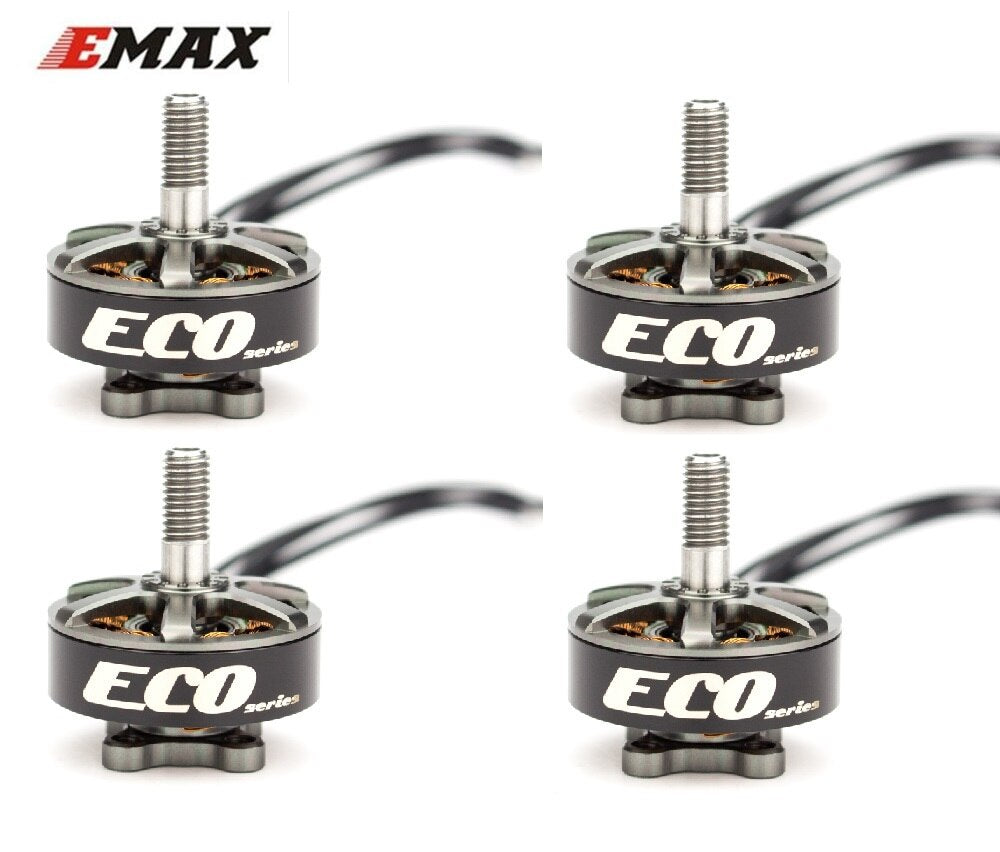

4pcs Emax ECO Series 2306(kv as your choice)
Emax ECO series 2207
Brand name: Emax
Item name: ECO series 2207 brushless motor
KV: 1700KV, 1900KV, 2400KV (option)
Framework: 12N14P
Length: 32.6mm
Diameter: 27.45mm
No. of cells: 3-4s 2400KV
No. of cells: 3-6s 1700KV 1900kv
Propeller: 5" - 5.5"
Light Weight: 31.5g (W/O Silicone Wire)
Prop adapter: M5
Shaft Thread: CW
Item name: ECO series 2207 brushless motor
KV: 1700KV, 1900KV, 2400KV (option)
Framework: 12N14P
Length: 32.6mm
Diameter: 27.45mm
No. of cells: 3-4s 2400KV
No. of cells: 3-6s 1700KV 1900kv
Propeller: 5" - 5.5"
Light Weight: 31.5g (W/O Silicone Wire)
Prop adapter: M5
Shaft Thread: CW

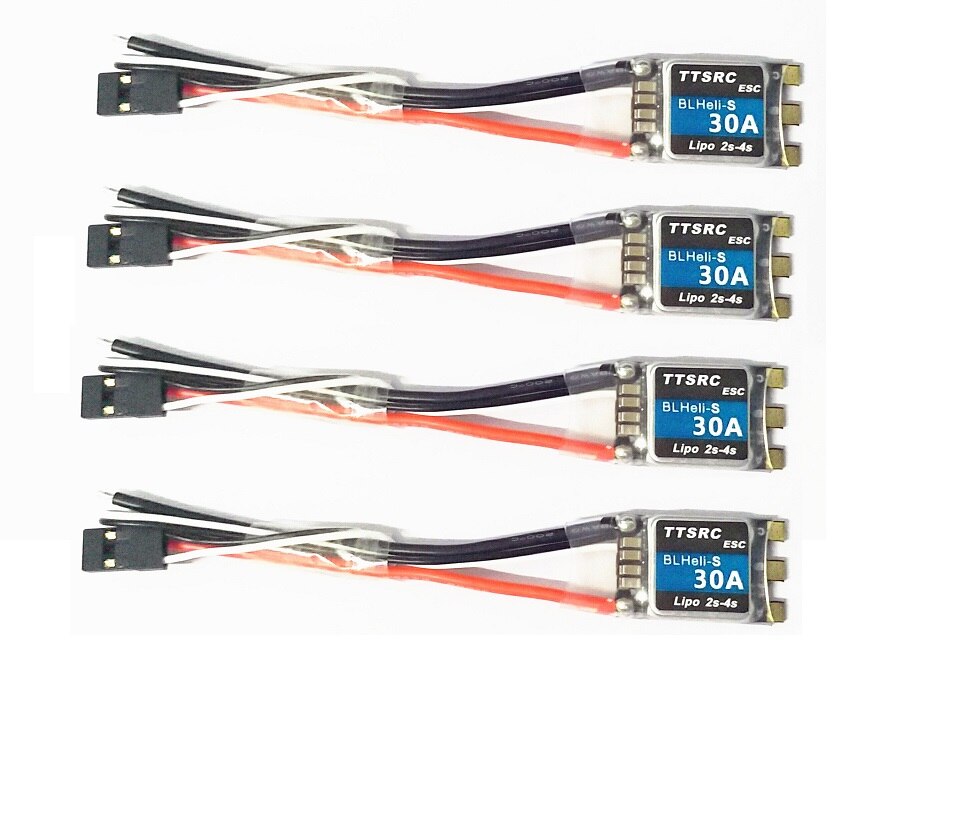

30A ESC Description:
Item name: FVT 30A-S ESC
Input Voltage: 2-4S Lipo
BEC Output: No
Continue Current: 30A, Burst Current: 35A up to 10S
Size: 35*17mm
Weight: 9g(include Power and signal wire)
Support Damped mode, Oneshot125, Oneshot42 and Multshot
Main IC: SILABS EFM8BB21F16, MCU run 48MHz
MOS: Both low and high side fets are Nfets
Switching speed is very fast, it has dedicated driver chip
BLHeli_S Bootloader & Firmware
