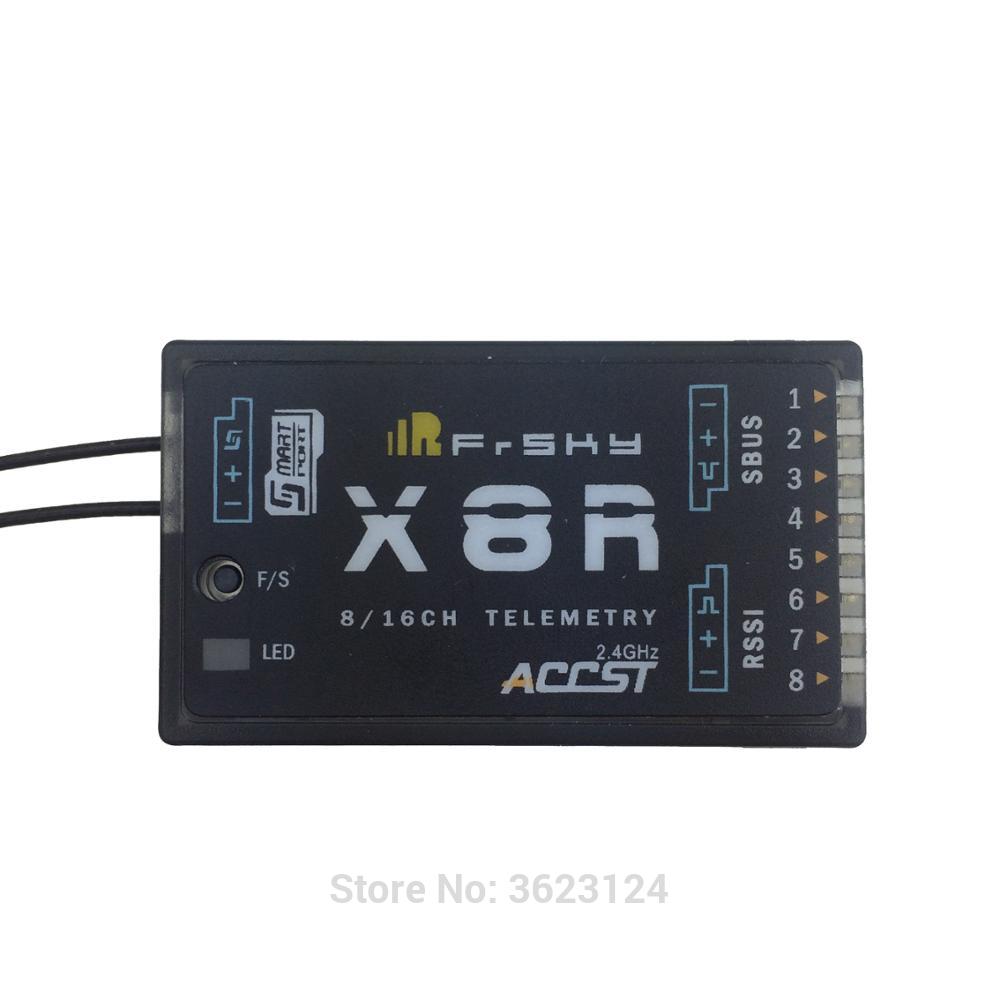

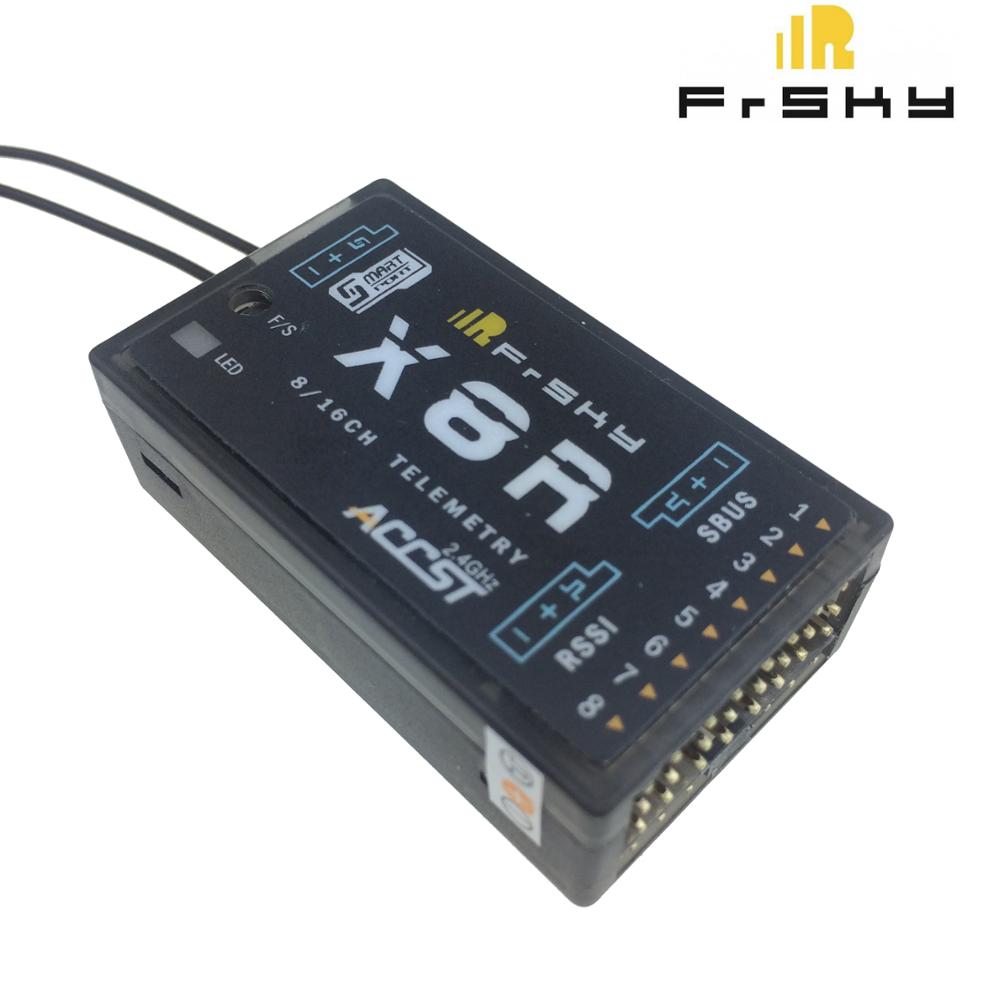

Feiying FrSky X8R 2.4Ghz 8/16Ch S.BUS Smart Port Telemetry Receiver for Taranis

A top of the range 16 Channel X8R receiver from FrSky! (8 normal PWM outputs and all 16

channels on the dedicated S.BUS output)

The X8R is in a Smaller package then previous 8 channel receivers, but has so much more

capability. The new Smart Port supports the new hub-less sensors as well as the older hub

analog sensors.

The X8R supports 8 standard servo outputs, and you can access all 16 channels by using the

Sbus line with Sbus supported servos or use a FrSky S.BUS Decoder for the full 16 channels.

Or you can use 2 X8R receivers in combination and the channels will sync 1-8 on the first

and 9-16 on the second.

The X8 protocol is also backward compatible! In D8 mode it work with the DHT, DJT, DFT and

DHT-U transmitter modules. In this mode you only have access to 8 channels but you still

get to use the new Smart Port and digital sensors! And even cooler is the new antenna

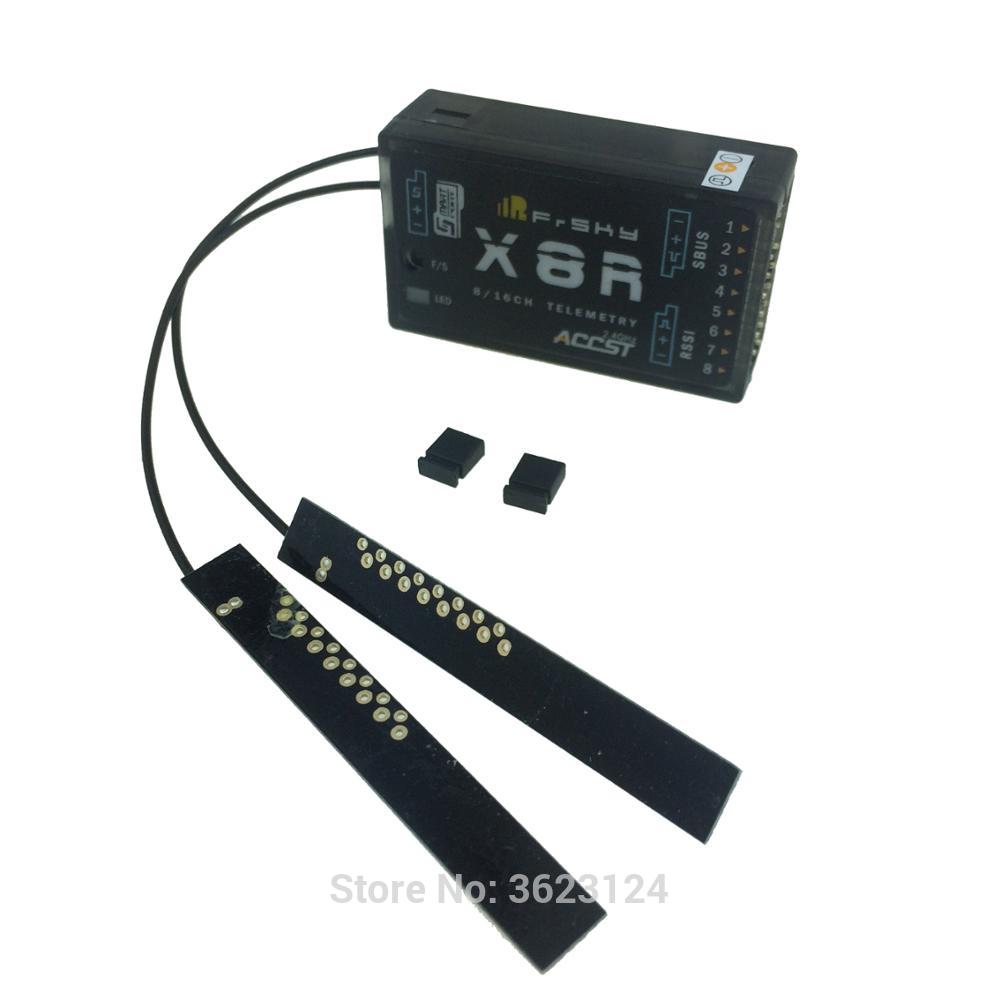

design “PCB” it reports up to a 20% gain in range over their older antennas. And the X8R

is Firmware Upgradeable!

This is the perfect receiver for the FrSky Taranis, with its built in XJT Module or any of

the D8 systems to take advantage of the new digital Smart Port sensors.

Description:
Brand:  FrSky
Item Name: FrSky X8R Telemetry Receiver
Dimension: 46.5 x 27 x 14.4mm (1.83" x 1.06" x .56")
Weight: 16.8g (.59 oz)
Operating Voltage Range: 4V-10.0V
Operating Current: 100mA@5V
Operating Range: >1.5km (Full Range)
RSSI output: analog voltage output (0~3.3V)
Firmware Upgradeable (have USA firmware)
Number of Channels: 16CH (1~8ch from conventional channel outputs, 1~16ch from SBUS port,or combine two X8R to become a 16 channels receiver)

Features:
Short antenna
Highly secure and robust link for long distances
No crystals or channels needed
No interferance from motors, ignitions or metal to metal friction.
No need to change any settings on your radio.
Smart Port enabled, realizing two-way full duplex transmission.

Compatibility:
All 16 channels requires the FrSky Taranis, or the XJT module.
For 8 channels in D8 Mode you can use the FrSky Taranis or XJT, DJT, DFT, DHT and DHT-U modules.

How to work:
The X8R receiver communicates and binds with an X8 module via the 2.4ghz spectrum, giving the user unprecedented performance and glitch free reliability never seen before in R/C FM/AM based systems.

Package Included:

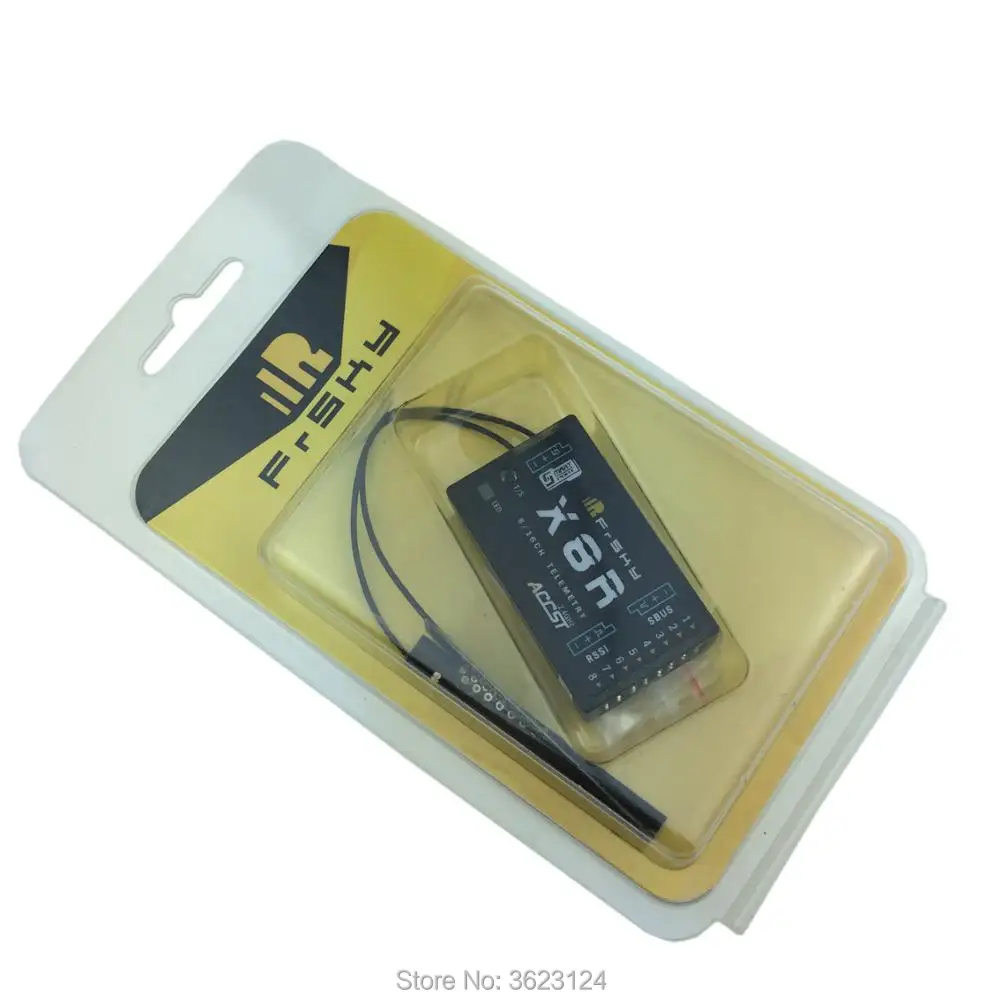

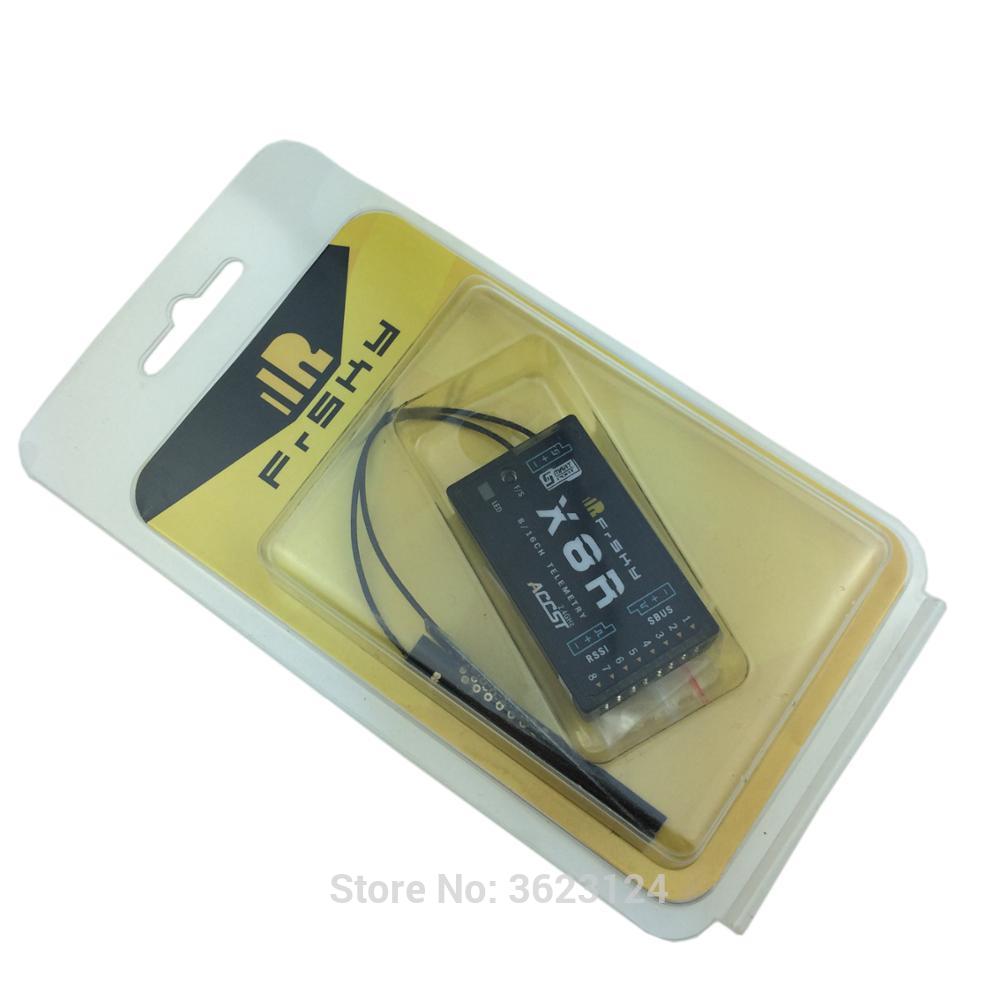

1 x FrSky X8R receiver
