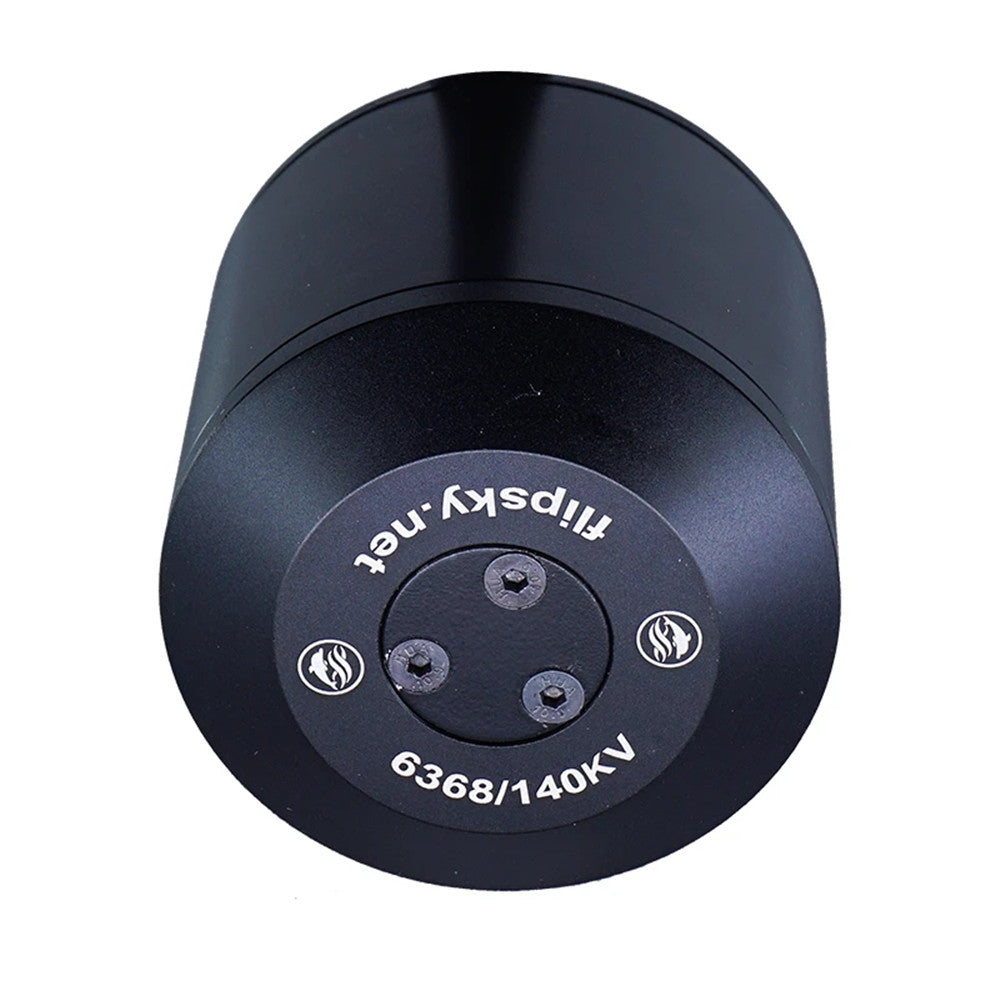

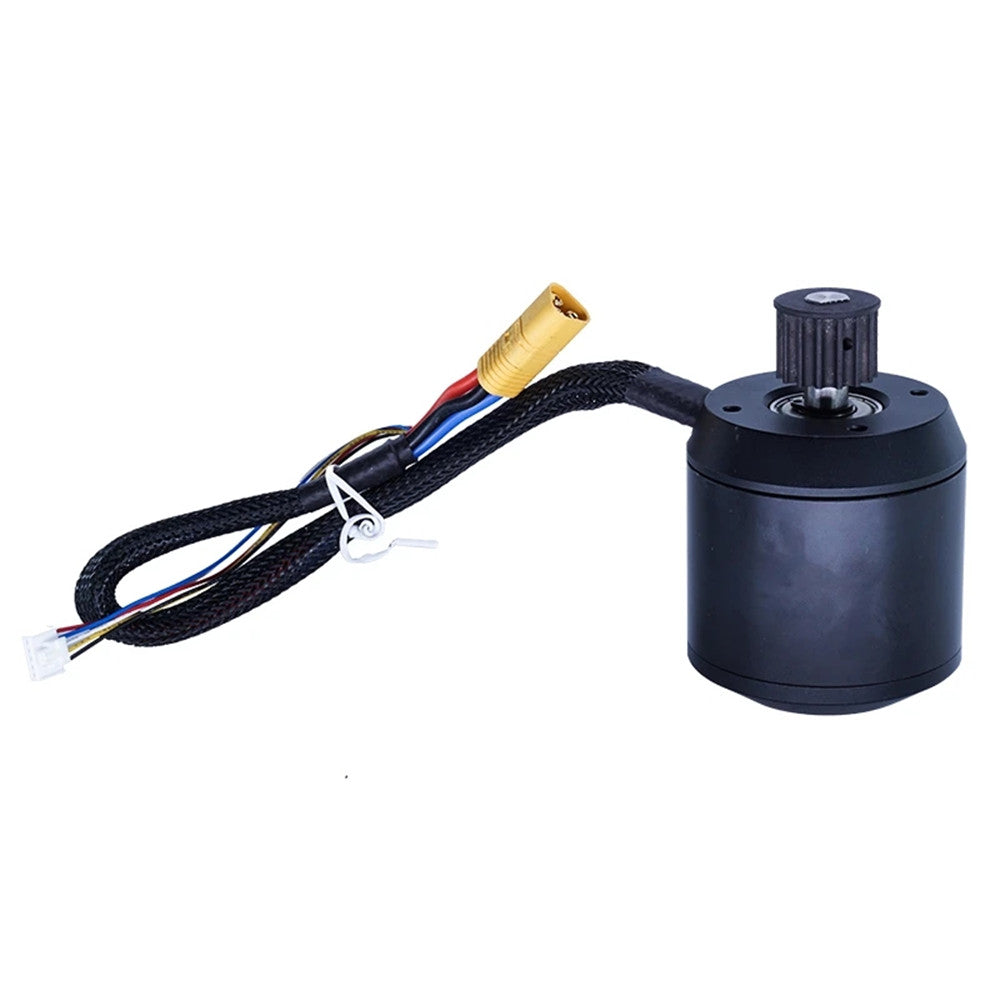

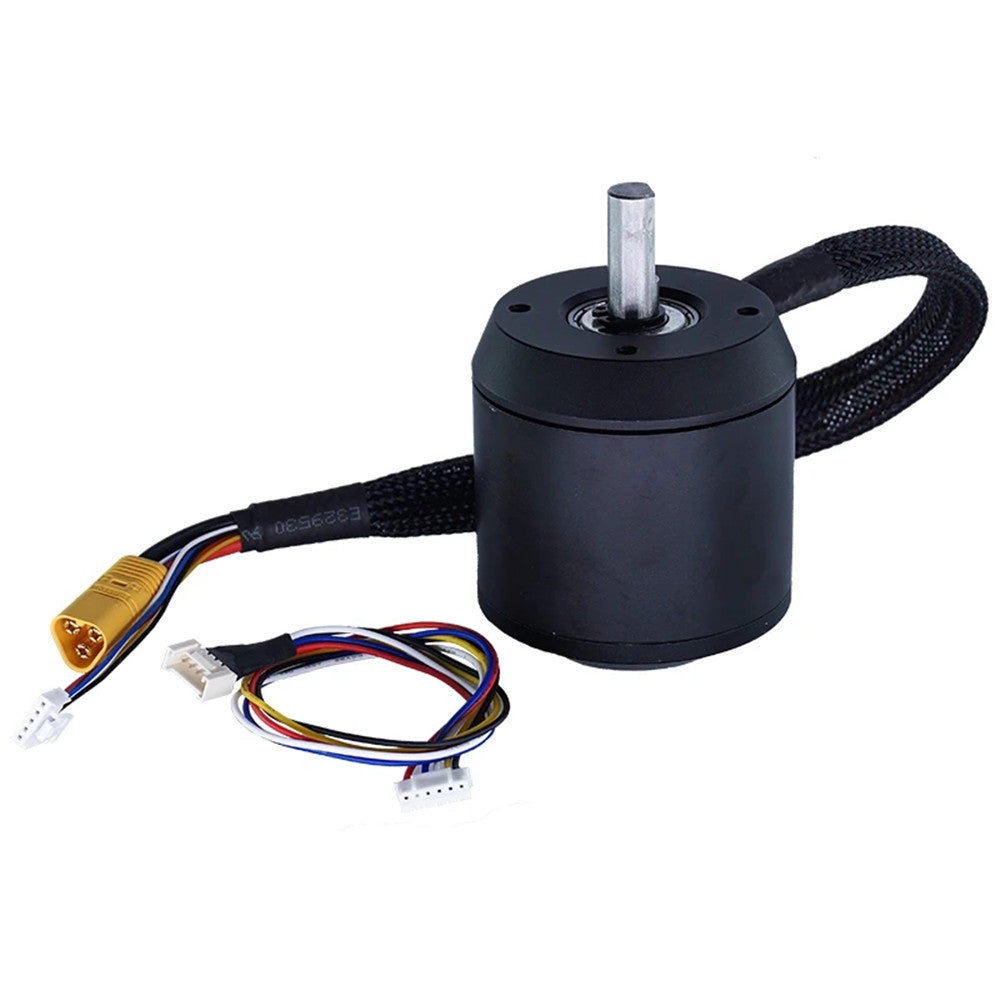

Flipsky H6368 140KV 1720W Brushless DC Motor for Electric Skateboard E-bike Parts
DroneSpark
Regular price
$112.99
$89.99
Sale
Description:
Item Brand:Flipsky
Item Number:H6368
Item Name:Brushless motor
Material:Electronic parts and plastic
Color:Black

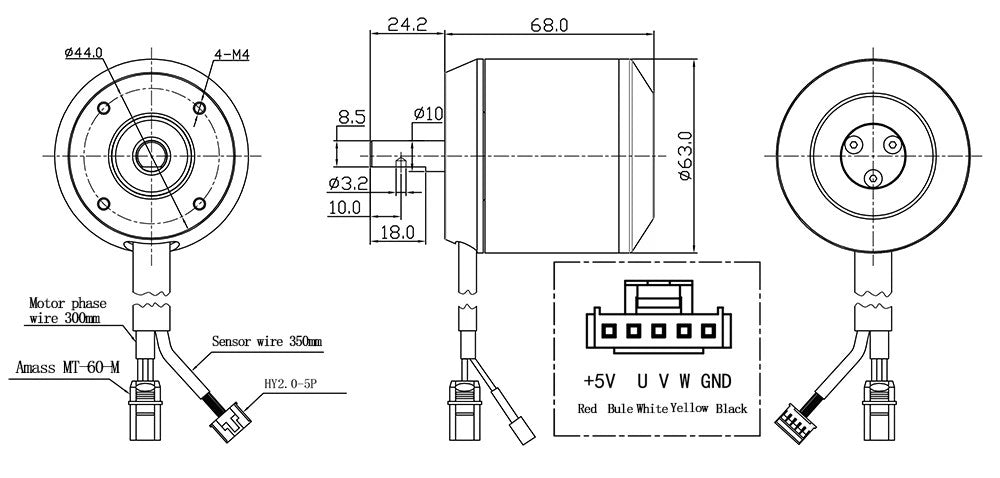

Product Size:Length:68mm,diameter: 63mm
Product Weight:About 745g
Packaging Weight:Approx.822g
Fit For:Electric skateboard,E-bike
1X H6368 Motor
1X Sensor Wire
Item Brand:Flipsky
Item Number:H6368
Item Name:Brushless motor
Material:Electronic parts and plastic
Color:Black
Product Size:Length:68mm,diameter: 63mm
Product Weight:About 745g
Packaging Weight:Approx.822g
Fit For:Electric skateboard,E-bike
Product Spec:
Max Power: 1720W
Max Current: 48A
Max Volts: 12S
Max Torque:2.2 N.m
Recommend ESC: 3-12S 50A (FSESC4.12 50A or FSESC 6.6 60A)

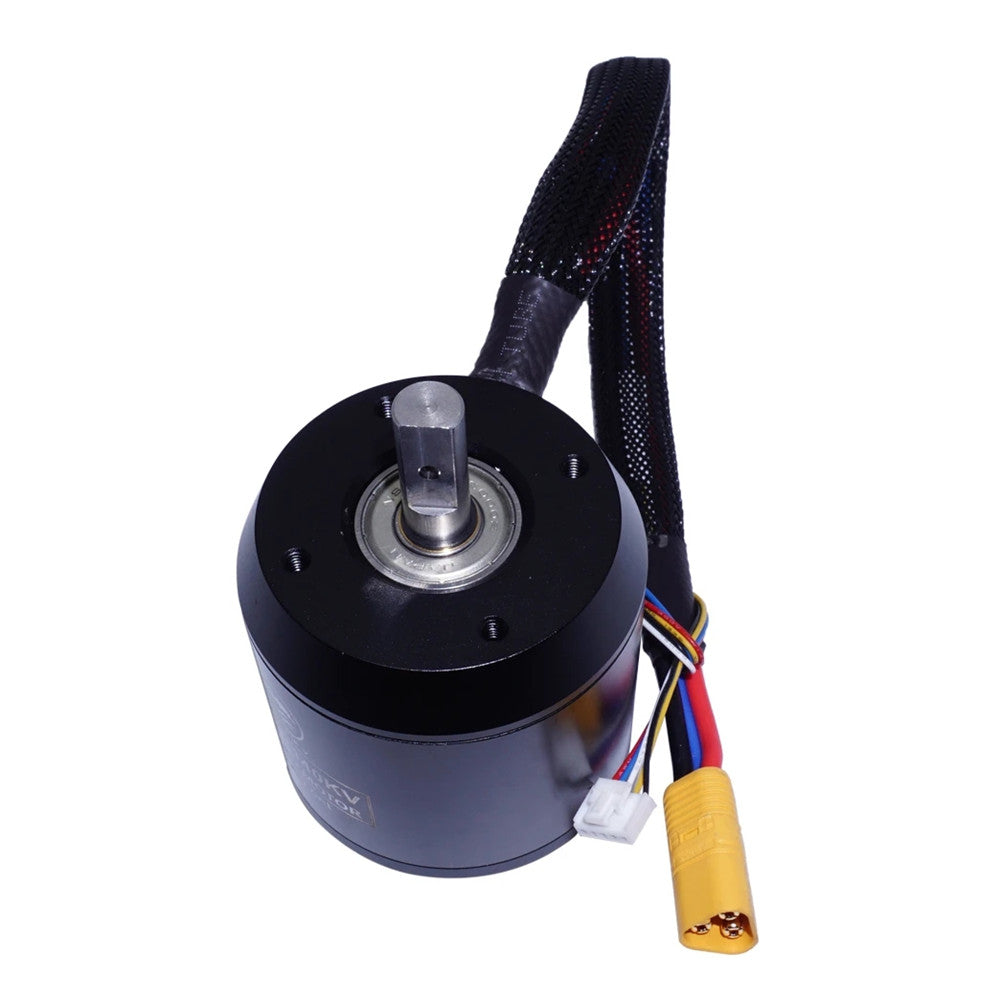

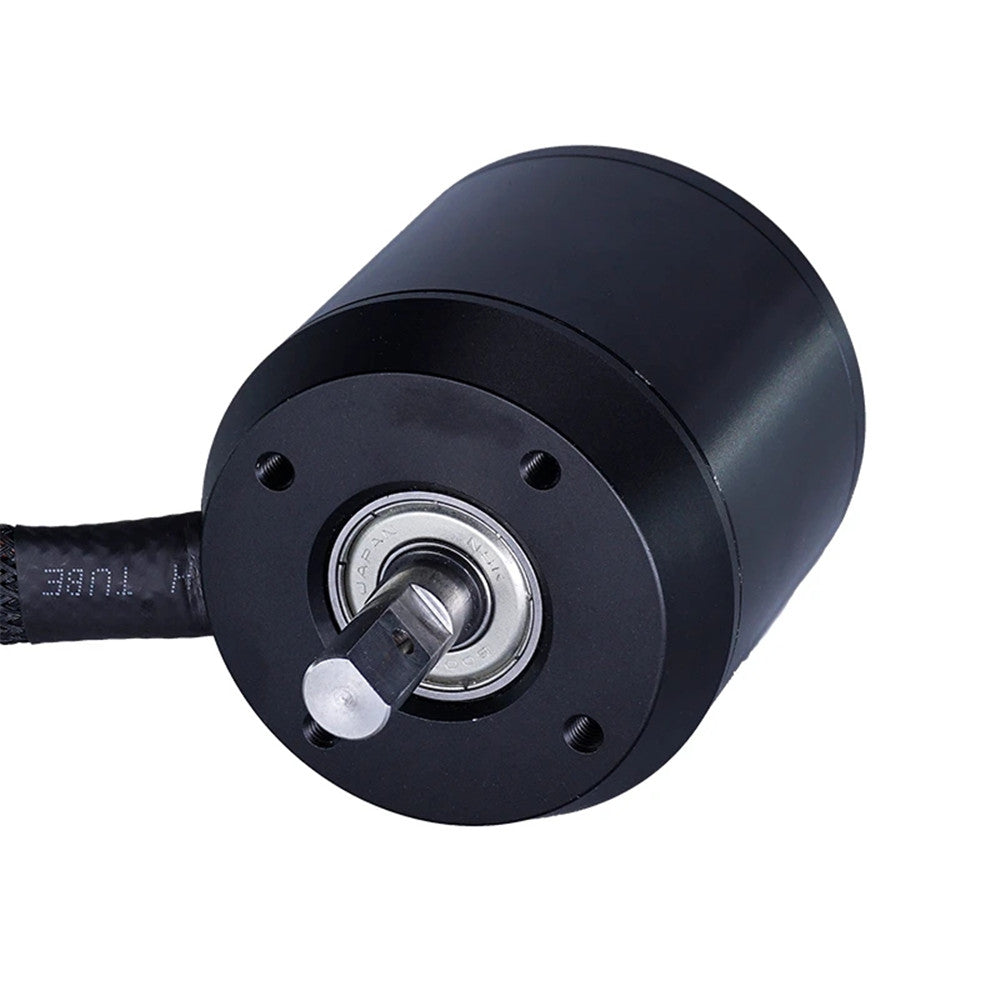

SHAFT: Diameter 10mm, 25mm length (Recommended: Flipsky 10mm D-shape motor pulley)

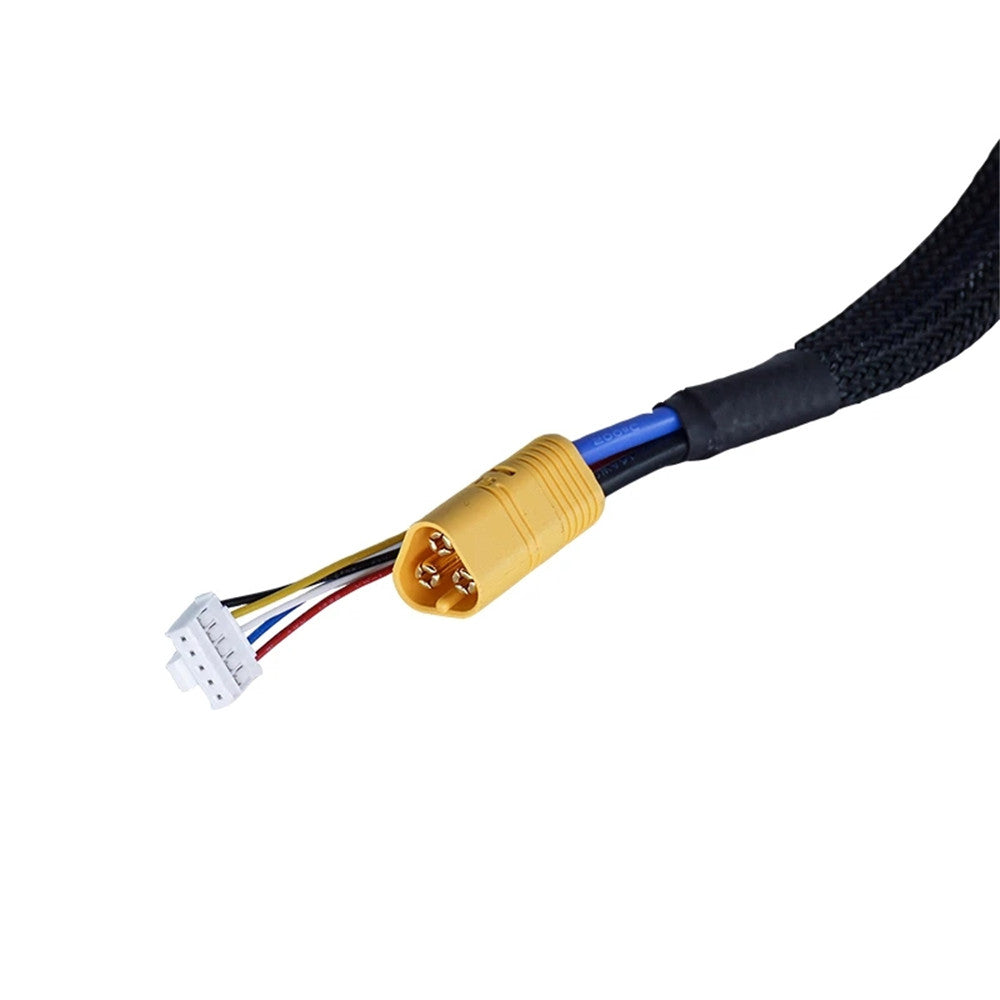

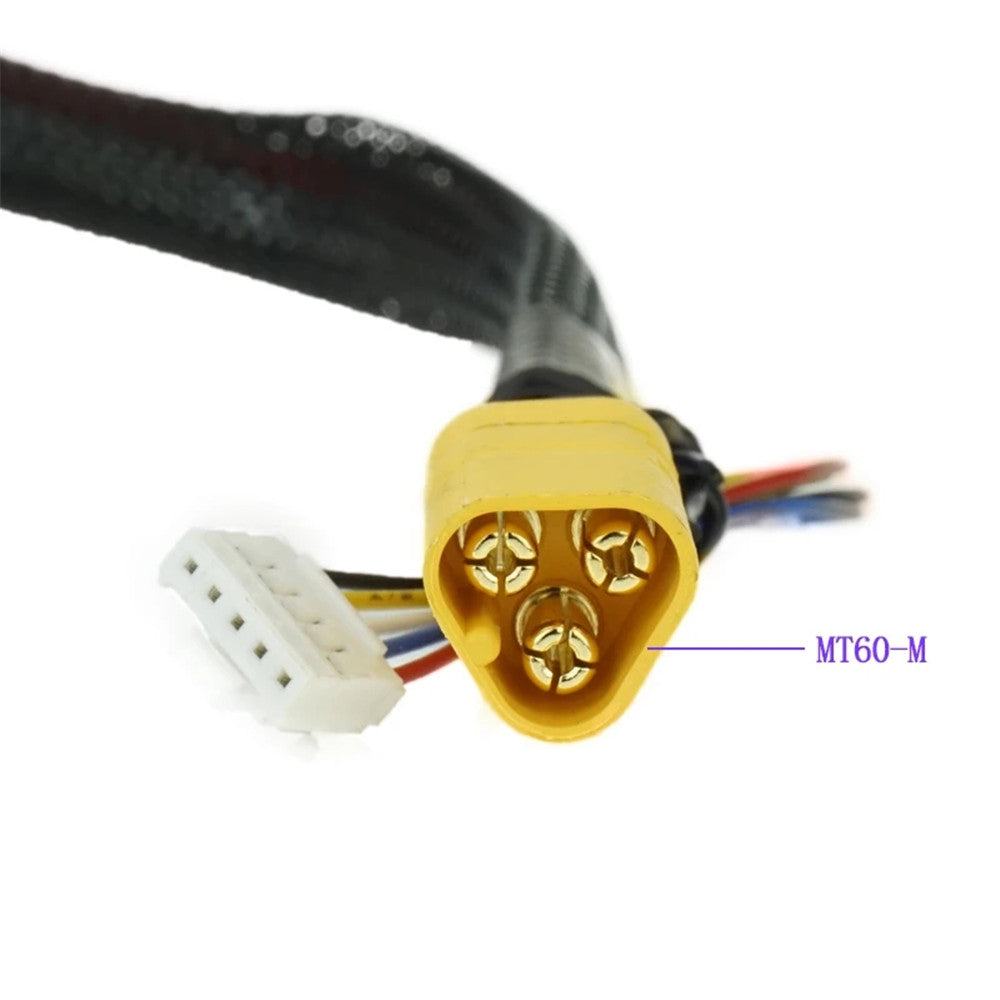

Motor Wire: 300mm silicone 14AWG wire with MT60 male connector.
Wire configuration:
Blue = U
White = V
Yellow = W
BLDC Motor
The number of pole: 14

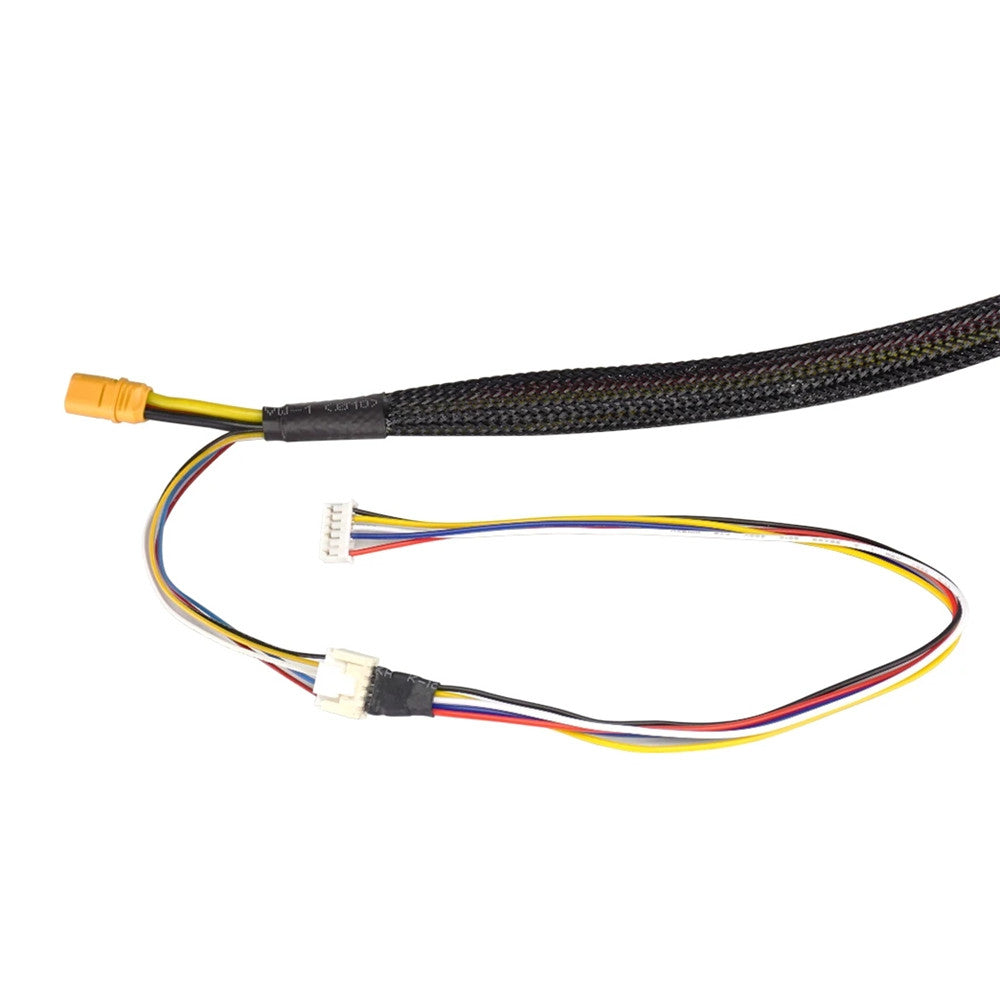

Sensor Wire: Standard RC Sensor Wire HY2.0-5P connector
Package included:1X H6368 Motor
1X Sensor Wire
