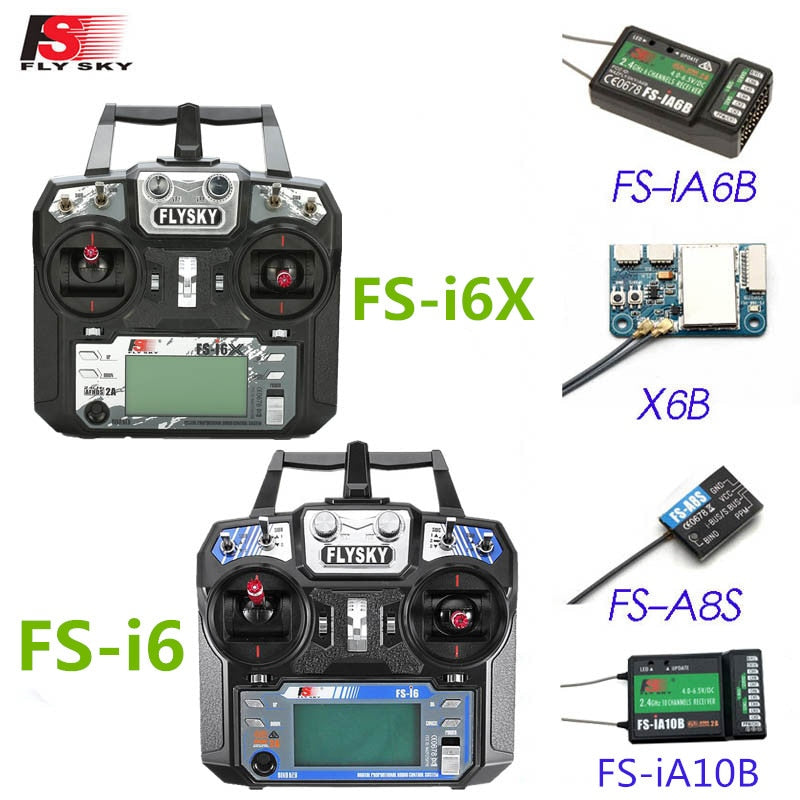

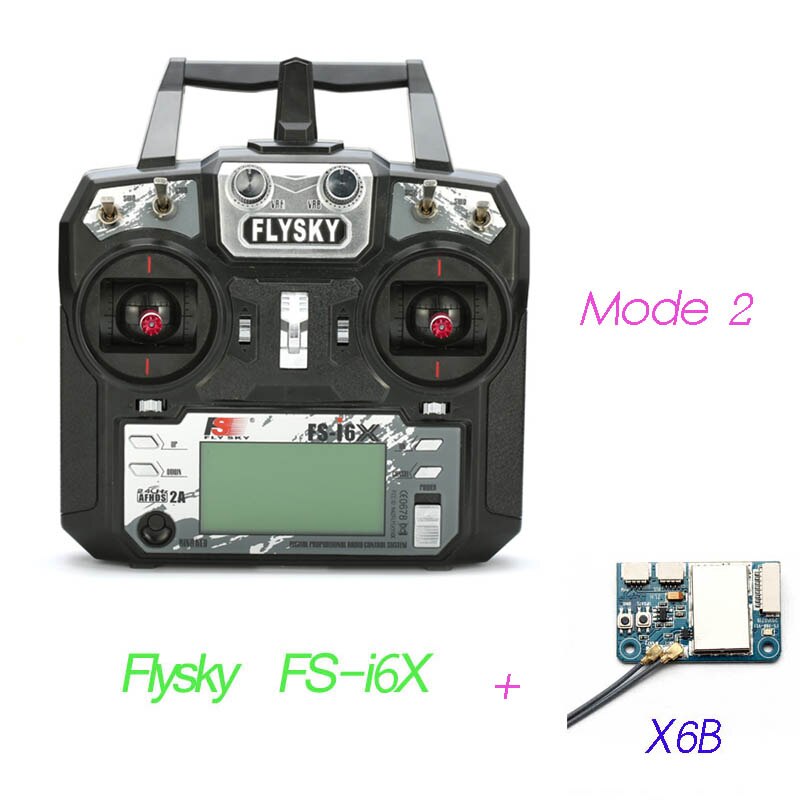

Flysky FS-i6X/FS-i6 2.4GHz 10CH AFHDS 2A Transmitter w/ X6B iA6b i-BUS A8S FS-iA10B Receiver For RC Drone Mode 1 Mode 2
Drone Spark
Regular price
$674.99
$1,574.99
Description:
Brand Name:FlySky
Optional type: FS-i6X + X6B receiver ( Mode 1 / Mode 2 )
FS-i6X + FS-iA6B receiver
FS-i6X + FS-A8S receiver
FS-i6X Transmitter with FS-iA 10B Receiver ( Mode 1 / Mode 2 Optional)
FlySky FS-i6 Transmitter Without Receiver
FS-i6X / FS-i6 RC Transmitter Specifications:
Channel: 6-10 (Default 6)
Brand Name:FlySky
Optional type: FS-i6X + X6B receiver ( Mode 1 / Mode 2 )
FS-i6X + FS-iA6B receiver
FS-i6X + FS-A8S receiver
FS-i6X Transmitter with FS-iA 10B Receiver ( Mode 1 / Mode 2 Optional)
FlySky FS-i6 Transmitter Without Receiver
FS-i6X / FS-i6 RC Transmitter Specifications:
Channel: 6-10 (Default 6)
Model Type: Fixed-Wing/Glider/Helicopter
RF Range: 2.408-2.475GHz / 2.40-2.48GHz
RF Power: < 20dBm
RF Channel: 135
Bandwidth: 500KHz
2.4GHz System: AFHDS 2A and AFDHS
Modulation Type: GFSK
Stick Resolution 4096
Low Voltage Warning: < 4.2V
DSC port: PS/2 Port PPM
Chargeable: No
Antenna Length: 26mm (Dual Antenna)
Transmitter Weight: 392g
Power: 6V DC 1.5AA*4 (Not Included)
Display: STNTransflective Display, LCD 128x64 Lattice, VA 73x39mm, LCD with white backlight
Size: 174x89x190mm
On-line Update: Yes
Color: Black
Certificate: CE0678, FCC ID: N4ZFLYSKYI6X
Model Memories: 20 --- FS-i6 RC Transmitter
Control Range: 500m --- FS-i6 RC Transmitter
Package Size: 23.5x21.2x10.6cm --- FS-i6 RC Transmitter
FS-i6 Transmitter Features:
Works in the frequency range of 2.405 to 2.475GHz.This b a n d has been divided into 142 independent channels,each radio system uses 16 different channels and 160 different types of hopping algorithm.
This radio system uses a high gain and high quality multi directional antenna,it covers the whole frequency b a n d . Associated with a high sensitivity receiver,this radio system guarantees a jamming free long range radio transmission.
Each transmitter has a unique ID,when binding with a receiver,the receiver saves that unique ID and can accepts only data from the unique transmitter.this avoids picking another transmitter signal and dramatically increase interference immunity and safety.
This radio system uses low power electronic components and sensitive receiver chip.The RF modulation uses intermittent signal thus reducing even more power consumption.
AFHDS2A system has the automatic identification function,which can switch automatically current mode between single-way communication mode and two-way communication mode according to the customer needs.
AFHDS2A has built-in multiple channel coding and error-correction,which improve the stability of the communication,reduce the error ratio and extend the reliable transmission distance.
X6B i-BUS Receiver Specifications:
Model Memories: 20 --- FS-i6 RC Transmitter
Control Range: 500m --- FS-i6 RC Transmitter
Package Size: 23.5x21.2x10.6cm --- FS-i6 RC Transmitter
FS-i6X Transmitter Features:
The AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) developed and petented by FLYSKY is specialy developed for all radio control models. Offering superior protection against interference while maintaining lower power consumption and high reliable receiver senstivity, FLYSKY's AFHDS technology is considered to be one of the leaders in the RC market today.
Bidirectional Communication
Capable of sending and receiving data, each transmitter is capable of receiving data from temperature, altitude and many other types of sensors, servo calibration and i-BUS Support.
Multi-channel Hopping Frequency
This system bandwidth ranges from 2.408GHz to 2.475GHz. This is divided in 135 channels. Each transmitter hops between 16 channels (32 for Japanese and Korean version) in order to reduce interference from other transmitters.
Omni-directional Gain Antenna
The high efficiency Omni-directional high gain antenna cuts down on interference, while using less power and maintaining a strong reliable connection.
Unique ID Recgnition System
Each transmitter and receiver has it's own unique ID. Once the transmitter and receiver have been paired, they will only communicate with each other, preventing other systems accidentally connecting to or interfering with the systems operation.
Low Power Consumption
The system is built using highly sensitive low power consumption components, maintaining high receiver sensitivity, while consuming as little as one tenth the power of a standard FM system, dramatically extending battery life.FS-i6 Transmitter Features:
Works in the frequency range of 2.405 to 2.475GHz.This b a n d has been divided into 142 independent channels,each radio system uses 16 different channels and 160 different types of hopping algorithm.
This radio system uses a high gain and high quality multi directional antenna,it covers the whole frequency b a n d . Associated with a high sensitivity receiver,this radio system guarantees a jamming free long range radio transmission.
Each transmitter has a unique ID,when binding with a receiver,the receiver saves that unique ID and can accepts only data from the unique transmitter.this avoids picking another transmitter signal and dramatically increase interference immunity and safety.
This radio system uses low power electronic components and sensitive receiver chip.The RF modulation uses intermittent signal thus reducing even more power consumption.
AFHDS2A system has the automatic identification function,which can switch automatically current mode between single-way communication mode and two-way communication mode according to the customer needs.
AFHDS2A has built-in multiple channel coding and error-correction,which improve the stability of the communication,reduce the error ratio and extend the reliable transmission distance.
X6B i-BUS Receiver Specifications:
Brand Name: Flysky
Item: X6B i-BUS Receiver
Item: X6B i-BUS Receiver
Channels: 6(PWM), 8(PPM), 18(i-BUS)
Model Type: Multi-Totor
RF Range: 2.408-2.475 GHz
Brand Wigth: 500KHz
Number of bands: 135
Brand Wigth: 500KHz
Number of bands: 135
RF Power: No more than 20 dBm
RX Sensitivity: -95dBm
2.4GHz protocol: AFHDS 2A
Modulation Type: GFSK
Stick resolution: 1024
Low voltage alarm: Yes
DSC port: PPM/PWM/i-BUS
Antenna Length: 93mm (Dual Antenna)
Stick resolution: 1024
Low voltage alarm: Yes
DSC port: PPM/PWM/i-BUS
Antenna Length: 93mm (Dual Antenna)
Power input: 4.0-8.4V
On-line Update: Yes(Wireless)
Range: >300m
Range: >300m
Weight: 4.5g
Size: 36*22*7.5mm
i-BUS Port: Yes
Certificate: CE0678, FCC ID: N4ZX6B00
FS-iA6B Receiver Specifications:
Item Name: FS-iA6B
FS-iA6B Receiver Specifications:
Item Name: FS-iA6B
Channel: 6
Frequency Range: 2.4055--2.475GHZ
Band Width Number: 140
Transmitting Power: ≤ 20dBm
RF Receiver Sensitivity: -105dbm
2.4G Mode: The second generation of an enhanced version of the automatic FM digital system
Encoding: GFSK
Antenna Length: 26mm * 2 (dual antenna)
Input Power: 4.0-6.5V DC
Dimension: 47 x 26.2 x 15mm
Weight: 14.9g
Color: Black
i-Bus Interface: Yes
Data Acquisition Interface: Yes
Model Type: Airplane / Glider / Helicopter
Compatible Transmitter: Compatible with FS-i4,FS-i6,FS-i10,FS-GT2E,FS-GT2G
FS-A8S Receiver Specifications:
FS-A8S Receiver Specifications:
Brand Name: Flysky
Item Name:FS-A8S Receiver
Channels: PPM 8CH, i-BUS 18CH
Model type: Multi-rotor
Frequency range: 2.408-2.475GHz
Band width: 500KHz
Band number: 135
RX Sensitivity: -92 dBm
2.4GHz system: AFHDS 2A
Modulation type: GFSK
DSC port: PPM/i-BUS/S.BUS
Transfer method: FHSS
Data output: 1.5mm*3 Pin PPM/i-BUS/S.BUS
Antenna length: 26mm (Not including brass contacts)
Input power supply: 4.0-8.4V
Display method: LED
No ground interference ( Transmitting and receiving 1 m from the ground): >300m
Working current: 40mA
Each channel data: depend on the transmitter
Channel delay: <15mS
Size: 20*14*5.3mm
Weight: 1.2g
Certificate: CE0678, FCCID: N45ZA8S00
Compatible Transmitter: Compatible with FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F
FS-iA10B Receiver Specifications:
Channels: 10
Model Type: Fixed-Wing/Glider/Helicopter
RF Range: 2.4055-2.475GHz
RF Channel: 140
RF Receiver Sensitivity: -105dBm
Bandwidth: 500KHz
2.4GHz System: AFHDS 2A
Modulation Type: GFSK
Power: 4.0-6.5V DC
Antenna Length: 26mm (Dual Antenna)
Weight: 17.6g
Size: 50.6*34.9*14.9mm
i-BUS Port: Yes
Data Acquisition Port: Yes
Color: Black
Certificate: CE0678, FCC
FS-iA10B Receiver Specifications:
Channels: 10
Model Type: Fixed-Wing/Glider/Helicopter
RF Range: 2.4055-2.475GHz
RF Channel: 140
RF Receiver Sensitivity: -105dBm
Bandwidth: 500KHz
2.4GHz System: AFHDS 2A
Modulation Type: GFSK
Power: 4.0-6.5V DC
Antenna Length: 26mm (Dual Antenna)
Weight: 17.6g
Size: 50.6*34.9*14.9mm
i-BUS Port: Yes
Data Acquisition Port: Yes
Color: Black
Certificate: CE0678, FCC
FS-i6X Transmitter User Manual, Click Here
X6B i-BUS Receiver Manual, Click Here
A8S i-BUS Receiver Manual, Click Here
Package Included:
1X Flysky FS-i6X 10CH 2.4GHz AFHDS 2A RC Transmitter
1X Flysky X6B i-BUS Receiver , Flysky FS-iA6B Receiver , Flysky FS-A8S receiver , FS-iA10B Receiver (Optional)
or
1 x Flysky FS-i6 transmitter
