FLYSKY FS-i6X FS i6X 10CH 2.4GHz AFHDS 2A RC Transmitter With X6B iA6B A8S iA10B iA6 Receiver for RC FPV Racing Drone Retailbox

Name: FLYSKY FS-i6X FS i6X 10CH 2.4GHz AFHDS 2A RC Transmitter With X6B iA6B A8S iA10B iA6 Receiver for RC FPV Racing Drone Retailbox
Brand: Drone Spark
SKU: 14:29#Mode 2 Only i6X
Price: 1399.99 USD
Availability: InStock

Drone Spark

Regular price ~~$599.99~~ $1,399.99 Sale

Color

Quantity

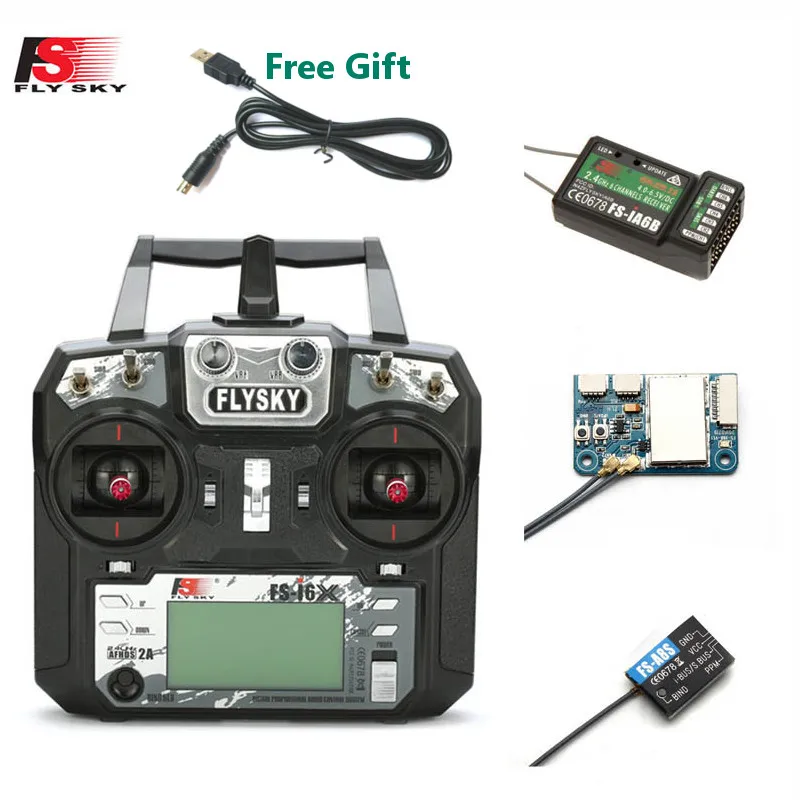

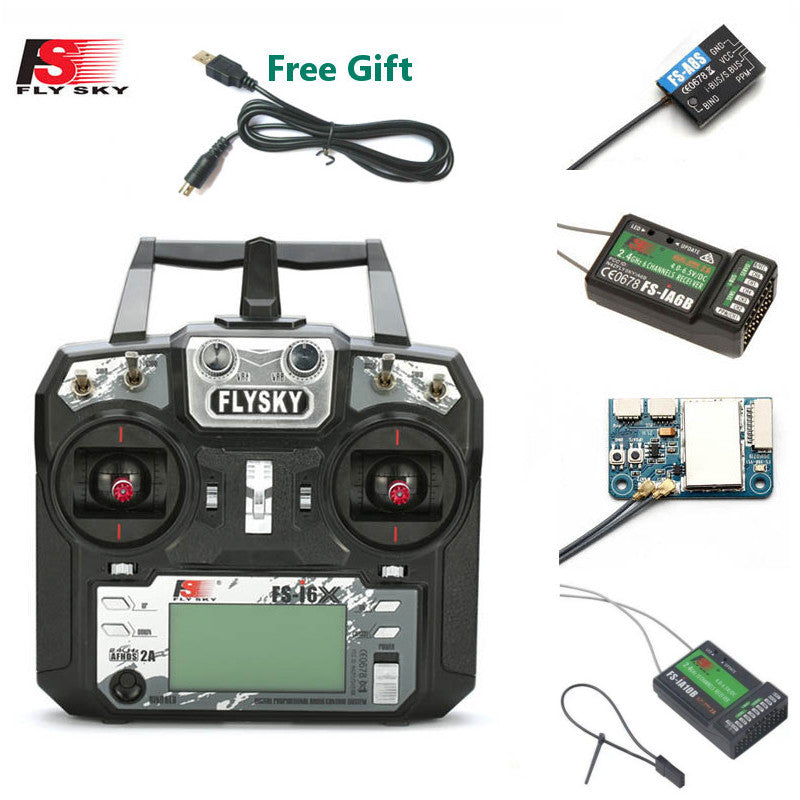

FLYSKY FS-i6X 10CH 2.4GHz AFHDS 2A RC Transmitter With FS-X6B/FS-iA6B Receiver for FPV Racing Drone Retailbox Mode 2 Mode 1
We give Extra Flysky i6x update cable as gift.
For the compatible receiver version, if you need mode 1, please just leave message in your order.

,,,,,,,,,,

How to make i6x be 10CH:

Free update cable gift:

Description:
Brand Name:FlySky

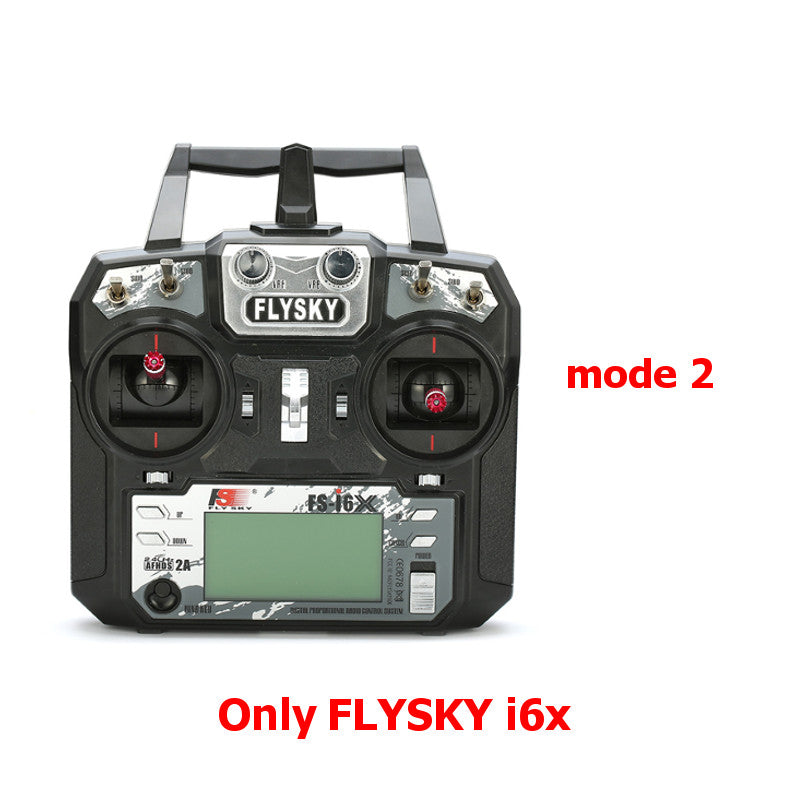

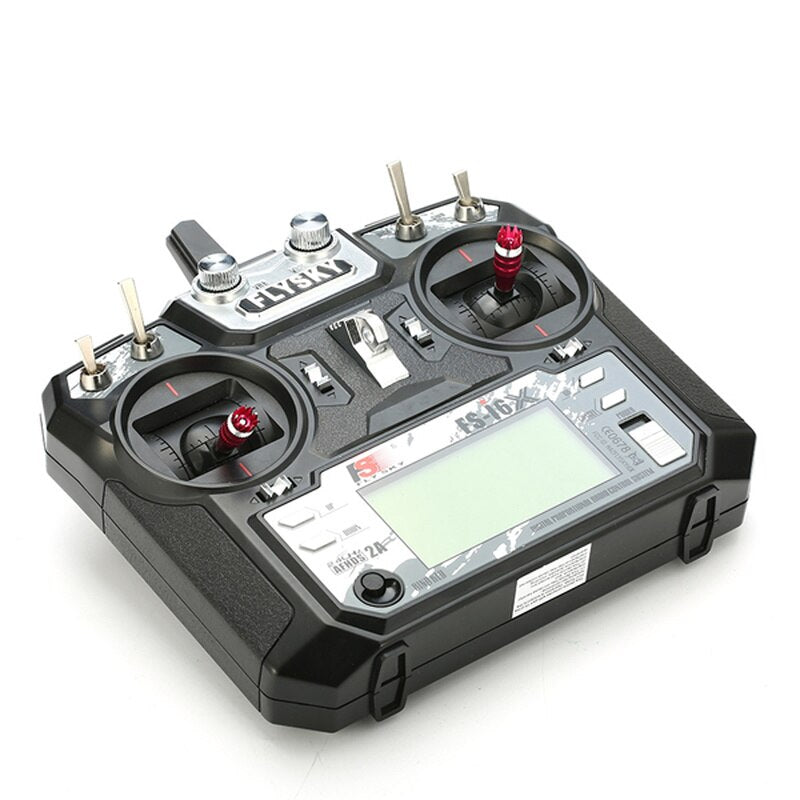

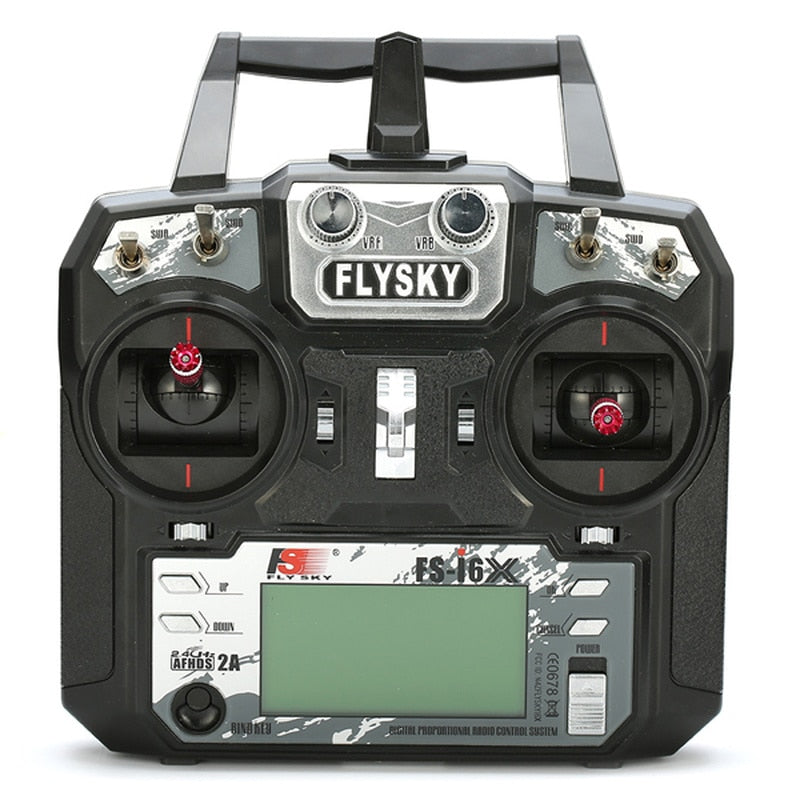

FS-i6X Specifications:
Item: FS-i6X RC Transmitter
Channel: 6-10 (Default 6)
Mode: mode 1 is right throttle hand(throttle stick on the right side), mode 2 is left throttle hand (throttle stick on the left side)

Model Type: Fixed-Wing/Glider/Helicopter

RF Range: 2.408-2.475GHz

RF Power: < 20dBm

RF Channel: 135

Bandwidth: 500KHz

2.4GHz System: AFHDS 2A / AFDHS

Modulation Type: GFSK

Stick Resolution 4096

Low Voltage Warning: < 4.2V

DSC port: PS/2 Port PPM

Chargeable: No

Antenna Length: 26mm (Dual Antenna)

Weight: 392g

Power: 6V DC 1.5AA*4

Display: STNTransflective Display, LCD 128x64 Lattice, VA 73x39mm, LCD with white backlight

Size: 174x89x190mm

On-line Update: Yes

Color: Black

Certificate: CE0678, FCC ID: N4ZFLYSKYI6X

Mode: Mode 1(right hand throttle), mode 2(left hand throttle)

Note: Only i6x means the package comes without receiver, only i6x transmitter. This transmitter comes wtih 6 channels, it need to modify by yourself if you wanna it be 10 channel.

Features:

The AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) developed and petented by FLYSKY is specialy developed for all radio control models. Offering superior protection against interference while maintaining lower power consumption and high reliable receiver senstivity, FLYSKY's AFHDS technology is considered to be one of the leaders in the RC market today.

Bidirectional Communication

Capable of sending and receiving data, each transmitter is capable of receiving data from temperature, altitude and many other types of sensors, servo calibration and i-BUS Support.

Multi-channel Hopping Frequency

This system bandwidth ranges from 2.408GHz to 2.475GHz. This is divided in 135 channels. Each transmitter hops between 16 channels (32 for Japanese and Korean version) in order to reduce interference from other transmitters.

Omni-directional Gain Antenna

The high efficiency Omni-directional high gain antenna cuts down on interference, while using less power and maintaining a strong reliable connection.

Unique ID Recgnition System

Each transmitter and receiver has it's own unique ID. Once the transmitter and receiver have been paired, they will only communicate with each other, preventing other systems accidentally connecting to or interfering with the systems operation.

Low Power Consumption

The system is built using highly sensitive low power consumption components, maintaining high receiver sensitivity, while consuming as little as one tenth the power of a standard FM system, dramatically extending battery life.

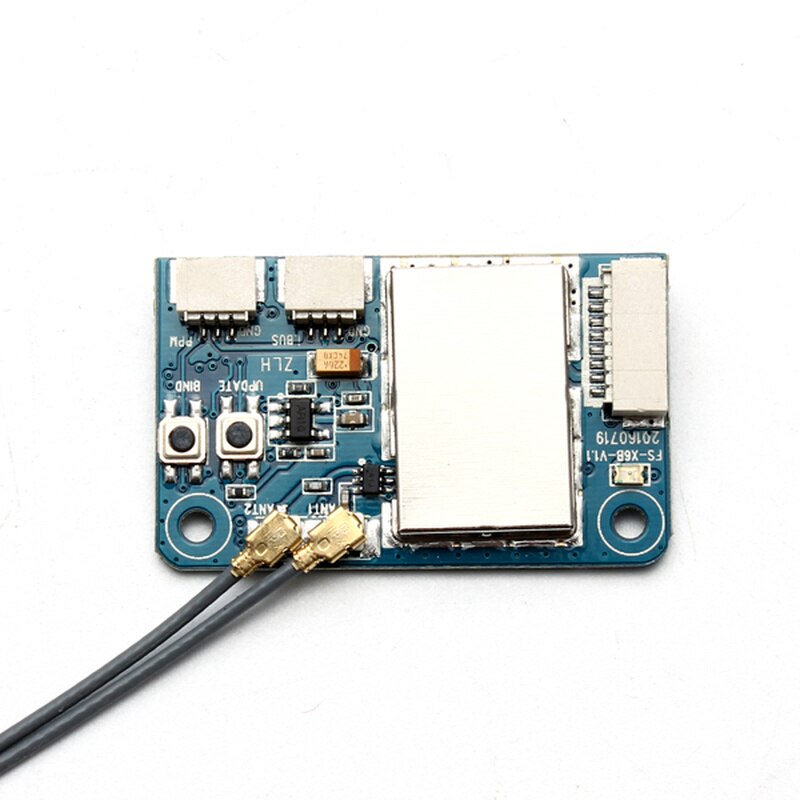

X6B i-BUS Specifications:
Brand Name: Flysky
Item: X6B i-BUS Receiver
Channels: 6(PWM), 8(PPM), 18(i-BUS)
Model Type: Multi-Totor
RF Range: 2.408-2.475 GHz
Brand Wigth: 500KHz
Number of bands: 135
RF Power: No more than 20 dBm
RX Sensitivity: -95dBm
2.4GHz protocol: AFHDS 2A
Modulation Type: GFSK
Stick resolution: 1024
Low voltage alarm: Yes
DSC port: PPM/PWM/i-BUS
Antenna Length: 93mm (Dual Antenna)
Power input: 4.0-8.4V
On-line Update: Yes(Wireless)
Range: >300m
Weight: 4.5g
Size: 36*22*7.5mm
i-BUS Port: Yes
Certificate: CE0678, FCC ID: N4ZX6B00

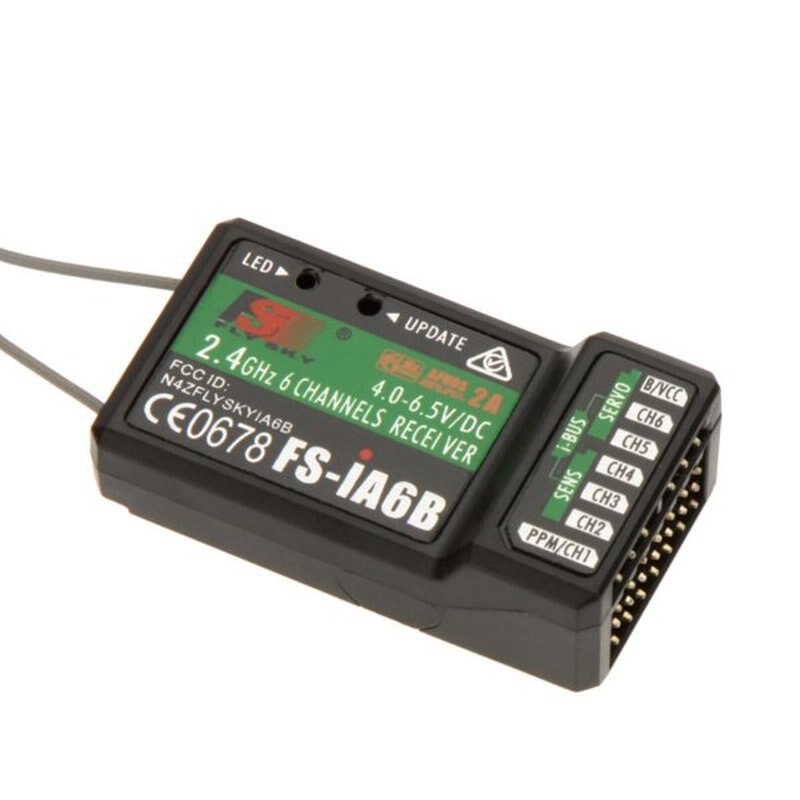

FS-IA6B Specifications:

Item Name: IA6B
Channel: 6
Model type: fixed wing/helicopter/glider
RF receiver sensitivity: -105dBm
Modulation: GFSK
System type: AFHDS2A/AFHDS
Channel resolution: 1024 steps
Bind port: yes
Power port: yes( VCC)
Power: 4V -6.5V DC
Weight: 14.9g
Antenna lenght: 26mm
Size: 47.4*262.2*15 mm
Certificate: CE ,FCC

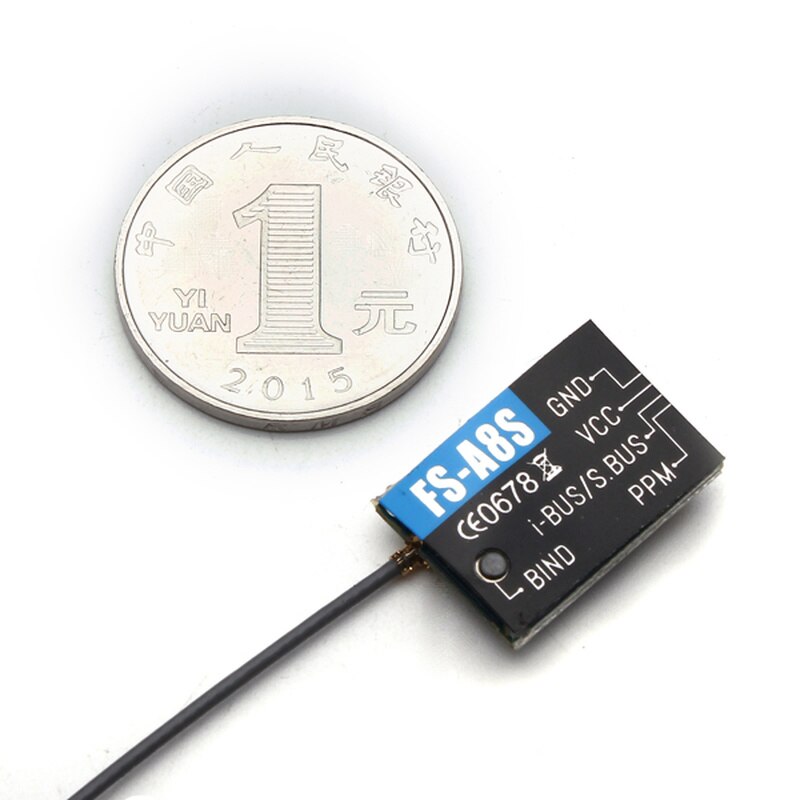

FS-A8S Specifications:
Brand Name:Flysky
Item Name:FS-A8S Receiver
Channels: PPM 8CH, i-BUS 18CH
Model type: Multi-rotor
Frequency range: 2.408-2.475GHz
b and width: 500KHz
b and number: 135
RX Sensitivity: -92 dBm
2.4GHz system: AFHDS 2A
Modulation type: GFSK
DSC port: PPM/i-BUS/S.BUS
Transfer method: FHSS
Data output: 1.5mm*3 Pin PPM/i-BUS/S.BUS
Antenna length: 26mm (Not including brass contacts)
Input power supply: 4.0-8.4V
Display method: LED
No ground interference ( Transmitting and receiving 1 m from the ground): >300m
Working current: 40mA
Each channel data: depend on the transmitter
Channel delay: <15mS
Size: 20*14*5.3mm
Weight: 1.2g
Certificate: CE0678, FCCID: N45ZA8S00

Item name: FS-RX2A Pro V1 receiver
Channel: 10(IBUS), 8(PPM)
RF Range: 2.408-2.475GHZ
Number of bands: 135
RX Sensitivity: -92dBm
2.4GHz protocol: AFHDS 2A
Signal output: IBUS, PPM
Antenne length: 33mm
Power input: 5.0-20V
Control distance: 500m+
Current: 30MA
Size: 12*15mm
Weight: 0.9g

Item name: Flysky FS2A 4CH Receiver

Channels: 4CH

Output signal: PWM

Frequency range: 2.408-2.475GHZ

Band width: 135

Receiver sensitivity: -92DBM

2.4G mode: AFHDS 2A

Failfe: Yes

Supply voltage: 3.3-10V

Distance: 400+ meters

Working current: 20MA

Dimensions: 11 * 25MM

Weight: 0.9 grams

Item Name: Flit10 RX
Channel: 10
2.4G Mode: The second generation of an enhanced version of the automatic FM digital system
Antenna Length: 10mm * 2 (dual antenna)
Input Power: 4.0-6.5V DC
Weight: 3.1g
Size: 25mm*15.5mm*5.5mm
Color: Black
Signal Output: IBUS
Telemetry: Yes
Remote Distance: 500m
Support Betaflight / INAV IBUS Telemetry

Model: Fli14+
Item Name: 2.4G 14CH Compatible Flysky AFHDS-2A Receiver

Channel: 14CH

Protocol: AFHDS-2A

2.4G Mode: The second generation of an enhanced version of the automatic FM digital system

Antenna Length: 70mm (Dual Antennas)

Input Voltage: 4-6.5V DC

Weight: Only 1.7g

Size: 25x15x5mm

Color: Black

Signal Outpu: IBUS

RSSI Output: Channel14

No ground interference ( Transmitting and receiving 1 m from the ground): more than 500m

Item name: Multi-protocol TX Module

Signal frequency: 2400-2483.5Mhz

Controllable range: ≈100m

Input voltage: 3.7-4.2V (1S battery)

Supported remote controls: Flysky FS-i6 FS-i6X

Supported Remote control channel order: AETR

Supported brand: Cheerson, Syma, Wltoys, Eachine E010 (Most of these brand's quadcopters, helicopters and airplanes are compatible but not every model.Specific models please check instruction under the note)

Package Included:
1X Flysky FS-i6X 10CH 2.4GHz AFHDS 2A RC Transmitter and receiver(you can choose the receiver version by yourself)
