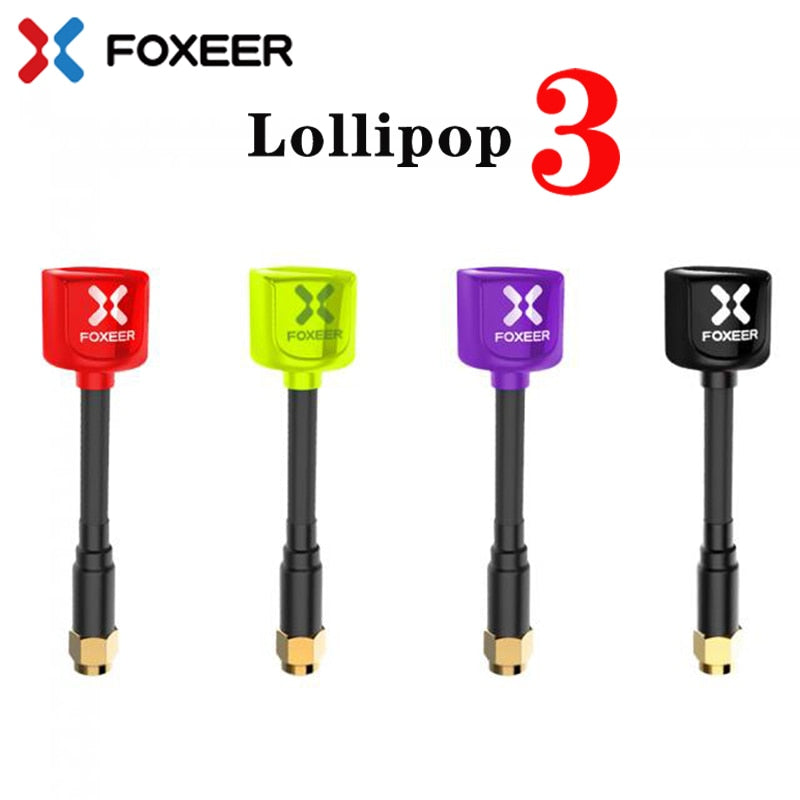

Foxeer Lollipop 3 V3 Antenna 5.8G 2.5Dbi TX RX RHCP SMA RPSMA UFL Straight/Angle MMCX FPV Antenna For RC Drone
Drone Spark
Regular price
$131.99
$305.99
NEW Foxeer Lollipop 3 V3 Antenna 5.8G 2.5Dbi TX RX RHCP SMA RPSMA UFL Straight/Angle MMCX FPV Antenna For RC Drone

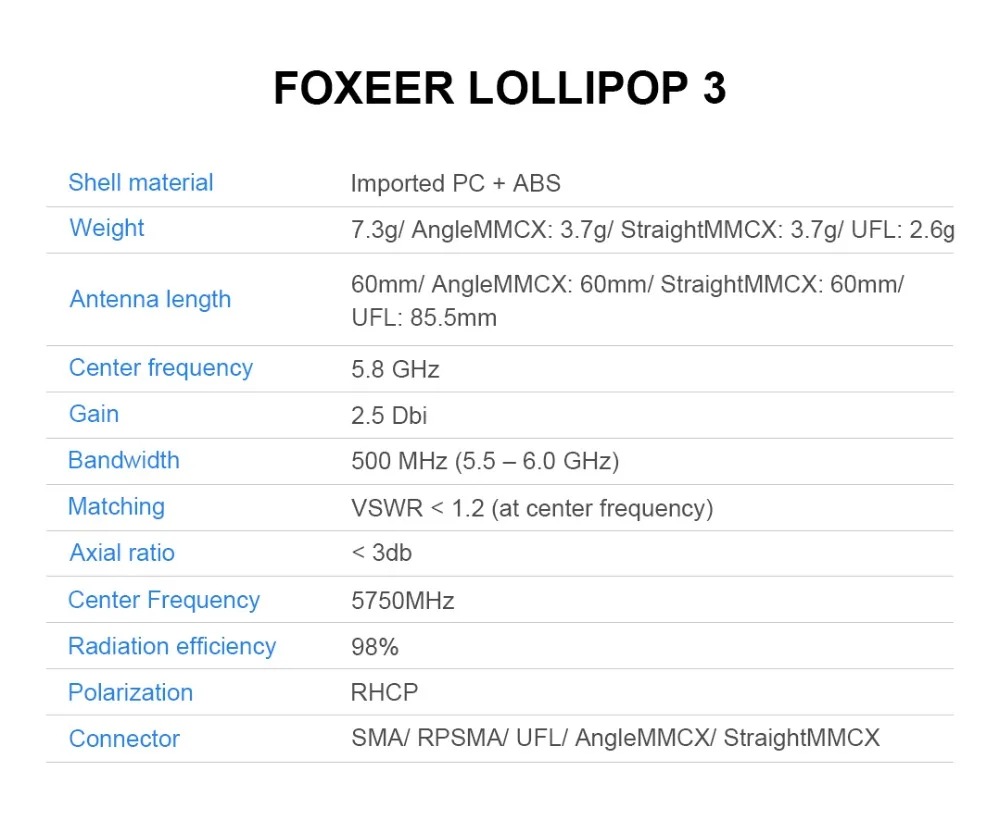

Specification:
Brand: Foxeer

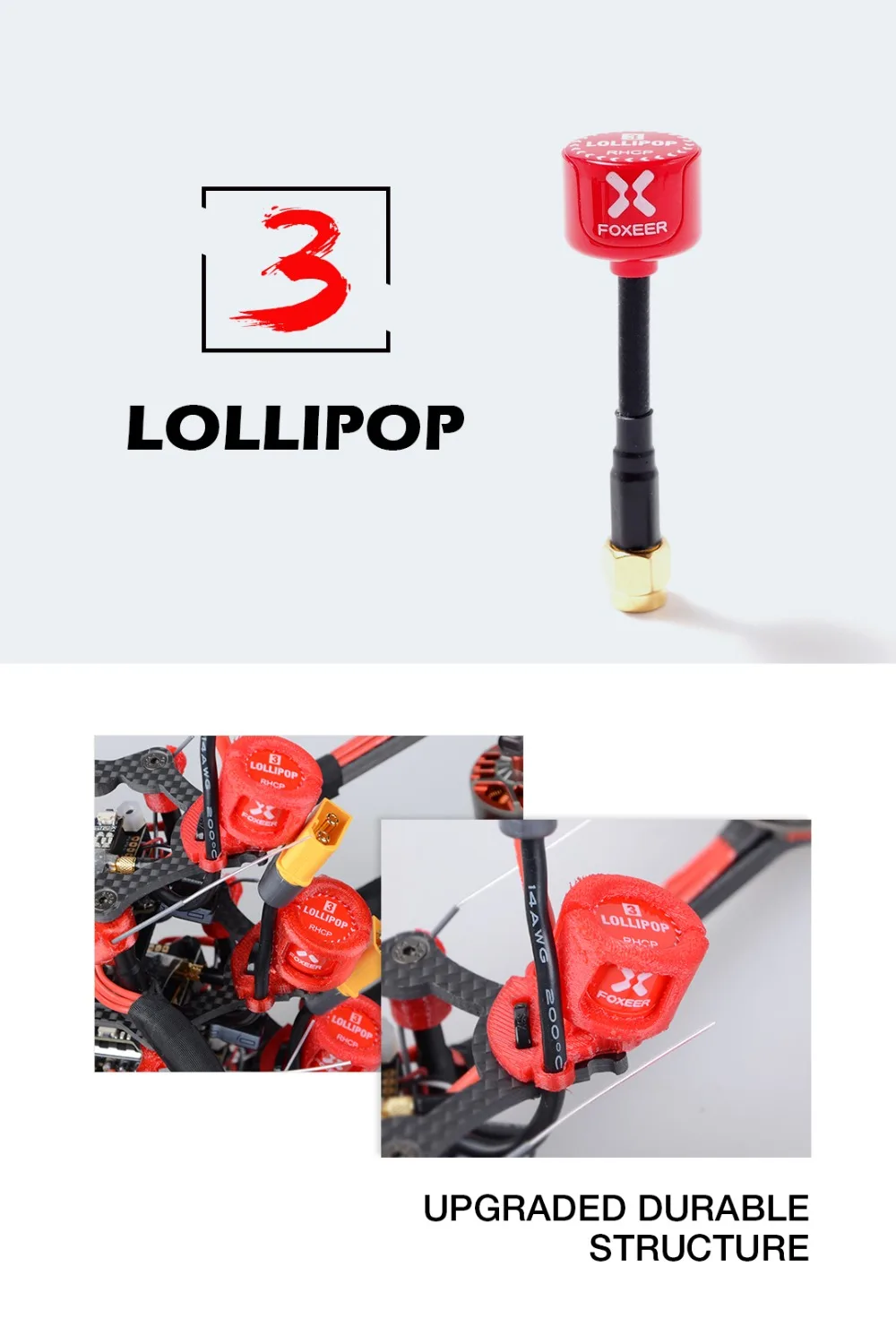

Item name: Foxeer Lollipop 3 5.8G RHCP FPV Antenna
Gain: 2.5DBi
Shell Material:imported PC+ABS
Weight: RP-SMA/SMA 7.3g ; UFL 2.6g ; Straight MMCX 3.7g ; Angle MMCX 3.7g
Antenna length: RP-SMA/SMA 60mm ; UFL 85.5mm ; Straight MMCX 60mm ; Angle MMCX 60mm
Center frequency:5.8GHz
Polarization: RHCP

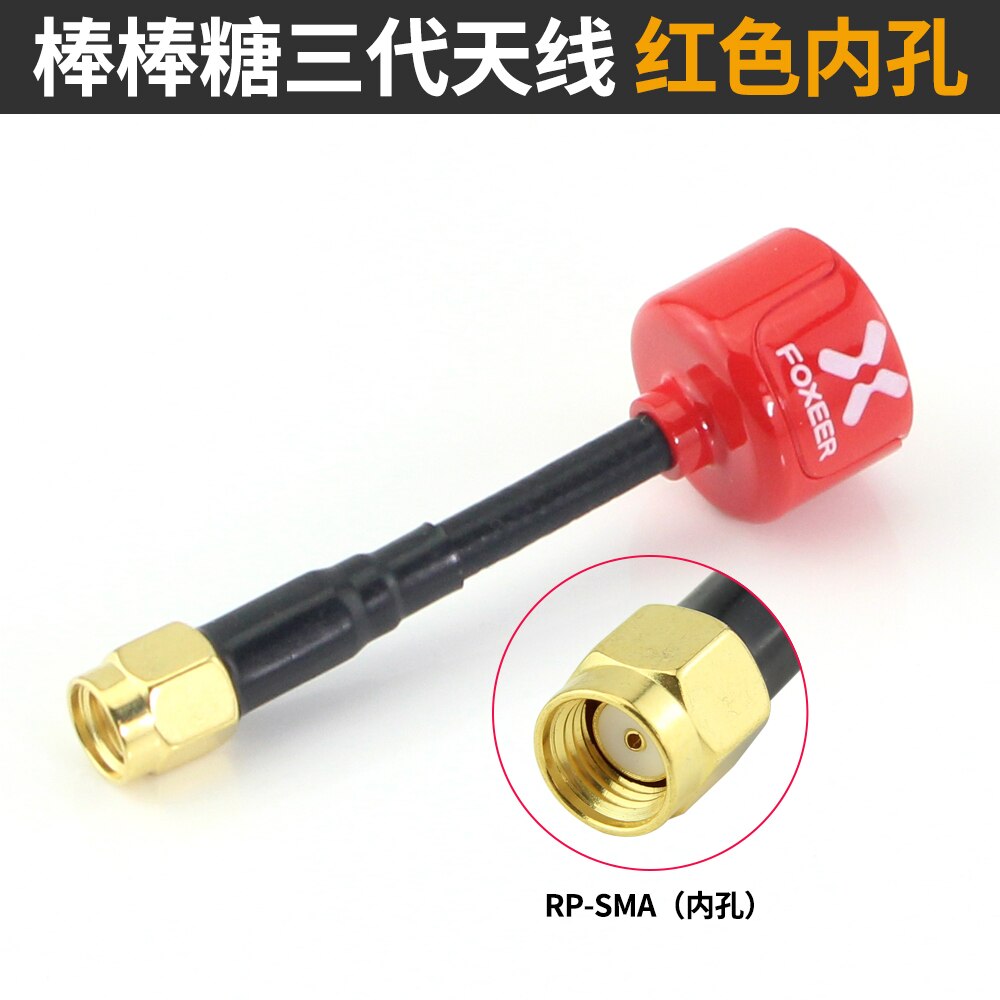

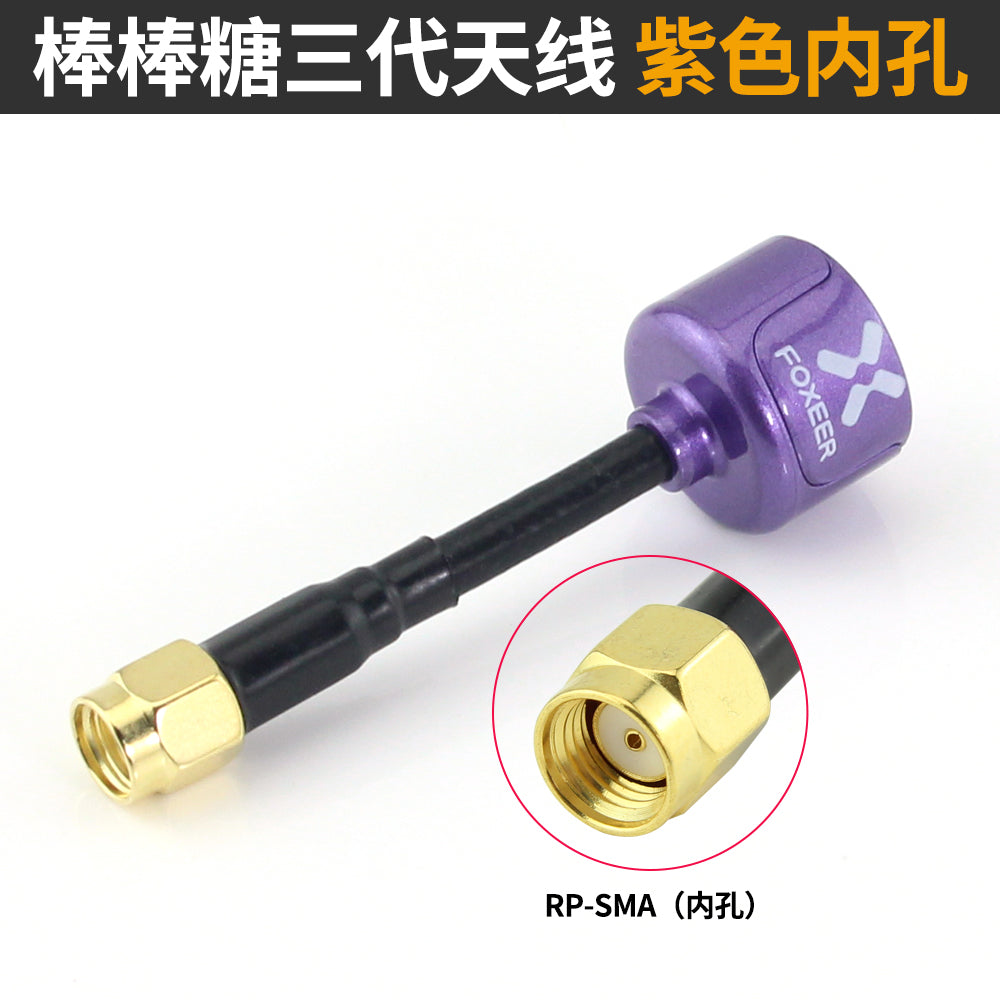

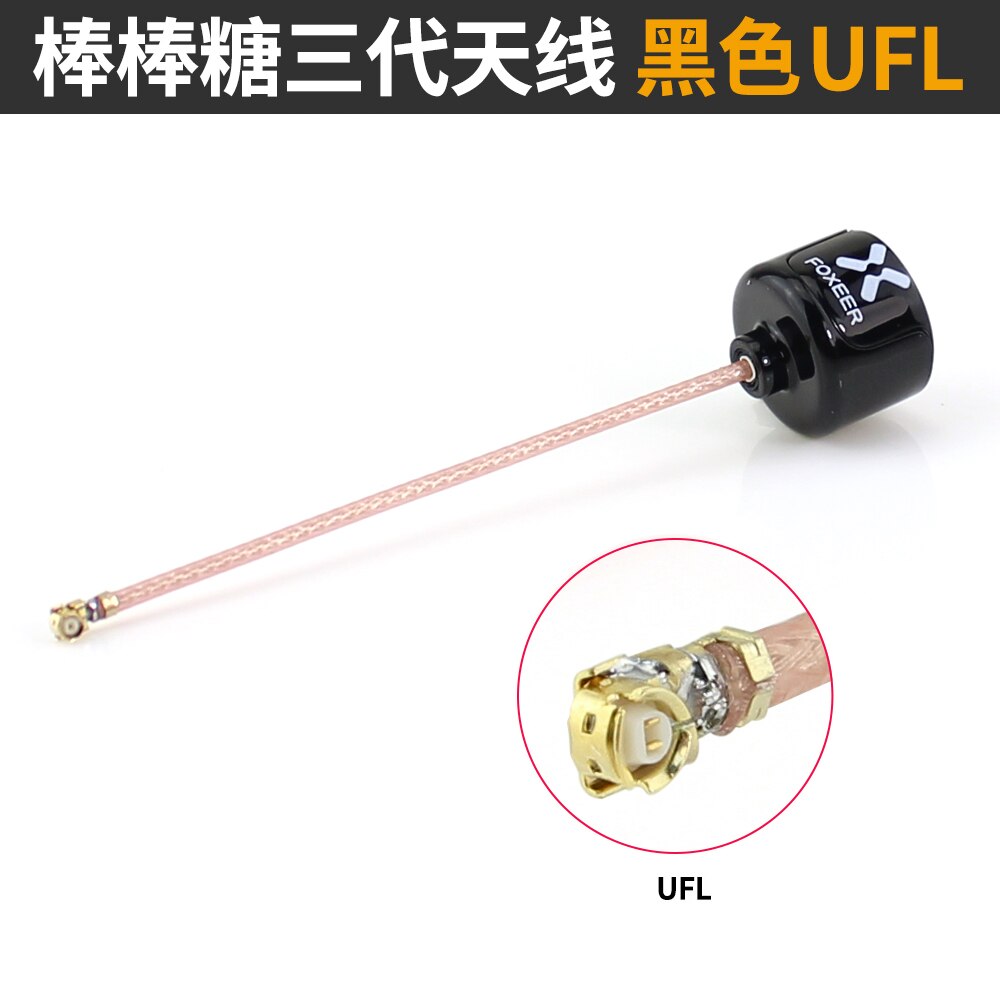

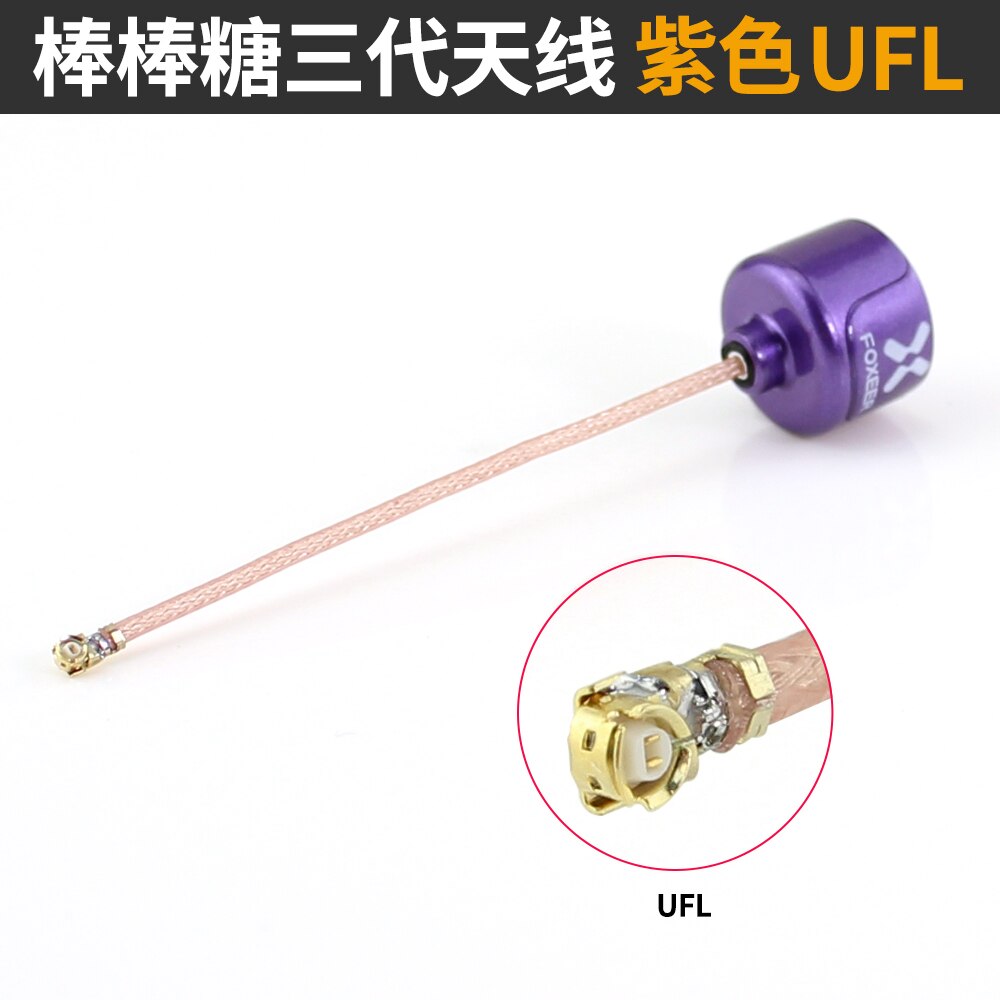

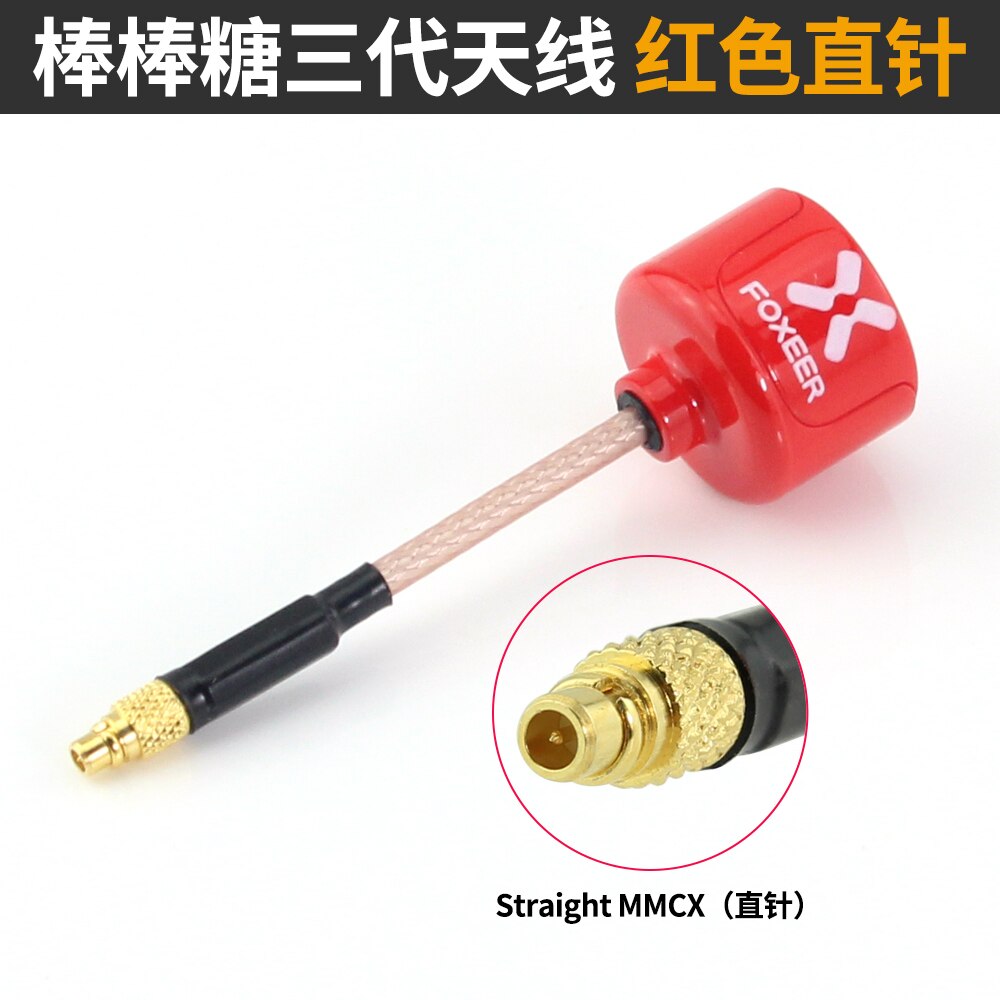

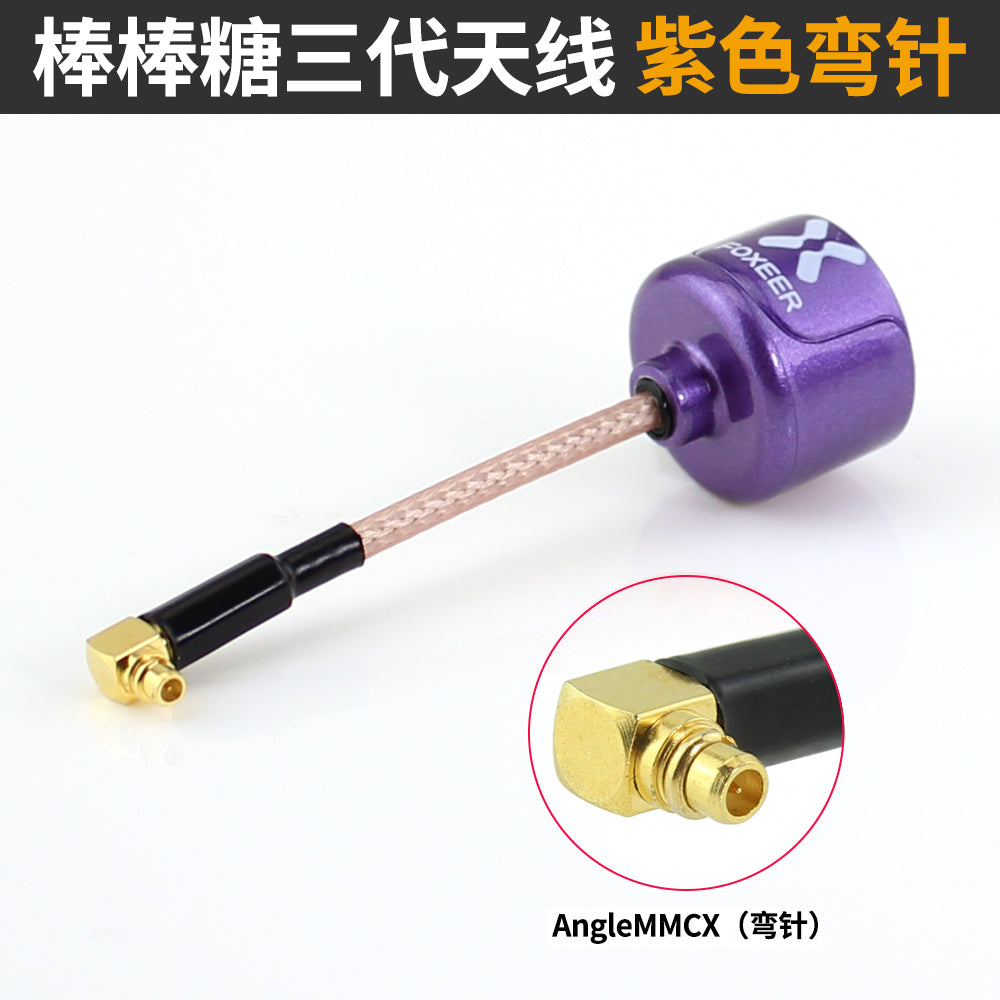

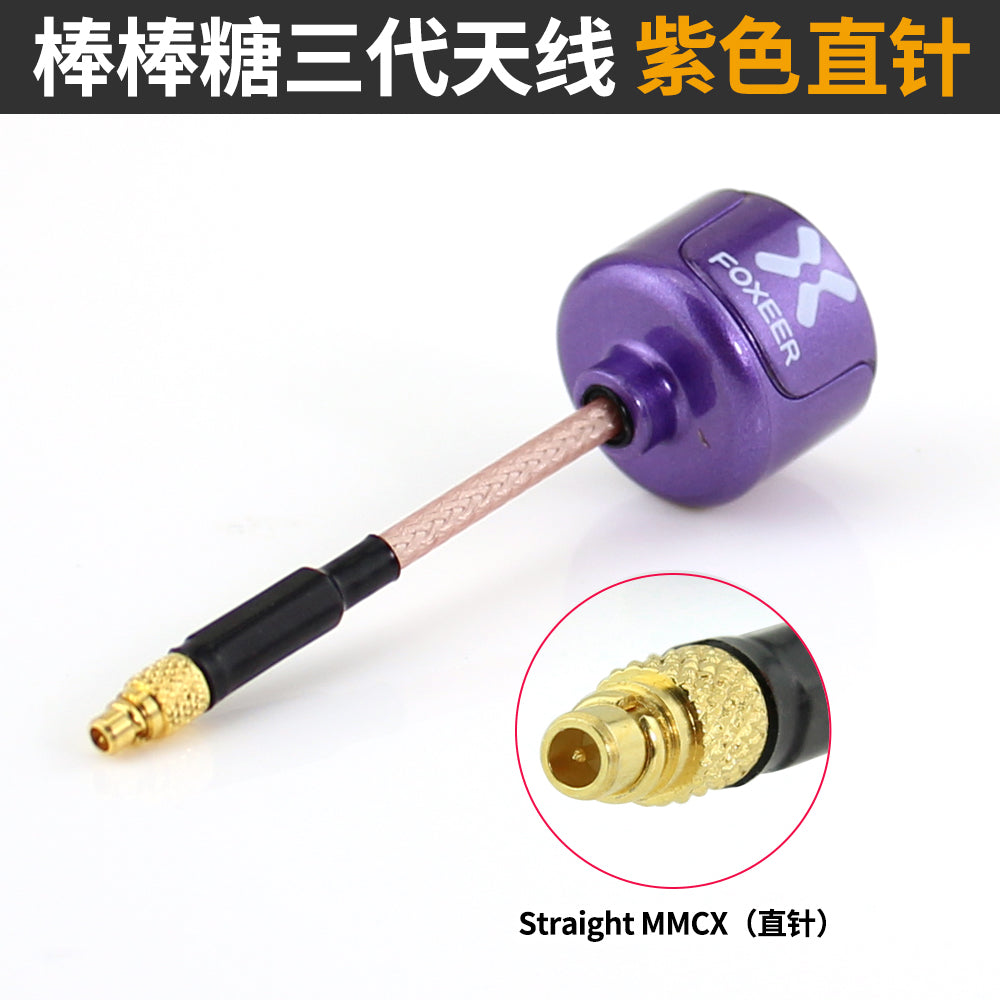

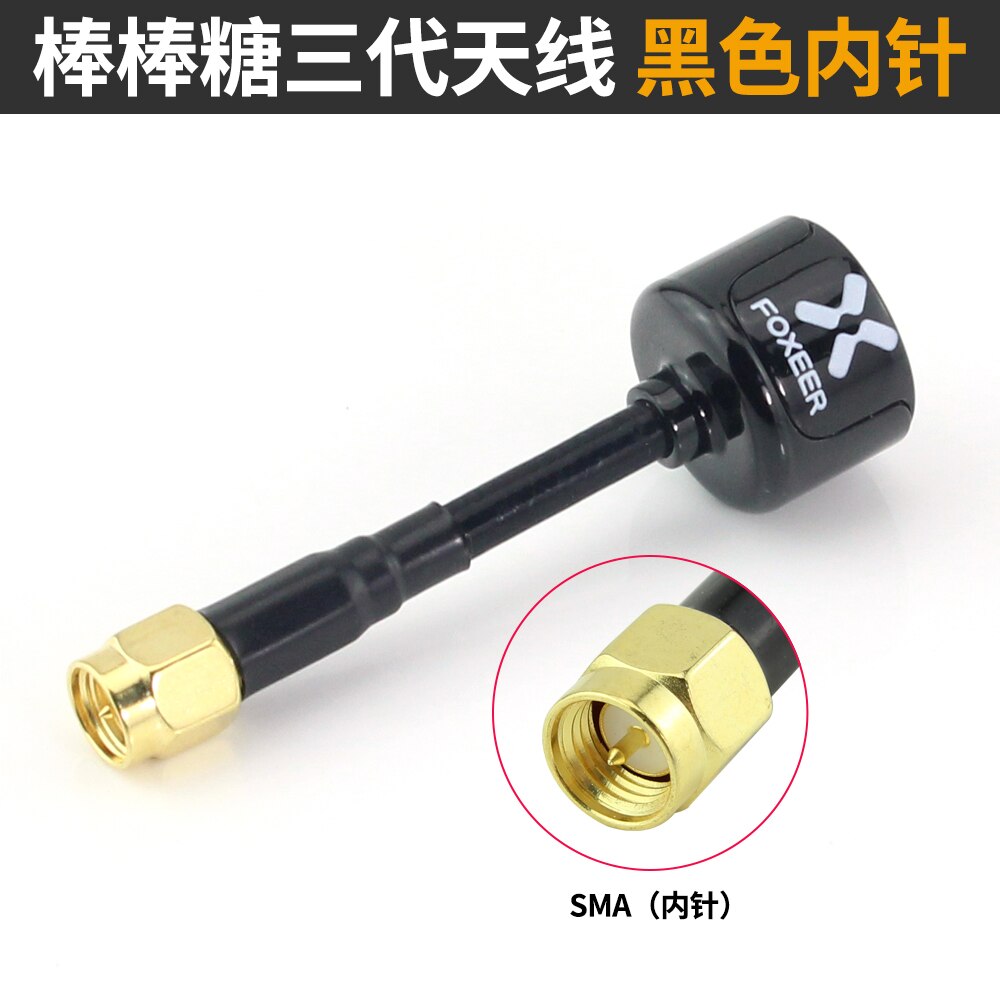

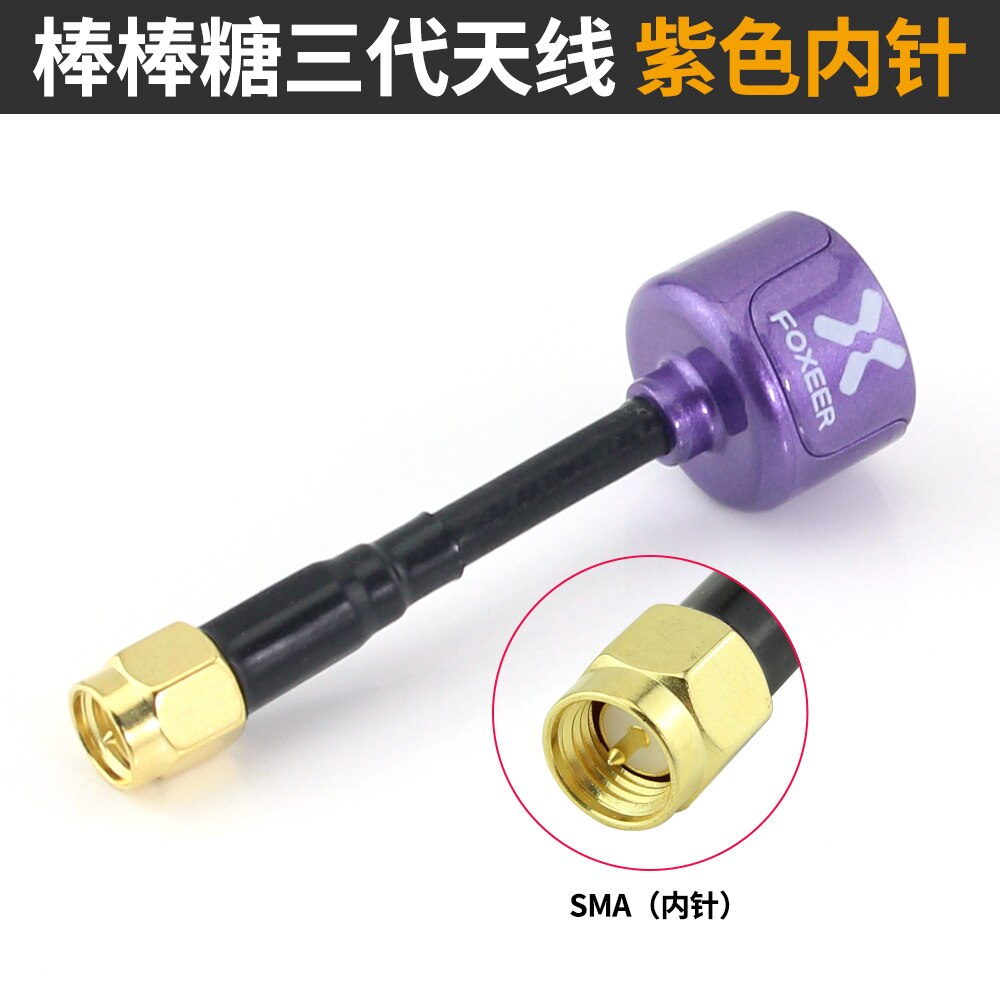

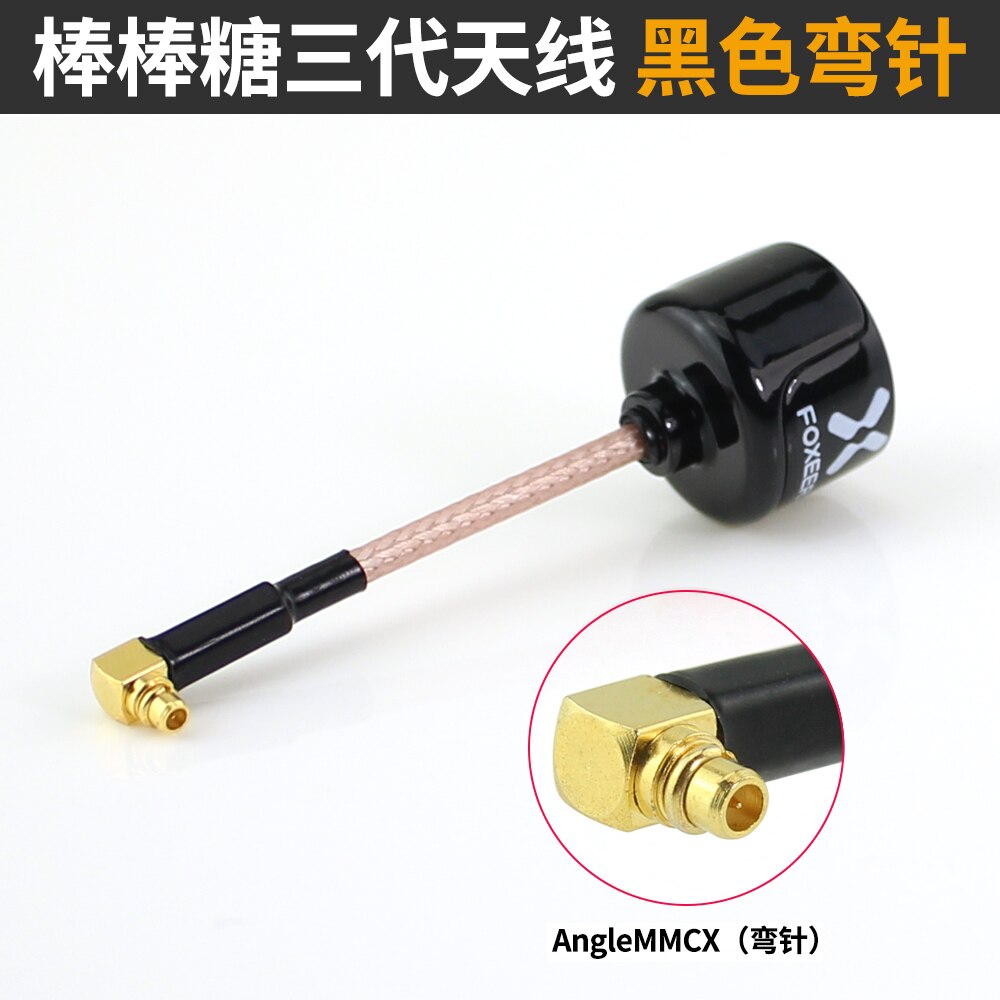

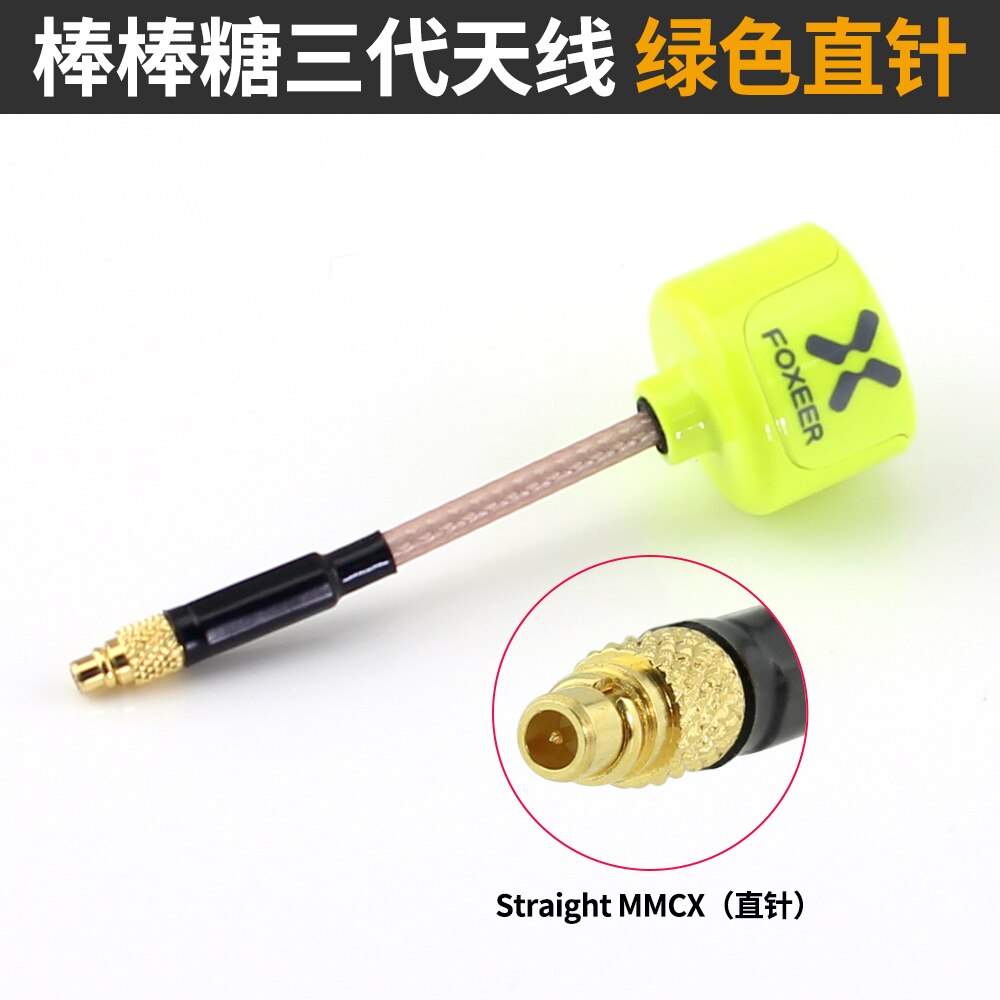

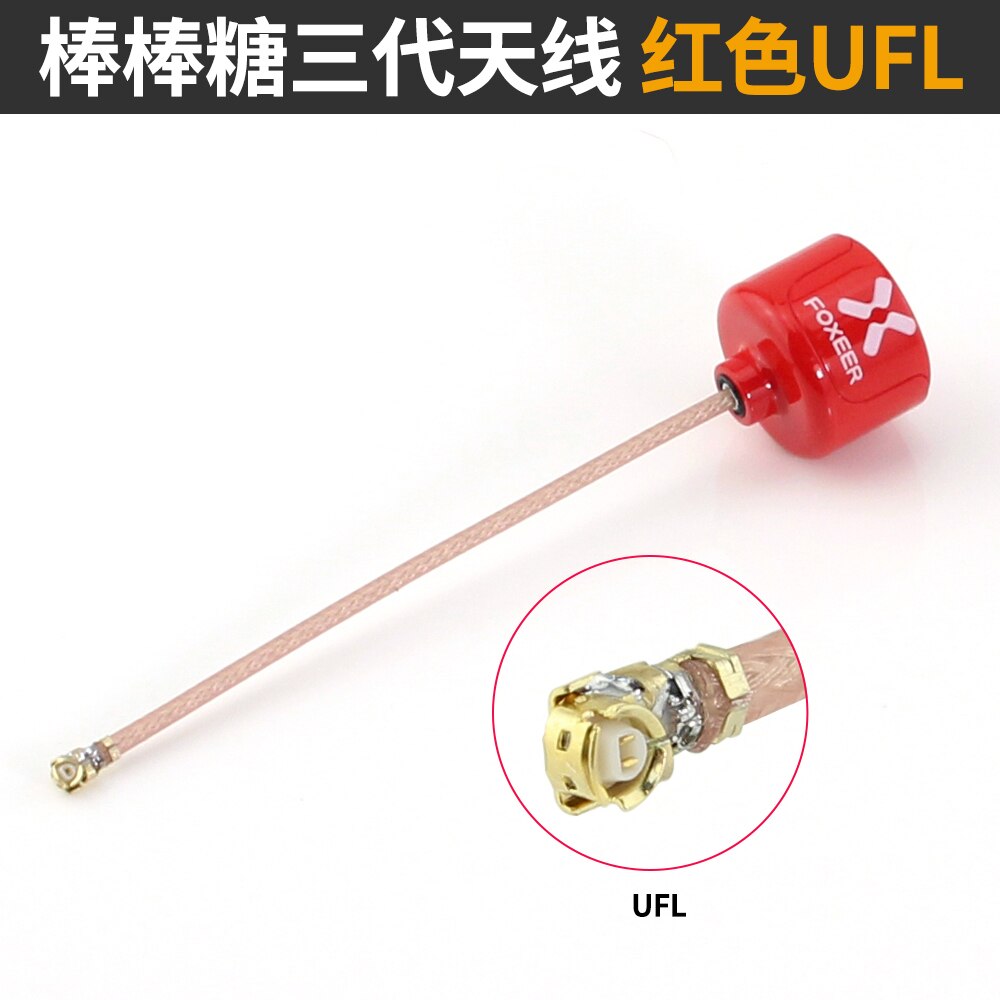

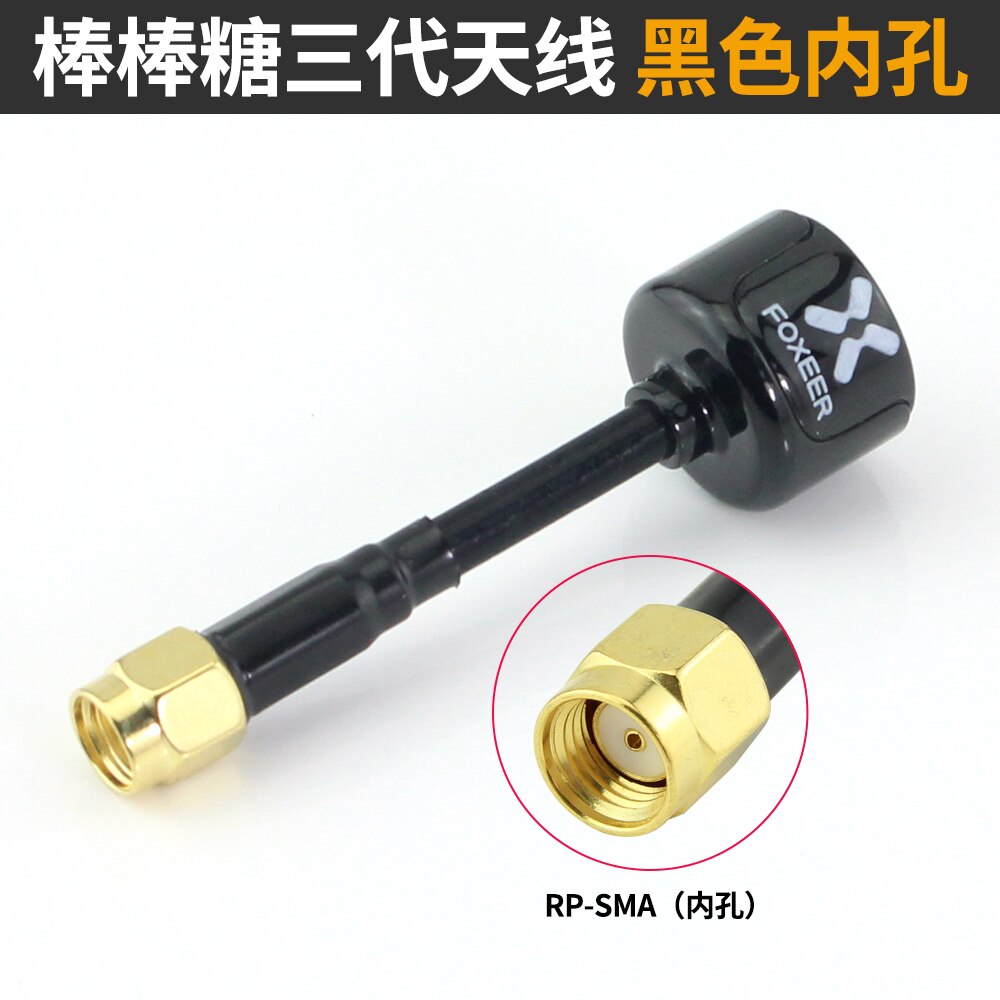

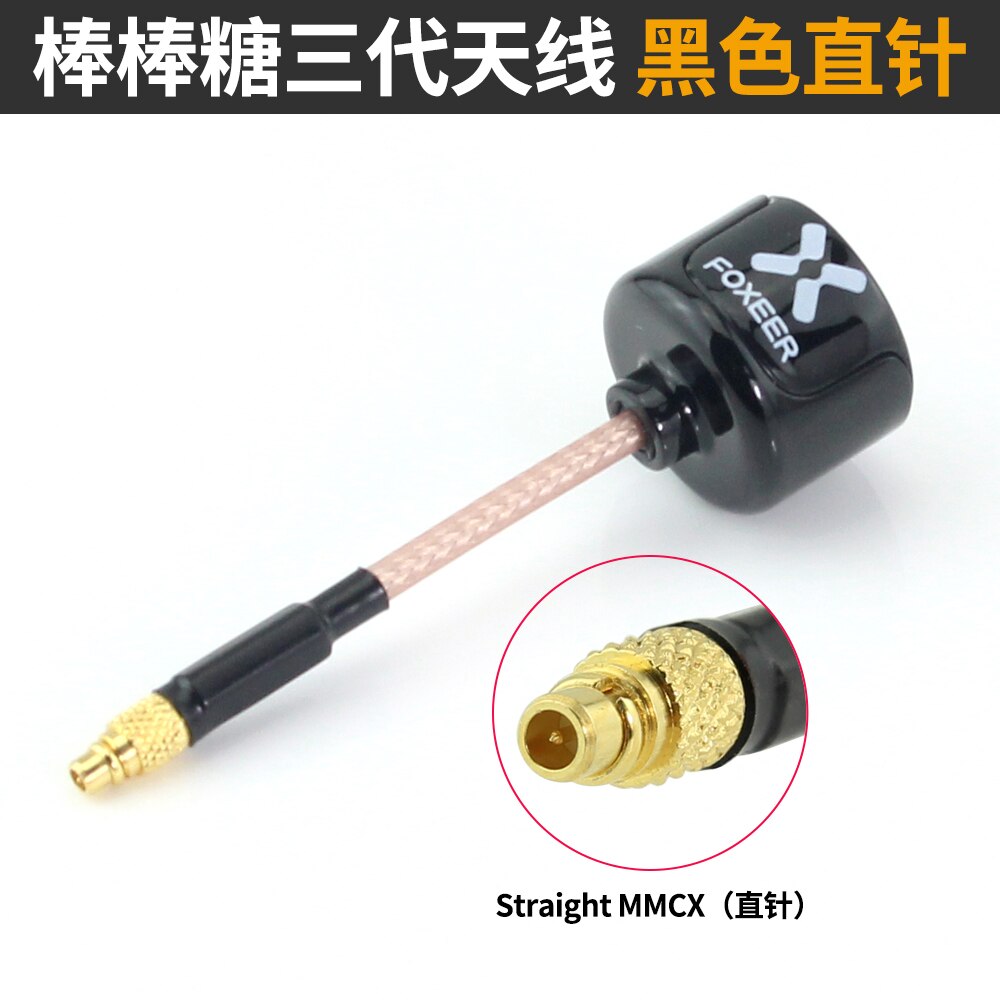

Connector: RP-SMA / SMA/UFL/straight MMCX/ angle MMCX

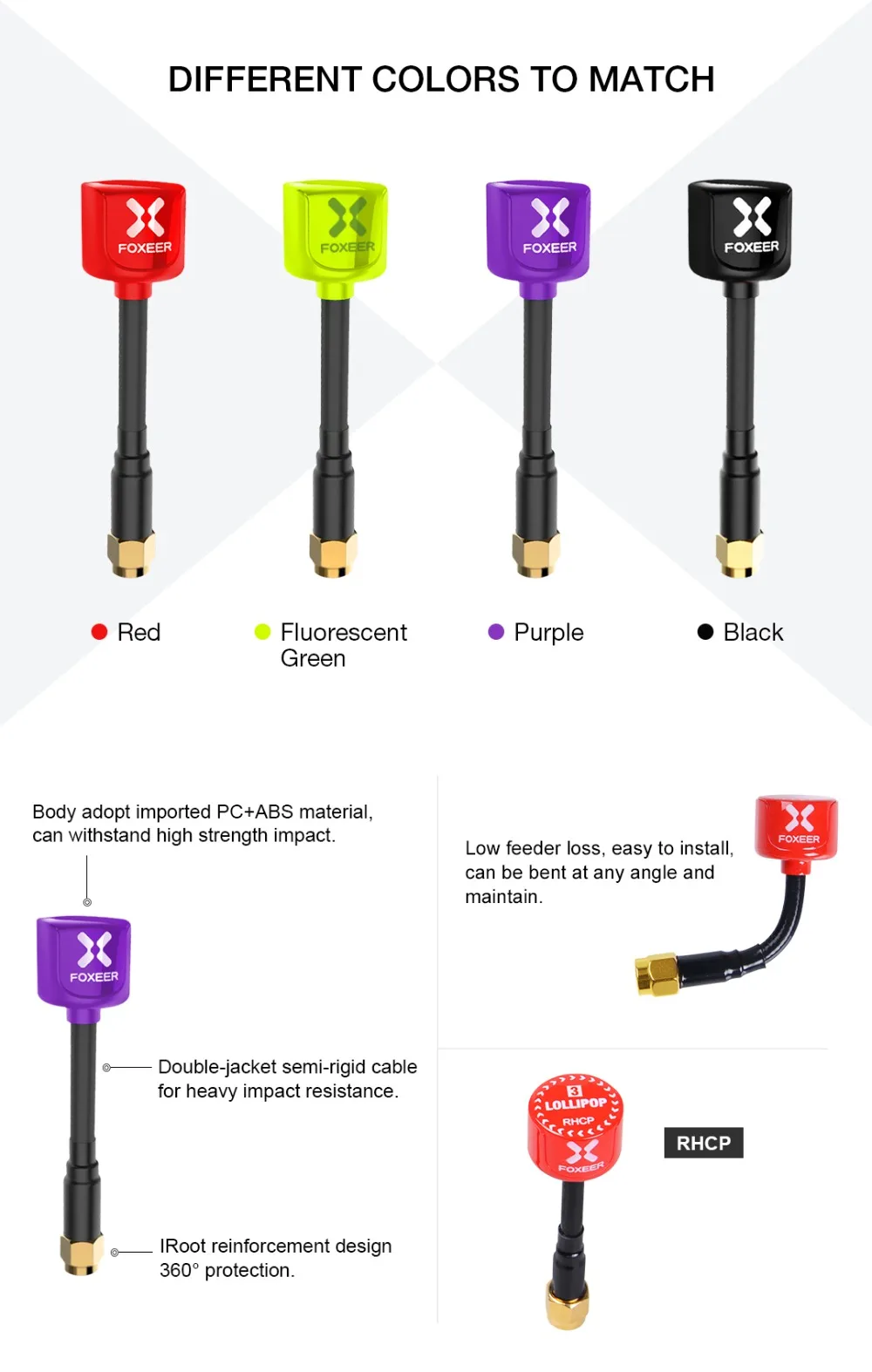

Color:Black,Red,Purple,Green

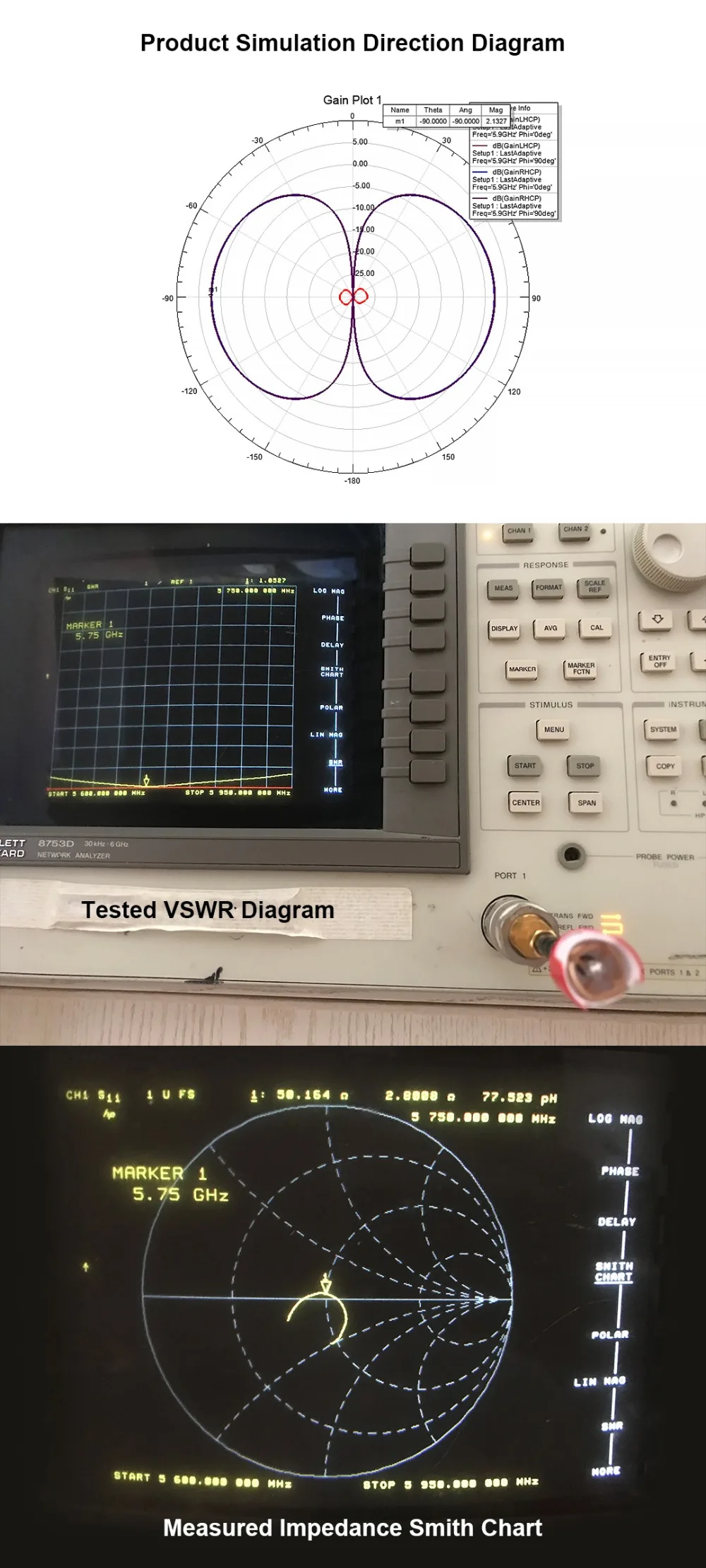

Matching:VSWR<1.2(at center frequency)
Bandwidth:500MHz(5.5-6.0GHz)
Axial Ration:<1
Radiation efficiency:98%

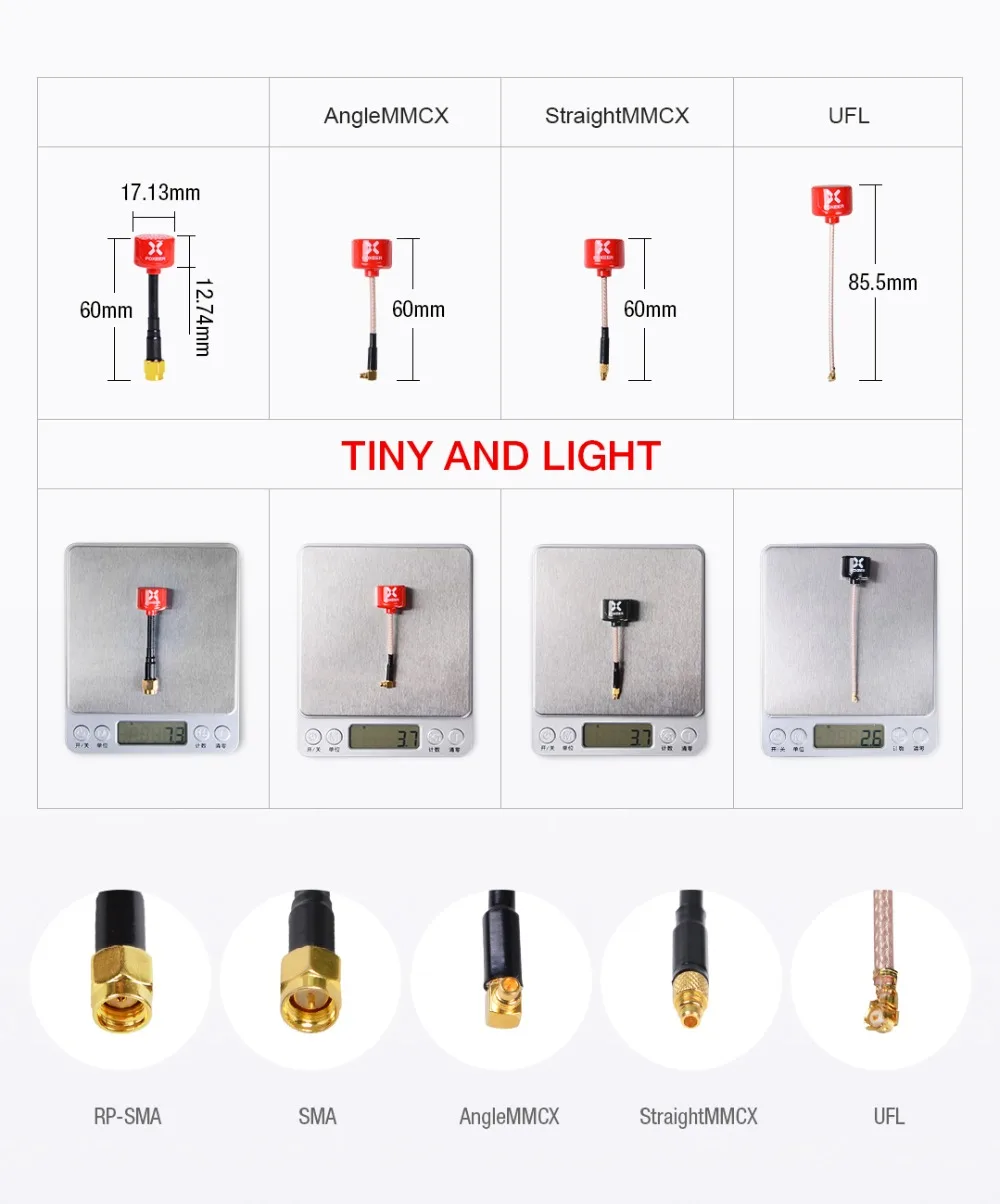

Length:
straightMMCX / AngleMMCX:60mm
SMA, RPSMA:60mm
UFL :85.5mm
Weight:
straightMMCX :3.5g
AngleMMCX:3.6g
SMA, RPSMA:7.3g
UFL :2.6g
Package Included:
1PCS Foxeer Lolliop 3 5.8G Antenna
