HERE ARE TWO VERSIONS OF THIS RECEIVER, ONE WITH STANDARD ANTENNA, ANOTHER WITH PCB TYPE ANTENNA, THE RANGE OF THE PCB VERSION RECEIVER IS ABOUT 20% LONGER THAN THE STANDARD VERSION.

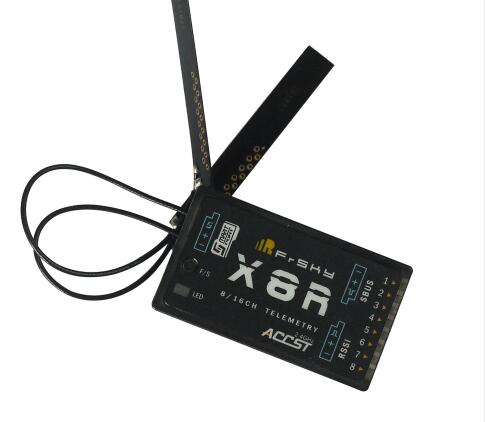

THIS IS THE PCB VERSION.
What's New:
- More number of channels: 1~8ch from conventional channel outputs, 1~16ch from SBUS port,
or combine two X8R to become a 16 channels receiver.
- Parallel two X8R to become a 16 channel receiver.
- With RSSI output: analog voltage output (0~3.3V)
- Smart Port enabled, realizing two-way full duplex transmission.
Smart Port (S. Port) is a signal wire full duplex digital transmission interface developed by FrSky Electronic Co., Ltd. All products enabled with Smart Port (including XJT module, X8R receiver, new hub-less sensors, new Smart Dashboard,etc), serial port user data and other user input/ output devices can be connected without limitations for numbers or sequences at a high transmission speed.
Specifications:
- FrSky 2.4G S.Port 8/16ch Telemetry Receiver X8R - PCB Antenna
- Dimension: 46.25×26.6×14.2mm (L*W* H)
- Weight: 12.1g
- Number of Channels: 16CH (1~8ch from conventional channel outputs, 1~16ch from SBUS port or combine two X8R to become a 16 channels receiver)
- With RSSI output: analog voltage output (0~3.3V)
- Operating Voltage Range: 4.0~10V
- Operating Current: 100mA@5V
- Operating Range: full range (>1.5km)
- Firmware Upgradeable Compatibility: FrSky DFT/DJT/DHT/DHT-U in D_mode
FrSky Taranis X9D/XJT in D8 mode
FrSky Taranis X9D/XJT in D16 mod
