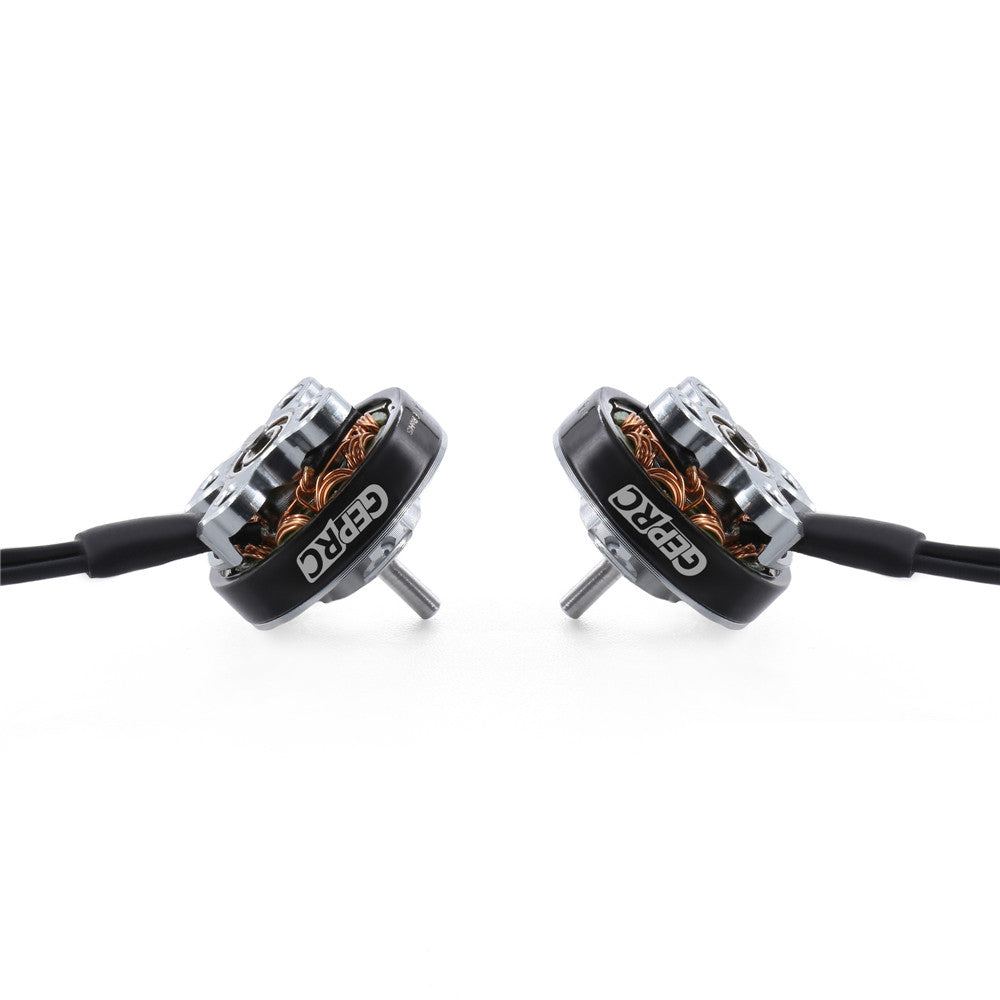

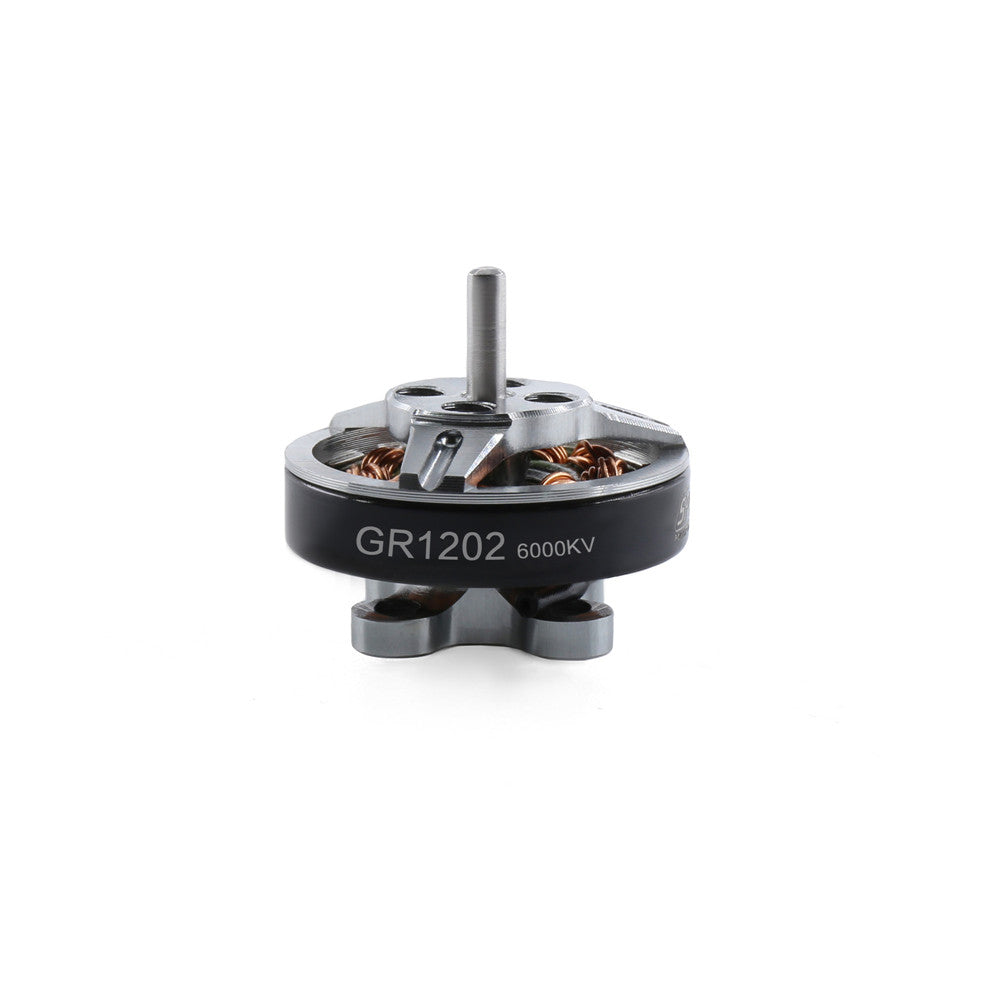

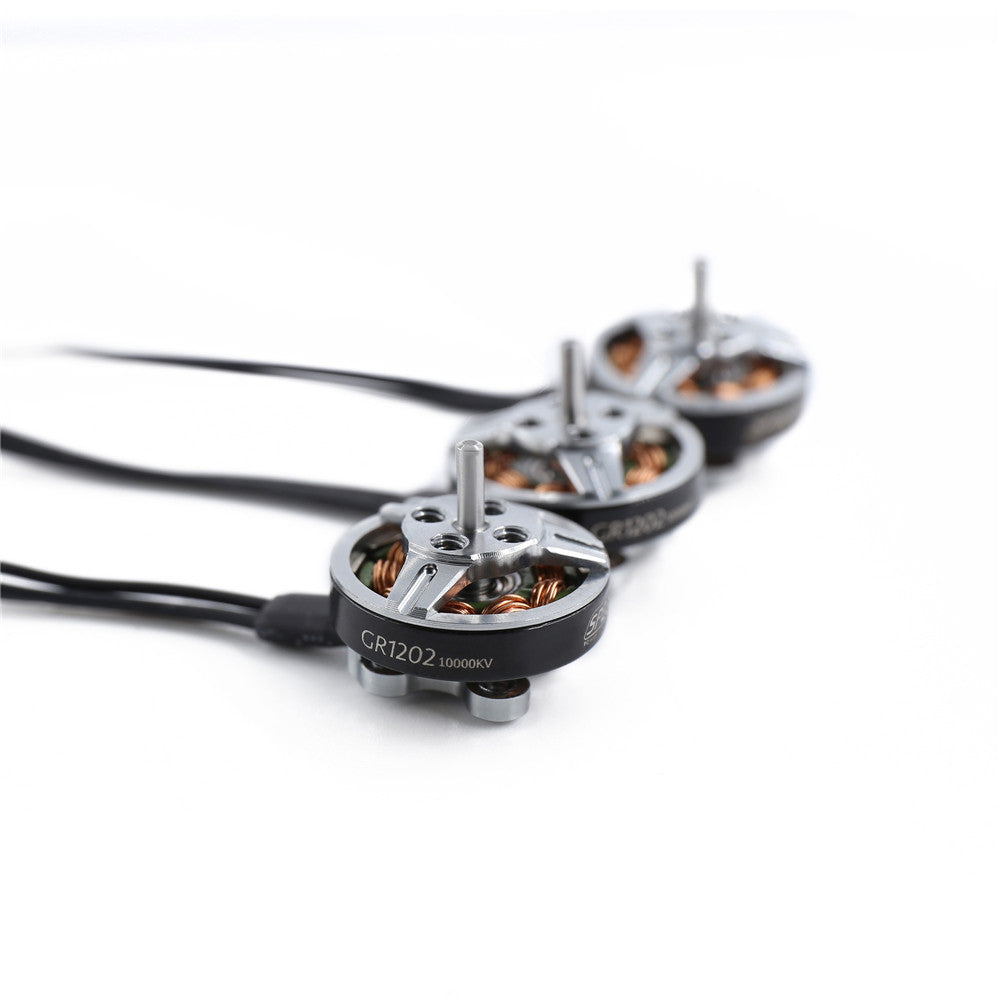

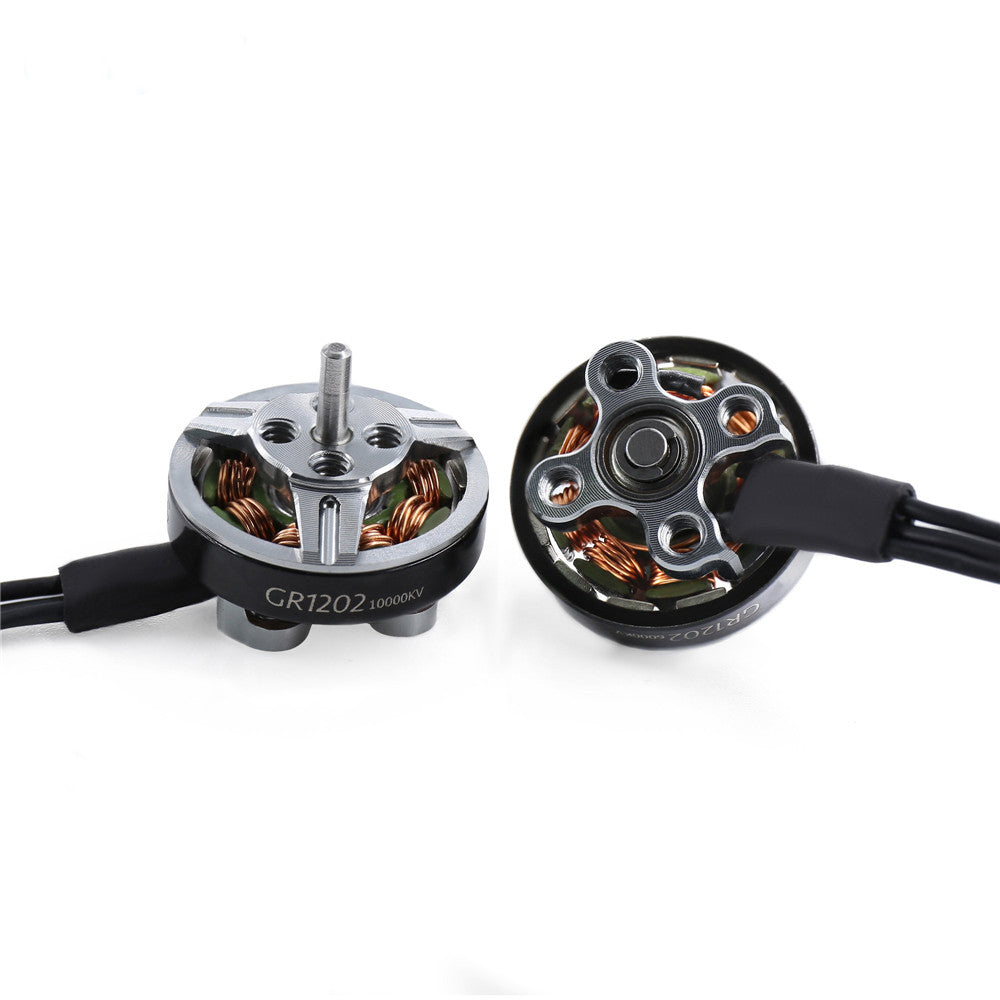

GEPRC GR1202 6000/8000/10000KV 1-4S FPV Brushless Motor For for FPV Whoop Toothpick

Overview:

GR1202 brushless motor, designed for Whoop Drone and Toothpick Drone, 3 KV options(6000KV / 8000KV / 10000KV).High efficiency and smooth.

Specification:

• Model:GR1202
• KV: 6000KV / 8000KV / 10000KV (Optional)
• No. of Cells (Lipo): 6000KV @ 3-4S ; 8000KV @ 2-3S ; 10000KV @ 1-2S
• Configu-ration: 9N12P
• Stator Diamter: 12mm
• Stator Length: 2mm
• Shaft Diameter: Φ1.5mm
• Motor Dimension(Dia.*Len): Φ15.3mm*13.8mm
• Rotor: N52H arc magnets
• Base casing : 7075-T6

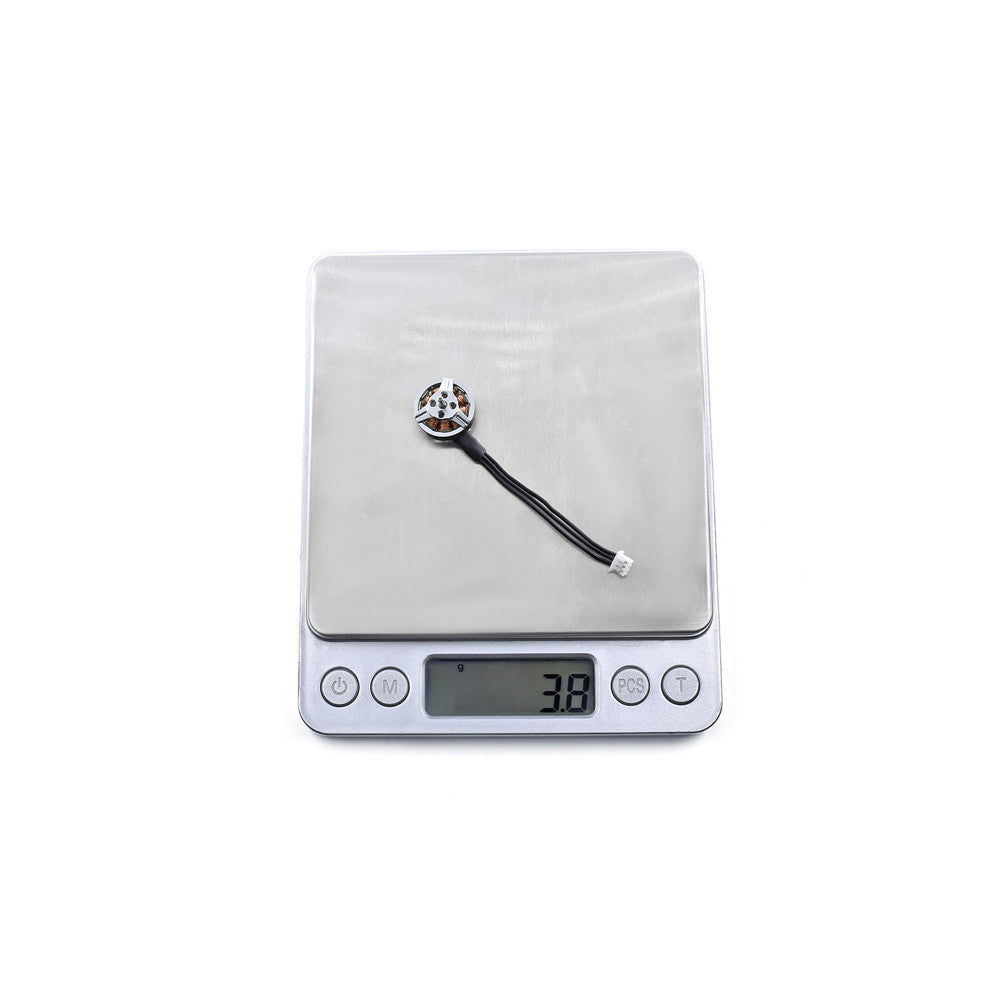

• Weight: 3.8g
• Application: compatible with 105mm-110mm RC Drone(Whoop Drone and Toothpick Drone)

Features:

• High efficiency and smooth
• Better for Toothpick or Whoop Drone building
• Dual bearing design and more balance
• Compatible with 40mm-75mm propellers and 1-4S Lipo battery

Package Included:

• 1x GEPRC GR1202 Motors
• 4x M3x4 Button head screws
• 4x M3x5 Button head screws
• 4x M3x7 Button head screws
