Note: Mobula 6 Order dealing time is about 15-20 days ,Pls don't place the order if your mind it. Thanks!
Since the drone powered by 2PCS 1S batteries in series, and the drone supports 1-2S power supply, please be sure to drop when the single cell voltage is lower than 2.9v or the buzzer starts to alarm, so as to avoid over-discharge.
Specification:

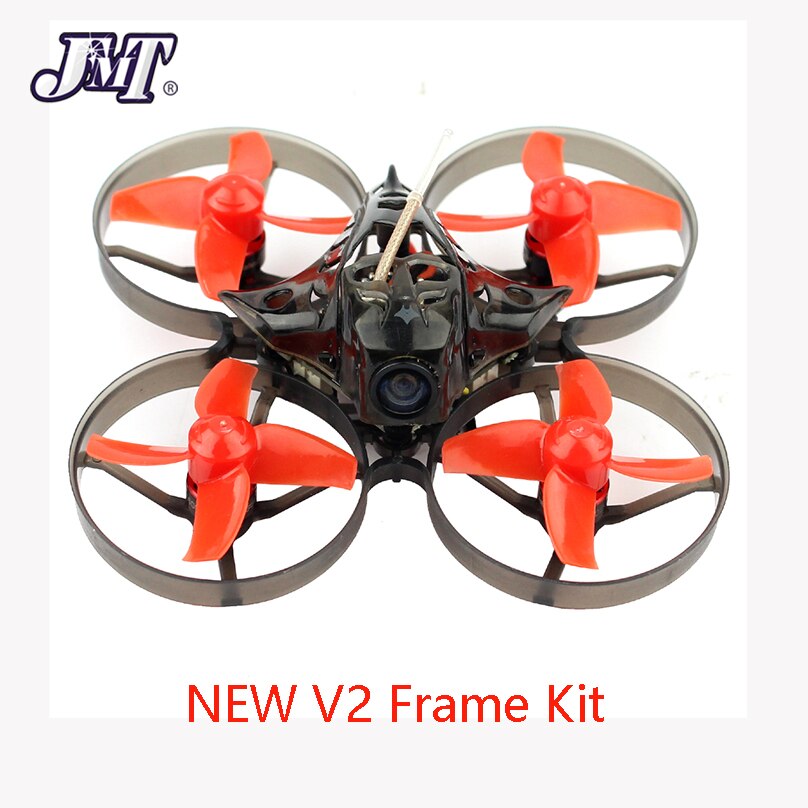

Model: Mobula7
Item Name: 75mm Wheelbase 2S Brushless Whoop FPV Racing Drone
Version: Basic Version / Standard Version ( Optional)
- The diffirence of them are the package charger.
Basic Version: USB Charger
Standard Version: 6-way Charger
Receiver ( Optional): Compatible Frsky NON-EU Receiver
Compatible Frsky EU-LBT Receiver ( XM+ Receiver)
Compatible Flysky AFHDS/ AFHDS-2A Receiver
Compatible DSM-2/DSM-X Receiver
| Crazybee F4 Pro Flight Controller |
Item Name: Crazybee F4 Pro FC MCU: STM32F403CCT6 (72MHZ, 256K FLASH) Sensor: MPU-6000(SPI connection) Board size: 28.5 * 28.5MM Power supply: 1-2S battery input (DC 3.5-8.7V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Receiver ( Diffirent version having diffirent receiver) Built-in Betaflight OSD(SPI Control) Built-in Current meter Max 28A Current meter scale set to 1175 Built-in 5V 1A BEC with LC filter Built-in voltage detection BLHELI_S pass-through Ready Heading LED Ready Firmware (Frsky version) CRAZYBEEF4 PRO FR Firmware target: CrazybeeF4FR (Flysky version) CRAZYBEEF4 PRO FS Firmware target: CrazybeeF4FS (DSM-2/DSM-X version) CRAZYBEEF4 PRO Firmware target: CrazybeeF4DX (Frsky EU-LBT version) CRAZYBEEF4 PRO FS Firmware target: CrazybeeF4FS |
| Onboard 5A 4 In 1 ESC |
Power supply: 1-2S LiPo/LiPo HV (3.5v/8.7v) |
| Onboard Frsky NON-EU receiver Version |
SPI BUS receiver Frsky D8/D16 switchable Compatible Non EU transmitter both D8 and D16 mode Channels: 8ch or 16ch Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 300m |
|
Onboard Frsky EU-LBT Version (External XM+ receiver) |
Operating Voltage Range: 3.7~10V |
| Onboard Flysky receiver Version |
SPI BUS receiver Protocol: AFHDS and AFHDS-2A Switchable Channels: 8ch(AFHDS) or 14ch(AFHDS-2A) Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 300m |
|
Onboard DSM-2 / DSM-X receiver version |
Serial bus receiver Protocol: DSM-2/DSM-X compatible Channels:6-9 (Depend on your radio) No ground interference ( Transmitter and receiver 1 m from the ground): 300m |
| SE0802 16000KV Motor |
Model: SE0802 KV: 16000KV Configu-ration: 9N12P
Stator Diamter: 8mm
Stator Length: 2mm
Shaft Diameter: Φ1.0
Motor Dimension (Dia.*Len) : Φ10.5*14.5mm
Weight: 1.8g
No.of Cells: 1S Lipo
Support 1-2S Lipo |
| Propeller |
40mm 3-blade Propeller ( 4 CW + 4 CCW) |
|
5.8G VTX AIO Camera |
5.8G 40CH 25mW VTX Output power: 25mw Frequency: 40CH Input voltage: 3.3V 5.5V Current consumption: 300mA(type) 700TVL FOV120 Camera Camera resolution: 700TVL Field of view: 120° Video Format: NTSC Antenna: RG178 antenna Frequency: 5.8GHz 5bands 40 channels With Raceband Smartaudio ready(Frsky EU-LBT and DSM-X version not compatible) Size: 13.9"12.0mm ( L*W ) Weight: 3g |
| Lipo Battery |
Capacity:250mAh Voltage:3.8v Continuous Discharge Rate: 30C Instantaneous discharge rate: 60C Size: 55mmx12mmx7mm Weight: 6.5g Connector: PH2.0 Notes: Need 2pcs batteries for Series circuit |
Features:
- New Crazybee F4 PRO Flight controller 1-2s Lipo compatible
- 2S whoop more powerful and more flight time
- Betaflight support , multi flight mode: ACRO/AIR/ANGLE
- New 0802 Powerful and High efficiency Brushless motor and Smooth ESC
- Smartaudio ready , change VTX bands, channels via OSD
DSM-2/DSM-X and Frsky EU-LBT version are Serial-based receiver, so Smartaudio is not compatible.
- Adjust the settings and the PID of the flight controller via OSD
- Frsky Non-EU version support NON-EU Frsky transmitter D8/D16 compatible
- Flysky version support both AFHDS and AFHDS-2A protocol transmitter
- DSM-2/DSM-X version support DSM-2 and DSM-X compatible Spektrum transmitter
- Frsky EU-LBT version support Frsky EU-LBT firmware transmitter
- Full telemetry function ready
- Head lights ready
- Camera angle adjustable
- Real Bind and Fly version
- Buzzer Ready

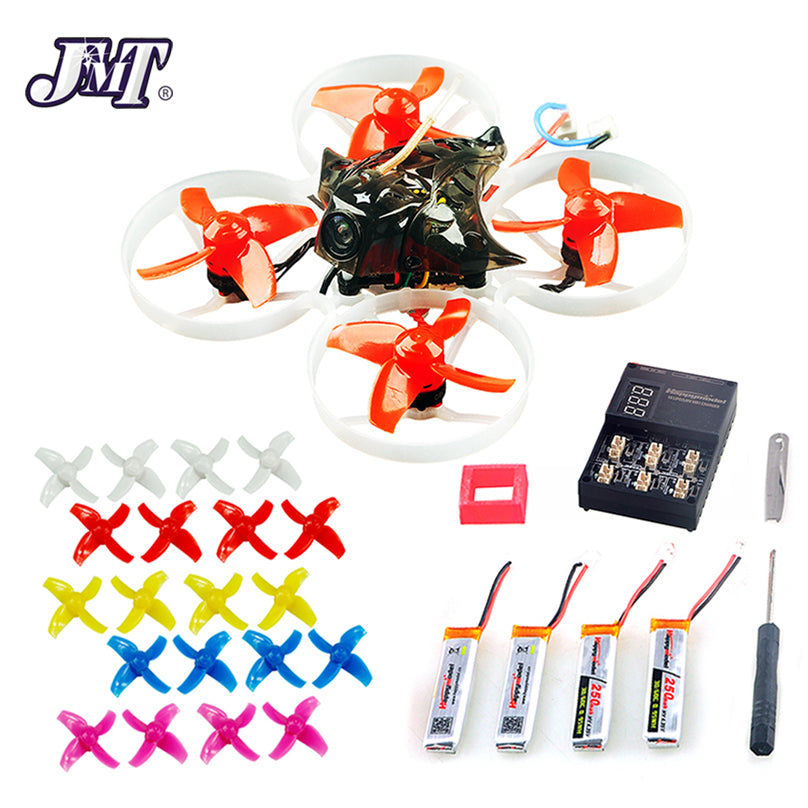

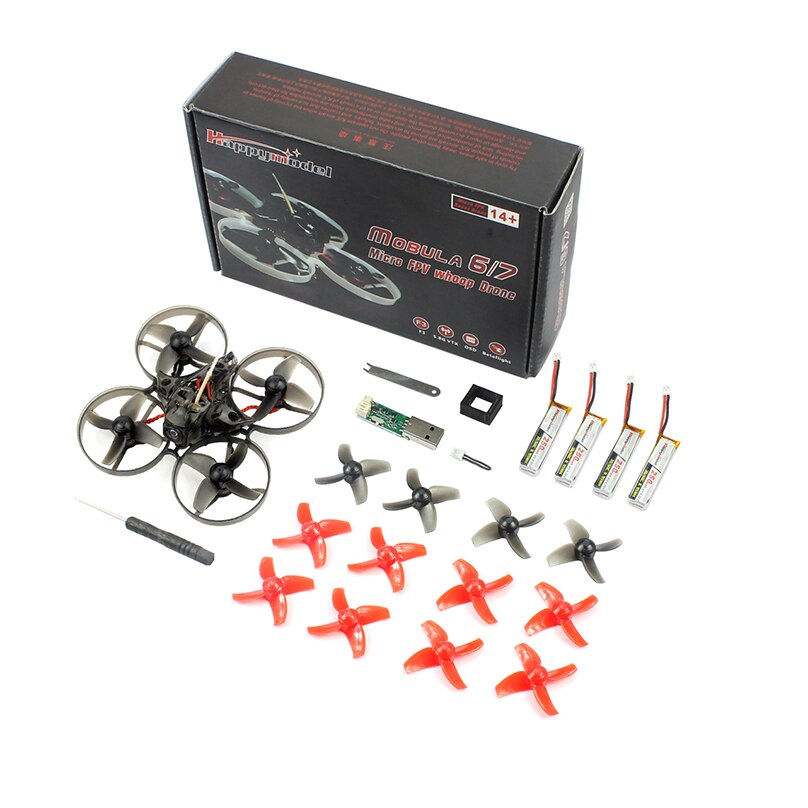

Package Included:
Basic Version
1x Mobula7 75mm FPV Drone
4x 40mm 4-Blade Propellers ( 4 CW & 4 CCW)
4x 3.8v 250mah 30C/60C Lipo battery
1x USB Lipo/LIHV Charger
1x Fixing Mount for Lipo Battery
1x Propeller Disassemble Tool
1x Screwdriver

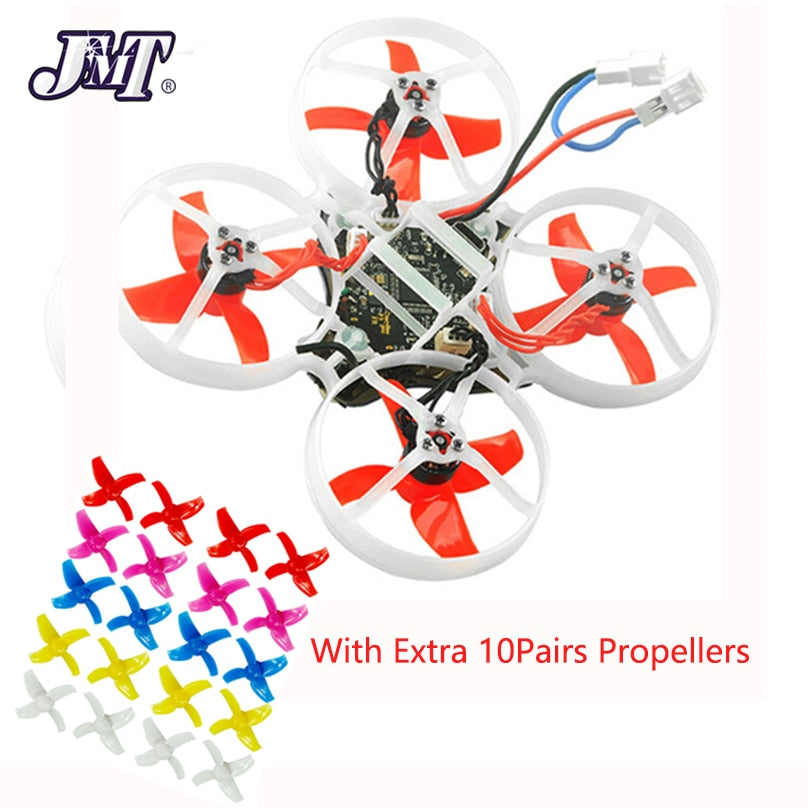

10xextra propellers
Standard Version
1x Mobula7 75mm FPV Drone
4x 40mm 4-Blade Propellers ( 4 CW & 4 CCW)
4x 3.8v 250mah 30C/60C Lipo battery
1x 1S06 6 Way Lipo/LIHV charger
1x Propeller Disassemble Tool
1x Fixing Mount for Lipo Battery
1x Screwdriver
10xextra propellers
Features:
AIO 4IN1 Crazybee F4 Lite flight controller built-in 5.8G VTX
Extreme light 1S 65mm Brushless whoop only 20g
Runcam Nano3 The lightest 1/3 CMOS 800TVL Camera
Smooth and powerful
Compatible for 1S Lipo/LIHV
Camera Angle adjustable

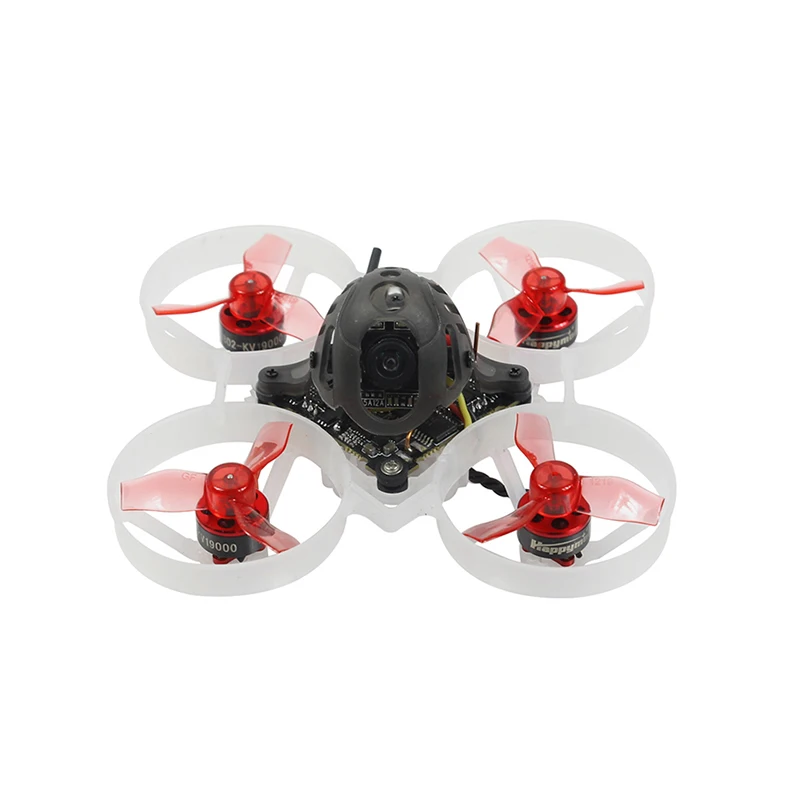

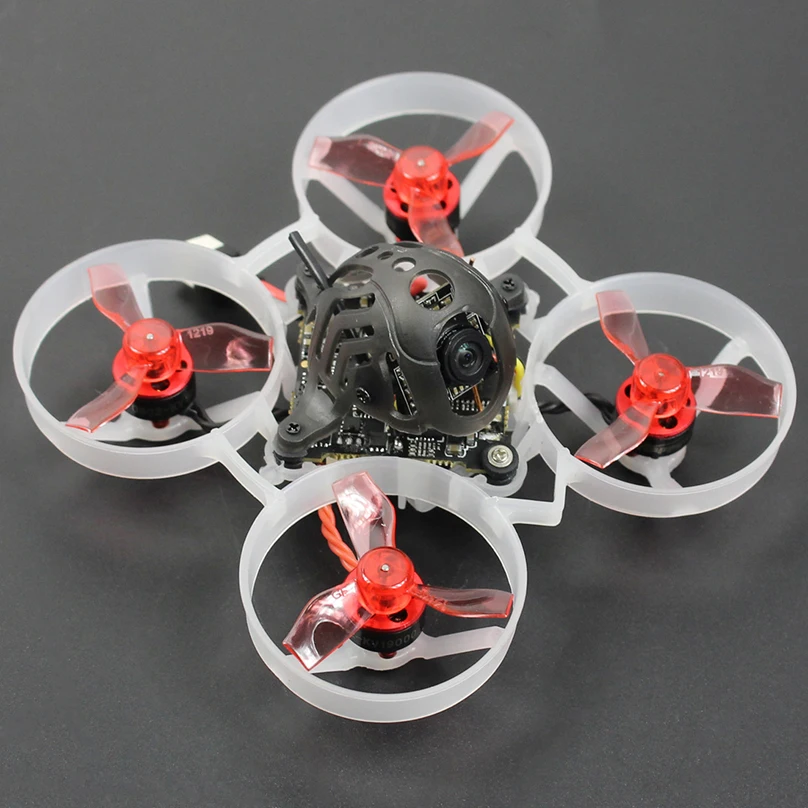

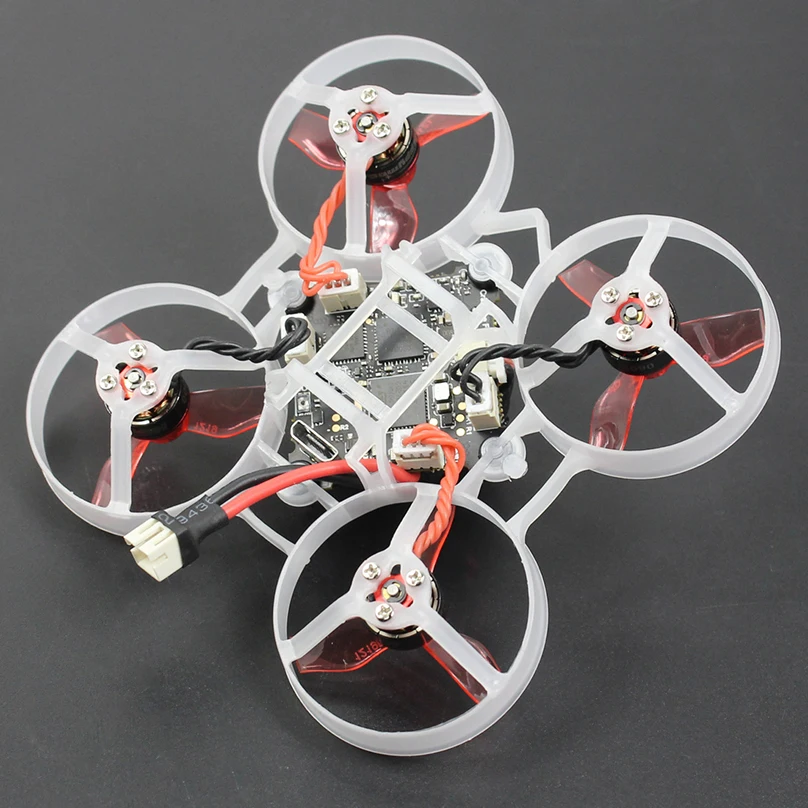

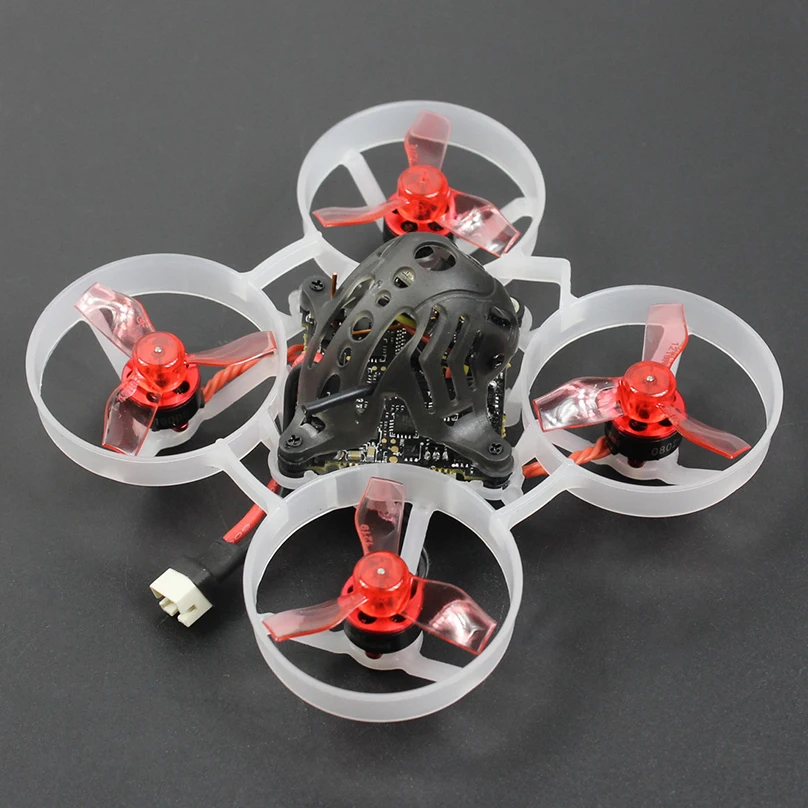

Specifications:
Brand Name: Happymodel

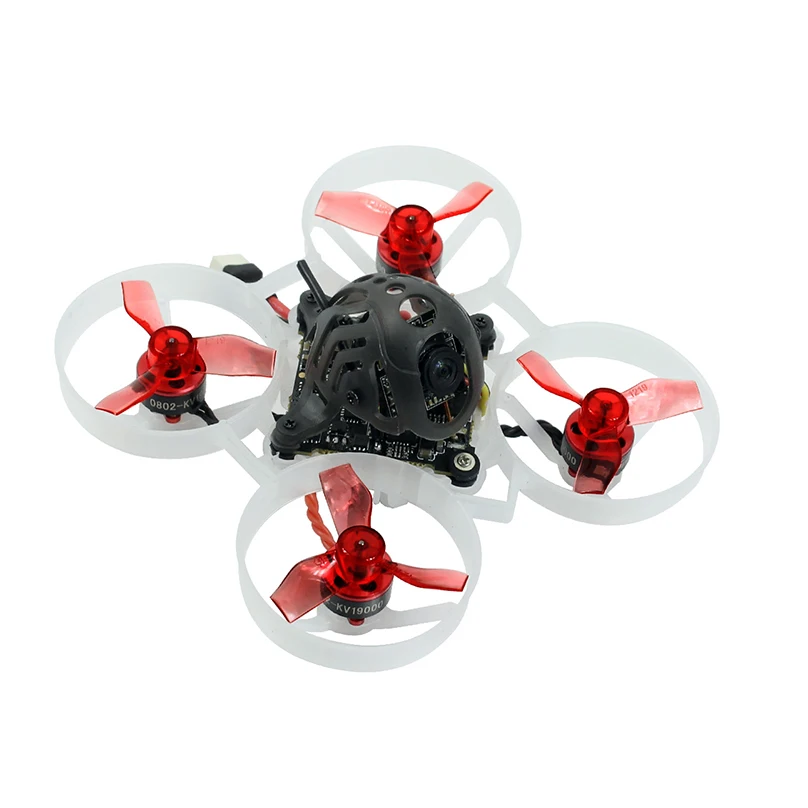

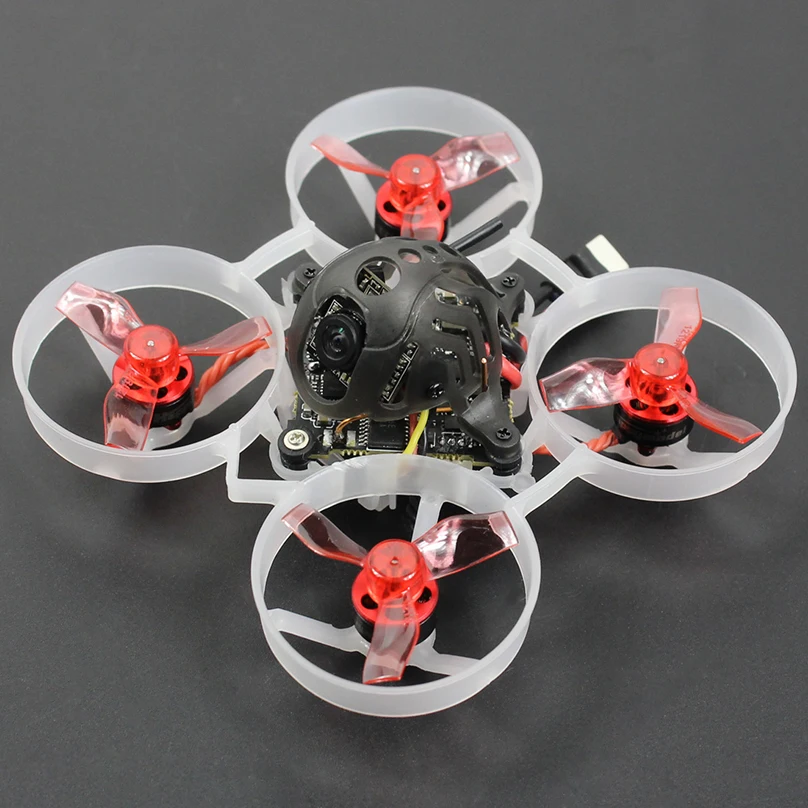

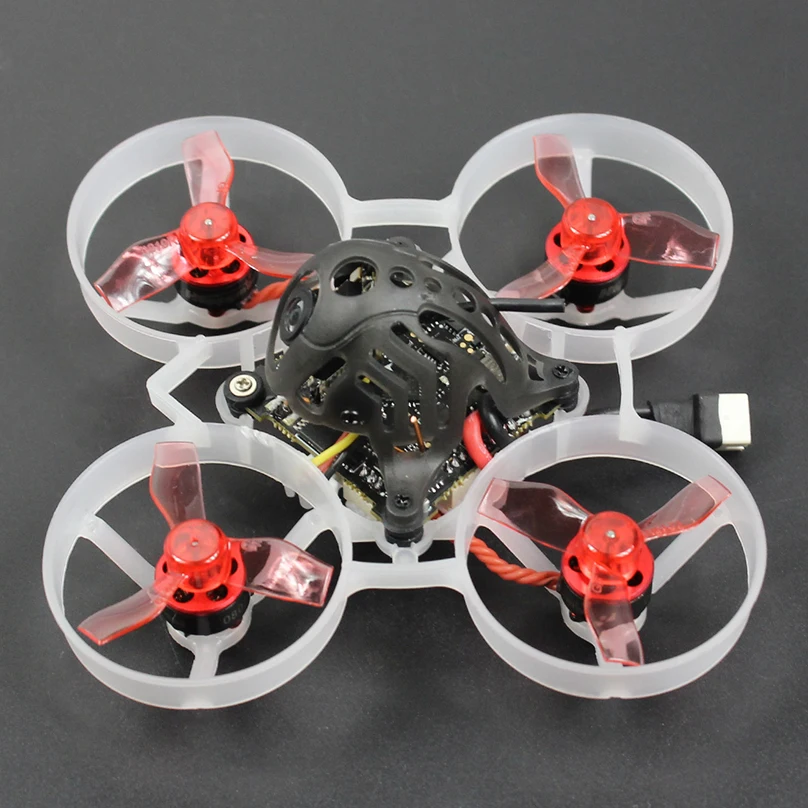

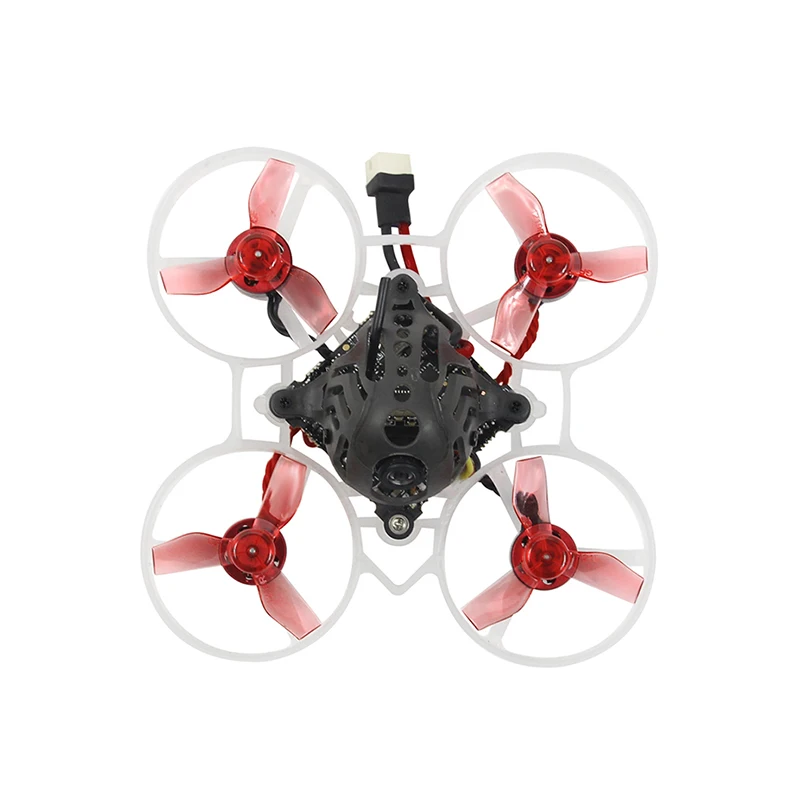

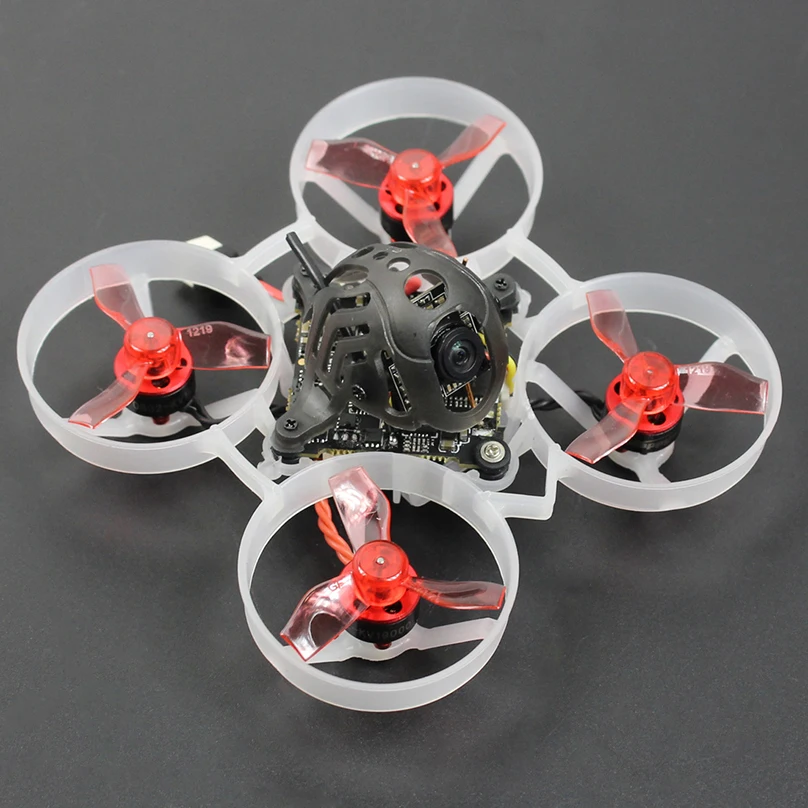

Item Name: Mobula6 1S 65mm Brushless whoop drone BNF version
Wheelbase: 65mm
Size: 80mm*80mm*37mm
Weight: 20g
Receiver option:
Internal SPI Frsky version (Compatible with ACCST D8/D16, Recommend D8 mode)
Internal SPI Flysky version(Compatible with AFHDS and AFHDS-2A Flysky transmitter)
Motor speed option:
SE0802 KV25000(Race Edition)
SE0802 KV19000(Regular Edition)

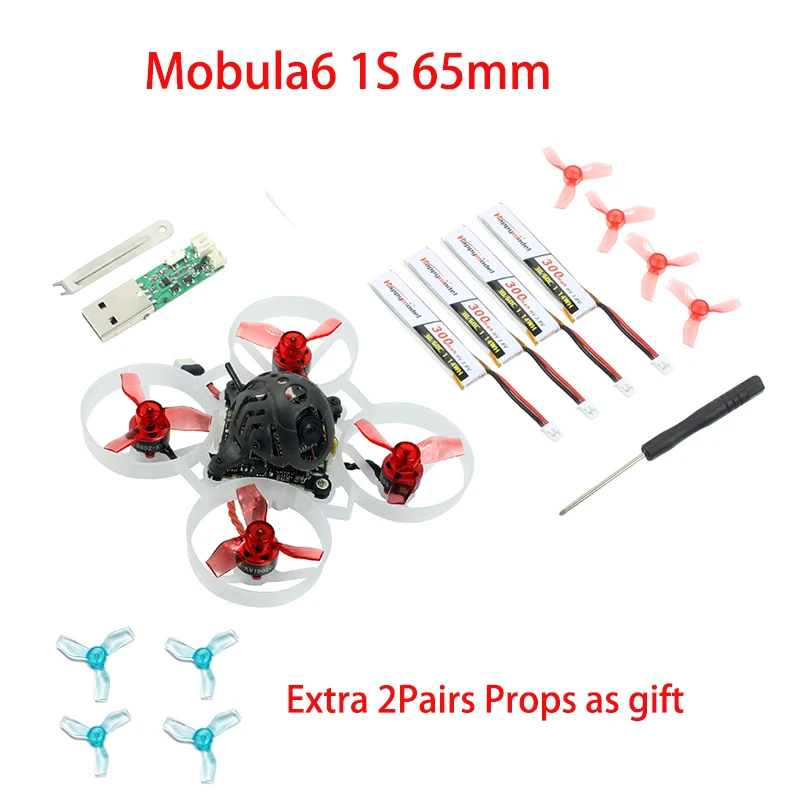

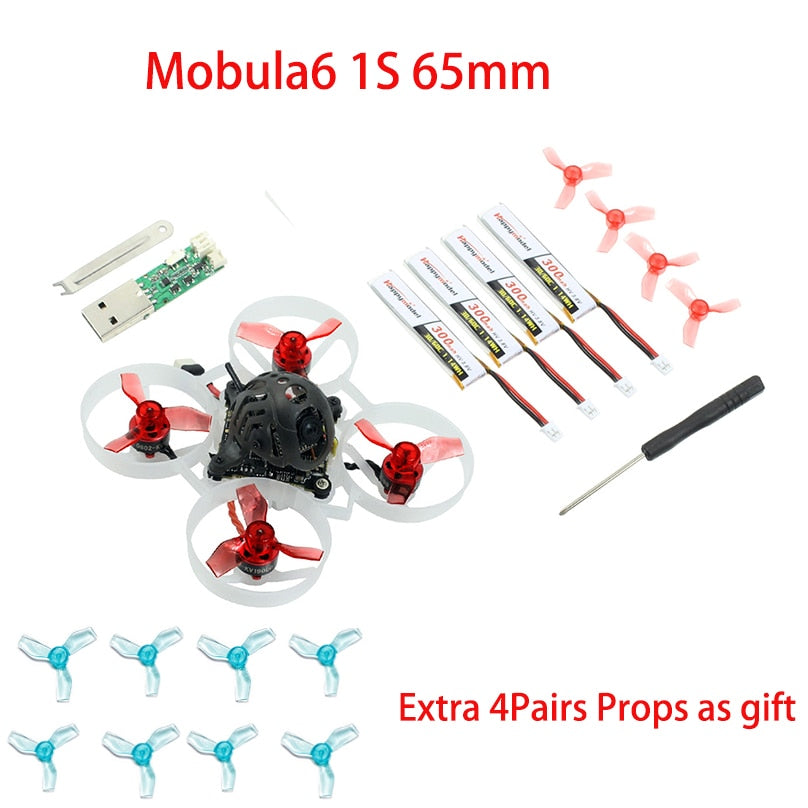

Package includes:
|
Item Name |
Qty |
|
Mobula6 1S 65mm whoop Drone Frame |
1 |
|
SPI Receiver Option1: Crazybee F4 Lite FC built-in Frsky SPI D8 RX |
1 |
|
SPI Receiver Option2: Crazybee F4 Lite FC built-in Flysky SPI RX |
|
|
SE0802 KV19000 or KV25000 brushless motor |
4 |
|
Gemfan 1219-3 Propellers(4cw+4ccw) |
1 |
|
Runcam Nano3 1/3 CMOS 800TVL camera |
1 |
|
5.8G 25mw 40ch vtx (Flight controller built-in) |
1 |
|
1S 300mah 30C LiHV Battery |
4 |
|
1S Lipo/LIHV USB Charger |
1 |
|
Propeller disassemble tool |
1 |
Spare parts specifications:
|
Motor |
Mode: SE0802 19000KV or KV25000 |
|
Propellers |
Gemfan 1219-3 Center Thickness:5mm Prop Disk Diameter:31mm Center Hole Inner diameter:1.0mm Weight:0.28g |
|
Flight controller |
(Frsky SPI RX version) CRAZYBEE F4 Lite Frsky version Firmware target: CrazybeeF4FR
(Flysky SPI RX version) CRAZYBEE F4 Lite Flysky version Firmware target: CrazybeeF4FS |
|
Onboard 4in1 ESC |
MCU upgraded to EFM8BB21
Current: 5A continuous peak 6A (3 seconds) |
|
OnboardFrsky SPI D8 receiver Version |
SPI BUS receiver Frsky D8 compatible
Channels: 8ch |
|
OnboardFlysky SPIreceiver Version |
SPI BUS receiver |
|
Onboard 5.8g VTX |
Output power: 25mw Smartaudio ready |
|
Runcam Nano3 |
Model: RunCam Nano 3 Image Sensor: 1/3" CMOS Horizontal Resolution: 800TVL Lens : 2.1mm(M8) FOV 160° Signal System: PAL/NTSC Non Switchable S/N Ratio: >50dB Electronic Shutter Speed: Auto Auto Gain Control (AGC): Auto Min. Illumination: 0.01Lux@1.2F D-WDR: Auto Day/Night: Color Power:DC 3-5.5V Current: 110mA@5V 120mA@3.3V Housing Material: ABS Net Weight: 1.2g Dimensions: L14mm*W14mm*H9mm |
|
Lipo Battery |
Capacity:300mAh Connector: PH2.0 |
