Heng Long Brushed Motor Block Motor Steel Gear Box For 1/16 RC Tank Refitting Parts
Banggood
Regular price
$17.99
$13.99
Sale
Henglong Brushed Motor Block Motor Steel Gearbox For 1/16 RC Tank Refitting Parts
Description:

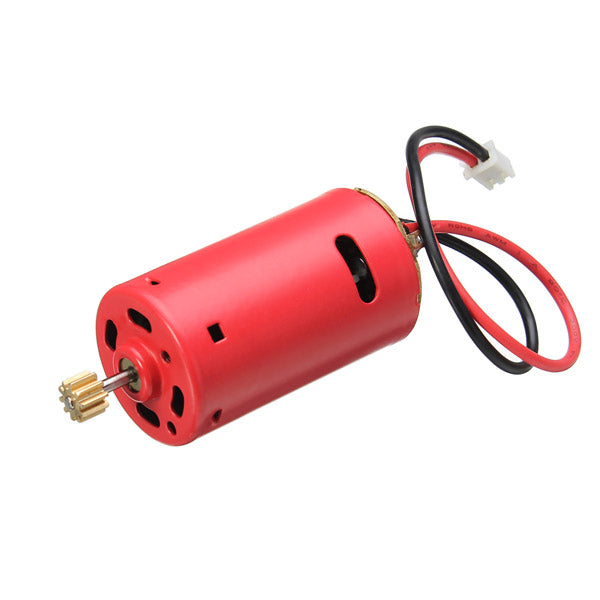

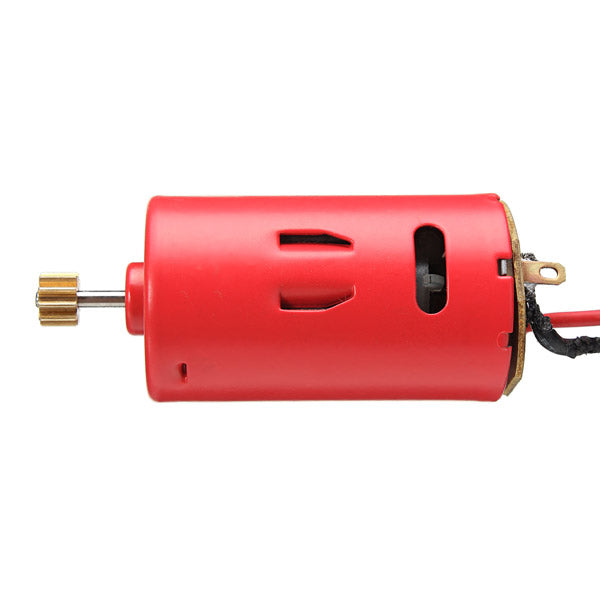

Item Name: Brushed Motor

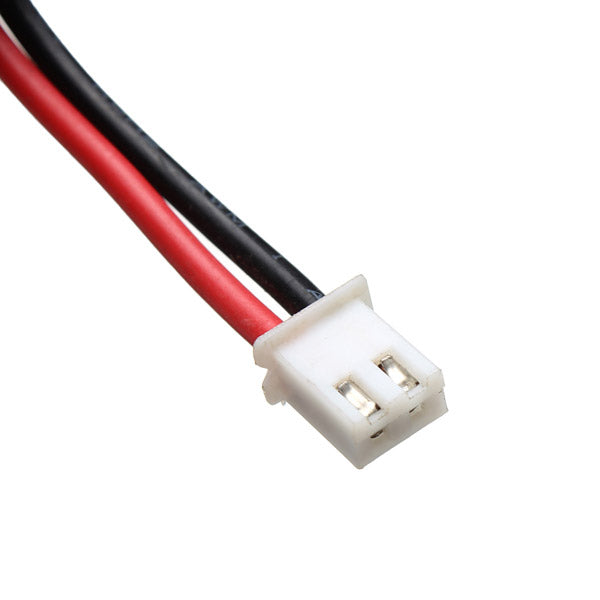

Power Cable Length: About 15cm

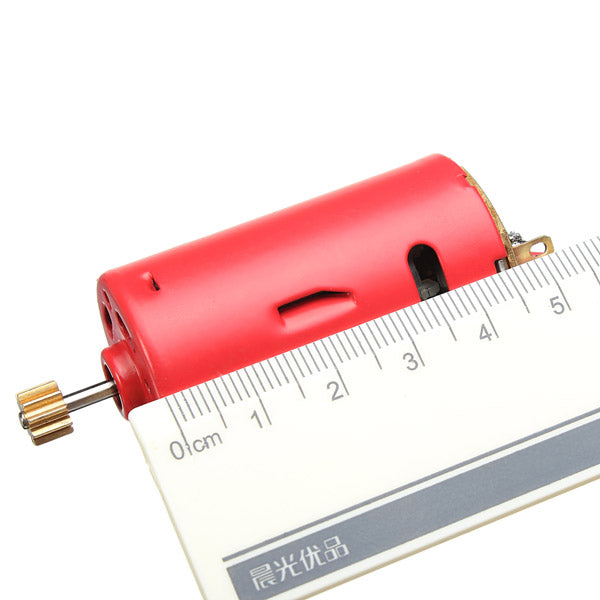

Diameter: About 27.36mm
Length: About 51.22mm
Shaft Diameter: About 2.3mm
Shaft Length: About 11.93mm

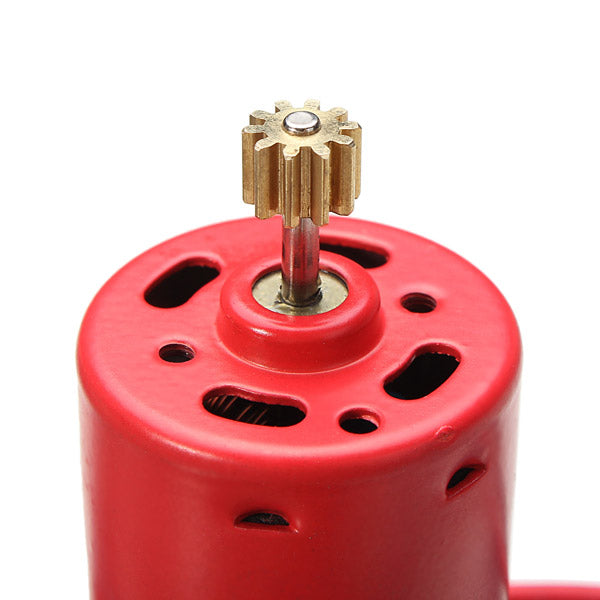

Motor Gear Diameter: About 7.02mm
It is the second generation brushed motor, featuring 3 times torque force and rotation speed.
It is suitable for mainboard of 1/16 RC Tanks, German Tiger, German Panther, Soviet Russia T34, Chinese Type-99, etc.
Package Included:
1 X Brushed Motor
Description:
Item Name: Brushed Motor
Power Cable Length: About 15cm
Diameter: About 27.36mm
Length: About 51.22mm
Shaft Diameter: About 2.3mm
Shaft Length: About 11.93mm
Motor Gear Diameter: About 7.02mm
It is the second generation brushed motor, featuring 3 times torque force and rotation speed.
It is suitable for mainboard of 1/16 RC Tanks, German Tiger, German Panther, Soviet Russia T34, Chinese Type-99, etc.
| Voltage | No Load | At Maximum Efficiency | Stall | ||||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Output | Torque | Current | ||
| 4.5-9.8V | 6.0V | r/min | A | r/min | A | g.cm | mN.m | W | g.cm | mN.m | A |
| 13800 | 0.66 | 12109 | 4.6 | 156.1 | 15.3 | 19.4 | 1253 | 122.8 | 32.5 | ||
Package Included:
1 X Brushed Motor
