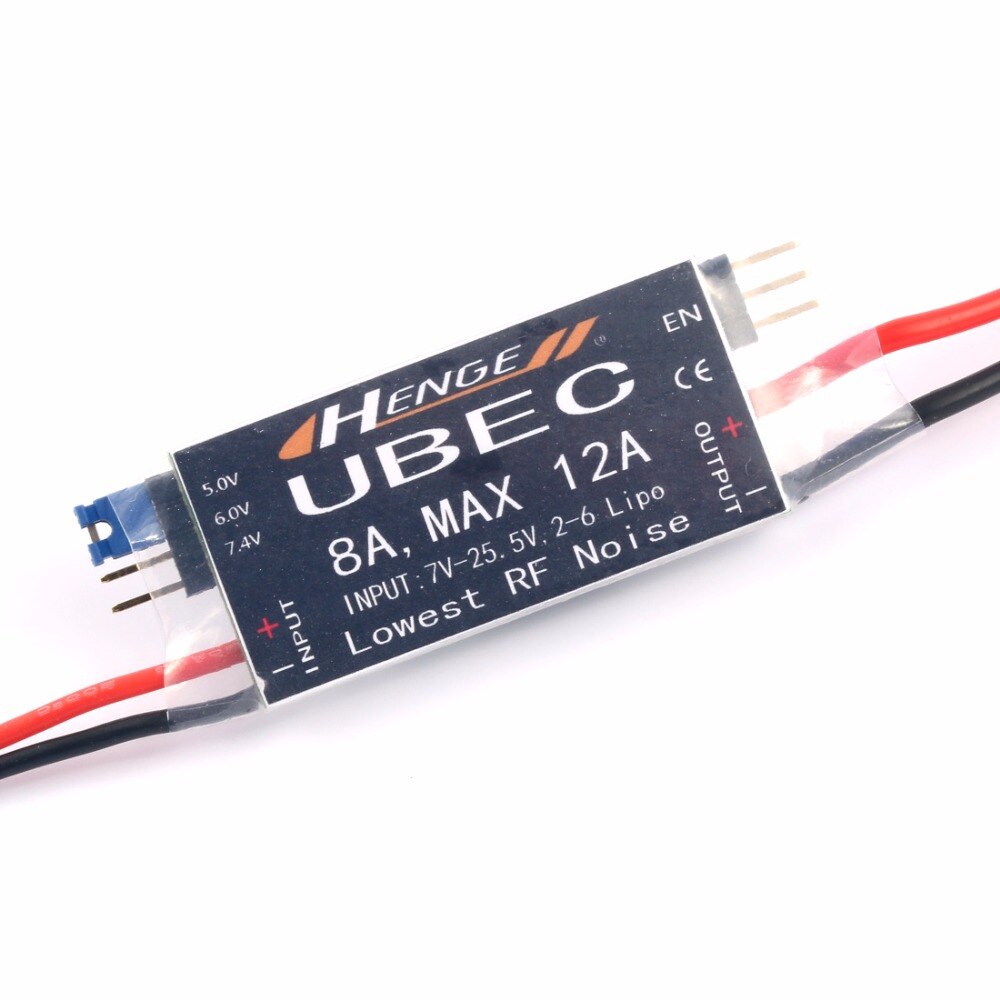

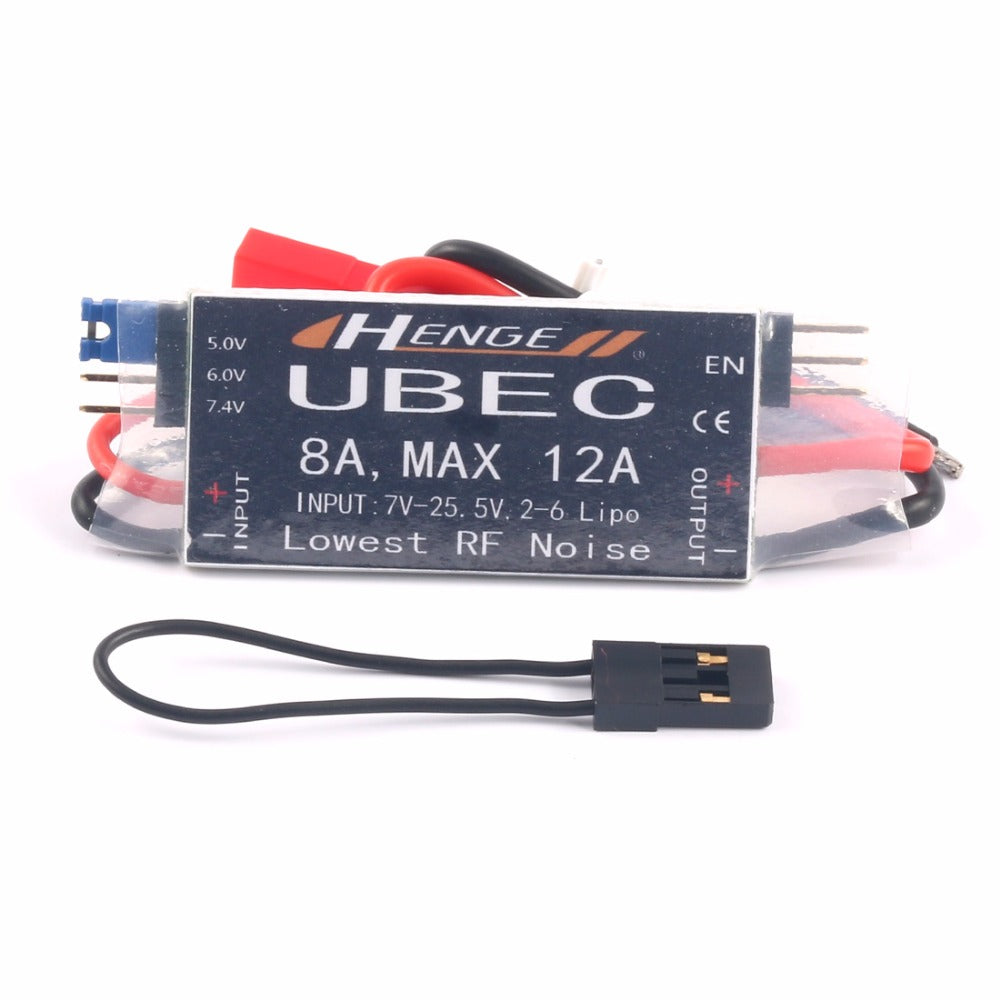

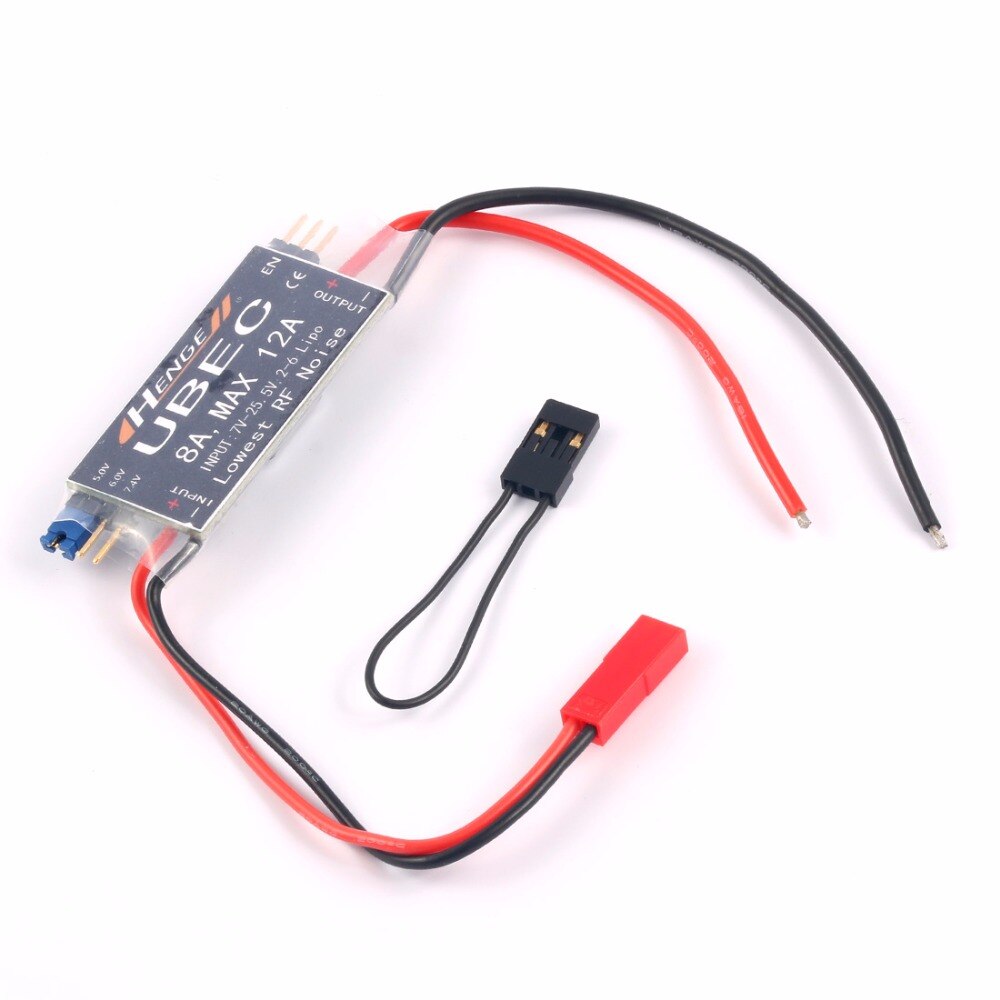

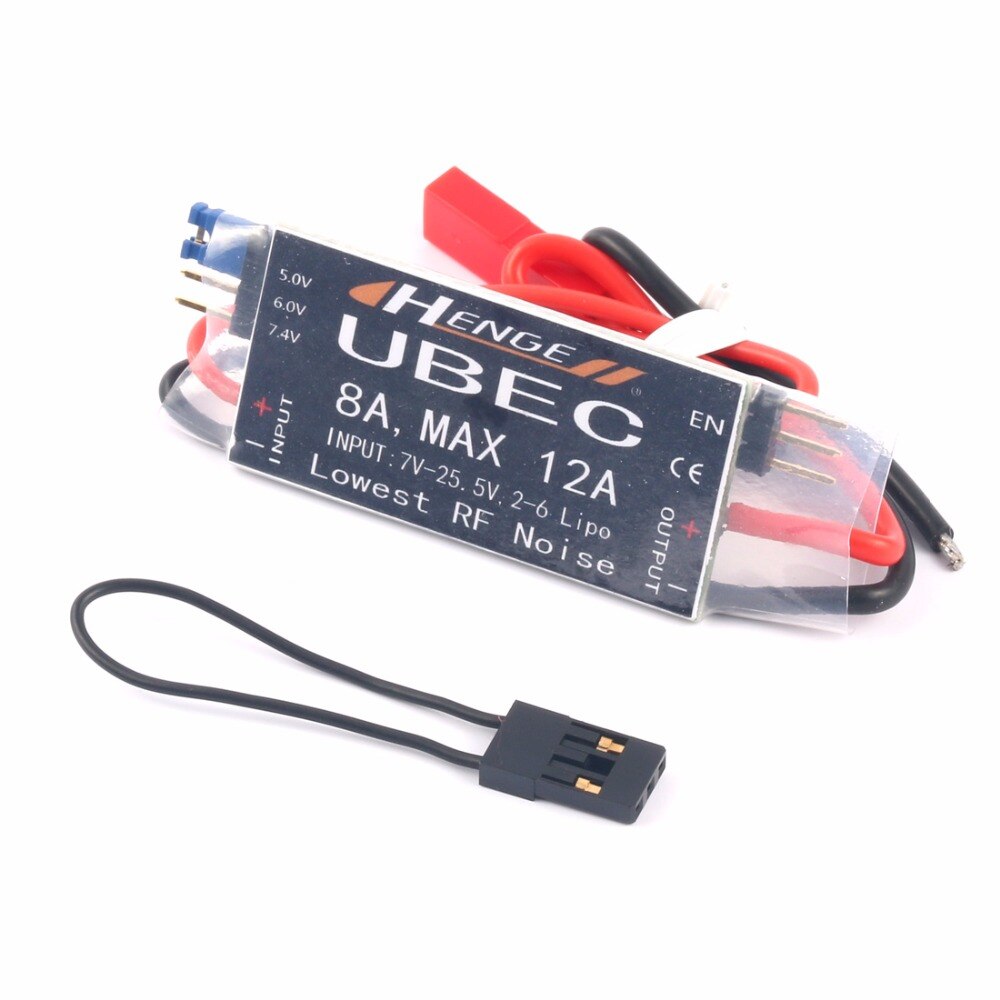

HENGE 8A UBEC Output 5V/6V/7.4V 6A/8A Max 12A Inport 7V-25.5V 2-6S Lipo/6-16 cell Ni-Mh Input Switch Mode BEC for RC Helicopter

Product Specifications:

1 Input voltage: 7V-25.5V(2-6S LIPO/ 6-16 cell Ni-Mh)

2.Output voltage: 5V/6A or 6V/6A

3.Current: 6A peak 8A (less than 15 seconds)

4.Weight: 14g

•      Adopt the most advanced synchronous rectification switching power supply control chip design, with over-current and thermal protection, the chip at maximum efficiency as high as 93%
• The small size, light weight;
•     Output current, continuous output current capacity of 6A peak output current capability of 8A, fully guaranteed equipment, demand for electricity;
•     The output line to configure the filtering magnetic ring, greatly reduces the electromagnetic interference and ensure the receiver to work;
•     Has a wide voltage range of 7V-25.5V can be within the normal work;
• Has a feature to prevent reverse input polarity, input power supply polarity mistake will not damage equipment;
•    Has a working state indicator, when the output to normal when the indicator light.

1x HENGE 8A UBEC
