High Power Airplane 2204 2300KV Brushless Motor+5045 Propeller Props+Skywalker 20A ESC+Servo Tester Servotester f RC Toy Fan DIY
Drone Spark
Regular price
$299.99
$697.99
High Power Airplane 2204 2300KV Brushless Motor+5045 Propeller+Skywalker 20A ESC+Simple Servo Tester for RC Aircraft DIY Toy Fan
20A ESC parameters:
Output capacity: continuous current 12A, short-time current 15A (not less than 10 seconds)
Power input: 2 lithium batteries or 5-6 ni-mh/ni-cd batteries
3 BEC output: 5V 2a (linear mode -linear mode)
High speed: 210,000 RPM for 2-pole motors, 70000 RPM for 6-pole motors, and 35,000 RPM for 12-pole motors
Size: 38mm (length) *18mm (width) *7mm (height)
Weight: 10g
Motor parameters:
2204-2300 kv
The outer diameter of the motor is 28mm
Weight: 27 g
Suitable for electrical regulation 12a-40a
most pulls: 420g
Applicable propeller: 4-6inch 2-blade propeller 4-5inch 3-blades propeller
Product specifications:
(1) Output: <= 15mA (5.0)
(2) Input: DC 4.2-6.0v
(3) Output signal: 1.5ms
(4) Size: 46*32*17MM
(5) Weight: 8g
(6) Adjustment method: manual, automatic, median.
Features: It is very convenient to detect and set the virtual bit, jitter and median of the server.
Can be connected to two sets of servos or ESC; single-chip control, good stability and high precision. Turn the knob to detect the servo.

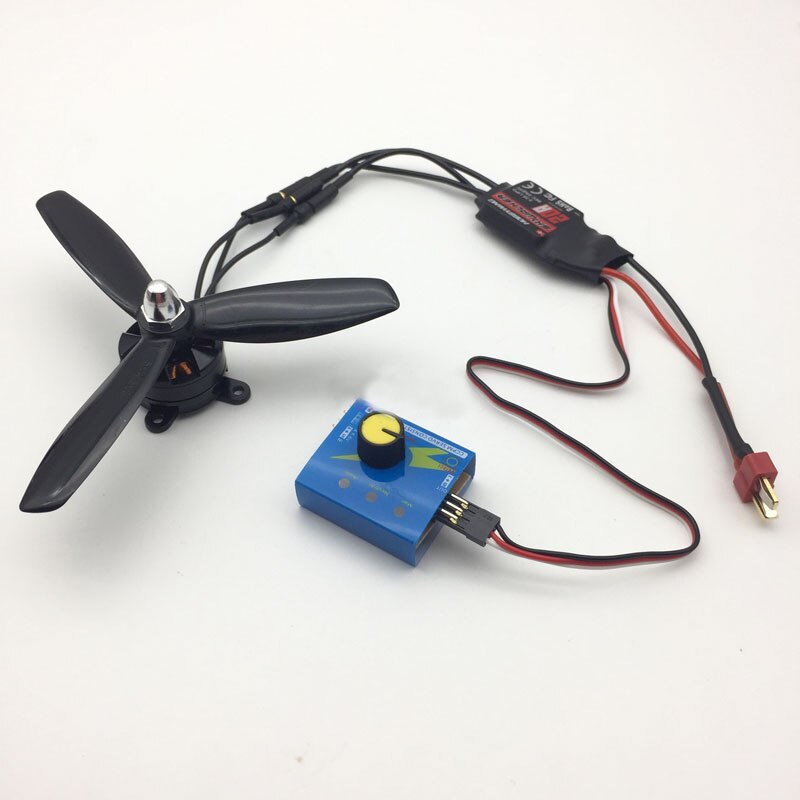

If you connect the electronic governor (with or without brush), you can get rid of the remote control device for manual speed control, for test adjustment
Speed or motor performance is very practical, no need to tediously connect the remote control and receiver. It is equivalent to a "hand
The function of the "receiver", through the knob to simulate the transmitter steering

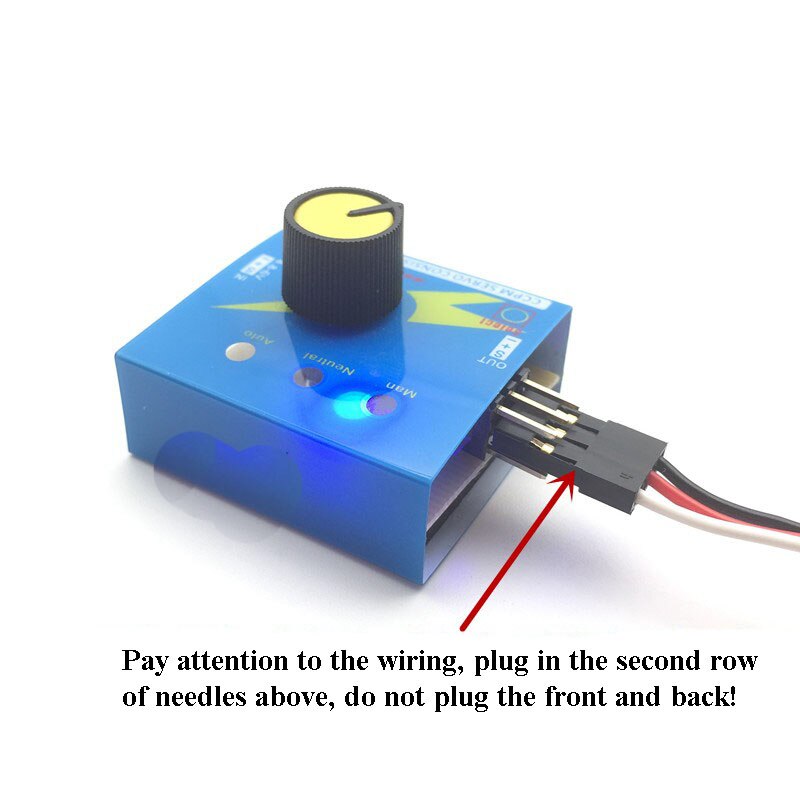

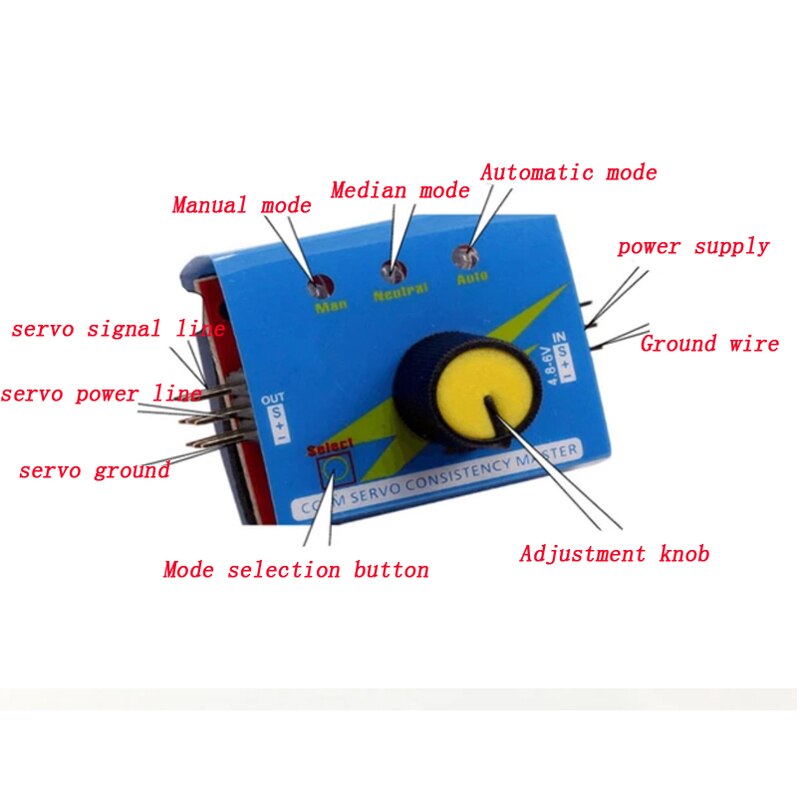

Instructions for use: Refer to the picture below, the left servo is connected to the upper and lower 3 groups, which can be connected to 3 servos; the right single-row pin is connected to the power supply, close to the side is the negative pole (see the identification symbol), and the battery negative pole is connected. Do not pay attention to the reverse, if the power supply is reversed, the IC will be burned; the pin corresponding to the S identifier will be ignored. When the power is turned on, the blue light will be on at the same time, then only the first one on the left will be illuminated. For the manual adjustment of the potentiometer test, press the button, the middle light is on, and it is the centering test; the third light is on, and the test is automatic. The test ESC is connected in the same way as the servo, but the input should not be connected to the power supply. The test motor must be connected to the ESC first, just like the ESC!

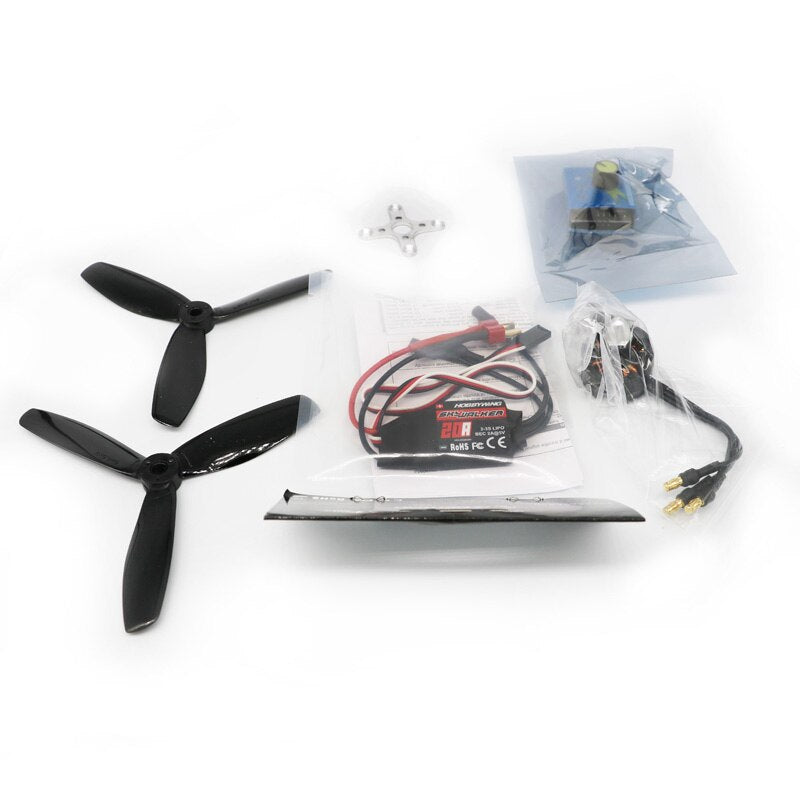

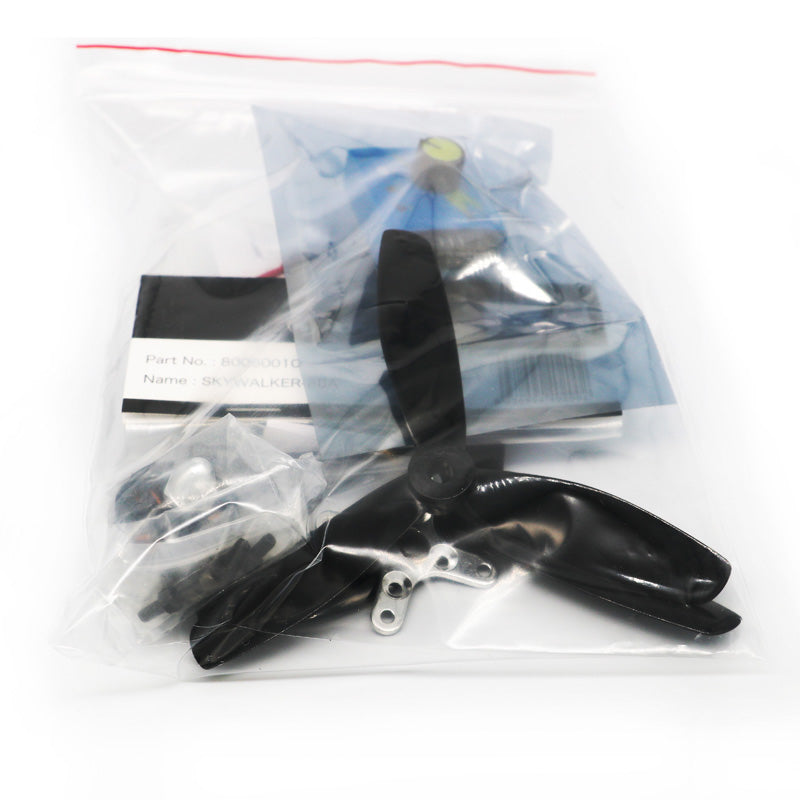

Package included:
1 x 2204 2300KV Brushless Motor
1 x 5045 Propeller
1 x ESC
1 x servo tester
Or
1 x motor
1 x propeller
Or
1 x servo tester
Softly remind that battery in the picture is not included in the package
